FMX15
FMX15
A new generation for flagship wedge Flexsys; FMX series encompasses a range of tailored monitoring solutions featuring coaxial design, precise dispersion pattern, last-generation sound processing with linear phase FIR Filters and maximum adaptability to the needs of every performer.
A new generation for flagship wedge Flexsys; FMX series encompasses a range of tailored monitoring solutions featuring coaxial design, precise dispersion pattern, last-generation sound processing with linear phase FIR Filters and maximum adaptability to the needs of every performer.

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

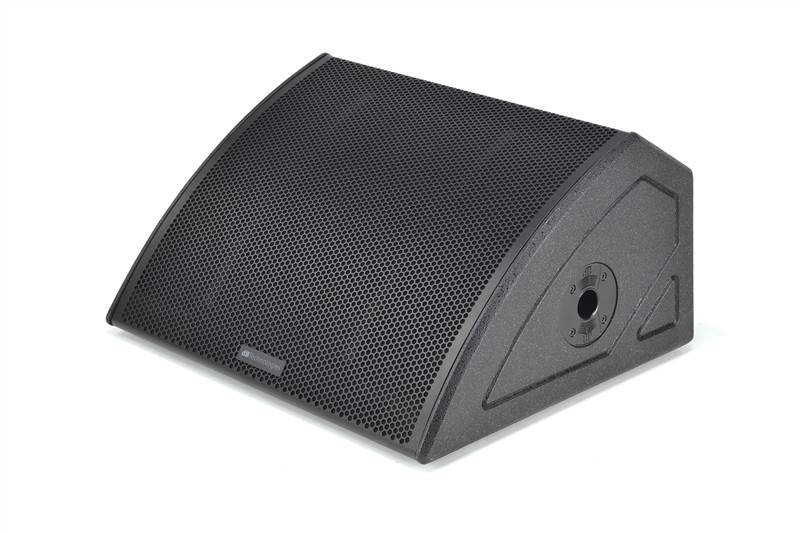

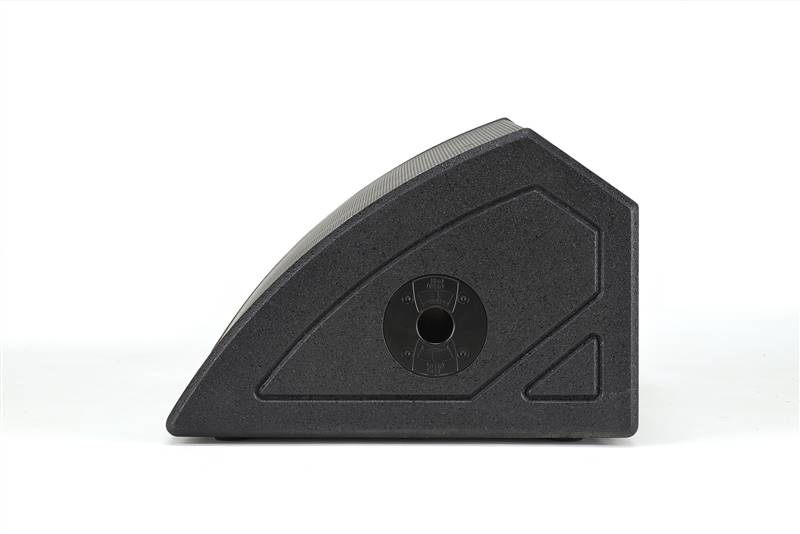

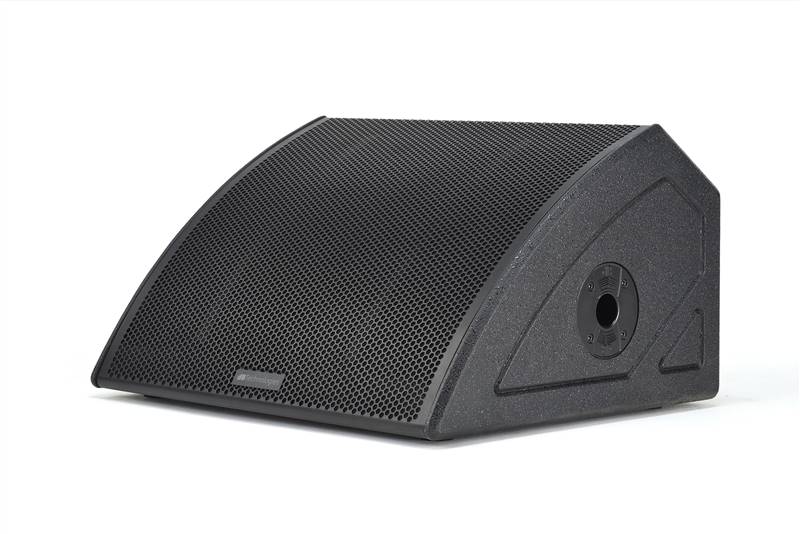

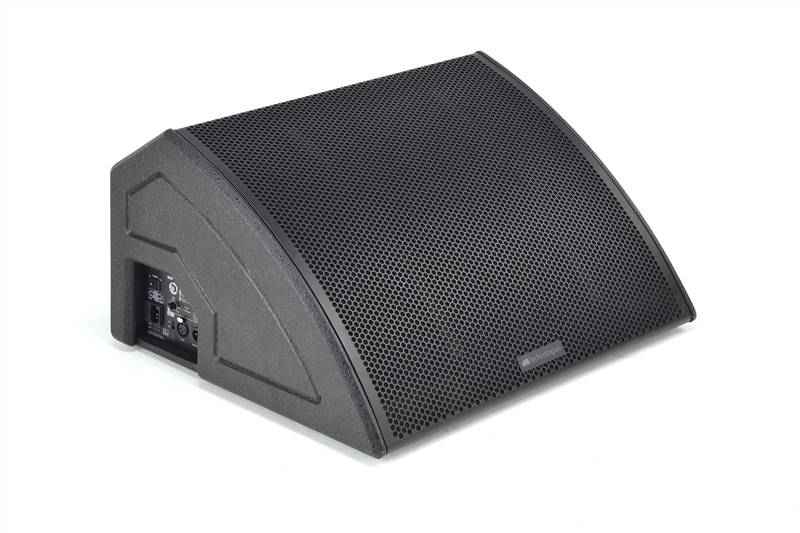

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

Datos Técnicos
Tipo de Caja Acústica
Monitor de Escenario Activo Coaxial de 2 Vías
Datos Acústicos
Respuesta de Frecuencia [+/-3 dB]
72 - 20.000 Hz
SPL Máx
120 dB
AF
1"
Tipo AF
Motor de compresión
Trompeta
Trompeta CD
BF
10"
Amplificador
Tecnología de Amplificación
Digipack™
Clase de Amplificador
Clase D
Potencia PRG
400 W
Potencia Máxima
800 W
Procesador
Controlador
DSP 24bit/48kHz
Preconfiguraciones de Sistema
8 preconfiguraciones
Limitador
Dual Active Peak, RMS, Termal

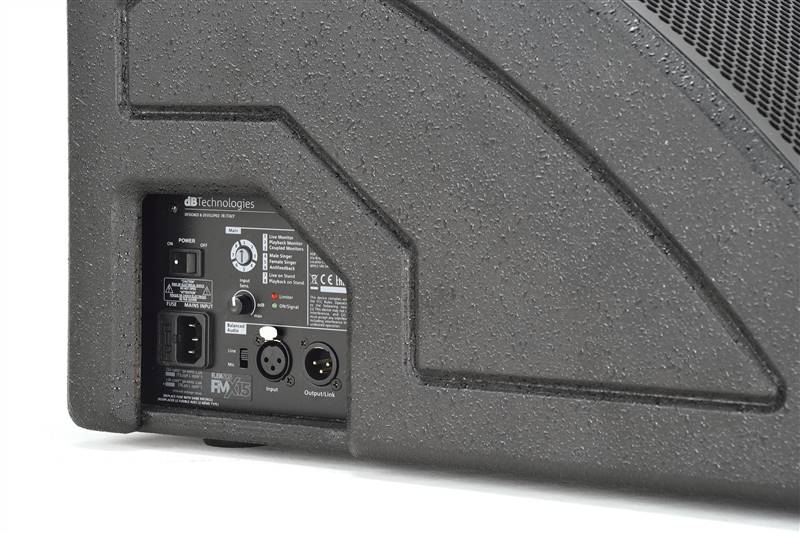

Sección de Entrada
Entrada de Señal
Entrada de Micrófono
Salida de Señal
Power Socket
Margen de Alimentación
Mecánica
Caja
Multiplex con revestimiento H.E.T, reforzado
Diseño de la Caja
Multifuncional, Perfil Bajo
Ángulos
2 ángulos del monitor
Ancho
370 mm (14.8 in)
Alto
290 mm (11.6 in)
Profundidad
410 mm (16.4 in)
Peso
12.8 kg (28.22 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Features
  • Active 2-way stage monitor
  • Coaxial configuration
  • Linear phase FIR Filters
  • Ultra-precise directivity
  • Rotatable horn (90°x60° or 60°x90° dispersion)

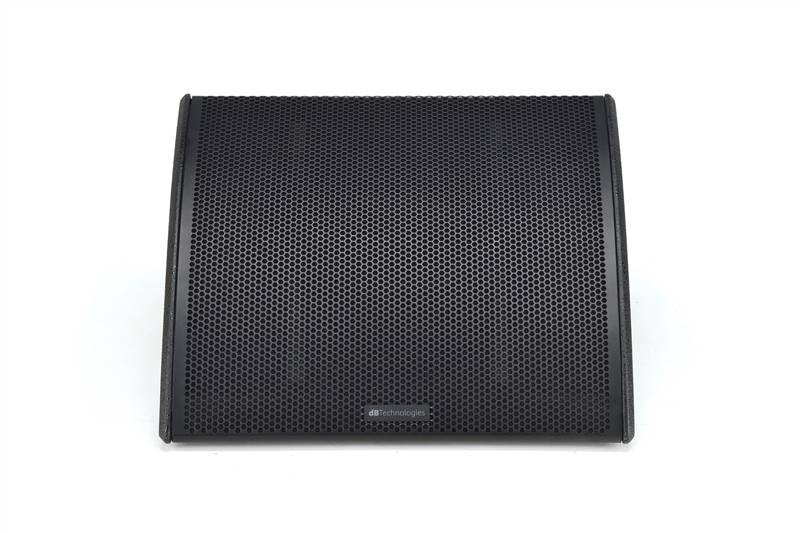

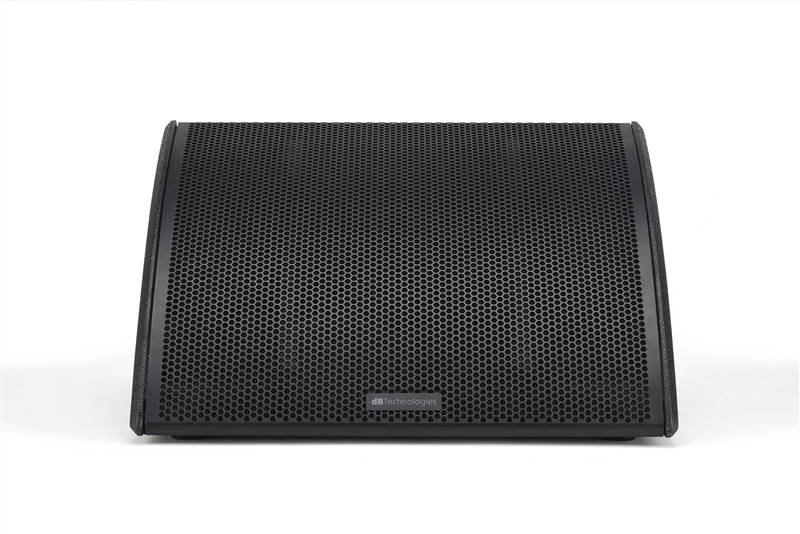

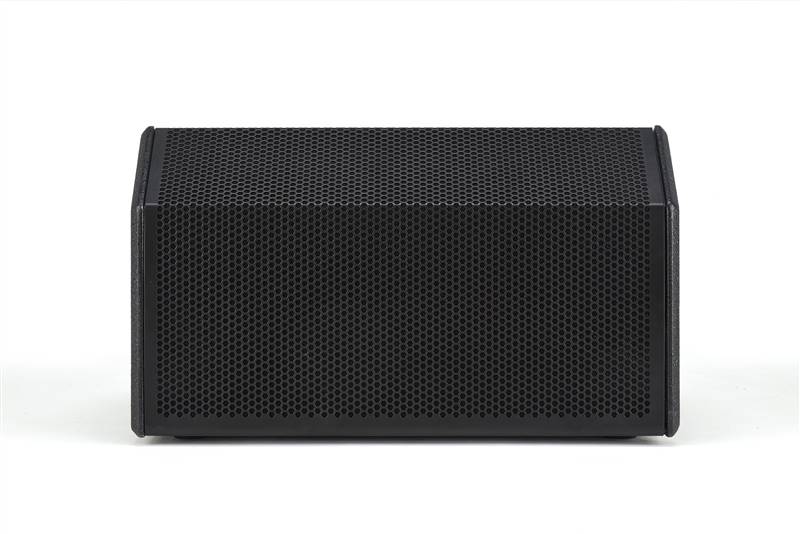

  • Front-rear grille design
  • Integrated handle on bottom side
