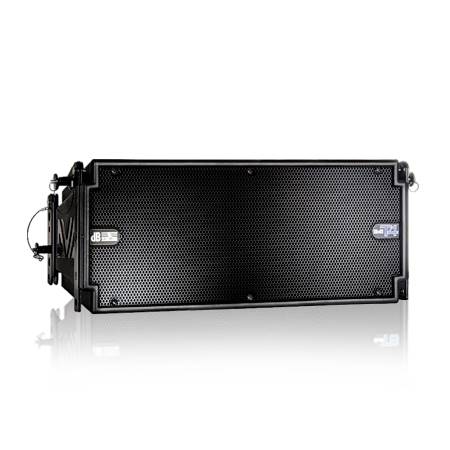

The DVA T4 is equipped with unique digital power amps that provide a total of 420W RMS.
Driven by Digipro® technology, it renders signals very accurately thanks to a multiband compressor/ limiter with separate response curves for each signal path. The 8“ Neodymium-Woofer is equipped with a high power 2.5“ voice coil to provide superior sound pressure level in a very compact size. The 6.5“ Neodymium-Midrange speaker has a sealed basket to provide an optimized volume capacity including high sensitivity and superb sound reproduction. It also has a horn exit including phase plug for defined and linear sound emission. The build in 1”Neodymium- Drivers are equipped with a 1.4” Mylar- Membrane which allow a very quick response and provide a linear frequency range at a surprisingly low weight.
Read More
TECHNOLOGIES
Neodymium TransducersNeodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerful magnetic field once charged. This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favoring its weight and space capacity.
PFC (Power Factor Corrector)The Power Factor Corrector greatly improves the efficiency of the system. Performances of the amplifier are very stable and consistent, regardless of the quality of the mains. This also grants a worldwide compatibility of the power supply - from 90V to 265V 50/60Hz - and limits power consumption.
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
SMPSAn SMPS is an electronic power supply that uses high-frequency switching and control circuits to convert electrical power efficiently. It transforms input voltage (AC or DC) to a regulated output voltage with minimal energy loss. Commonly used for its high efficiency, small size, and lightweight design.
Technical Data
Speaker Type
3-Way Active Line Array Module
Acoustical data
Frequency Response [+/- 3dB]
80 - 19.000 Hz
Max SPL
One Unit: 128 dB
HF
2x1 "
Voice Coil HF
1.4 "
Directivity
100x15° Single unit
MF
1x 6.5 "
Voice Coil MF
1.5 "
LF
8 "
Voice Coil LF
2.5 "
Amplifier
Amp Technology
Digipro®
Amp Class
Class D
HF Amp
100 W RMS
MF Amp
100 W RMS
LF Amp
220 W RMS
Cooling
Convection
Processor
Controller
Analog Devices
AD/DA Converter
DSP 24 bit/48 kHz
System Presets
8, HF/Low-mid correction
Limiter
Dual Active Limiter
Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF
1800 Hz
Slope MF-HF
24 dB/Octave
Crossover Frequency LF-MF
400 Hz
Slope LF-MF
24 dB/Octave

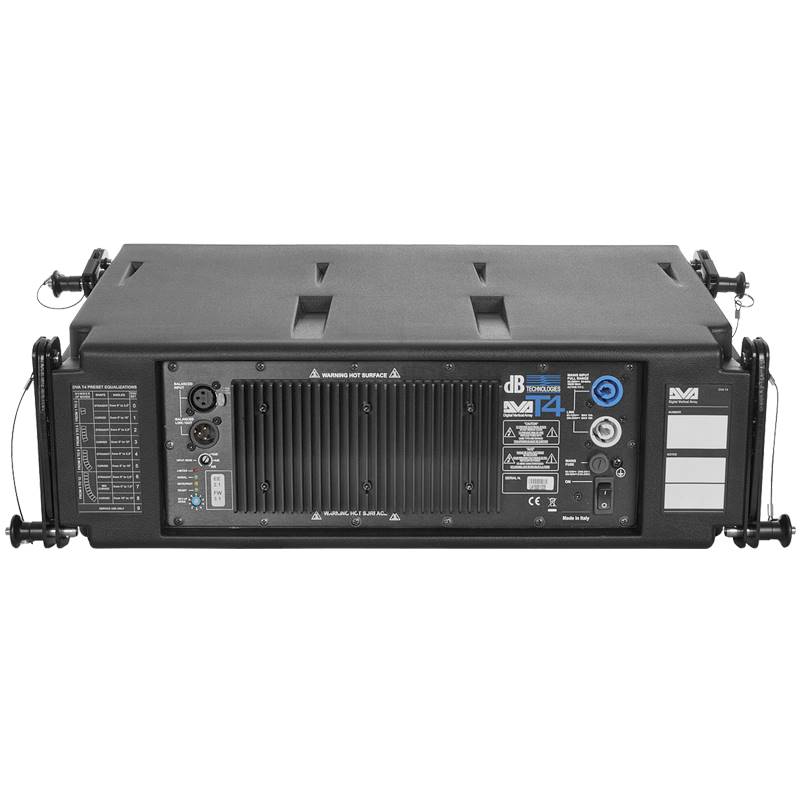

Input
Signal Input
1x XLR fem, Bal.
Signal Output
1x XLR male, Bal.
Power Socket
1x Powercon In
1x Powercon Out
Voltage Range
90 - 240 V
Mechanics
Housing
Polypropylen PP reinforced
Housing Design
Trapezoidal 15°
Rigging Points
Integrated rigging hardware
Width
580 mm (23.2 in)
Height
240 mm (9.6 in)
Depth
327 mm (13.08 in)
Weight
13.8 kg (30.42 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
