Loaded with high-quality speakers, it provides high-end audio performance with maximum reliability and minimum power compression. A 1.4” driver with a 2.5” voice coil designed to handle highest loads renders vocals with amazing accuracy across medium-to-longer throw distances.

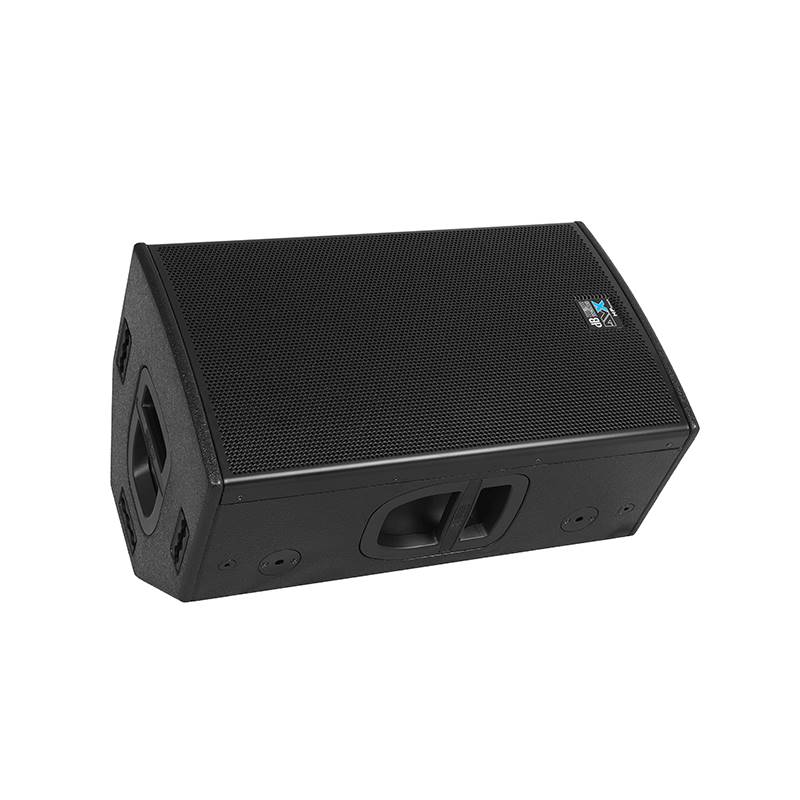

The housing’s multifunctional design incorporates rigging points and a slanted panel serving monitoring purposes.

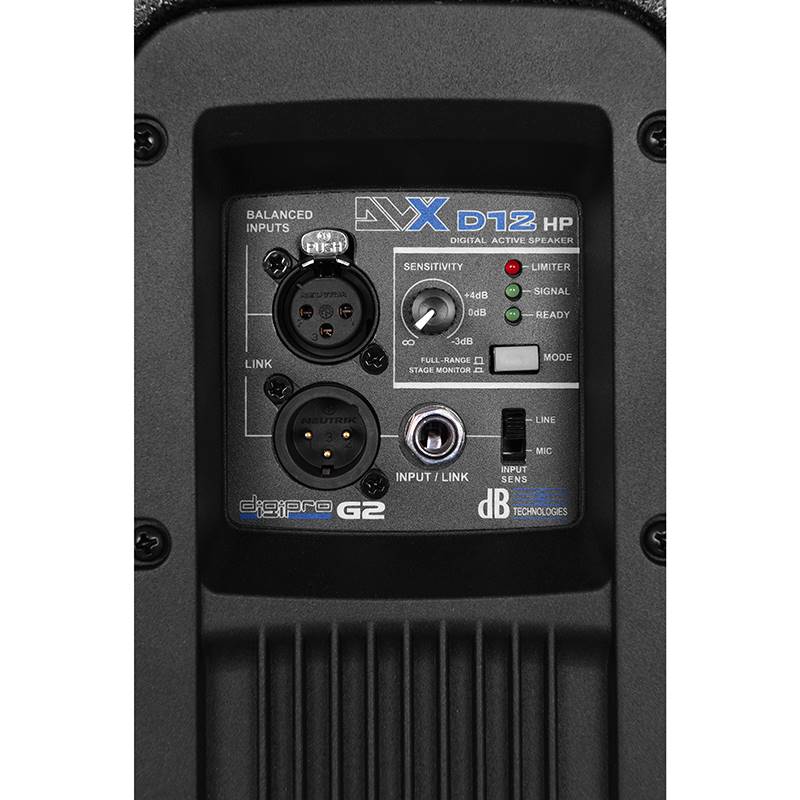

The onboard controller even provides a special monitor setup that specifically adapts the enclosure’s performance for use as a monitor.
This DSP also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.
The DVX D12 HP is the perfect match for the DVA Series subwoofers.
Read More
TECHNOLOGIES
Digipro® G2System of digital amplification engineered by dBTechnologies. Based on the previous Digipro project, the newest G2 versions' efficiency has been improved by cutting down on consumption and heating. The introduction of a 'new avant-garde' component, a better s/n relation and a lighter weight, confer a superior dynamism to the new Digipro G2 digital speakers.
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
SMPSAn SMPS is an electronic power supply that uses high-frequency switching and control circuits to convert electrical power efficiently. It transforms input voltage (AC or DC) to a regulated output voltage with minimal energy loss. Commonly used for its high efficiency, small size, and lightweight design.
Technical Data
Speaker Type
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
55 - 20.000 Hz
Frequency Response [+/- 3dB]
68 - 19.000 Hz
Max SPL
131 dB
HF
1.4 "
Voice Coil HF
2.5 "
Directivity
60x40 °
Horn
CD Horn Aluminium
Rotatable Horn
YES
LF
12 "
Voice Coil LF
3 "
Amplifier
Amp Technology
Digipro® G2
Amp Class
Class D
Power RMS
700 W
Peak Power
1400 W
Cooling
Convection
Processor
Controller
DSP 24 Bit/48 kHz
System Presets
FOH, Monitor
Limiter
RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF
1350 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex plywood
Housing Design
Multifunctional
Angles Up
Monitor use 45 °
Rigging Points
6x M10
4x Quick-Relase Pins
Flytracks
3x on top
3x on bottom
Width
370 mm (14.8 in)
Height
625 mm (25 in)
Depth
395 mm (15.8 in)
Weight
27.5 kg (60.63 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
