DVX PSW18

Column Speakers
Column Speakers

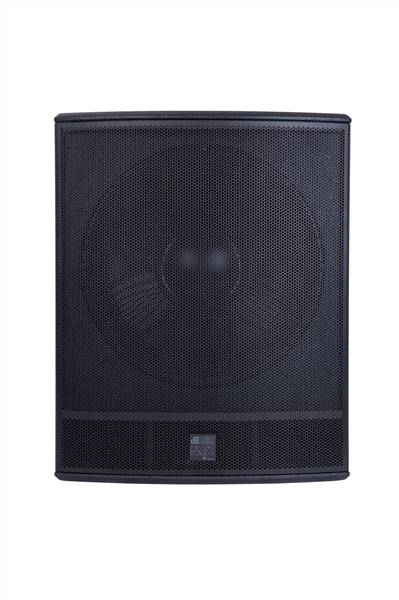

Thanks to its 18” high-quality woofer, the impulse response is incredibly truthful, reproducing low-end frequencies with extreme precision and providing a finely shaped sound image. Compact dimensions combined with light weight and sturdy construction of this subwoofer, make it a good choice whenever you need to boost low-end frequencies without losing the advantages of portability.

The DVX PSW18 offers a 18" woofer with a 4" voice coil, which can take a load up to 2000 watts putting out an extraordinary SPL of 134dB at very powerful low end frequencies.

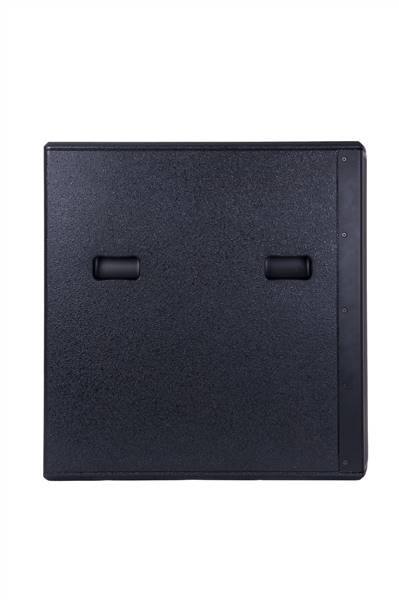

It features 2 handles on each side for easy transport, a standard M20 pole mount plate, the predisposition for wheels on the bottom and recesses on the top to facilitate the stacking of 2-way loudspeakers or another subwoofer.

It can be easily combined with DVX P12 and DVX P15 high/mid units by using an external crossover like dBTechnologies AC26N. In both standalone and dual stack configurations, it is an excellent choice for FOH applications. What's more, its powerful punch makes this subwoofer the right choice for drum fills.

Read More

TECHNOLOGIES

Technical Data
Speaker Type
Passive Subwoofer

Acoustical data
RMS Power
1000 W

Peak Power
2000 W

Impedance
8 Ohms

Frequency Response [+/- 6dB]
32 - 200 Hz

Max SPL
134 dB

LF
18"

Voice Coil LF
4"

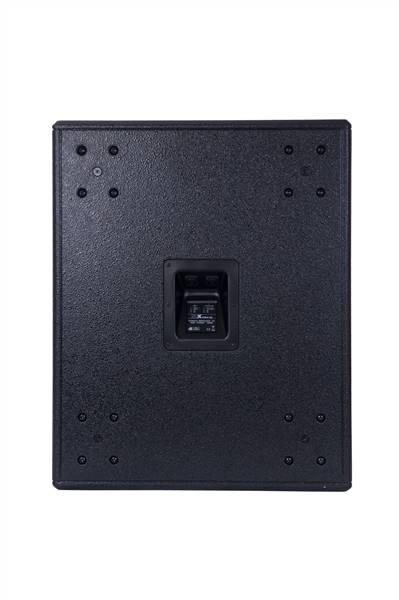

Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics
Housing
Multiplex plywood

Pole mount
M20

Width
565 mm (22.6 in)

Height
710 mm (28 in)

Depth
700 mm (27.5 in)

Weight
44.1 kg (97.2 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename: Category: Filetype: Size: Language: Release:
DWG_DVX-PSW18 Drawing DWG 0,49 MB English 2015-05-04
CE-DVX-PSW18 Certifications PDF 0,75 MB English 2016-10-25
DVX-PSW18-datasheet-08-2016 Data Sheet PDF 0,58 MB English 2016-08-08
DVX-PSW-series---MAN_rev.2 Manual PDF 1,04 MB English 2017-11-15
