DVX PSW218

Column Speakers
Column Speakers

Thanks to its two 18” high-quality woofers, the DVX PSW218 combines the impulse low-frequency response and punchy temperament already present in the DVX PSW18, with the high sound pressure determined by doubled transducers and greater volume of its enclosure. The construction still lightweight and sturdy of this subwoofer; makes it the ideal choice for all those situations in which you need to reinforce the low frequencies without losing the advantages of portability.

The DVX PSW218 offers two 18” woofers with a 4” voice coil that can take a load up to 4000 watts and provide an extraordinary SPL of 140dB at very low-end frequencies down to 28Hz.

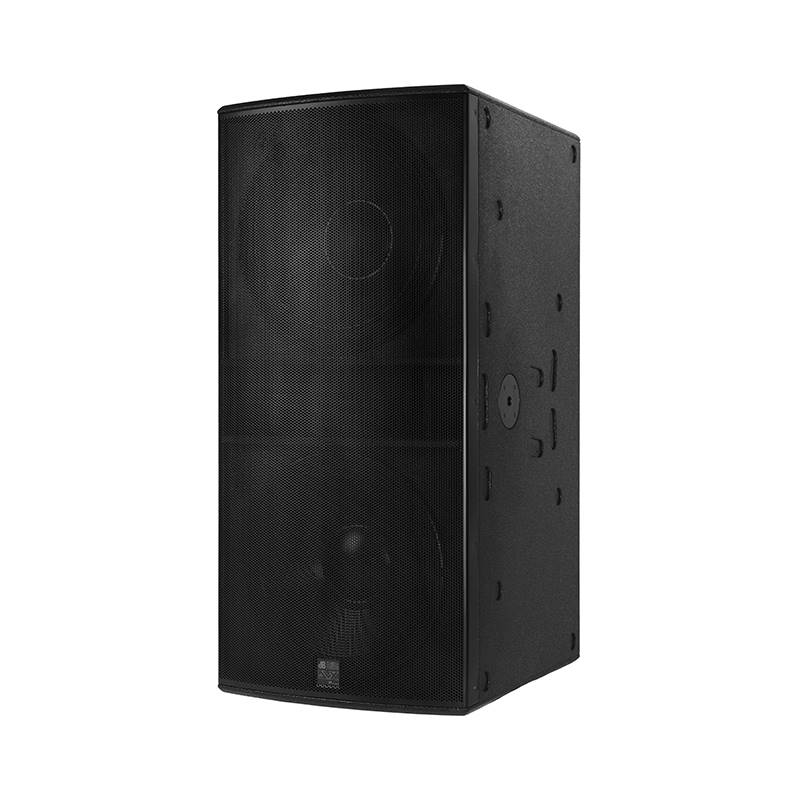

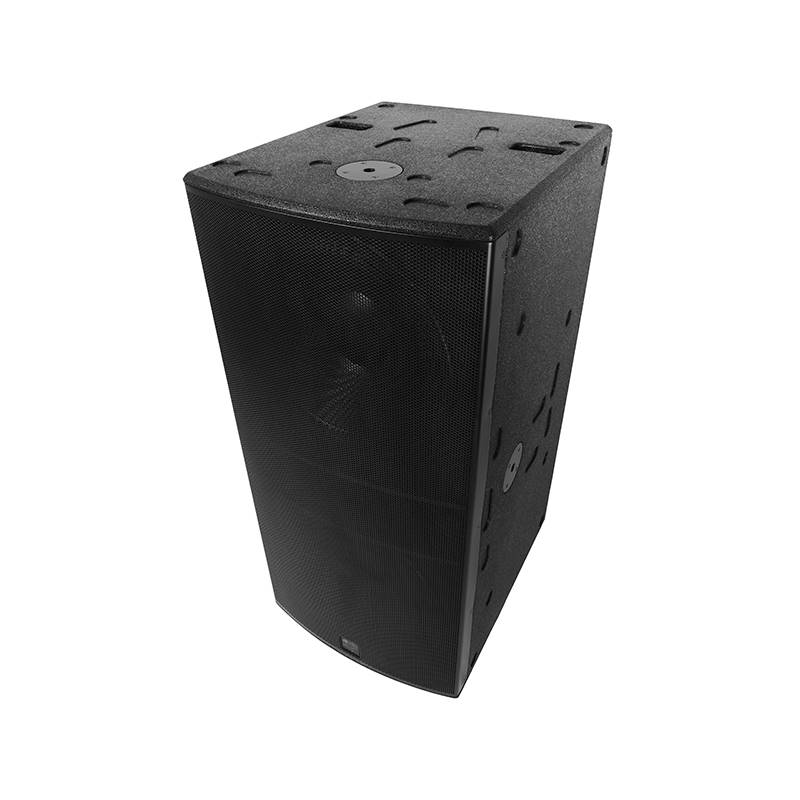

It features four handles (two on each side) for easy transport, the predisposition for wheels on the bottom, a couple of standard M20 pole mount plates and recesses on top and on one side of the box to facilitate the stacking of another subwoofer or DVX full-range loudspeakers, or any other kind of speaker provided with a standard D36mm hole thanks to the DS2-S optional pole mount adapter.

It can be easily combined with DVX passive full-range speakers by using an external crossover like dBTechnologies AC26N. In both standalone or stacked configurations, it is an excellent choice for FOH applications. What's more, its powerful punch makes this subwoofer the right choice for drum fills.

Read More

TECHNOLOGIES

Technical Data
Speaker Type
Passive Subwoofer

Acoustical data
RMS Power
2000 W

Peak Power
4000 W

Impedance
4 Ohms

Frequency Response [+/- 6dB]
32 - 200 hz

Max SPL
140 dB

LF
2x 18"

Voice Coil LF
4"

Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics
Housing
Multiplex plywood

Handles
2x side

Pole mount
2x M20

Width
565 mm (22.2 in)

Height
1207 mm (47.5 in)

Depth
700 mm (27.5 in)

Weight
74.2 kg (163 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename: Category: Filetype: Size: Language: Release:
DWG_DVX-PSW218 Drawing DWG 0,67 MB English 2016-03-16
CE-DVX-PSW218 Certifications PDF 0,74 MB English 2016-10-25
DVX-PSW-series---MAN_rev.2 Manual PDF 1,04 MB English 2017-11-15
