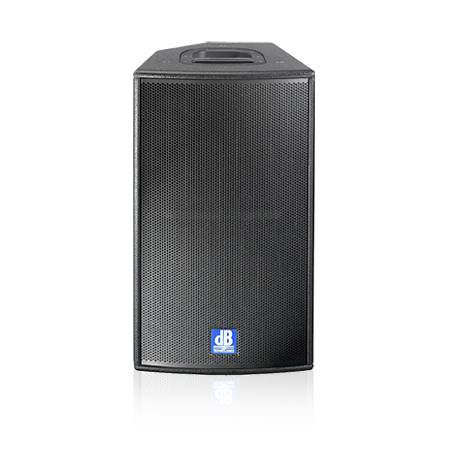

The two-way enclosure loaded with a 12“ speaker is so frequently used for sound reinforcement applications that it has become a de facto standard. Thanks to its rotatable horn, integrated rigging points, and slanted panel for monitoring, the F12 will serve you well in almost every conceivable application.
Rotatable Horn: YES
Controller: DSP 24bit/48kHz

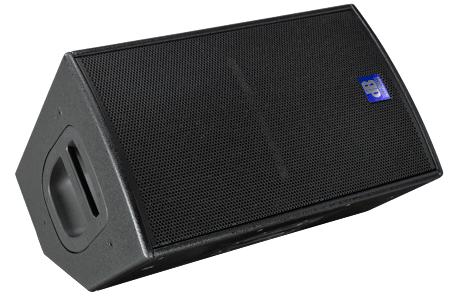

Angles Up: Monitor use 45 °
Read More
TECHNOLOGIES
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
Technical Data
Speaker Type
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
65 - 20.000 Hz
Frequency Response [+/- 3dB]
75 - 19.000 Hz
Max SPL
127 dB
HF
1 "
Type HF
Compression driver
Directivity
90 x 40°
Horn
CD Horn
Rotatable Horn
YES
LF
12"

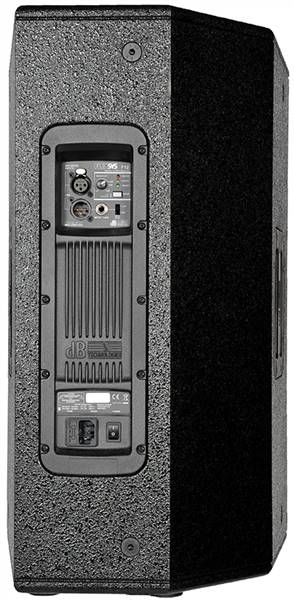

Amplifier
Amp Technology
Digipro®
Amp Class
Class D
Power PRG
800 W
Peak Power
1600 W
Processor
Controller
DSP 24bit/48kHz
System Presets
Flat, Processed
Limiter
Dual Active
Peak, RMS, Thermal
Crossover Frequency LF-HF
1300 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex
Angles Up
Monitor use 45 °
Width
360 mm (14.4 in)
Height
610 mm (24.4 in)
Depth
360 mm (14.4 in)
Weight
16.5 kg (36.38 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
