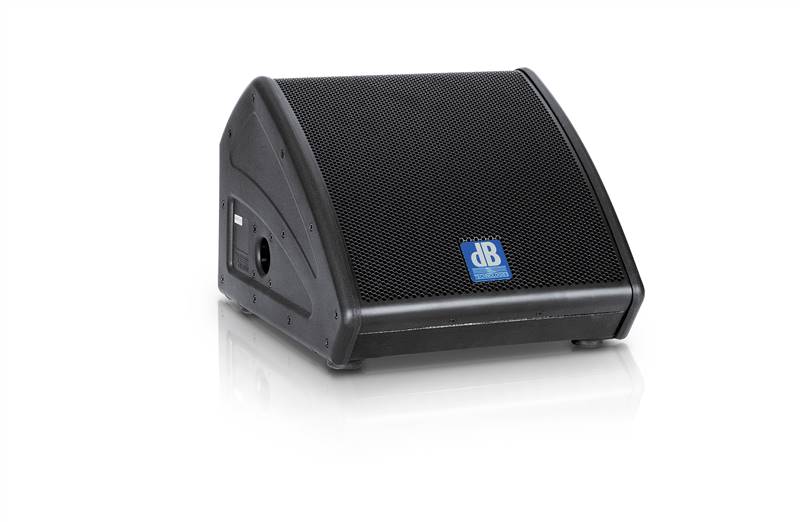

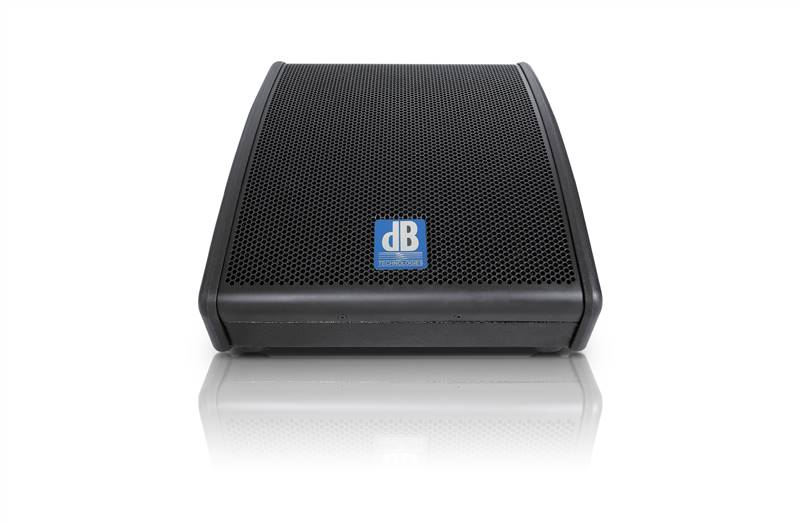

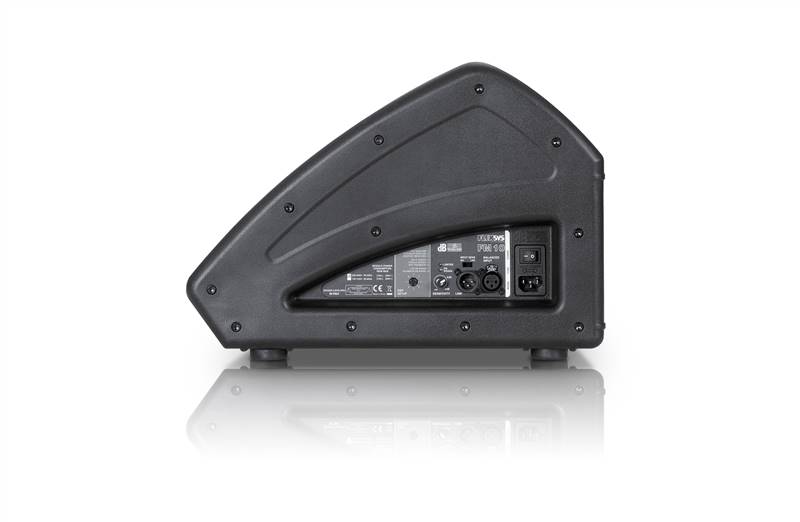

FLEXSYS FM10

Stage Monitors
Back to gallery
Stage Monitors
The FM 10 renders vocals with such remarkable power, dynamics, and precision that it can serve as a compact fullrange system.

This and its extended bass response make it the ideal monitor for vocals and keyboards.

FM Series monitors feature a powerful DSP that offers a crossover, digital multiband limiters, phase correction, and eight variable presets that serve to adapt the monitor to the varying demands of vocalists, instrumentalists, and audio playback applications.
Read More

TECHNOLOGIES

Coaxial Speaker
Coaxial SpeakerThese coaxial speakers deliver an extraordinary sound quality that defies the compact design of their housings. Engineered for precise directivity and uniform throw patterns, they provide the same satisfying audio experience from every listening position, with far greater resistance to Feedback.
Low Profile Monitor
Low Profile MonitorThe use of diffusion monitors is normally tied to stages for every kind of musical event. A monitor with a low profile design allows the stage to be more vacant on sight, optimizing space on stage in a rational way and allowing a more pleasant vision.
Multifunctional Housing
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset System
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Technical Data
Speaker Type
2-Way Active Coaxial Stage Monitor

Acoustical data
Frequency Response [+/- 3dB]
72 - 20.000 Hz

Max SPL
120 dB

HF
1 "

Type HF
compression driver

Horn
CD Horn

LF
10"

Amplifier
Amp Technology
Digipack™

Amp Class
Class D

Power PRG
400 W

Peak Power
800 W

Processor
Controller
DSP 24bit/48kHz

System Presets
8 presets

Limiter
Dual Active

Peak, RMS, Thermal

Mechanics
Housing
Multiplex with H.E.T coating, reinforced

Housing Design
Multifunctional, Low Profile

Angles Up
2 monitor angles °

Width
370 mm (14.8 in)

Height
290 mm (11.6 in)

Depth
410 mm (16.4 in)

Weight
12.8 kg (28.22 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename: Category: Filetype: Size: Language: Release:
Flexsys Monitor-MAN Rev2.0_ok Manual PDF 12,50 MB English 2016-01-19
