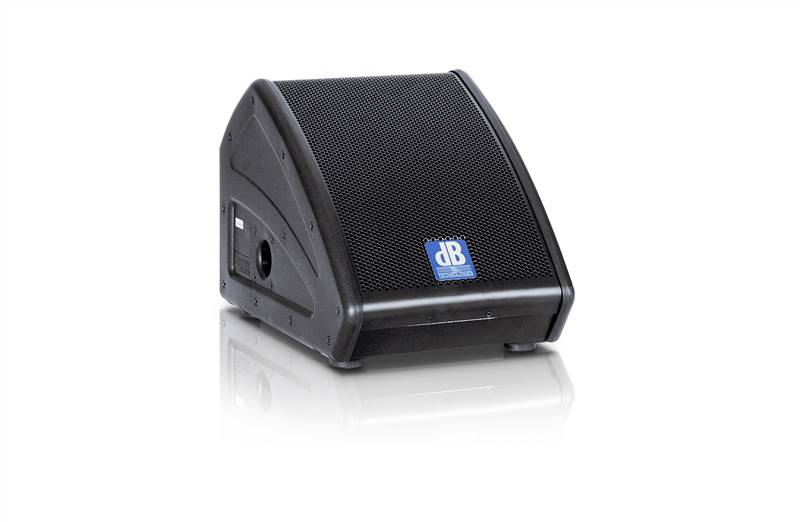

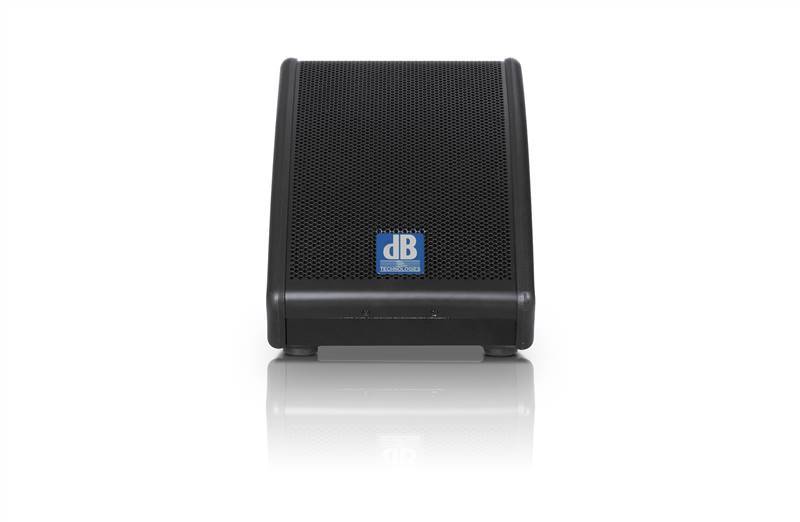

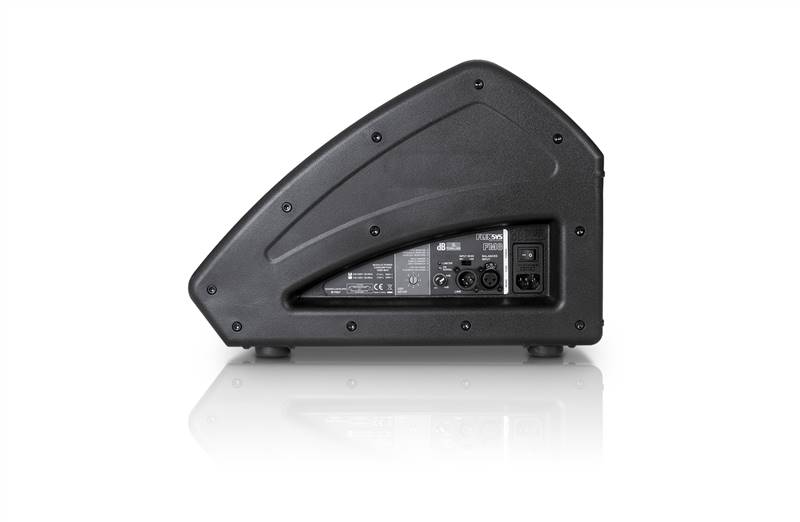

Designed for small stages, the FM 8 is equipped with a 8“ woofer that makes it the ideal ultra compact monitor for speech and vocals.
All
but invisible in most venues, this inconspicuous compact monitor
integrates into every setting, and its light weight makes it so easy to
tote.
A revolution in live sound reinforcement, the Flexsys FM
Series comprises a range of tailored monitoring solutions featuring
innovative technologies.
Housed in compact multifunctional enclosures, these units raise the bar for intelligibility, definition, and ease of use.
They are the discerning user’s first choice when nothing less than the best on-stage monitoring will do.
Read More
TECHNOLOGIES
Coaxial SpeakerThese coaxial speakers deliver an extraordinary sound quality that defies the compact design of their housings. Engineered for precise directivity and uniform throw patterns, they provide the same satisfying audio experience from every listening position, with far greater resistance to Feedback.
Low Profile MonitorThe use of diffusion monitors is normally tied to stages for every kind of musical event. A monitor with a low profile design allows the stage to be more vacant on sight, optimizing space on stage in a rational way and allowing a more pleasant vision.
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Technical Data
Speaker Type
2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [+/- 3dB]
77 - 20.000 Hz
Max SPL
117 dB
HF
1 "
Type HF
compression driver
Horn
CD Horn
LF
8"
Amplifier
Amp Technology
Digipack™
Amp Class
Class D
Power PRG
200 W
Peak Power
400 W
Processor
Controller
DSP 24bit/48kHz
System Presets
8 presets
Limiter
Dual Active
Peak, RMS, Thermal
Mechanics
Housing
Multiplex with H.E.T coating, reinforced
Housing Design
Multifunctional, Low Profile
Angles Up
2 monitor angles °
Width
280 mm (11.2 in)
Height
290 mm (11.6 in)
Depth
410 mm (16.4 in)
Weight
9.8 kg (21.61 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
