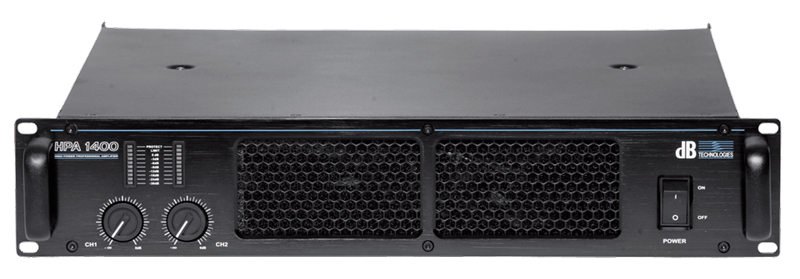

dBTechnologies’ HPA series power amps deliver high performance and quality at an astonishingly affordable price.
Designed
for professional use in touring racks as well as for fixed
installation, the series comprises four Class-(HD) models that deliver
2x 740 W/RMS.
Engineered for utmost ease of use, these amps offer
connection options - XLR inputs for patching in signals as well as
Speakon ports for connecting speaker systems.
What’s more, their extensive protective circuits ensure reliable, safe operation.
Read More
TECHNOLOGIES
Technical Data
Type
Amplifier
Acoustical data
Power RMS @ 4 ohms
2x 740 W/RMS
Power RMS @ 8 ohms
2x 440 W/RMS
Power Bridged RMS @ 8 ohms
1x 1480 W/RMS
Frequency Response
20 - 20.000 Hz
THD @ 1 kHz
0.05 %
Damping Factor @ 8 ohms
>300
Slew Rate
50 V/µs
SN Ratio
105 dB
Limiter
Internal, switchable
Cooling
Temp.controlled fan
Input
Signal Input
2x XLR
Signal Output
2x XLR
Input Sensitivity [dBu]
26, 32 dBu
Input Sensitivity [V]
1.4 V
Input Impedance
20 kohms
Output Connector
2x Speakon
Mechanics
Housing
Metal
Installation Standard
2 HU
Rack Size
19 HU
Handles
2x On Front
Width
483 mm (19.01 in)
Height
89 mm (3.56 in)
Depth
400 mm (15.74 in)
Weight
17.25 kg (37.48 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
