dBTechnologies’ HPA series power amps deliver high performance and quality at an astonishingly affordable price.
Designed for professional use in touring racks as well as for fixed installation, the series comprises four Class-(HD) models that deliver 2x 1200 W/RMS

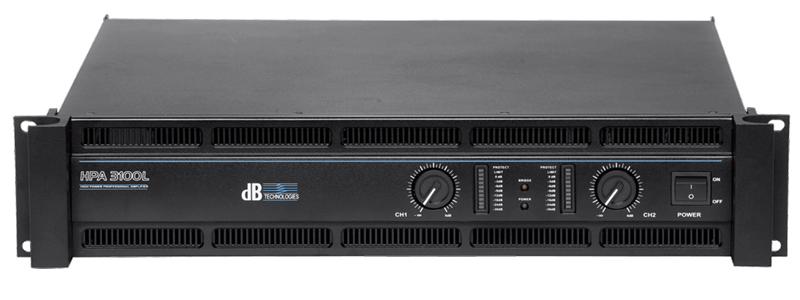

Featuring Class-(HD) technology with and weighing just 14 kg, the flagship HPA 3100 L power amp delivers up to 3400 W/RMS output.
It comes with a PFC switched-mode power supply.
Engineered for utmost ease of use, these amps offer connection options - XLR inputs for patching in signals as well as Speakon ports for connecting speaker systems.
What’s more, their extensive protective circuits ensure reliable, safe operation.
Read More
TECHNOLOGIES
PFC (Power Factor Corrector)The Power Factor Corrector greatly improves the efficiency of the system. Performances of the amplifier are very stable and consistent, regardless of the quality of the mains. This also grants a worldwide compatibility of the power supply - from 90V to 265V 50/60Hz - and limits power consumption.
Technical Data
Type
Amplifier
Acoustical data
Power RMS @ 2 ohms
2x 1700 W/RMS
Power RMS @ 4 ohms
2x 1200 W/RMS
Power RMS @ 8 ohms
2x 800 W/RMS
Power Bridged RMS @ 8 ohms
1x 2400 W/RMS
Power bridged RMS @ 4 ohms
1x 3400 W/RMS
Frequency Response
20 - 20.000 Hz
THD @ 1 kHz
0.05 %
Damping Factor @ 8 ohms
>1000
Slew Rate
55 V/µs
SN Ratio
108 dB
Limiter
Internal, switchable
Cooling
Temp.controlled fan
Input
Signal Input
2x XLR
Signal Output
2x XLR
Input Sensitivity [dBu]
26, 32 dBu
Input Sensitivity [V]
1.4 V
Input Impedance
20 kohms
Output Connector
2x Speakon
Mechanics
Housing
Metal
Installation Standard
2 HU
Rack Size
19 HU
Handles
2x On Front
Width
483 mm (19.01 in)
Height
89 mm (3.56 in)
Depth
400 mm (15.74 in)
Weight
14 kg (30.86 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
