LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

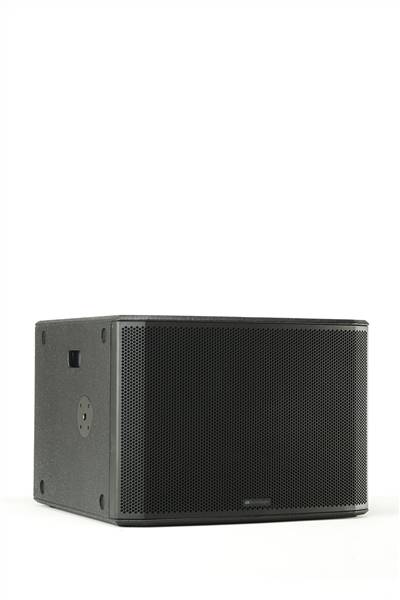

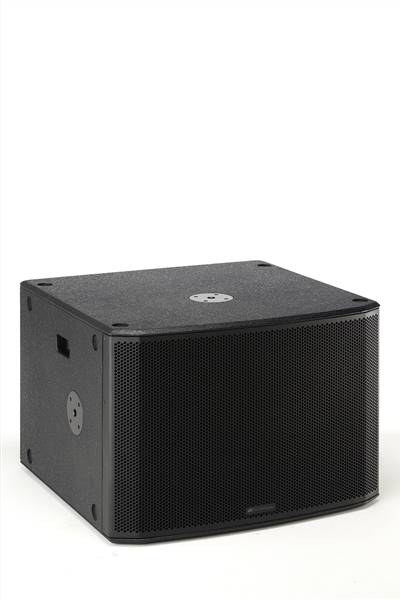

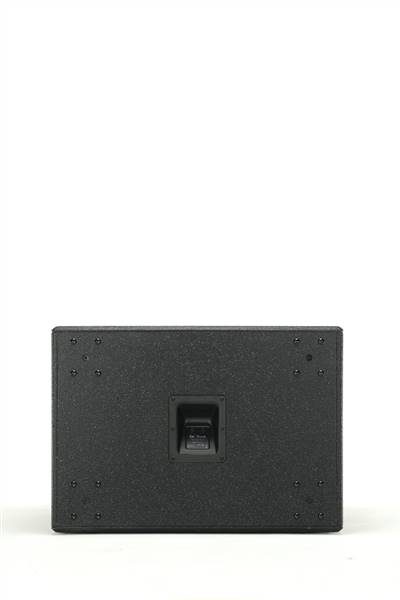

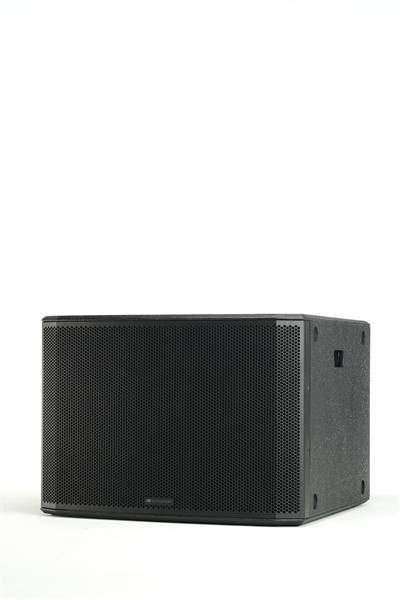

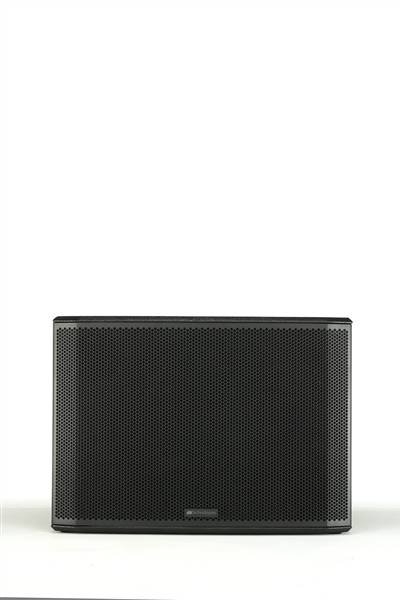

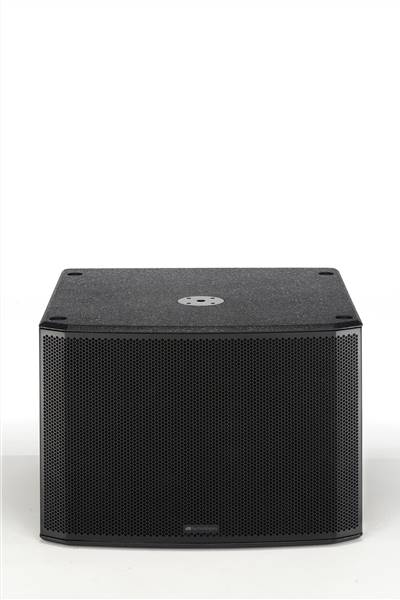

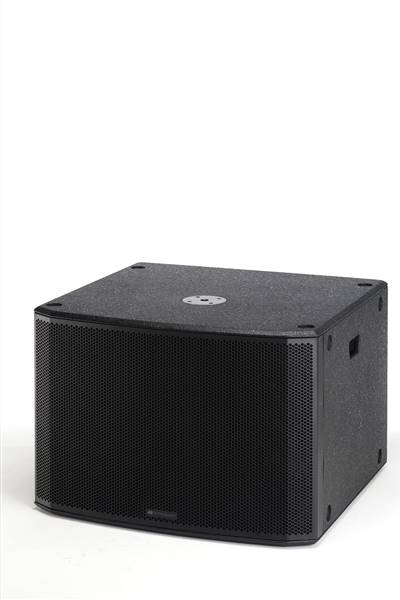

Passive subwoofer LVX PSW18 has been designed to render low end frequencies in medium to large-sized LVX P PA or fixed installations.
The system is able to provide 1200 W power at 8 Ohms for a maximum of 132 dB SPL.

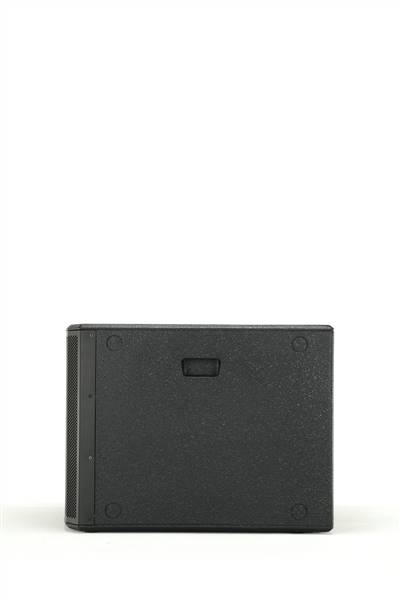

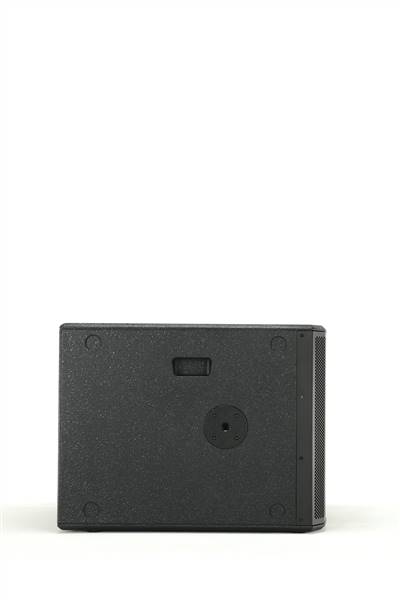

The solid plywood enclosures features a clean, install-friendly design featuring 1 integrated handle per side and 2X36 mm pole mount plates (one on top and one on side), so that the sub can be easily used vertically or horizontally.
All enclosures and accessories of LVX P series are available in black or white version.
Read More
TECHNOLOGIES
White version availableThis product is available for purchase in black or white.
Technical Data
Speaker Type
Passive Subwoofer
Acoustical data
Power Peak
1200 W
Impedance
8 Ohms
Frequency Response [- 10dB]
30 - 250 Hz
Max SPL
132 dB
LF
18"
Voice Coil LF
4"
Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing
Plywood
Pole mount
2xM20
Handles
2 (1x side)
Width
720 mm (28.34 in)
Height
520 mm (20.47 in)
Depth
690 mm (27.16 in)
Weight
37 kg (81.5 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
