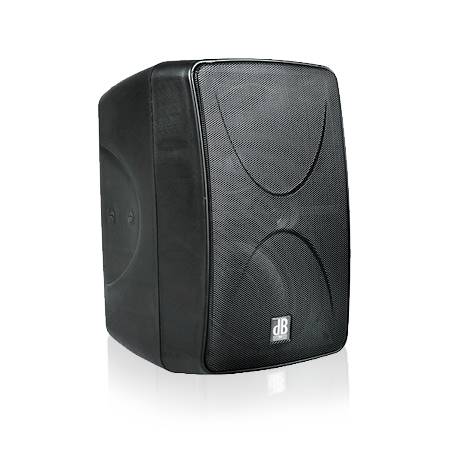

Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Technical Data
Speaker Type
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
85 - 19.000 Hz
Max SPL
110 dB
Type HF
Tweeter
LF
2x 6.5 “
Amplifier
Power PRG
160 W
Cooling
Convection
Processor
Controller
Analog
Limiter
Soft Clip
Input
Signal Input
1x XLR
1x 6.3mm phone jack
1x RCA cinch
Microphone Input
YES
Signal Output
1x XLR
1x 6.3mm phone jack
1x RCA cinch
Power Socket
VDE
Mechanics
Housing
Polyporpylen PP
Rigging Points
4x M5
Width
210 mm (8.4 in)
Height
350 mm (14 in)
Depth
270 mm (10.8 in)
Weight
5.5 kg (12.13 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
