The integrated digital sound processor allows the final touches to be made to your sound, rounding it out to a warm, natural tone with powerful bass and sparkling high frequencies. A variety of signal processing presets allows you to achieve your perfect sound with the minimum of fuss.

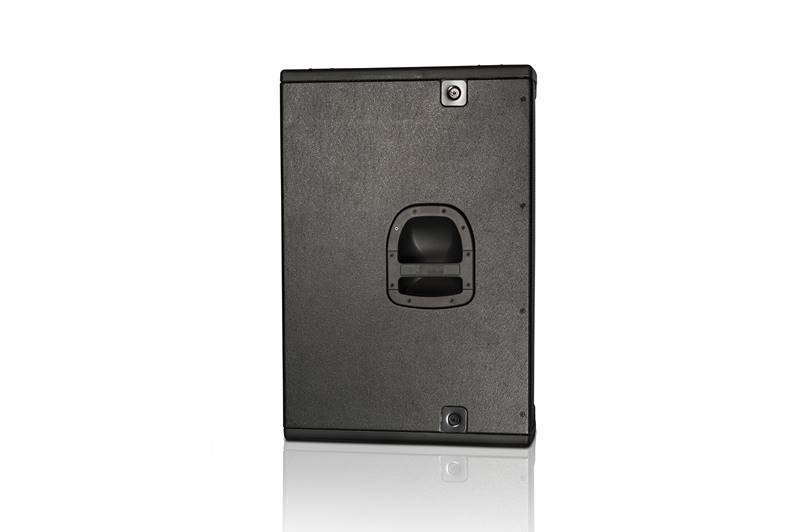

This active 15"/1.4" two-way system is musicians and DJs’ first choice in a full-range FOH speaker. The S115’s reach is remarkable thanks to its assertive midrange, prominent top end, and constant directivity at high sound pressure levels. SIGMA S115F is a flyable version of the same system, featuring 16 pickpoints for MA 10x35 eyebolts on top, bottom, rear and both lateral sides of the speaker.
Read More
TECHNOLOGIES
Digipro® G2System of digital amplification engineered by dBTechnologies. Based on the previous Digipro project, the newest G2 versions' efficiency has been improved by cutting down on consumption and heating. The introduction of a 'new avant-garde' component, a better s/n relation and a lighter weight, confer a superior dynamism to the new Digipro G2 digital speakers.
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
Technical Data
Speaker Type
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
54 - 19.600 Hz
Max SPL
135 dB
HF
1.4 "
Type HF
Titanium Compression driver
Voice Coil HF
2.8"
Directivity
60 x 40 °
Horn
CD Horn
Rotatable Horn
YES
LF
15"
Voice Coil LF
3"
Amplifier
Amp Technology
Digipro® G2
Amp Class
Class D
PRG Power
1000 W
Processor
Controller
DSP 24bit/48kHz
System Presets
Flat, Boost
Limiter
Dual Active
Peak, RMS, Thermal
Crossover Frequency MF-HF
1100 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex with H.E.T coating, reinforced
Width
509 mm (20.36 in)
Height
765 mm (30.6 in)
Depth
533 mm (21.32 in)
Weight
33 kg (72.75 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
