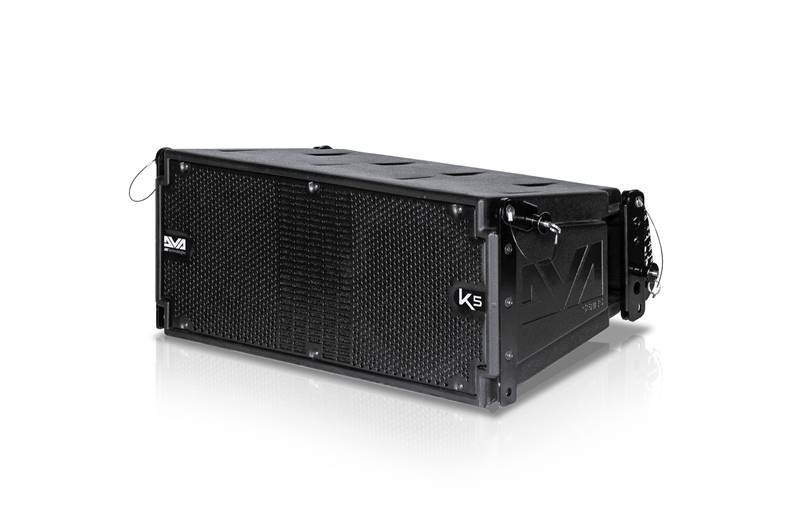

DVA K5 threefourths top dbtechnologies 23052016

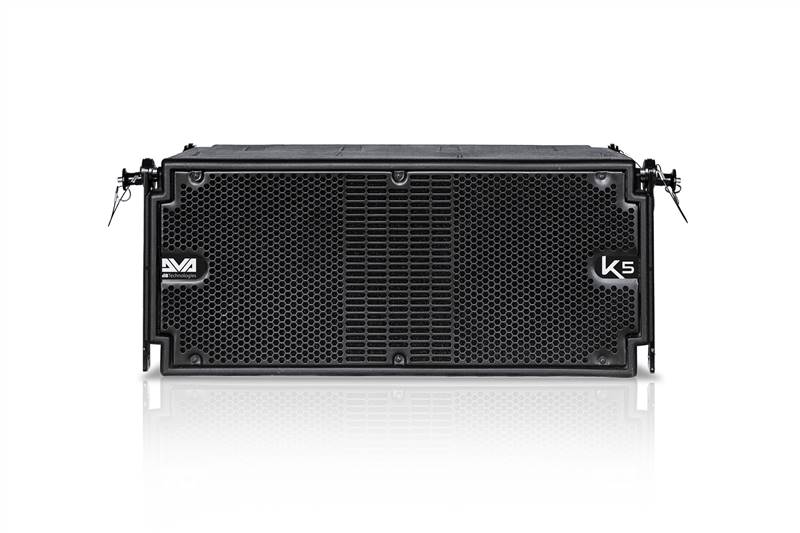

DVA K5 front top dbtechnologies 23052016

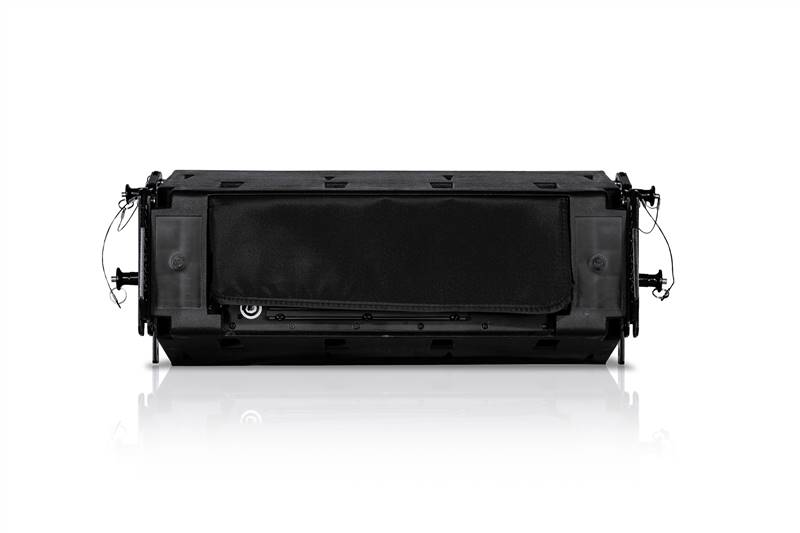

DVA K5 retro cover dbtechnologies 23052016

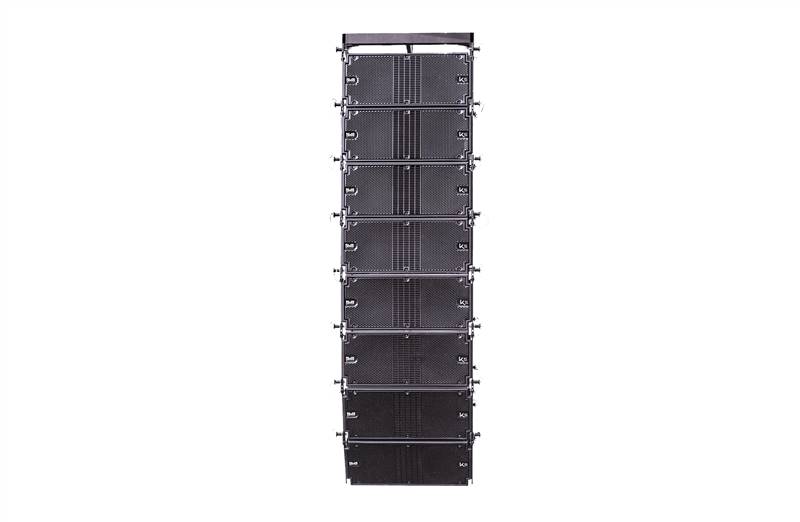

DVA K5 Array front dbtechnologies 23052016

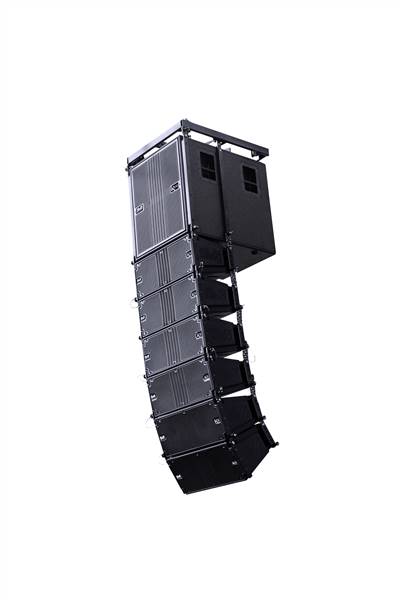

DVA K5 KS10 fliyng dbtechnologies 23052016

DVA K Groundstacked dbtechnologies 23052016

Download images

Line Arrays

3-WAY ACTIVE LINE ARRAY MODULE

500 W RMS DIGIPRO G3 AMP TECHNOLOGY

129 dB MAX SPL

FREQUENCY RESPONSE [+/- 3 dB]: 80 - 19.000 Hz

HF: 2x 1", 1.4” v.c.

MF: 1x 6.5", 2" v.c. - NEODYMIUM

LF: 1x 8", 2.5” v.c. - NEODYMIUM

Sales & Rental Network

DVA K5

The DVA K5 line array module comprises two 1,4” drivers, a 6” neodymium midrange and a 8” neodymium woofer.

Furthermore, an advanced DSP user interface allows an extremely precise system tuning: a double rotary encoder provides a separate tuning for LF correction (coupling) and MF/HF correction (high-angle midrange loss and air absorption compensation due to throw distance).

The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response.

The unique design, the selected components and a state of the art amplifying technology come together to deliver an exceptional weight-performance ratio: each system weights 31,31 lbs (14,2 Kg). Moreover, DVA K5 comes with a freshly designed frontal grille and an integrated raincover.

TECHNOLOGIES

Digipro® G3System of digital amplification engineered by dBTechnologies. Based on the previous Digipro projects, completely re-designed, lighter in weight and more efficient, new Heatsink, newest components which maximize the power with a lower consumption.

Linear Phase FIR FiltersA low-latency sound processing featuring Linear Phase FIR filters allows cabinets to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. This is also achieved by making the phase response as linear as possible, avoiding any distortion.

PSU with auto-rangeIt's a power supply which allows everybody in the world to use the speaker at any power voltage thanks to the auto-adjustment technology: the internal switch automatically detect the voltage and changes from 110/120v to 230/240v.

Product code: 1030102390

Technical Data

Speaker Type

3-Way Active Line Array Module

Acoustical data

Frequency Response [+/- 3dB]

70 - 19,000 Hz

Max SPL

One Unit: 129 dB

2x1 "

Voice Coil HF

1.4 "

1x 6.5 "

Type MF

Neodymium

Voice Coil MF

2 "

1x8 "

Voice Coil LF

2.5 "

Type LF

Neodymium

Directivity (HxV)

100x15° Single unit

Amplifier

Amp Technology

Digipro® G3

Amp Class

Class D

RMS Power

500 W

Peak Power

1000 W

Cooling

Convection

Power Supply

500 W SMPS with Auto Range PSU

Processor

Controller

DSP 56 Bit

AD/DA Converter

24 bit/48 KHz

Limiter

Dual Active Multiband RMS, Peak, Thermal

Crossover Frequency MF-HF

1800 Hz

Slope MF-HF

24 dB/Octave

Crossover Frequencies LF-MF

340 Hz

Slope LF-MF

24 dB/Octave

Input

Signal Input

1x XLR Balanced

Signal Output

1x XLR Balanced

Power Socket

1x PowerCON In

1x PowerCON Out

Controls

1 x Input Sensitivity Rotary Switch

1 x DSP Rotary Encoder (LF Correction)

1 x DSP Rotary Encoder (MF-HF Correction)

Mechanics

Housing

Polypropylene PP metal reinforced

Rigging Points

Integrated rigging hardware

Width

580 mm (22.83 in)

Height

240 mm (9.44 in)

Depth

327 mm (12.87 in)

Weight

14.2 kg (31.3 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
