IA3204 D

Amplifier

Download images

Amplifier

CLASS D 2-UNIT RACK AMPLIFIER

DSP CONTROLLED

4x 400W CHANNELS

DANTE® NETWORKING

CONSTANT VOLTAGE: 70-100V

Sales & Rental Network

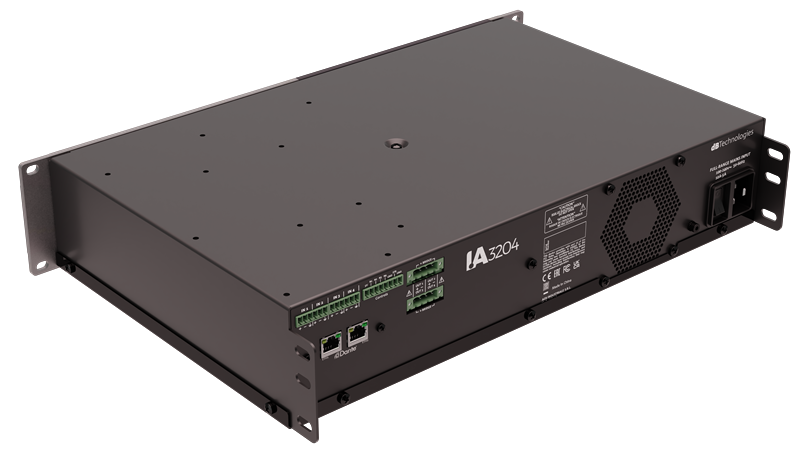

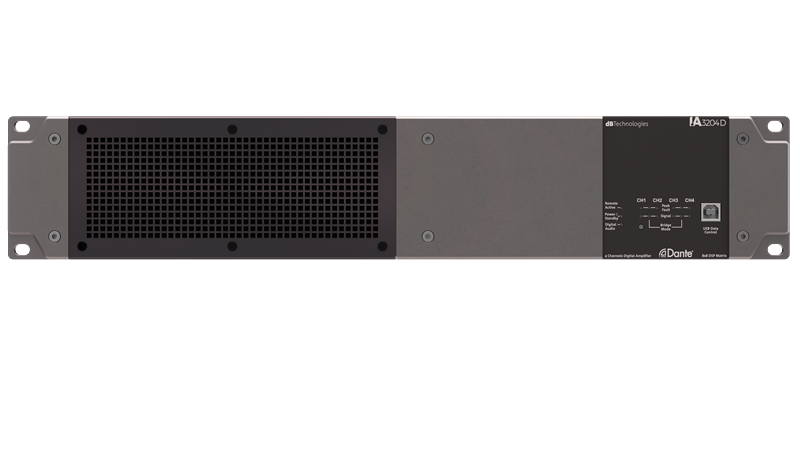

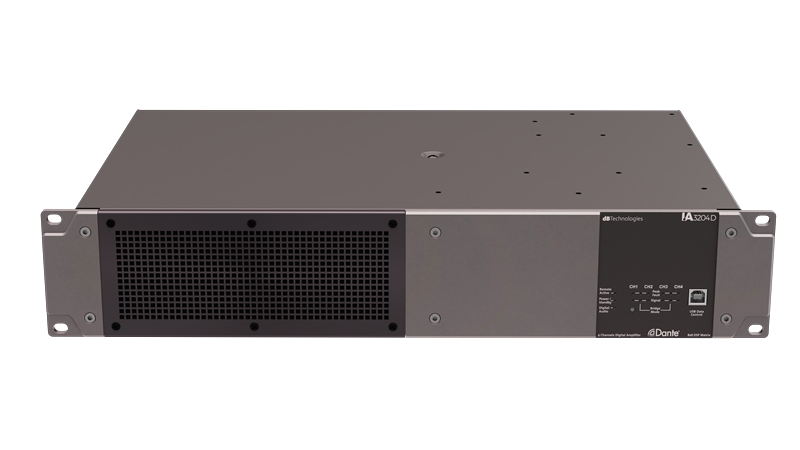

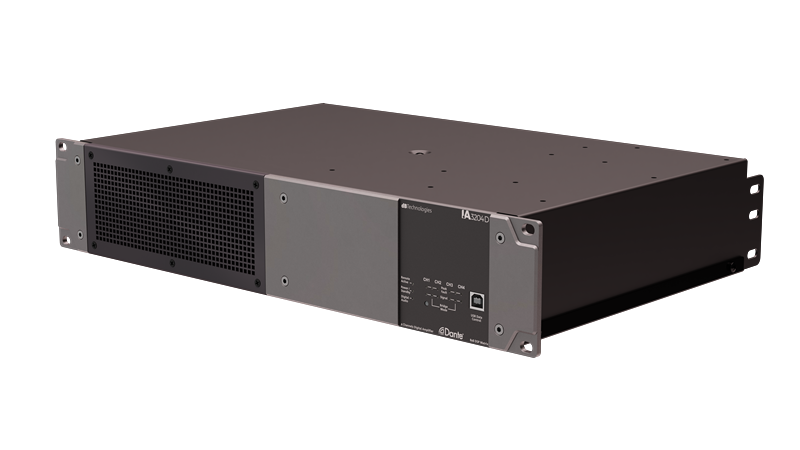

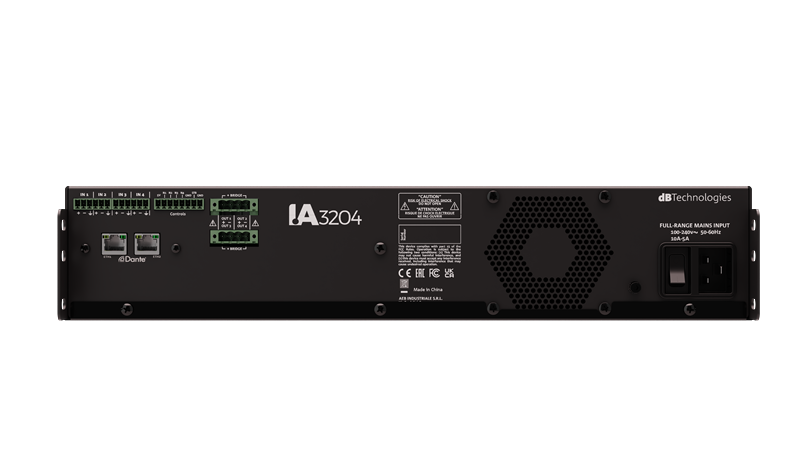

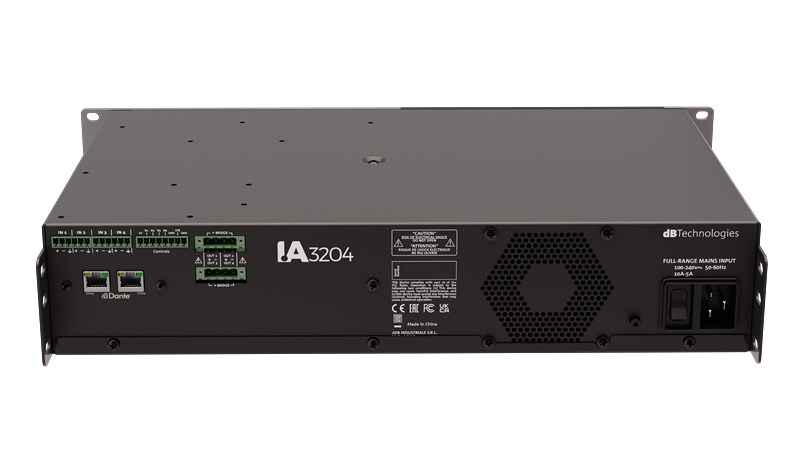

IA3204 D

The IA3204 is a compact, high-performance Class-D amplifier designed to deliver exceptional power and versatility for professional audio installations. It supports both constant voltage systems (70V/100V) and low-impedance applications, providing an impressive output of 4 x 800W at 4 Ohms. With support for stereo and bridge configurations, the amplifier adapts effortlessly to diverse audio requirements. Two versions are available, both equipped with an integrated DSP, a full-range PSU with power factor correction, and a GPIO interface. The difference lies in their networking capabilities:

- The IA3204R features RDNet ports, enabling remote control and real-time monitoring of the amplifier.

- The IA3204D includes Dante connectivity, offering digital audio inputs along with comprehensive remote management functionality.

With its powerful performance, networking flexibility, and robust design, the IA3204 is the ideal choice for demanding audio installations in theaters, conference rooms, houses of worship, or large event venues, ensuring consistent and reliable audio performance.

TECHNOLOGIES

Aurora NetThis product is fully-compatible with Aurora Net software

DANTE®DANTE® READY

Product code: 1030500300

Technical Data

Type

CLASS D 2 Unit rack Amplifier

Acoustical data

Single channel mode

4 Ohm / 8 Ohm / 16 Ohm (no 70V / 100V)

Bridged mode

8 Ohm / 16 Ohm

Preset

Flat, dBTechnologies speaker, User preset

Input Impedance

20 kOhm balanced

Frequency Response

20 - 20.000 Hz

Amplifier

Total rated power

3200 W RMS @ 230Vac / 120Vac

All channels driven

4 Ohm: 1600W Peak / 800W RMS

8 Ohm: 800W Peak /400W RMS

16 Ohm: 400W Peak / 200W RMS

8 Ohm (Bridge): 3000W Peak / 1500W RMS

70V: 1500W RMS

100V: 1500W RMS

Mains connections

IEC 10A connector

PFC

Yes

Nominal Voltage

115Vac - 240Vac @50/60Hz

Operating Voltage

90Vac - 264Vac @50/60Hz

Processor

24 Bit @48kHz

Limiters

Compressor on processing channels

Peak limiter on output channel (also used in dBTechnologies preset)

Input

Input Channel

4 Analog Balanced (EuroBlock 3.81mm)

4 Dante Channels

Output Channel

4 (EuroBlock 5.08mm)

Service Data

Frontal USB

(AuroraNet setup & control)

Networking

2 x RJ45 Ethernet

(Dante primary/secondary

AuroraNet setup & control)

Mechanics

Width

482 mm (19 in)

Height

88 mm (3.6 in)

Depth

310 mm (12.2 in)

Weight

8.3 kg (18.3 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.

Filename:	Category:	Filetype:	Size:	Language:	Release:
CE_IA3204D	Certifications	PDF	2,44 MB	English	2024-06-13
Manual_IA3204D_Rev1.0	Manual	PDF	9,67 MB	English	2025-01-31
UKCA_IA3204D	Certifications	PDF	2,06 MB	English	2024-06-13
FirmwareInstaller_2.5_Osx.app	Firmware	ZIP	43,75 MB	English	2025-05-27
FirmwareInstaller_2.5_Win.exe	Firmware	ZIP	42,84 MB	English	2025-05-27
FW-IA3204D_v01.00.01.dbu2	Firmware	ZIP	0,24 MB	English	2025-04-22
Preset-Installer_IS-Series_1.3	Software	ZIP	53,16 MB	English	2025-06-10
