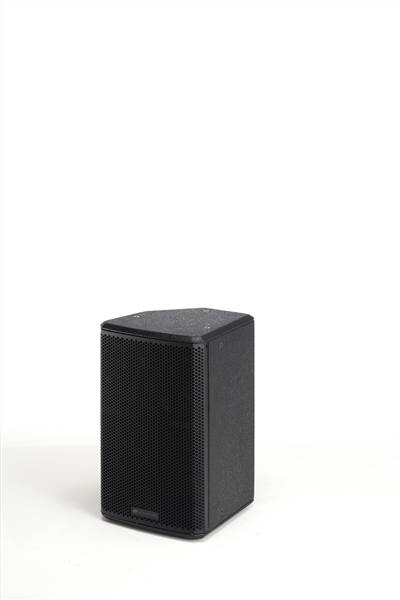

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P10 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP810H) or vertical (VB-LP810V) brackets.

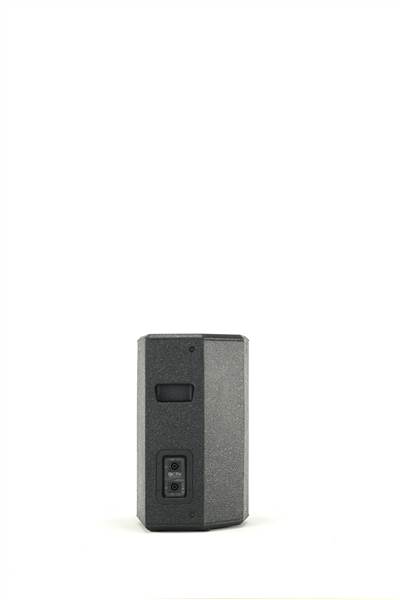

The cabinet features an integrated handle on back side and a 36 mm pole mount plate.
Read More
TECHNOLOGIES
White version availableThis product is available for purchase in black or white.
Product code: 1030400710
Technical Data
Speaker Type
2-Way Passive Speaker
Acoustical data
Peak Power
600 W
Impedance
8 Ohms
Frequency Response [- 10 dB]
73- 19.000 Hz
Max SPL
125 dB
HF
1 “, 1" v.c.
Directivity
90x70 °
Horn
Rotatable
LF
10“, 1.5" v.c.
Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing
Plywood
Pole Mount
36 mm
Angle Up

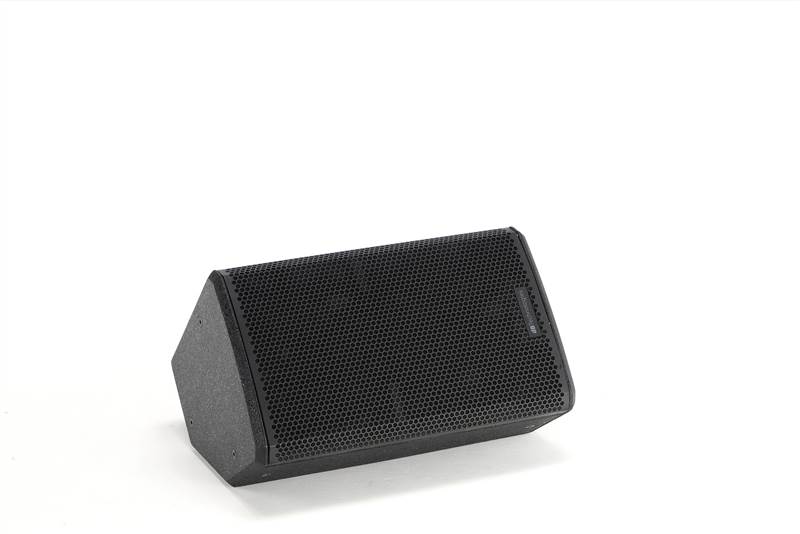

Monitor use 40°
Rigging Points
12 x M8
Handles
1 on back side
Width
300 mm (11.81 in)
Height
496 mm (19.52 in)
Depth
298 mm (11.73 in)
Weight
9.3 kg (20.5 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename:
Category:
Filetype:
Size:
Language:
Release:
DWG_LVX-P10
Drawing
DWG
0,73 MB
English
2021-05-19
CE_LVX-P10
Certifications
PDF
0,46 MB
Italiano
2019-09-09
Quick-Start_LVX-P10_Rev1.1
Manual
PDF
0,92 MB
English
2019-03-29
UKCA_LVX-P10
Certifications
PDF
0,43 MB
Italiano
2022-04-11
WB-LP10H
Installation
WB-LP810V
Installation
