VIO S118

THE VIO COMPLEMENT IN A FLYABLE VERSION

A flyable active subwoofer, equipped with a 18” neodymium woofer and crafted to complete with impressive low-end frequencies and vigorous SPL VIO's accurate, phase coherent wave front. Flyable and groundstack configurations require dedicated adapters.

This subwoofer is developed with a horn loaded design, while maintaining the size of a front-loaded sub cabinet, resulting in a double advantage: smaller dimension (and weight–45.1 kg) and a remarkable lower frequencies response even at a long distance. This makes this sub the perfect low-end extension of VIO arrays whenever a particularly long-throw is needed.

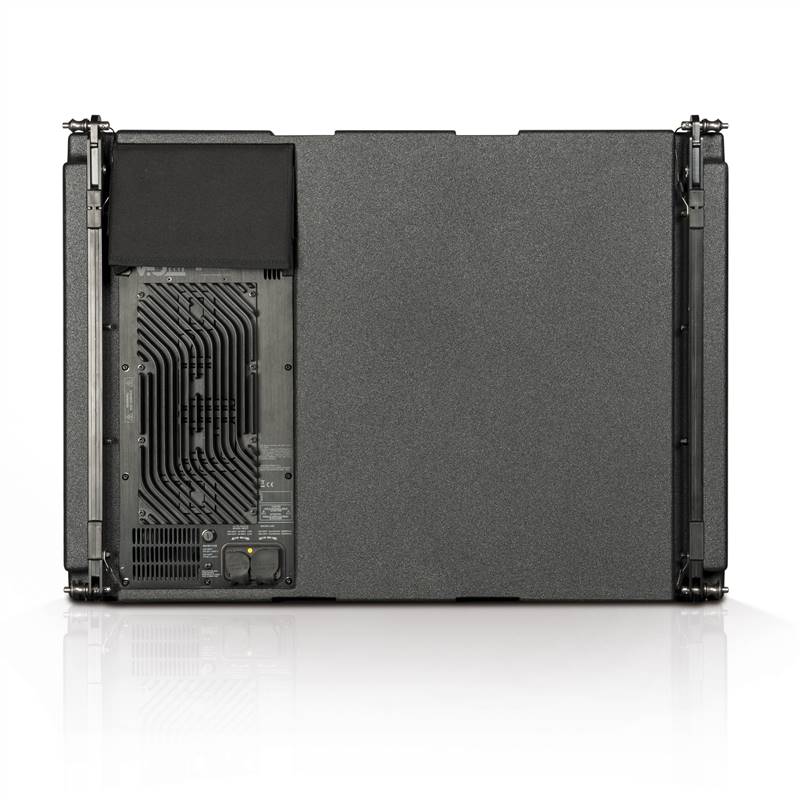

The system’s acoustical plus points are boosted by Digipro G4® 1600W Class D amplifier and equipped with PFC (Power Factor Correction) and SMPS , VIO S118 is highly resistant to line voltage fluctuations. Digipro G4 pre-amp features a slot module allowing system monitoring and control via RDNet. Furthermore, the system is ready for future upgrades with DanteTM digital audio transmission network: in facts, VIO S118 also features a NFC system and a LED on the front grille. The amps also allows users to run auto-test on electronics and transducers before and after use. The amp module features an on board attenuation control and a delay module allowing to reach a max 9.9 ms delay with 0.1 ms steps. The on board cardioid preset process the sound of the backward sub in cardioid configurations (both flown or groundstacked).

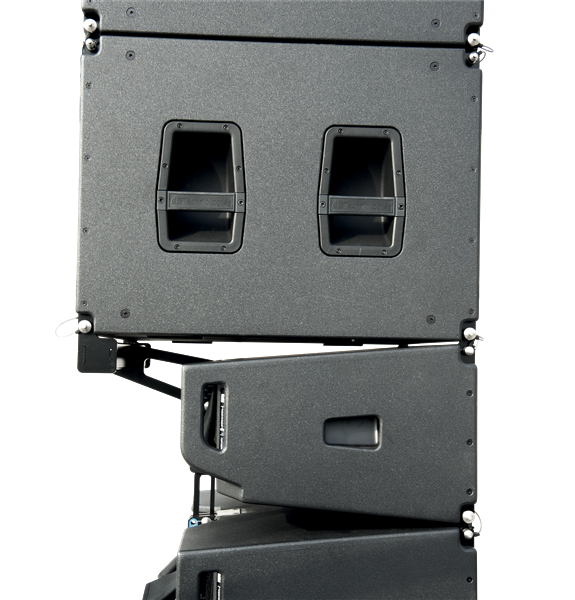

S118’s cabinet is made of sturdy Multiplex plywood covered with a black polyuria finish and equipped with integrated hardware allowing 1 or more subs to be flown in a sub array or on the top of a VIO L210 array.

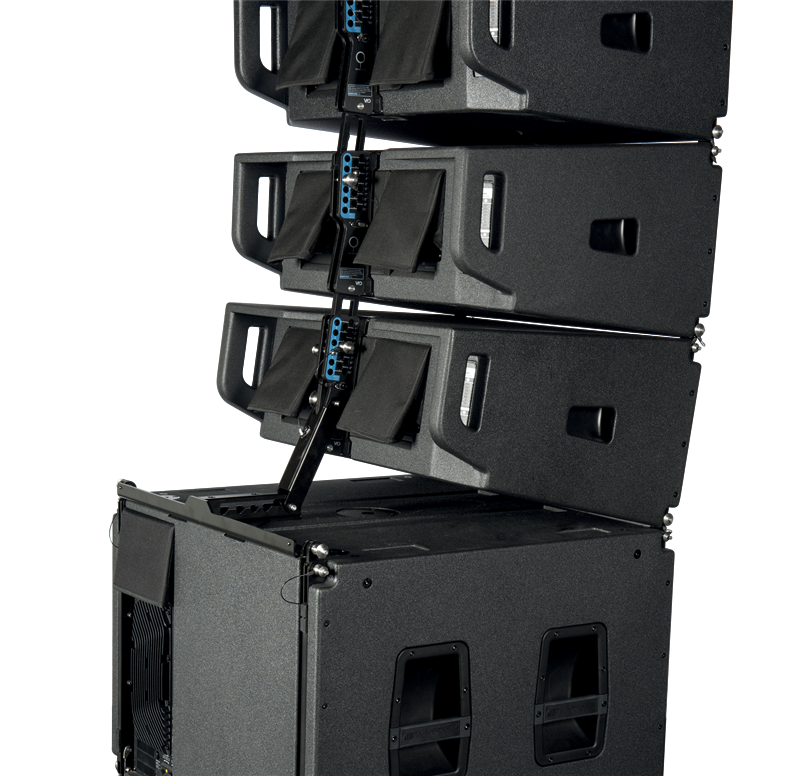

The system can be flown via DRK-210 flybar plus FSA-VIO L210 adapter for attaching VIO L210. GSA VIO L210 is necessary for stacked configurations with VIO L210.

The dedicated DO-VIOS118 trolley can be hooked directly on flown subs easing dismantling and transport operations.
