ACTIVE BASSREFLEX SUBWOOFER
1600W RMS DIGIPRO® G4 AMPLIFIER
139 dB MAX SPL
USABLE BANDWIDTH [- 6 dB]: 32 Hz to cut frequency
DANTE & A2NET READY

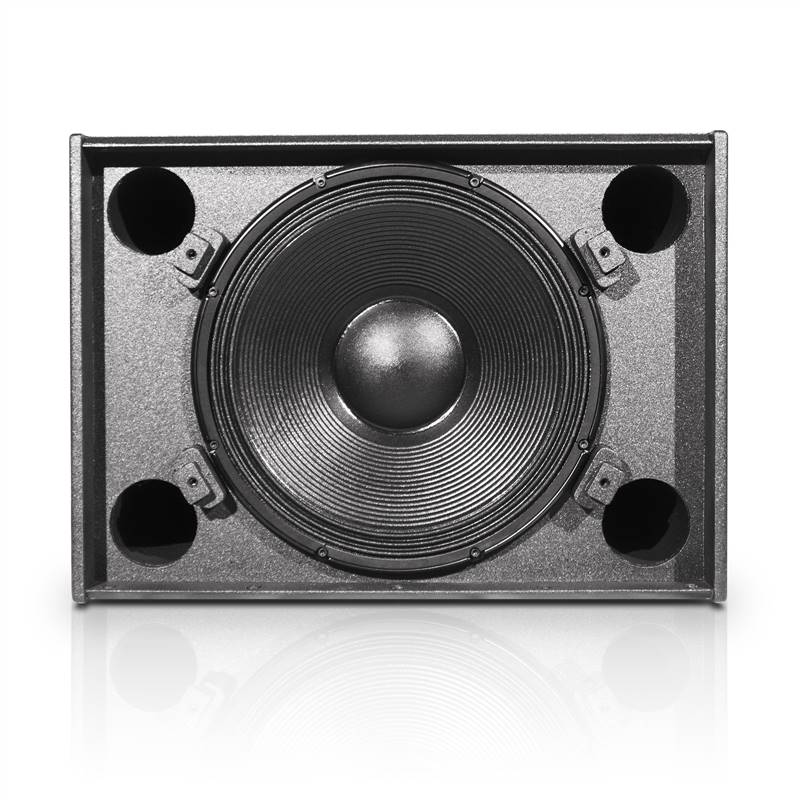

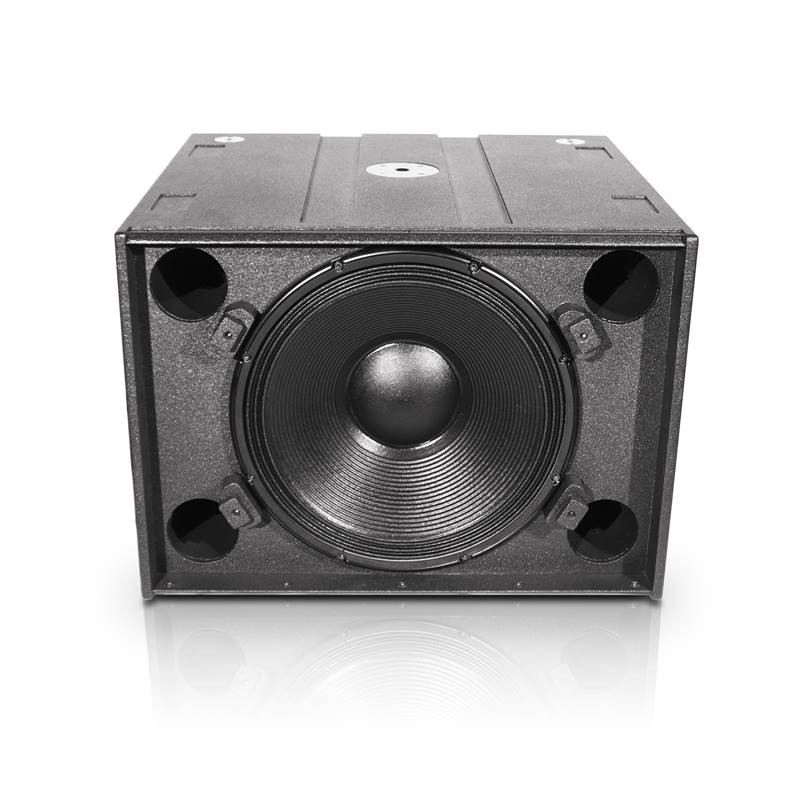

LF: 1 x 18”, 4” v.c. - NEODYMIUM
Weight: 47Kg (103.62 lbs)

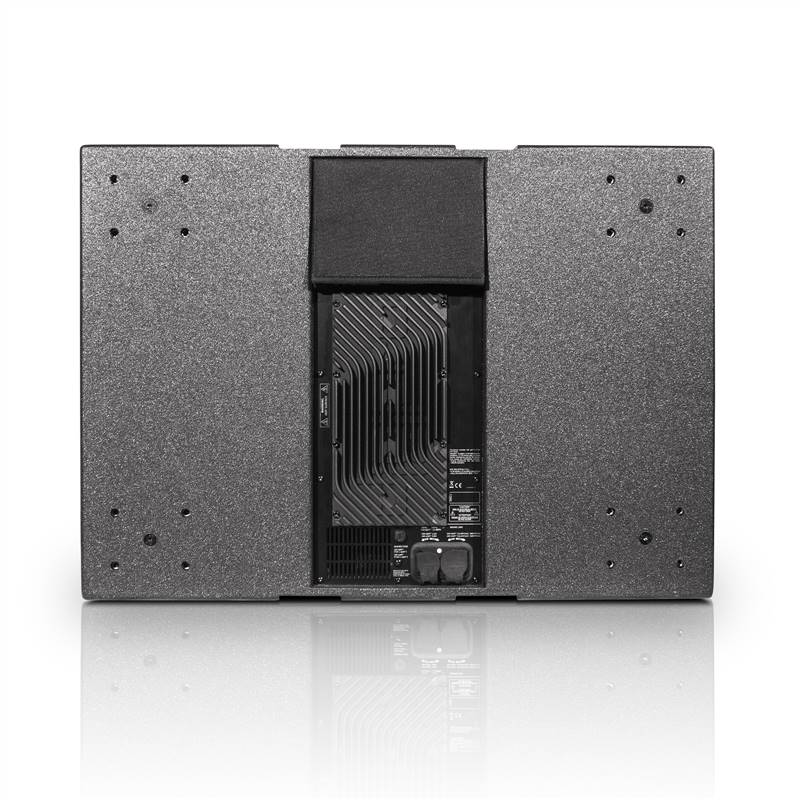

Sales & Rental NetworkThis active subwoofer’s acoustic engine is driven by a Digipro G4® 1600W Class D amplifier, equipped with PFC (Power Factor Correction) and SMPS which make the cabinet highly resistant to line voltage fluctuations.
Digipro G4 preamplifier features a slot module, equipped with a RDNet expansion card as default, allowing system monitoring and control via Aurora Net. Furthermore, the system is ready for Audinate Dante™ Expansion Card allowing integration in a digital audio network.The amplifier also allows users to run a real-time test on electronics and transducers, both remotely via Aurora Net, or directly on the amplifier module. VIO S118R shows an on-board delay module, allowing to reach a max 62 ms delay via Aurora Net and a max 9.9 ms delay with 0.1 ms steps via on-board rotary. The on-board cardioid preset processes the backward sub in inverted stack cardioid configurations, to achieve the best possible cancellation on the rear side automatically.
TECHNOLOGIES
| Filename: | Category: | Filetype: | Size: | Language: | Release: | ||
|---|---|---|---|---|---|---|---|
| DWG_VIO-S118R | Drawing | DWG | 2.37 MB | English | 2018-04-05 | ||
| Catalogue_VIO-Series_v.2018 | Catalogues | 13.22 MB | English | 2018-07-11 | |||
| CE_VIO-S118R | Certifications | 1.21 MB | Italiano | 2018-04-09 | |||
| Datasheet_VIO-S118R_Rev1_0 | Data Sheet | 0.79 MB | English | 0001-01-01 | |||
| Manual_VIO-S118R_Rev1.1 | Manual | 3.51 MB | English | 2024-11-01 | |||
| UKCA_VIO-S118R | Certifications | 0.67 MB | Italiano | 2022-11-04 | |||
| 3D_VIO-S118R | 3D | ZIP | 0.18 MB | English | 0001-01-01 | ||
| FirmwareInstaller_2.5_Osx.app | Firmware | ZIP | 43.75 MB | English | 0001-01-01 | ||
| FirmwareInstaller_2.5_Win.exe | Firmware | ZIP | 42.84 MB | English | 0001-01-01 | ||
| FW_VIO-S118R_Dante_v02.01.00.dbu2 | Firmware | ZIP | 0.17 MB | English | 2024-02-05 | ||
| FW_VIO-S118R_v02.01.00.dbu2 | Firmware | ZIP | 0.16 MB | English | 0001-01-01 | ||
| FW-VIO-S118R_A2NET_v02.01.00.dbu2 | Firmware | ZIP | 0.16 MB | English | 0001-01-01 | ||
| GLL_VIO_Series_v1.3.exe | GLL | ZIP | 19.29 MB | English | 0001-01-01 | ||
| GLL_VIO-S118R_v3.2.exe | GLL | ZIP | 1.48 MB | English | 0001-01-01 |
