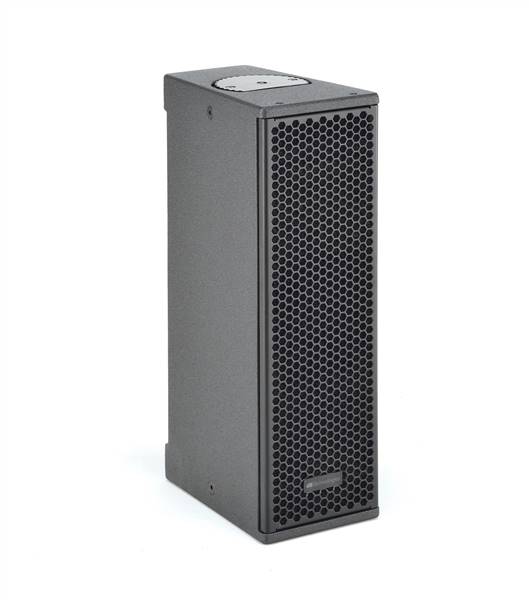

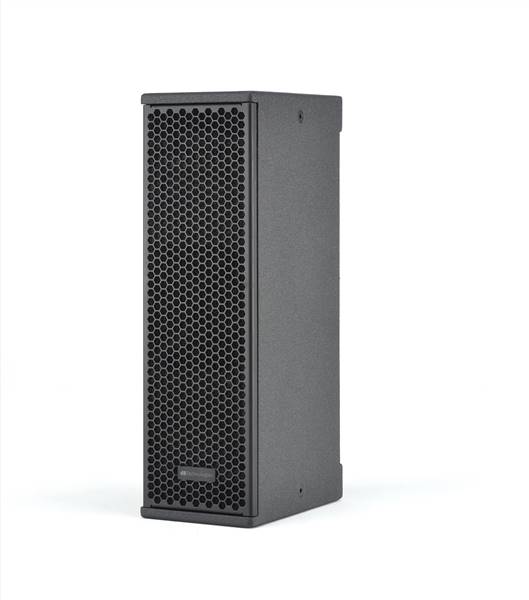

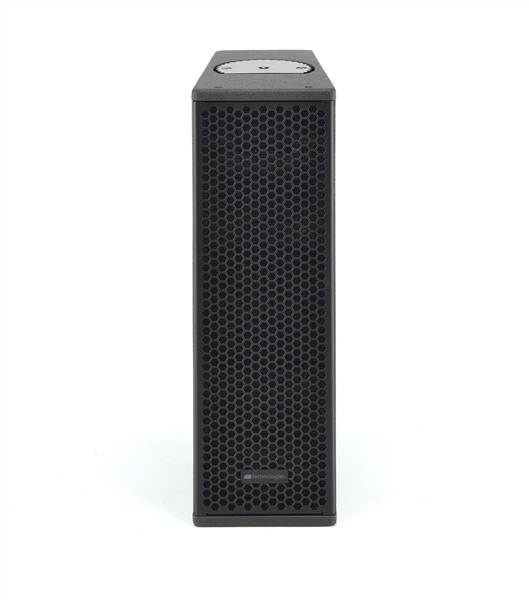

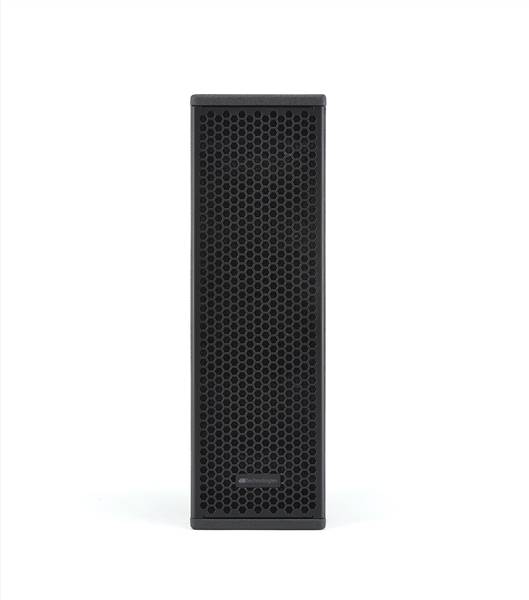

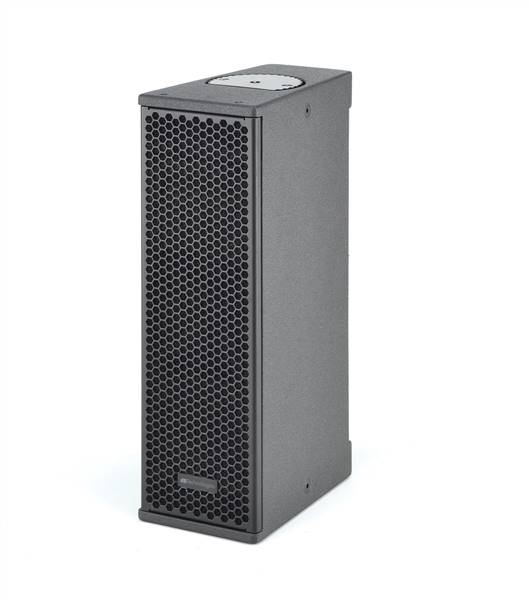

A revolution in VIO X family: newly born VIO X205 condenses the powerful and detailed sound of the ultimate dBTechnologies point source series into a small, ultra-performing cabinet. VIO X205 acts as the most precise and versatile unit in any tour-grade application as well as in fixed installations.

Application-focused

VIO X205 fits any project as full-range PA, fixed installation, FOH monitoring, front-fill in large sound reinforcement systems, and more.

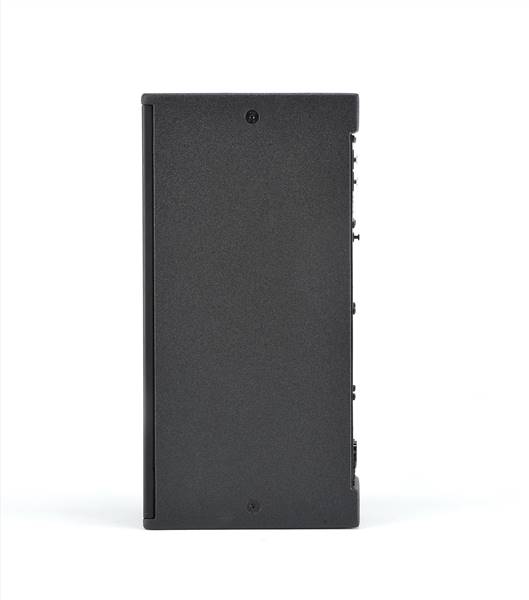

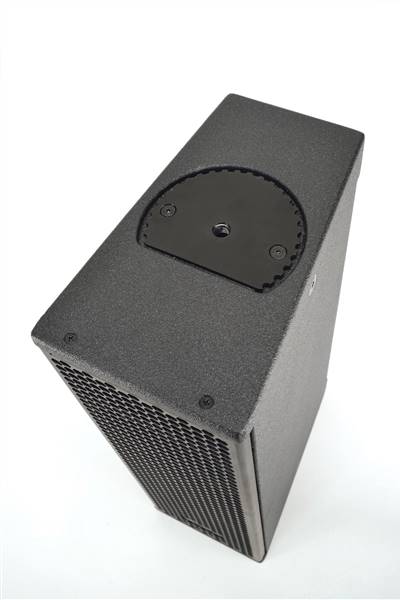

This solid wooden cabinet is reinforced with a polyurea finish and features M10 threaded nuts on top and bottom allowing installation with accessories WB-VIOX205 H (horizontal bracket) or WB-VIOX205 V (vertical bracket). The cabinet can be easily installed on pole thanks to SA-VIOX205 pole mount adaptor (35mm) allowing 2 tilt options.

perfect dispersion pattern control

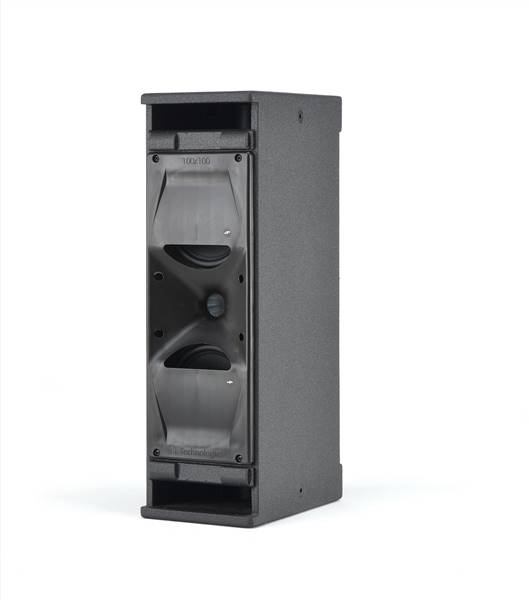

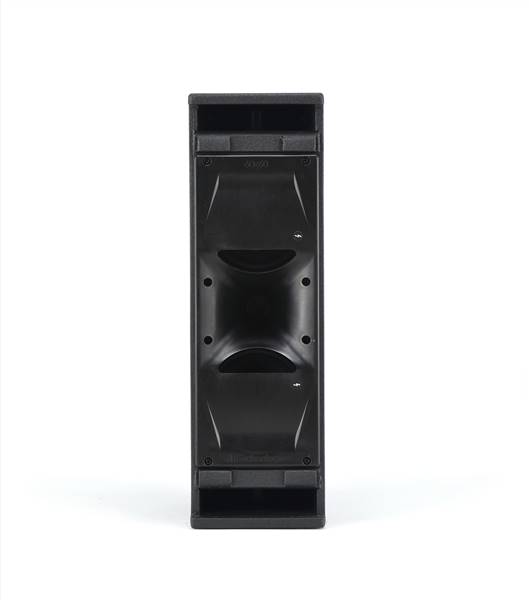

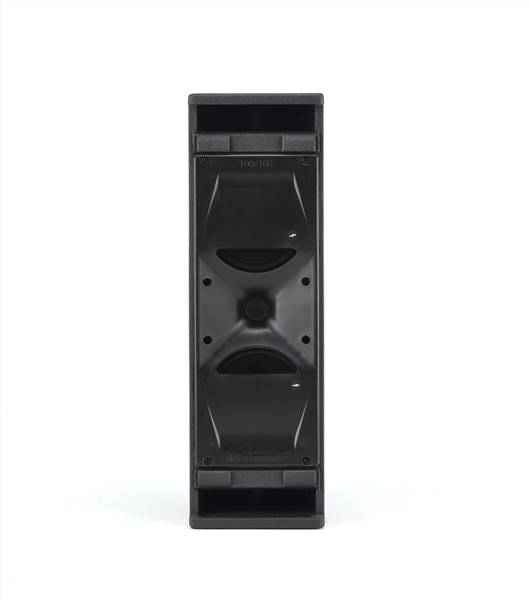

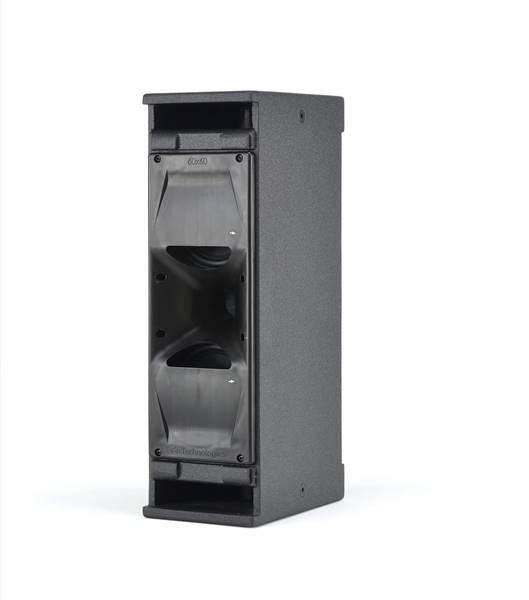

Keeping in mind the needs of the most demanding professionals, VIO X205 is available in 2 models featuring 2 different constant directivity horns allowing a 60°x60° (for VIO X205-60) or 100°x100° (for VIO X205-100) dispersion pattern (both horizontal & vertical).

impressive sound pressure

VIO X205 is a 2-way speaker equipped with 2x5” (1” voice coil) and 1x1” driver (1.4” voice coil). The 400 W RMS DigiproG3 amplifier powers a cabinet able to deliver up to 126 dB despite its very compact dimensions.
Advanced sound processing featuring Linear Phase FIR Filters allows VIO X205 to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.

full control &
sound quality

Just like other cabinets in the VIO X family, 205 is enabled for real time monitoring and remote control via RDNet protocol and Aurora Net software (Windows and Mac).

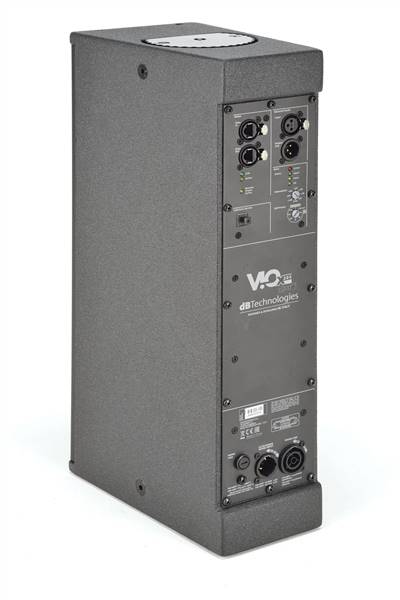

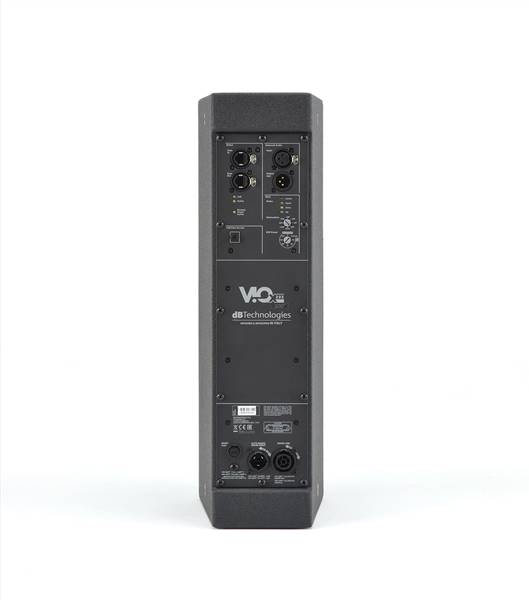

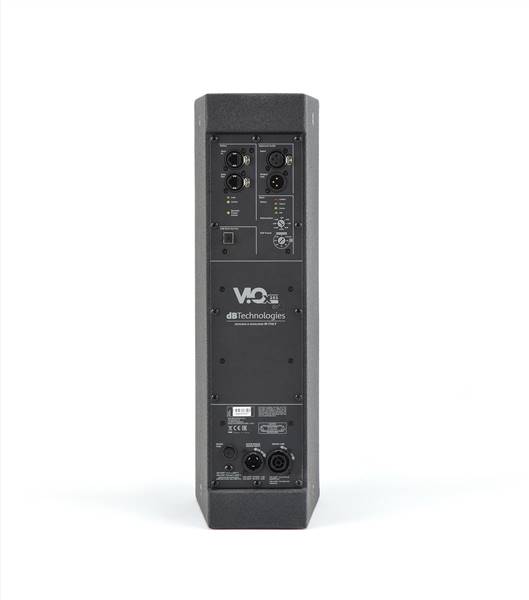

The cabinet is also provided with on board controls to set High Pass Filters as well as INPUT sensitivity. On board presets let users adapt High Pass Filters to the chosen application.

Technical
Specifications

Technical Data
Speaker Type
2 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB]
75 - 21.000 Hz
Frequency Response [-6dB]
80 - 20.000 Hz
Max SPL
126 dB
HF
1x 1”, 1.4 v.c.
LF
2x 5”, 1" v.c
VIO X205-60 Directivity
60° x 60°
VIO X205-100 Directivity
100° x 100°
Amplifier
Amplifier
400 W RMS Class-D Digipro® G3
Cooling
Convection
Power Supply
Auto-range SMPS
Processor
Controller
DSP 28/56 bit
AD/DA Converter
24 bit/48 kHz
Limiter
Peak, RMS, Thermal
Processing
FIR Linear Phase Filters
Input
Signal Input
1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output
1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls
1x Rotary Encoder (8x EQ presets)
1x Input Attenuation Rotary Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED
Mechanics
Housing
Wooden Cabinet, Polyurea painting
Handles
1x (top)
Wedge Angle
Monitor Use 5°
Rigging points
2x M10 Threaded Nuts (top and bottom)
Width
150 mm (5.9 in)
Height
485 mm (19 in)
Depth
240 mm (9.4 in)
Weight
7.8 kg (17.2 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
