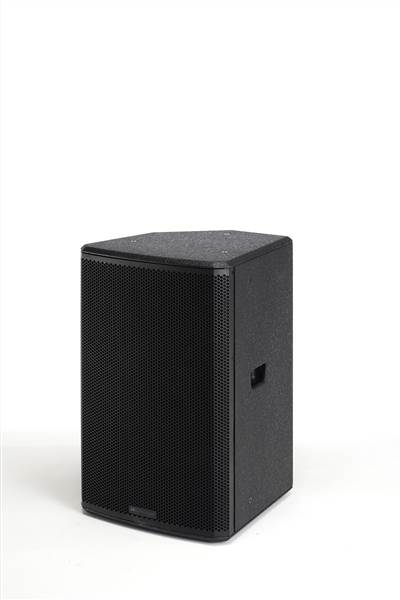

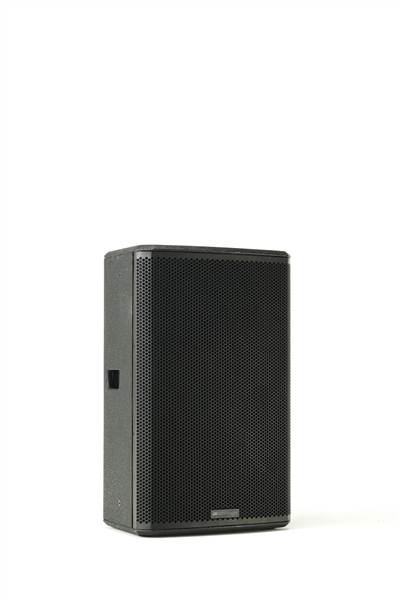

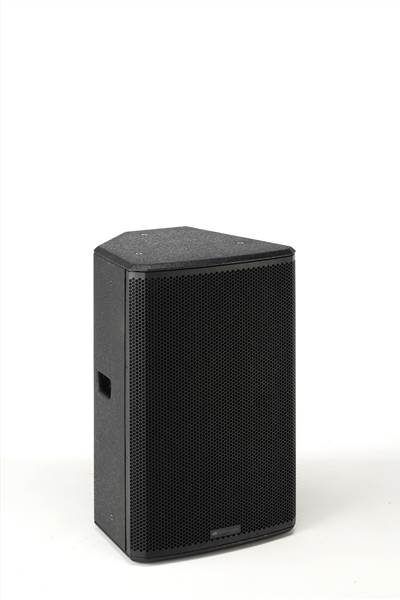

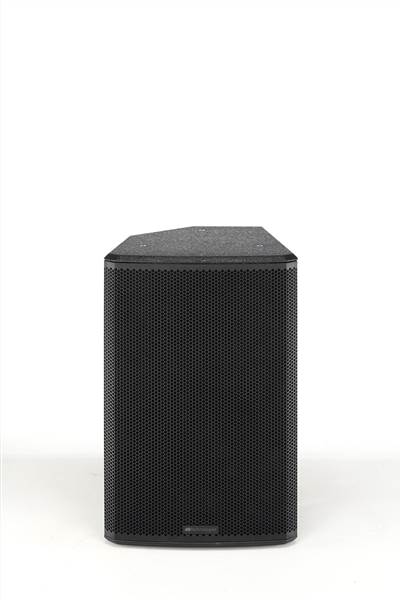

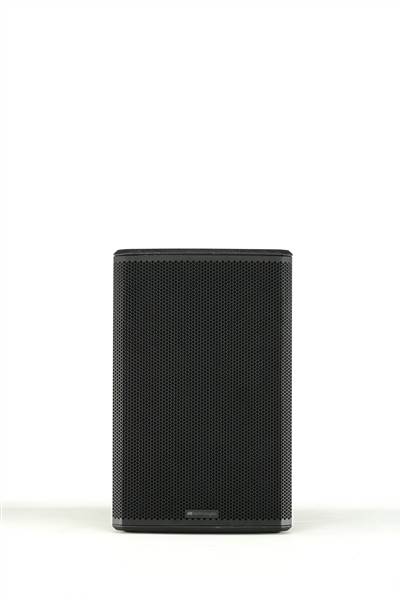

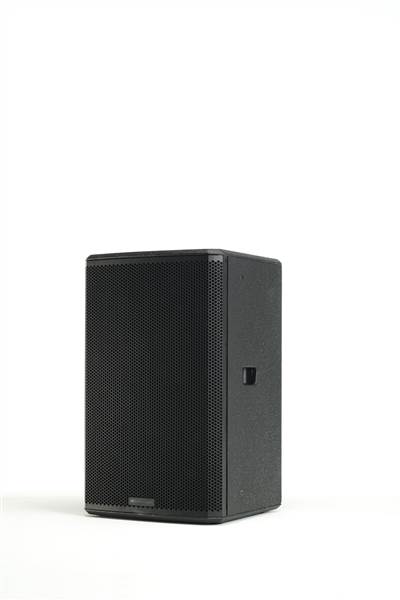

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P15 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP15H or vertical brackets (VB-LP1215V).

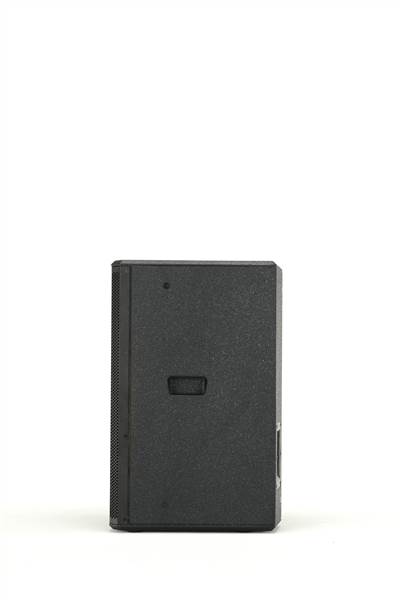

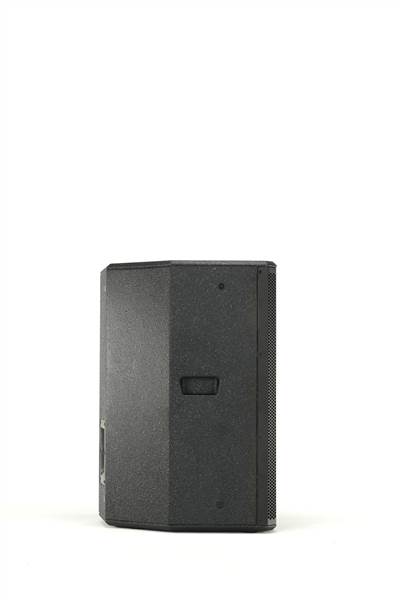

The cabinet features 1 integrated handle per side and a 36 mm pole mount plate.
Read More
TECHNOLOGIES
White version availableThis product is available for purchase in black or white.
Product code: 1030400730
Technical Data
Speaker Type
2-Way Passive Speaker
Acoustical data
Peak Power
800 W
Impedance
8 Ohms
Frequency Response [- 10 dB]
58- 21.000 Hz
Max SPL
129 dB
HF
1 “, 1.35" v.c.
Directivity
90x60°
Horn
Rotatable
LF
15“, 2.5" v.c.

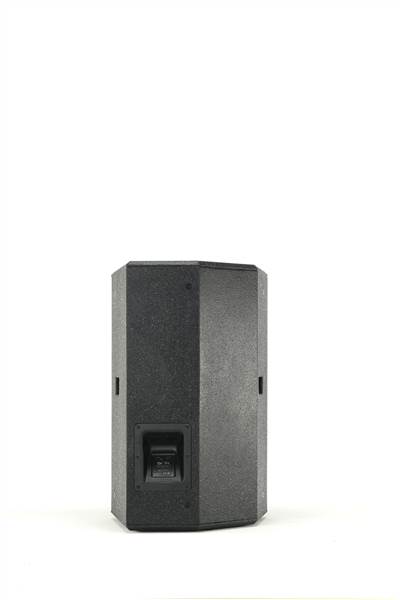

Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing
Plywood
Pole Mount
36 mm

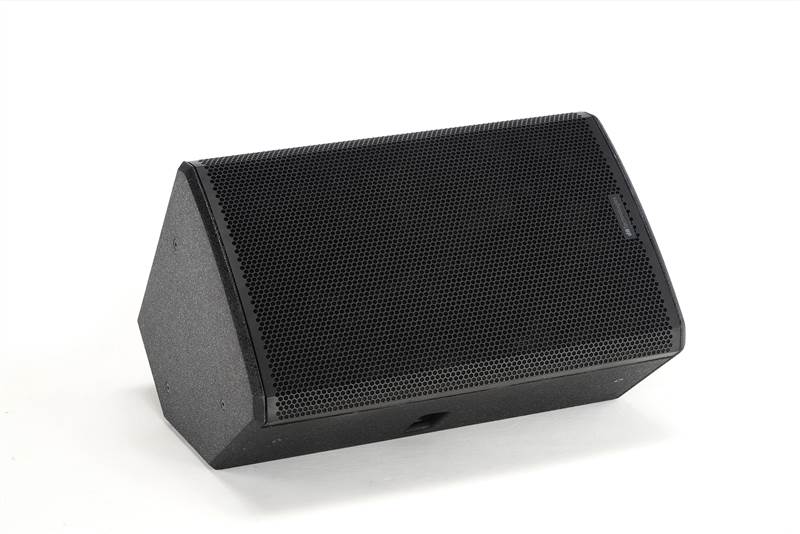

Angle Up
Monitor use 40°
Rigging Points
12 x M8
Handles
2 (1X side)
Width
420 mm (16.53 in)
Height
680 mm (26.77 in)
Depth
430 mm (16.92 in)
Weight
19.7 kg (43.4 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename:
Category:
Filetype:
Size:
Language:
Release:
DWG_LVX-P15
Drawing
DWG
0,79 MB
English
2021-05-19
CE_LVX-P15
Certifications
PDF
0,47 MB
Italiano
2019-09-09
Quick-Start_LVX-P15_Rev1.1
Manual
PDF
0,60 MB
English
2019-03-29
UKCA_LVX-P15
Certifications
PDF
0,43 MB
Italiano
2022-04-11
WB-LP15H
Installation
WB-LP1215V
Installation
