B·Hype 10

Point Sources
Back to gallery
Point Sources
293 mm 541.7 mm 282.1 mm

2-WAY ACTIVE SPEAKER

260W PEAK AMPLIFIER

MAX SPL 121 dB

FREQUENCY RESPONSE [-6dB]: 62 - 19.600 Hz

HF: 1" v.c.

LF: 1x 10", 1.5" v.c.

WEIGHT: 9 kg (19.84 lbs)

Sales & Rental Network

B·H series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.

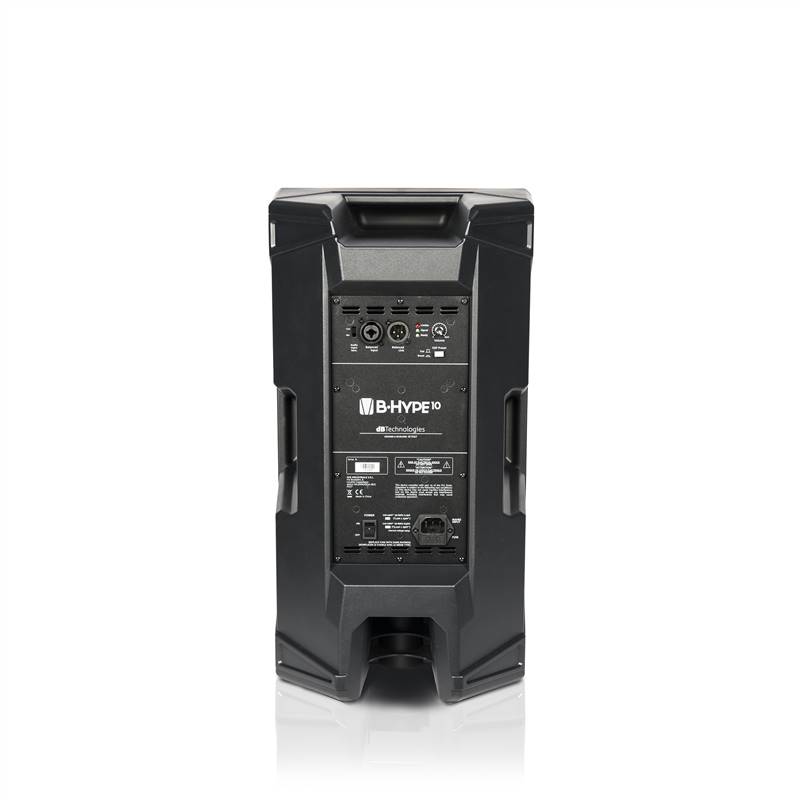

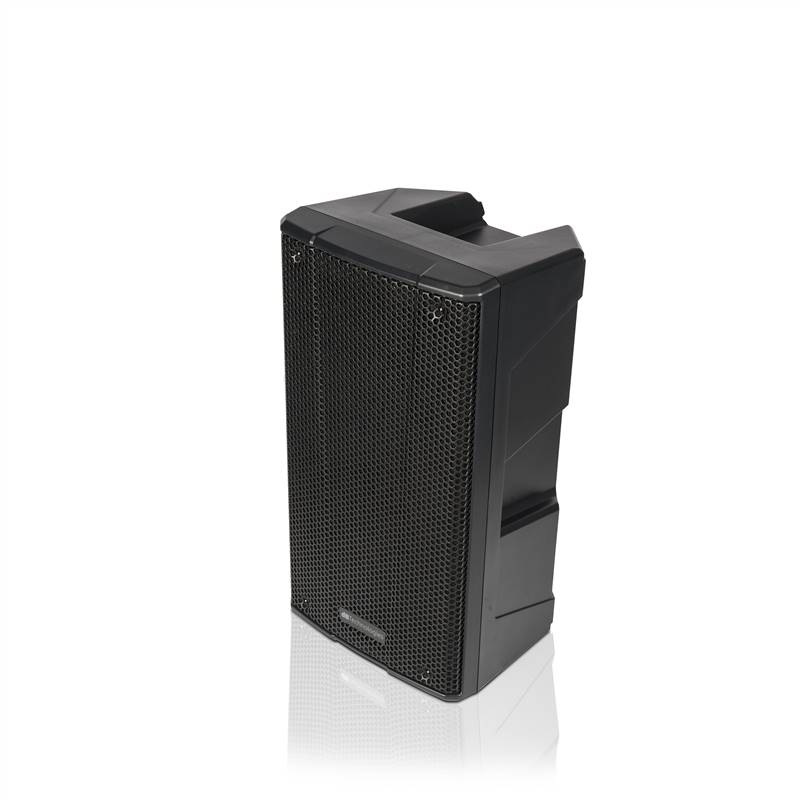

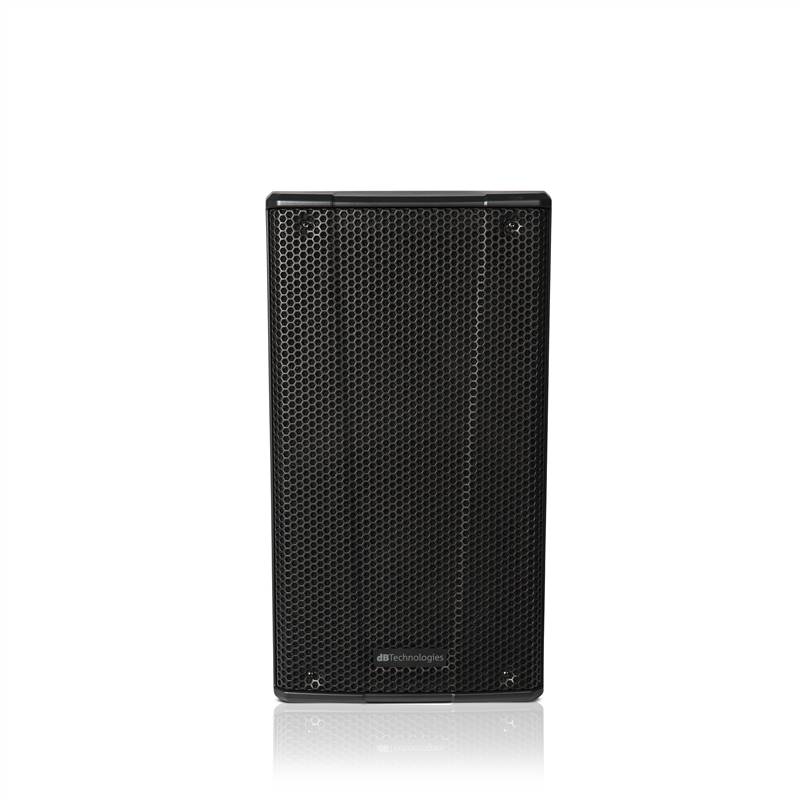

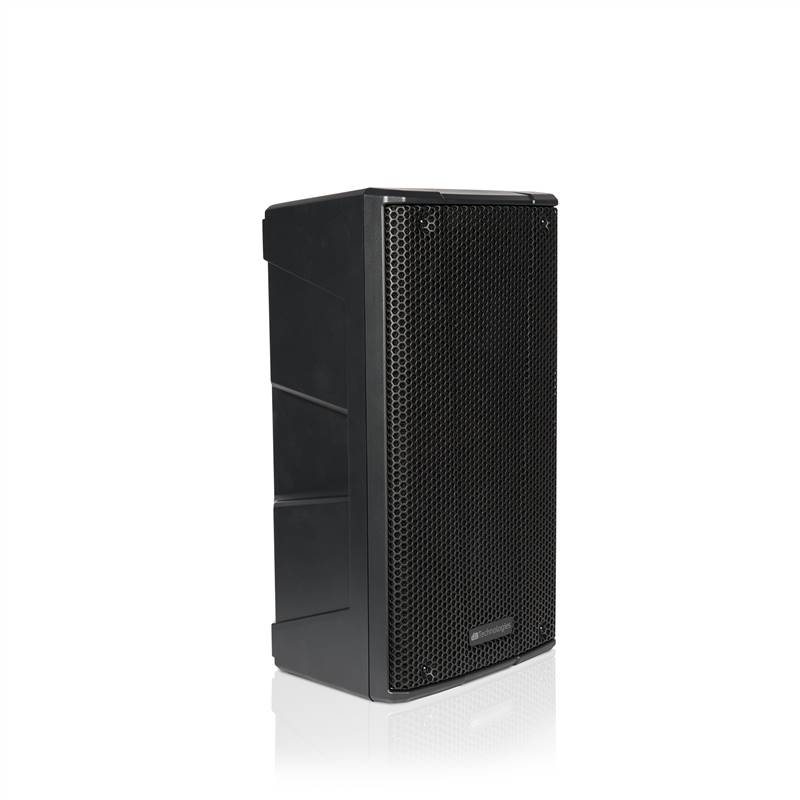

The new B-HYPE 10 is a versatile active speaker. It is equipped with one 1” compression driver (1” voice coil), and one 10” woofer (1.5” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.

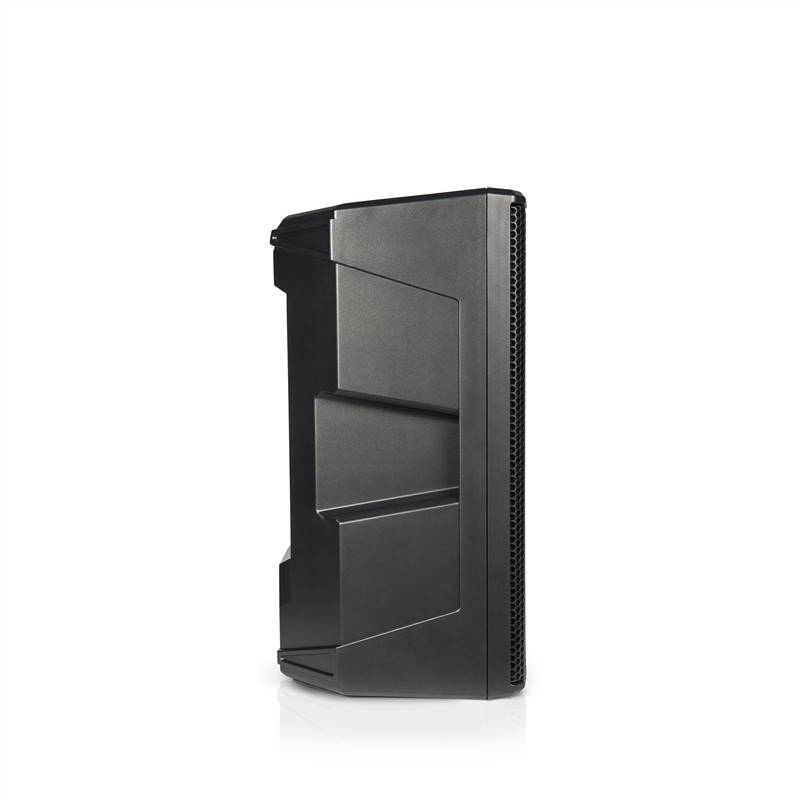

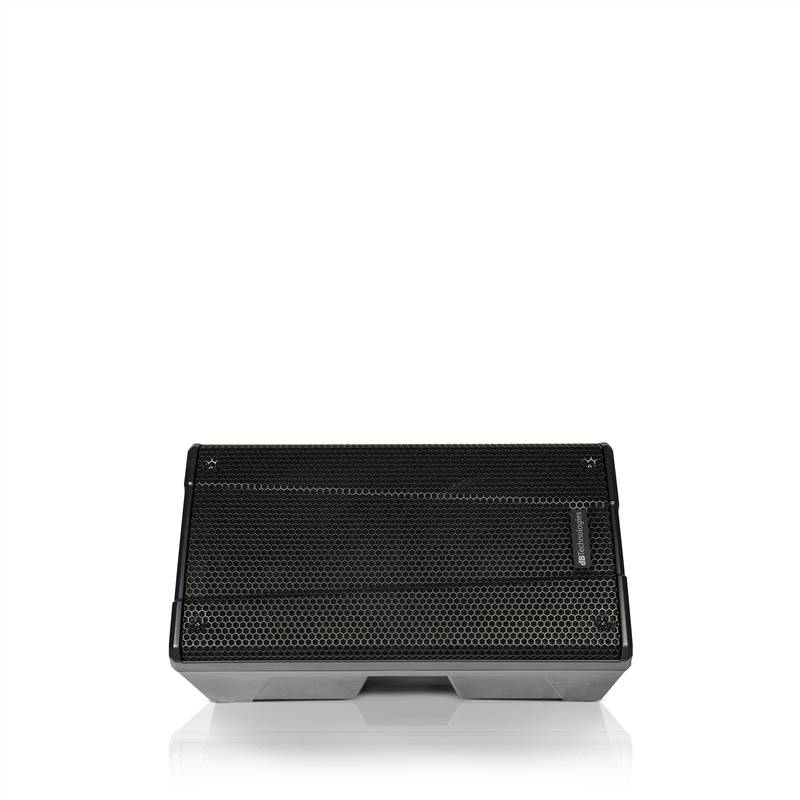

The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1xside and 1 on top-) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dBTechnologies Subs.

Read More

TECHNOLOGIES

Technical Data
Speaker Type
2-Way Active Speaker

Acoustical data
Usable Bandwidth [-10dB]
55 - 20.000 Hz

Frequency Response [-6 dB]
62 - 19.600 Hz

Max SPL
121 dB

Type HF
Compression Driver

HF voice coil
1 "

LF
10 "

LF voice coil
1.5 "

Crossover Frequency
2300 Hz (24 dB/oct.)

Horizontal Dispersion
asymmetrical 85° up / 120°down

Vertical Dispersion
85° (+25/ -60°)

Amplifier
Amp Technology
Custom Made

Amp Class
Class D - Passice cooling (convection)

Power Peak
260 W

Processor
Controller
DSP 28/56 bit- 48 kHz

Limiter
Peak, RMS, Thermal

Controls
Volume, Audio Input Sensitivity, DSP Preset

Input
Main Connection
VDE

Signal Input
Balanced 1xCombo IN (MIC/LINE)

SIGNAL Out
(Balanced) 1xXLR OUT (LINK)

Mechanics
Housing
Polypropylene

Grille
Full Metal Grille

Handles
3 (2 on side 1 on top)

Pole Mount
36 mm

Width
295 mm (11.61 in)

Height
544 mm (21.42 in)

Depth
283 mm (11.14 in)

Weight
9 kg (19.84 lbs)

Angles Up
Double wedge angle 45°

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename: Category: Filetype: Size: Language: Release:
DWG_B-HYPE-10 Drawing DWG 1,17 MB English 2017-07-13
CE_B-HYPE-10 Certifications PDF 0,88 MB Italiano 2017-03-21
Manual_B-HYPE_Rev1.0 Manual PDF 0,98 MB English 2017-04-27
UKCA_B-HYPE-10 Certifications PDF 0,55 MB Italiano 2022-04-11
