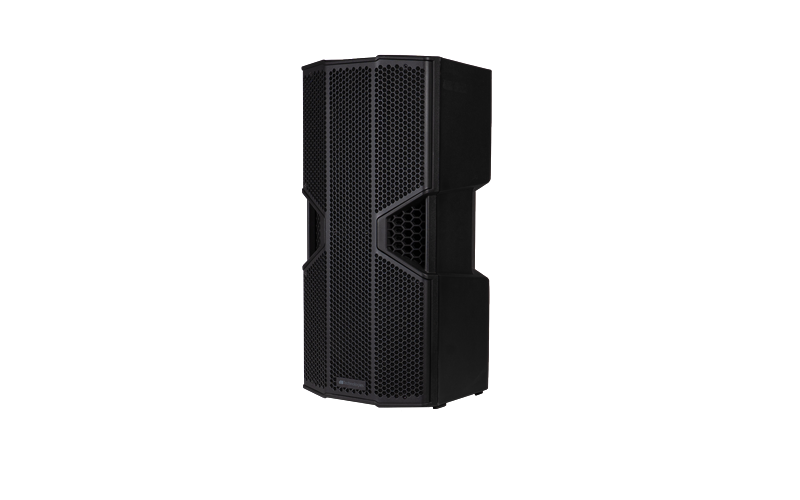

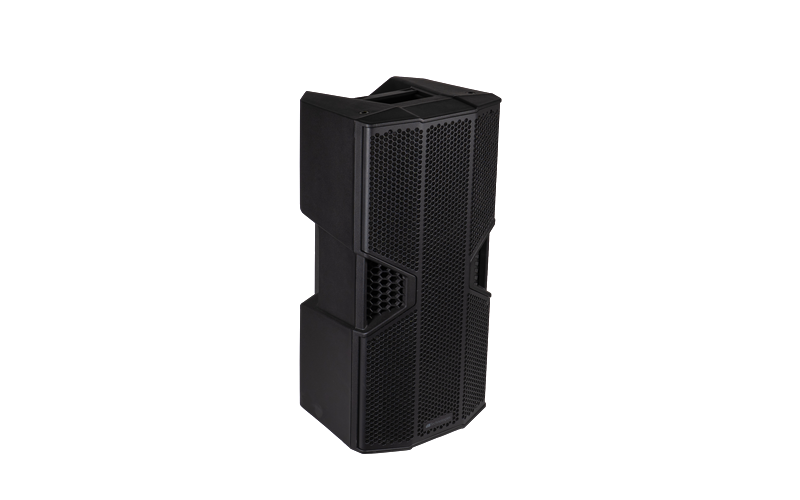

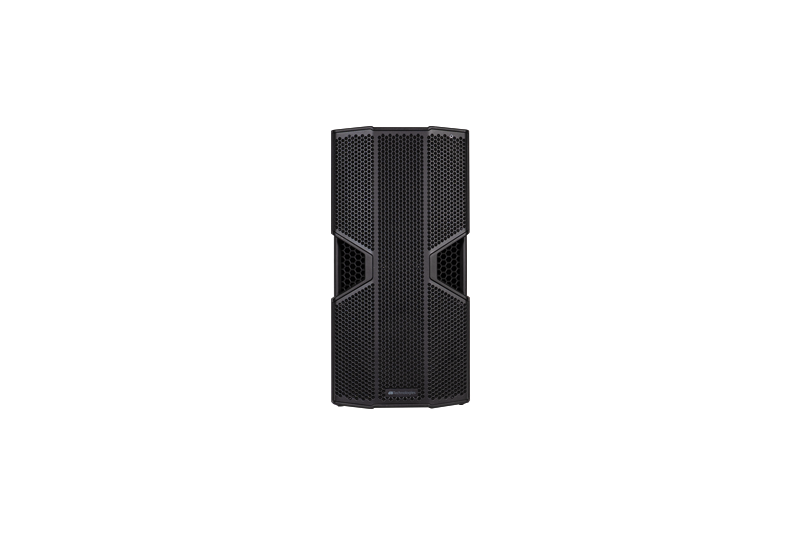

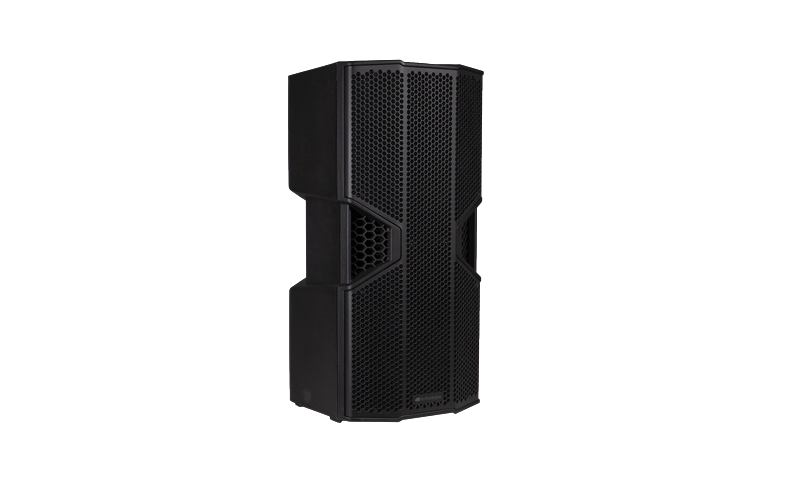

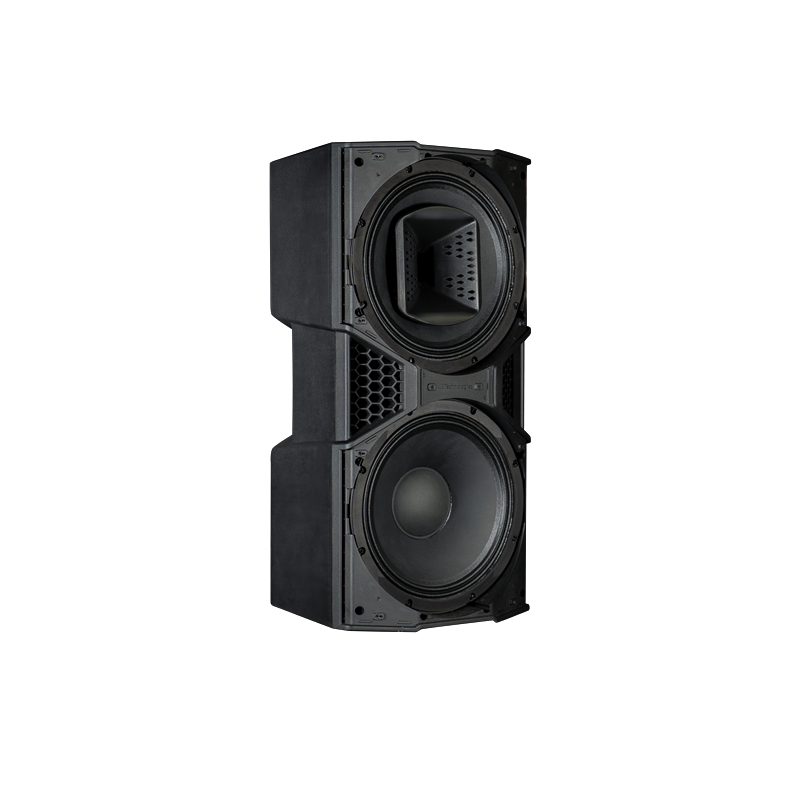

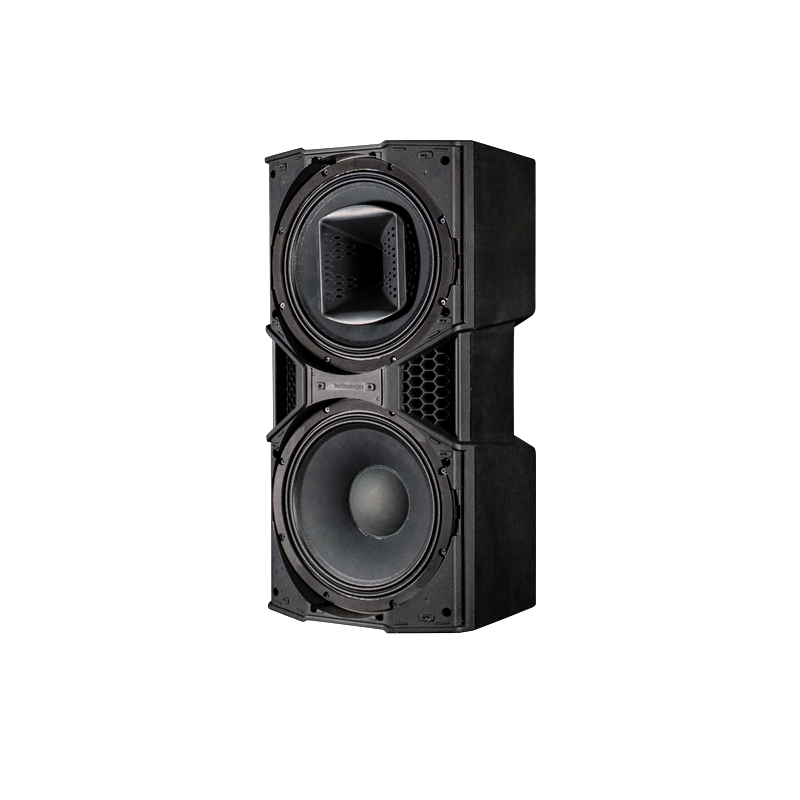

OPERA NONA 212, with dual 12” woofers, combines its LF section with a coaxial mid-high driver in a true coaxial Quasi 3-way acoustic design. Powered by 1000 W RMS Class-D amplification and equipped with onboard DSP, flexible connectivity and multiple mounting options, NONA is ready to move between main PA, stage monitoring, mobile applications and fixed installations. The dual-woofer architecture is at the heart of OPERA NONA. Using two LF transducers increases the available radiating surface while maintaining a compact enclosure.
The 2 × 12” configuration of OPERA NONA 212 provides 28% more LF radiating surface compared to a single 15” LF woofer, extending low-frequency presence and reaching a maximum SPL of 132.5 dB.
Design. True coaxial Quasi 3-way.

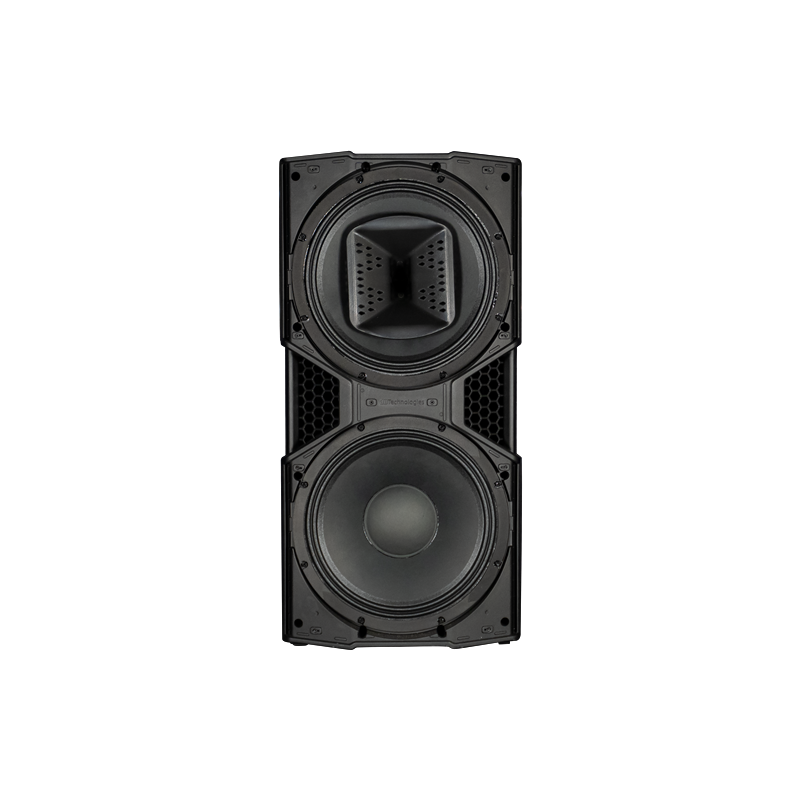

Both NONA models combine their dual-woofer LF section with a coaxial mid-high driver, creating a true coaxial Quasi 3-way configuration. Together with a controlled 90° × 60° directivity pattern, the acoustic architecture provides the foundation for consistent coverage across different professional applications.
A 1000 W RMS Class-D amplifier powers both models, while onboard DSP presets allow the system to adapt quickly to different operating configurations.
Applications. Multiple setups.
OPERA NONA has been conceived to adapt to different applications without changing its fundamental operating concept.

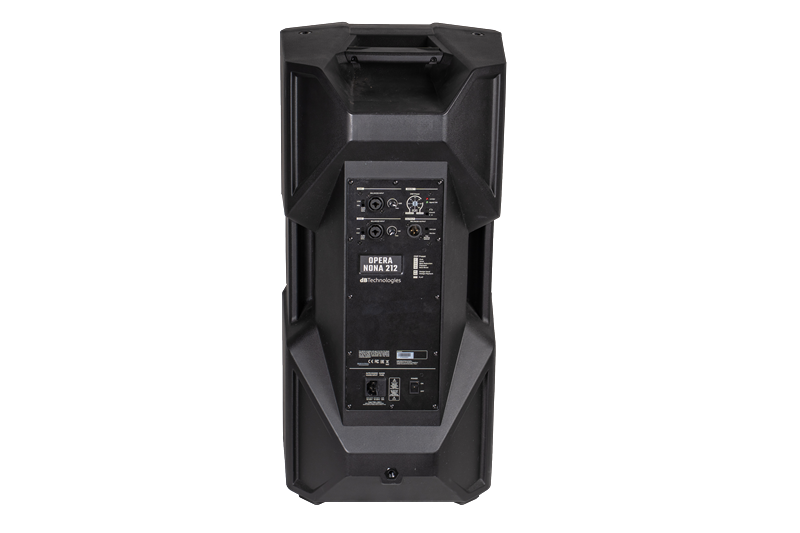

Onboard DSP presets support both speaker and wedge use, while two combo XLR/jack inputs and selectable output routing provide flexible connectivity for different system configurations.
The cabinet offers two wedge angles for stage monitoring and three integrated handles for practical transport and positioning.

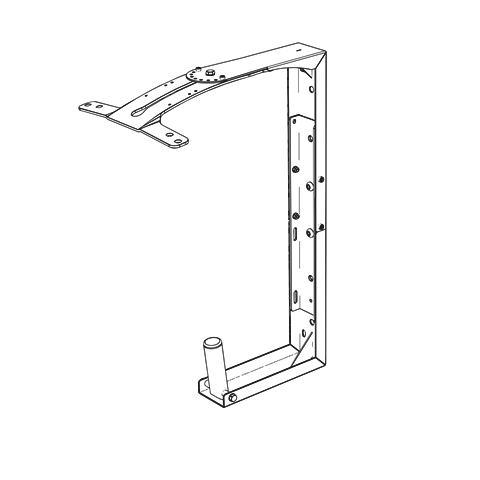

For PA deployment, both models feature a standard 36 mm pole mount. Three M10 inserts for eyebolts extend the system to suspended applications, while the dedicated WB-NONA wall bracket provides an additional option for fixed installations.
Read More
TECHNOLOGIES
Coaxial SpeakerThese coaxial speakers deliver an extraordinary sound quality that defies the compact design of their housings. Engineered for precise directivity and uniform throw patterns, they provide the same satisfying audio experience from every listening position, with far greater resistance to Feedback.
Linear Phase FIR FiltersA low-latency sound processing featuring Linear Phase FIR filters allows cabinets to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. This is also achieved by making the phase response as linear as possible, avoiding any distortion.
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
**AES75: @1 meter, free field, with Music-Noise
Filename:
Category:
Filetype:
Size:
Language:
Release:
DWG-OPERA-NONA-212
Drawing
DWG
6.59 MB
English
0001-01-01
CE-OPERA-NONA-212
Certifications
PDF
1.95 MB
English
0001-01-01
Datasheet_OPERA-NONA-212
Data Sheet
PDF
2.07 MB
English
2026-11-09
Manual_OPERA-NONA-210-212_Rev.1.0
Manual
PDF
9.24 MB
English
0001-01-01
Quick-start_OPERA-NONA-210-212
Manual
PDF
1.23 MB
English
0001-01-01
UKCA-OPERA-NONA-212
Certifications
PDF
1.62 MB
English
0001-01-01
FC-NONA212
Bags & Covers
WB-NONA
Installation
DS-35D
Installation
DS-2
Installation
SK-36TT
Installation
RC-M1
Bags & Covers
Related Products

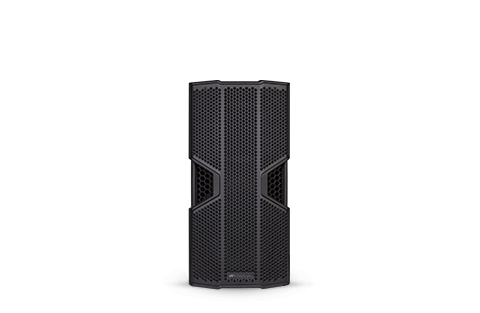

OPERA NONA 210
