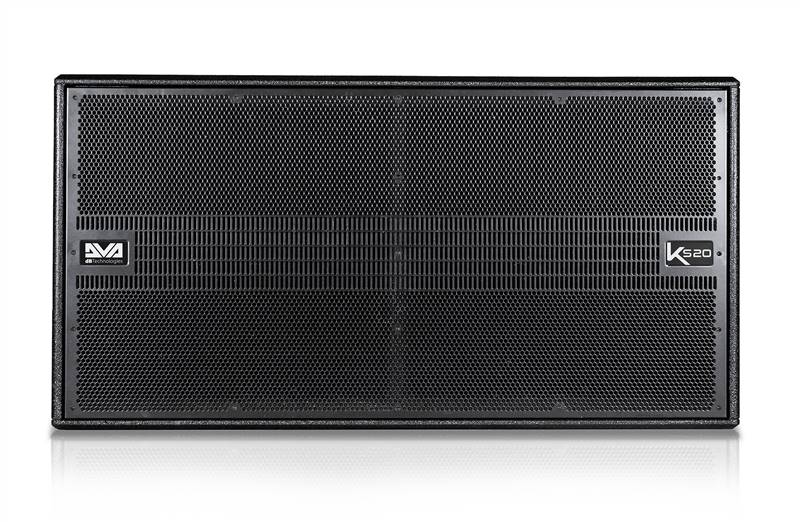

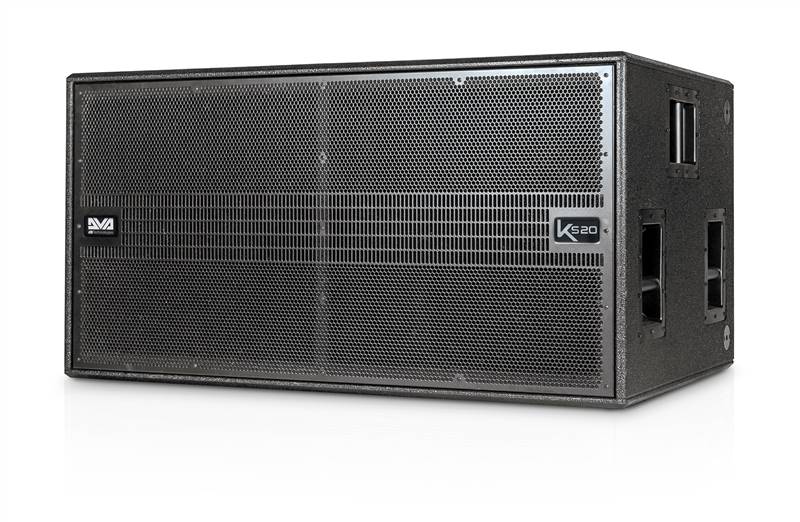

Featuring a double 18" woofer pairing in a bass reflex housing, the DVA KS20 is equipped with two Digipro G3 Power Amplifiers delivering 4000 W Peak. The system's internal design brings together the benefits of bass reflex and horn-loaded systems in a compact, sturdy housing covered with robust black laquer. The 56 Bit DSP manages limiters and delays for flawless system processing.

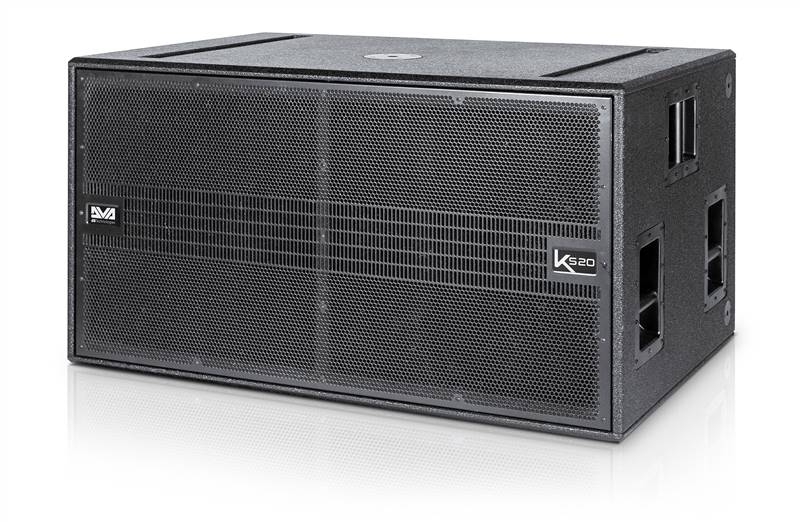

DVA KS20 is the perfect low-end complement for larger DVA K5 systems and can be used vertically in groundstacked configurations thanks to the DRK-20/10 pickpoints on top.
Read More
TECHNOLOGIES
Digipro® G3System of digital amplification engineered by dBTechnologies. Based on the previous Digipro projects, completely re-designed, lighter in weight and more efficient, new Heatsink, newest components which maximize the power with a lower consumption.
Product code: 1030102410C
Technical Data
Speaker Type
Active Bassreflex-Horn loaded Subwoofer
Acoustical data
Frequency Response [- 10 dB]
41 Hz - 120 Hz
Max SPL
138 dB
Directivity
Omnidirectional
LF
2x18 "
Voice Coil LF
4 "
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power
1800 W
Peak Power
3600 W
Cooling
Convection
Power Supply
1800 W SMPS with auto range PSU
Processor
Controller
DSP 56 Bit
AD/DA Converter
24 Bit /48 Hz
System Presets
X-Over, Delay
Limiter
Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency LF-HF
90, 120 Hz (selectable)
Slope LF-HF
24 dB/Octave

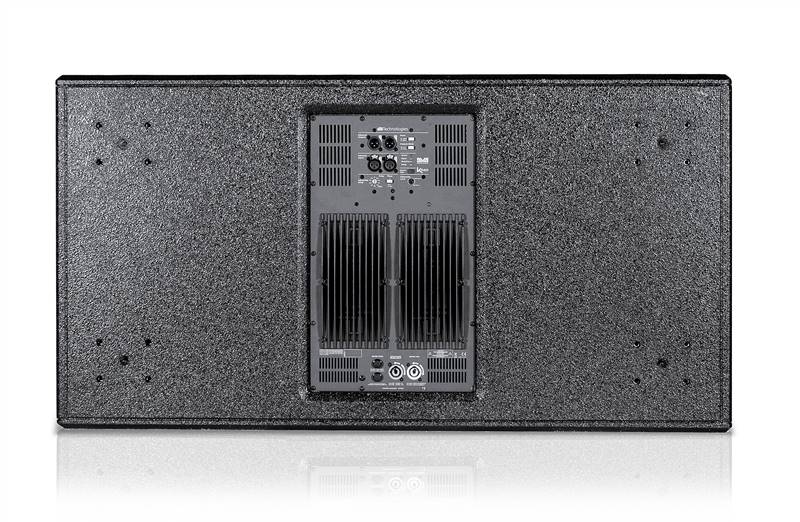

Input
Input Selection
2x XLR Balanced
Output Selection
2x XLR Balanced
Power Socket
1x PowerCON in + 1x PowerCON Out
Controls
1 x Input Sensitivity Rotary Switch
1 x Setup Rotary Encoder (delay up to 4.5 ms on-board)
1 x Polarity Inversion Switch
1 x X-over Frequency Switch (90 Hz, 120 Hz)
1 x Output mode Switch (Link- X-Over)
Mechanics
Housing
Plywood
Handles

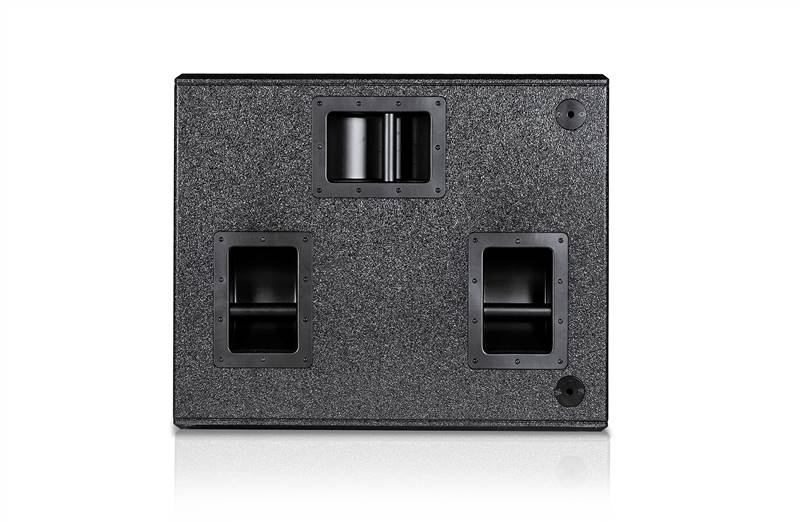

3x Per Side
Rigging Points
2xPick Points on top to fix
DRK10/20 rigging frames
Pole Mount
1 xM20 on top
Width
1100 mm (43.31 in)
Height
580 mm (22.83 in)
Depth
720 mm (28.53 in)
Weight
84 kg (185.19 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
