DVA Mini G2

Line Arrays
Line Arrays
190 mm 460 mm 345 mm

2-WAY ACTIVE LINE ARRAY MODULE

400 W RMS DIGIPRO G3 AMP TECHNOLOGY

131 dB MAX SPL

USABLE BANDWIDTH [- 6 dB] 80 - 19.000 Hz

HF: 2x 0.75", 2” v.c. - NEODYMIUM

LF: 2x 6.5", 1.75” v.c. - NEODYMIUM

Sales & Rental Network
Enhancing ease of use as well as versatility thanks to complete network capability, DVA MINI G2 provides stunning power and sound pressure in an extraordinary lightweight and compact enclosure.

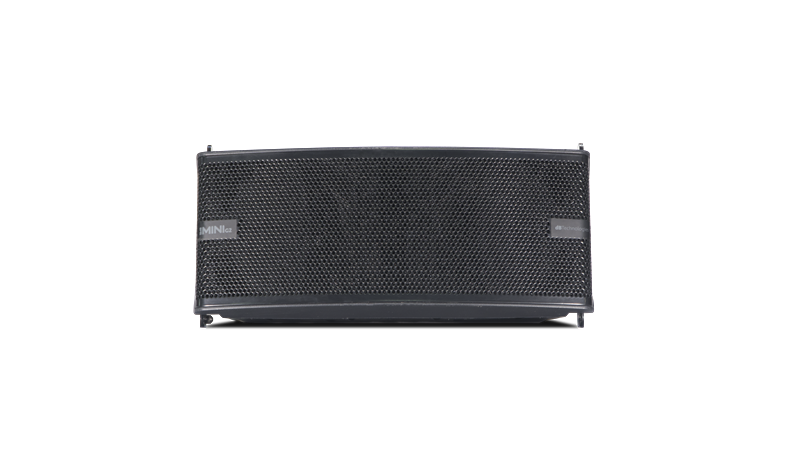

Each element is equipped with 2x6.5” neodymium woofers and 2x1” high-frequency neodymium compression drivers and driven by a Class D Digipro G3 amp module providing 400 W RMS. The system can reach an impressive 131-dB-per-unit sound pressure level.
The system’s advanced sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.
DVA MINI also features complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use. Nevertheless, the on-board 1 rotary provides for 7 different presets to adapt the system to basic applications.

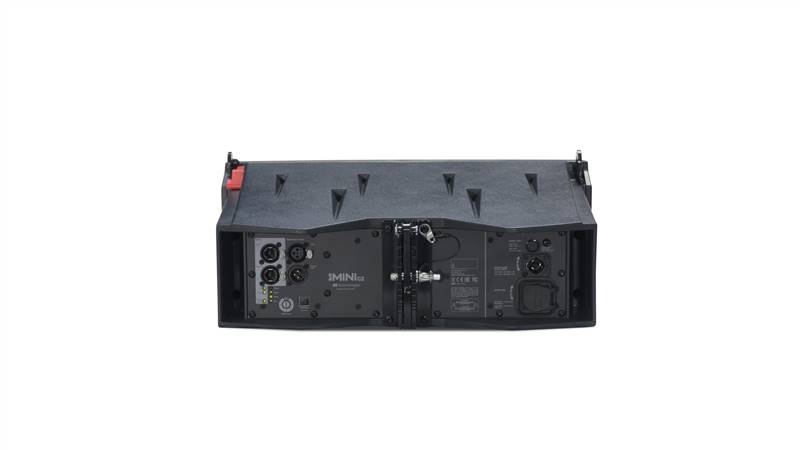

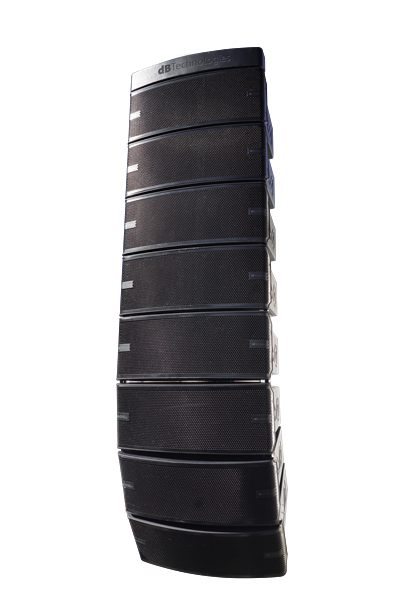

An integrated quick-lock system links enclosures by simply placing one module below a companion module and sliding it towards one side until it locks in place. The rigging hardware is on the rear of every cabinet allowing for incremental steps for line array positioning. Extra-light DRK M5 fly-bar easily allows a fast rigging while DSF M2 accessory enables the system to be stacked on a standard pole.

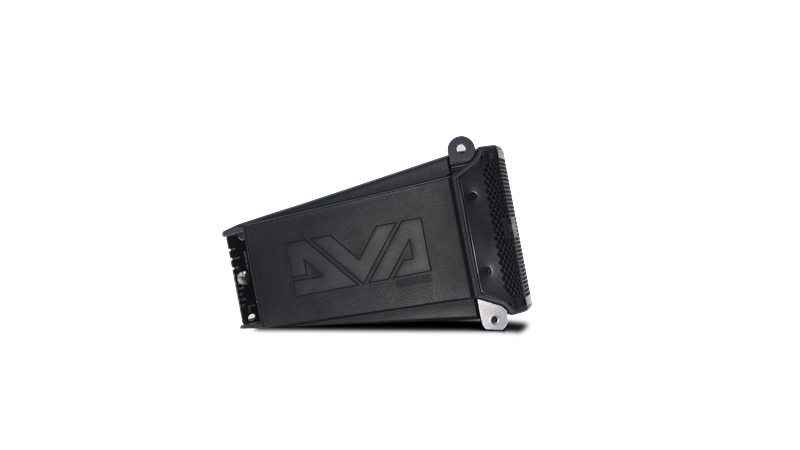

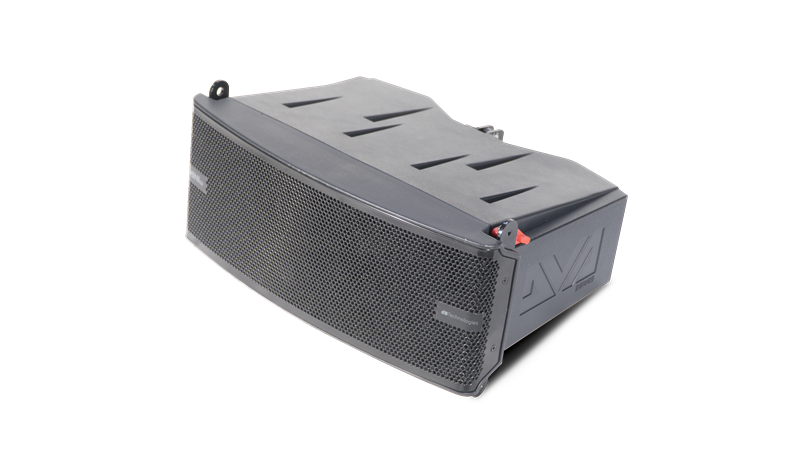

The cabinets are constructed of reinforced polypropylene packing extra power in compact dimensions (460x190x345 mm) and feather-weight (only 8.4 kg per module).
Read More

TECHNOLOGIES

Aurora Net
Aurora NetThis product is fully-compatible with Aurora Net software
Digipro® G3
Digipro® G3System of digital amplification engineered by dBTechnologies. Based on the previous Digipro projects, completely re-designed, lighter in weight and more efficient, new Heatsink, newest components which maximize the power with a lower consumption.
Linear Phase FIR Filters
Linear Phase FIR FiltersA low-latency sound processing featuring Linear Phase FIR filters allows cabinets to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. This is also achieved by making the phase response as linear as possible, avoiding any distortion.
RDNet
RDNetDigital net for bi-directional control of connected devices. The acronym RDNet originates from the development, on behalf of RCF and dBTechnologies, of a universal network which allows adjustments in real time and supervision of all the connected systems, using cables based on ethernet cat 5 wires. With the specific software and the interfaces control 2 and control 8, a complete command of the acoustic system will be possible allowing real time supervision on each electrical component of the various speakers. RDNet allows you to monitor levels, limiters, and temperatures, select system presets, configure setups off-line, Mute units, Group modules and assigning group EQ, delay and phase, test individual components, automatically address system components, tap into LAN and USB interfaces, extend the network via wireless LAN access points.
Product code: 1030103870
Technical Data
Speaker Type
2-Way Active Line Array Module

Acoustical data
Usable Bandwidth [-10 dB]
75 - 20.000 Hz

Frequency Response [-6 dB]
80 - 19.000 Hz

Max SPL
131 dB per unit

HF
2x 0.75"

Type HF
Neodymium

Voice Coil HF
1"

LF
2x 6.5"

Type LF
Neodymium

Voice Coil LF
1.75"

Directivity (HxV)
15° x 100°

Amplifier
Amp Technology
Digipro® G3

Amp Class
Class D

RMS Power Amp
400 W

Cooling
Convection

Processor
Controller
DSP 56 bit

AD/DA Converter
24 bit/48 kHz

Controls
1x Rotary Encoder (8 presets)

Limiter
Multiband, RMS/Peak, Thermal

Crossover Frequency LF-HF
1900 Hz

Slope LF-HF
24 dB/Octave

Advanced DSP functions
Linear Phase FIR Filters

Input
Signal Input
1x XLR fem, Bal.

Signal Output
1x XLR male, Bal.

Power Supply
400W SMPS with PSU Auto-range (110V~ and 220V~)

Power Socket
1x PowerConTRUE1 In 1x PowerConTRUE1 Out

Mechanics
Housing
Polypropylen PP

Handles
2x back side

Fittings
Integrated hardware with fast lock mechanics

Width
460 mm (18.1 in)

Height
190 mm (7.5 in)

Depth
345 mm (13.6 in)

Weight
8.4 kg (18.5 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename: Category: Filetype: Size: Language: Release:
CE_DVA-MINI-G2 Certifications PDF 0,31 MB Italiano 2020-10-30
Manual_DVA-MINI-G2_Rev1.0 Manual PDF 15,72 MB English 2021-09-16
Quick-Start_DVA-MINI-G2_Rev1.0 Manual PDF 2,21 MB English 2020-03-05
UKCA_DVA-MINI-G2 Certifications PDF 0,57 MB Italiano 2022-04-11
FW_DVA-MINI-G2_v01.00.00.dbu2 Firmware ZIP 0,16 MB English 2023-02-09
FW_DVA-MINI-G2_v02.01.00.dbu2 Firmware ZIP 0,16 MB English 2023-02-09
GLL_DVA-MINI-G2_v1.1.exe GLL ZIP 4,39 MB English 2022-09-09
