ES 802

Column Speakers

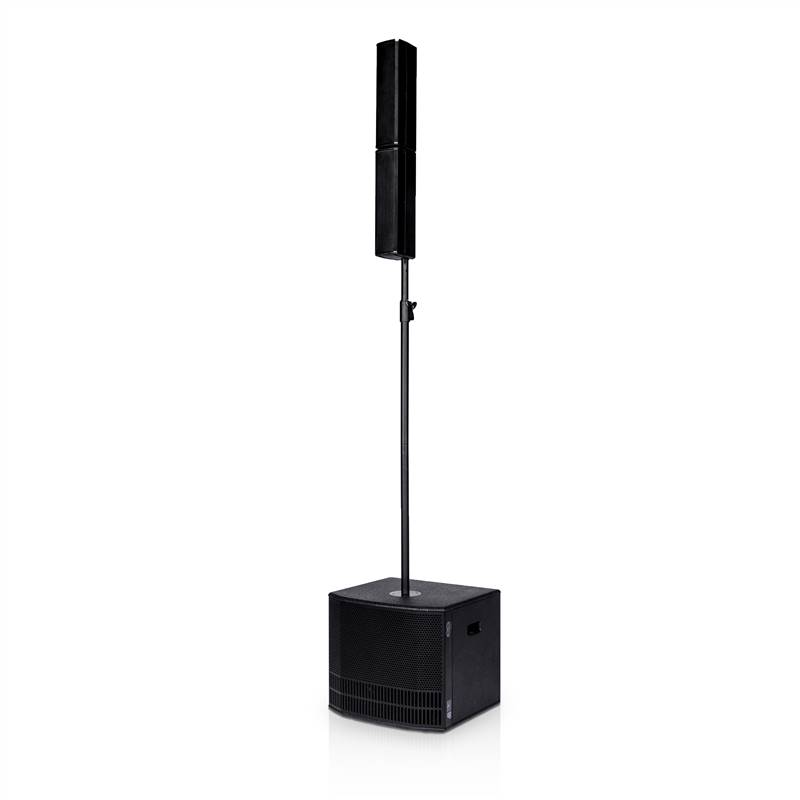

ES802 threefourths top left dbtechnologies 23052016

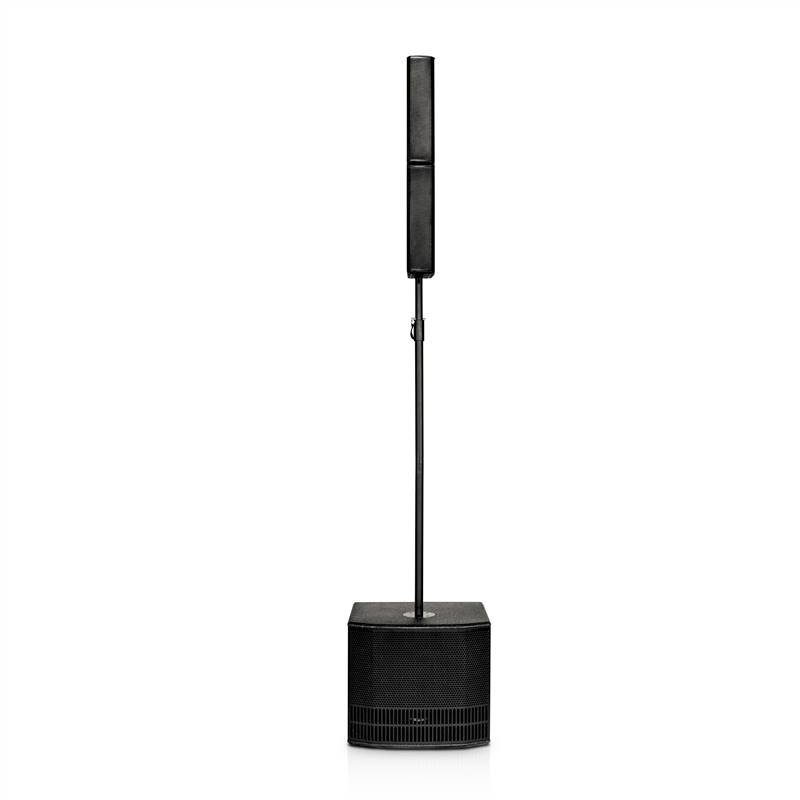

ES802 front copia dbtechnologies 23052016

Download images

Column Speakers

2-AMPED MONO COLUMN SYSTEM

1200 W PEAK CLASS-D DIGIPRO® G3

MAX SPL124 DB

USABLE BANDWIDTH [-10 DB]: 37 - 15.000 Hz

HF/MF: 4x 3”, NEODYMIUM (EACH TOP)

LF: 1x 12”

WEIGHT (TOP): 1.9Kg (4.19 lbs.)

WEIGHT (SUB): 16.4Kg (36.16 lbs.)

Sales & Rental Network

ES 802

The ES Series is the result of experience gained from dBTechnologies in the acoustic design of vertical array systems like DVA T Series and MINI. The components of the top are aligned mechanically (Logarithmic Curved Column Array) so as to increase the coverage of the vertical beam. Furthermore, there is a special “double-ringed phase plug” that increases the horizontal coverage and gives a rich and crystal clear sound to the system.

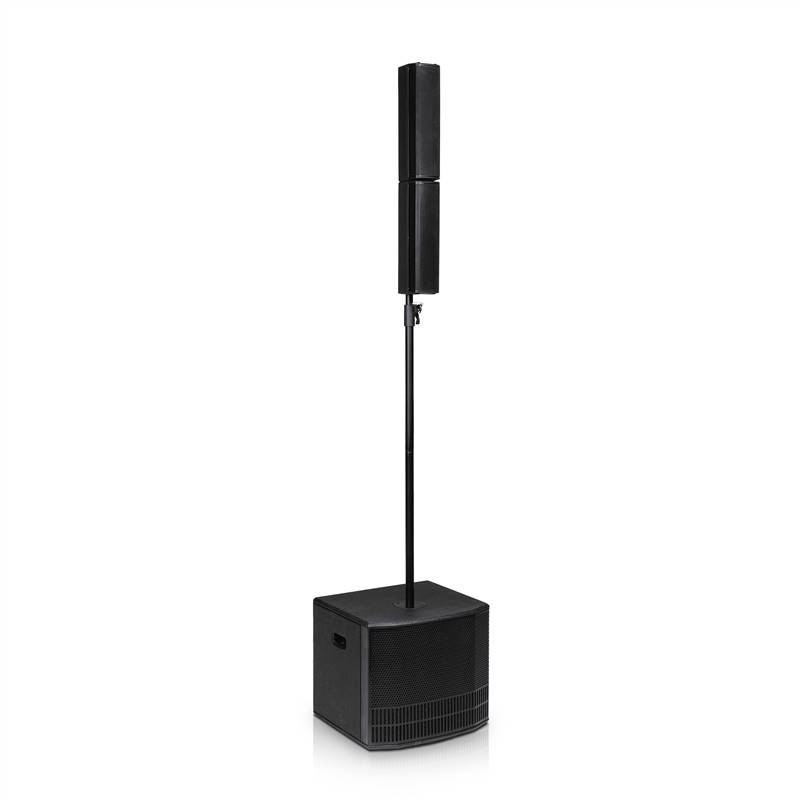

The satellites are connected top-on-top and are placed on the subwoofer through the supplied D25mm pole. The system is used in mono mode so all inputs are routed to both outputs in mono.

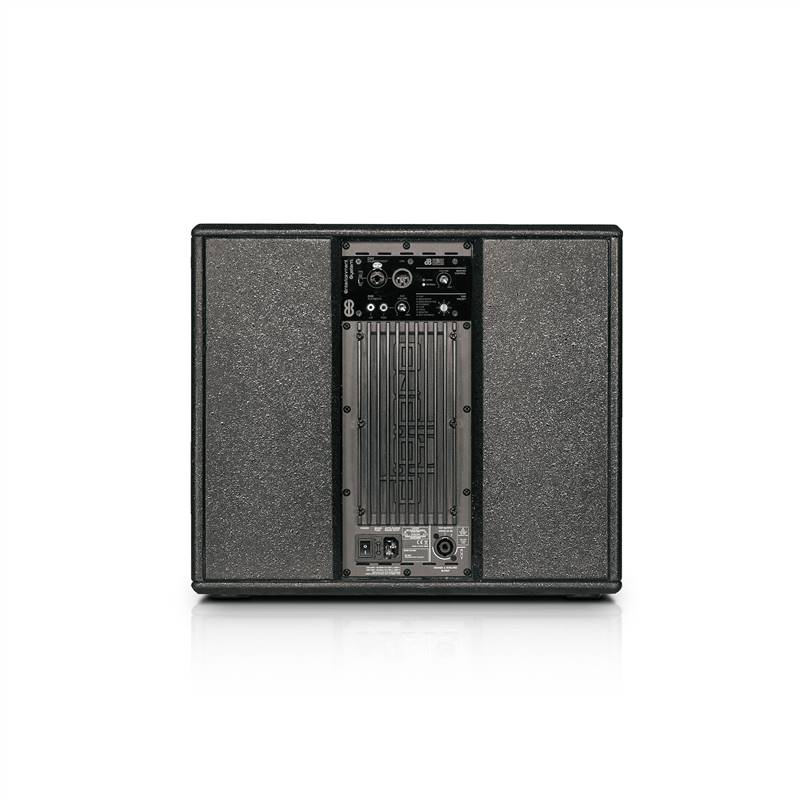

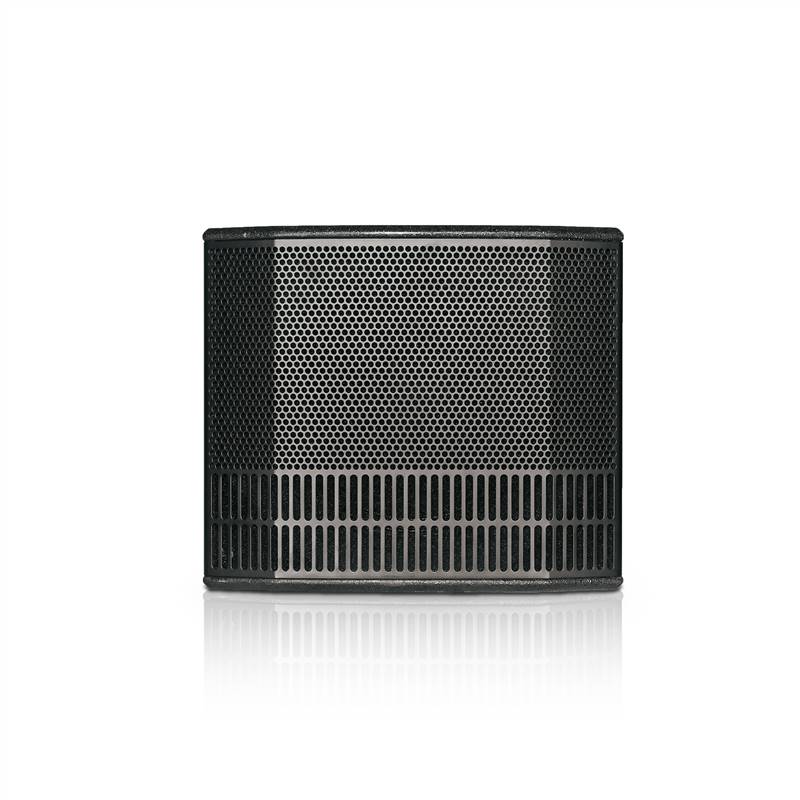

The bass-reflex subwoofer houses a generous 12” woofer and the amplifier module. The enclosure, sturdy and stylish, is made of birch plywood coated with a durable scratch-resistant black coat, which makes it truly road-ready. Two recessed handles (one per side) help easy transport. Finally, the metal grid with foam, in addition to protecting the woofer and give a very elegant and professional look, helps the reflex effect. The lower part of the grid, placed right on the reflex ports, have in fact holes with a larger diameter to enhance air flow.

The highly efficient amplifier provides high power with limited weight and dimension.

The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment.

The speakers of the top are designed to provide both an extended vertical coverage and a wide horizontal coverage.

The DSP allows to choose among 8 different equalizations:

1- Flat

2- Bass Boost

3- Bass Reduction

4- Playback

5- Club

6- Vocal

7- Monitor

8- Antifeedback

TECHNOLOGIES

Acoustical data

Frequency Response [-10dB]

37-15.000 Hz

Max SPL

124 dB

MF - HF

8x 3"

Type MF - HF

Neodymium

12"

Directivity

95x65°

Amplifier

Amp Technology

Digipro® G3

Amp Class

Class-D

Power Amp Peak

1200 W

Processor

Controller

DSP 24 Bit/48 kHz

System Presets

Factory presets

Limiter

Dual Active, Peak, RMS, Thermal

Crossover Frequency LF-HF

206 Hz

Input

Mic/Instrument Channel

1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input

Link Output

1x XLR balanced output

Mechanics

Housing (Subwoofer)

15mm Black Painted Plywood

Housing (Tops)

Polypropylene PP

Handles

2x lateral side (Subwoofer)

Width (Top)

95 mm (3.74 in)

Height (Top)

360 mm (13.98 in)

Depth (Top)

137 mm (5.39 in)

Width (Subwoofer)

465 mm (18.3 in)

Height (Subwoofer)

400 mm (15.7 in)

Depth (Subwoofer)

430 mm (16.9 in)

Weight (Top)

1.9Kg – 4.19lbs

Weight (Subwoofer)

16.4Kg – 36.16lbs

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.

Filename:	Category:	Filetype:	Size:	Language:	Release:
DWG_ES802-SUB	Drawing	DWG	0,32 MB	English	2019-10-29
DWG_ES802-TOP	Drawing	DWG	0,76 MB	English	2019-10-29
CE_ES-802	Certifications	PDF	0,87 MB	Italiano	2016-10-25
Manual_ES602-ES802_Rev1.2	Manual	PDF	1,68 MB	English	2016-08-05
UKCA_ES802	Certifications	PDF	0,55 MB	Italiano	2022-04-11
GLL_ES802_v1.gll	GLL	ZIP	4,94 MB	English	2016-10-10
