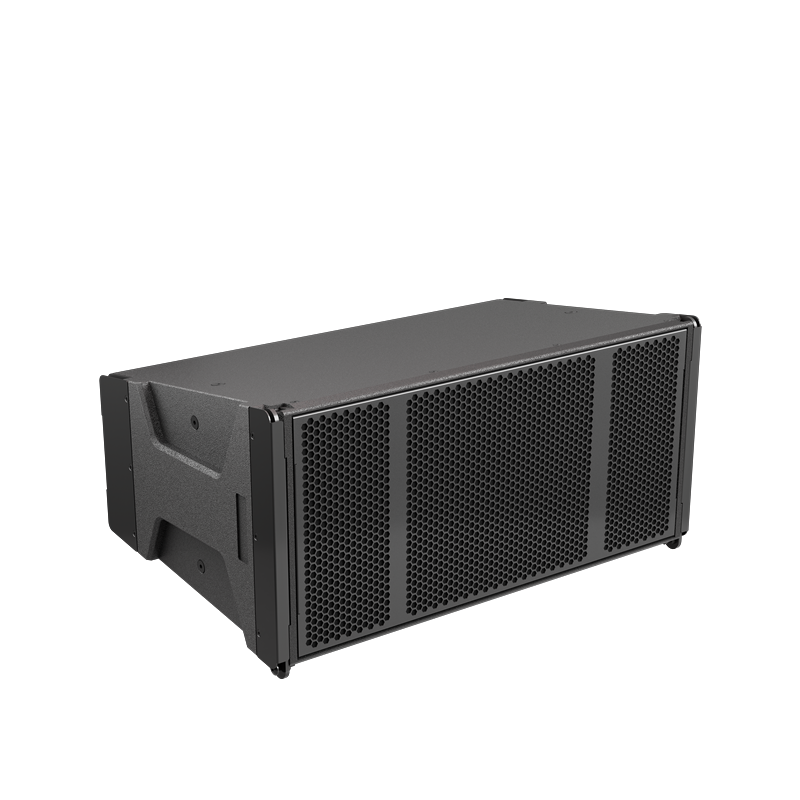

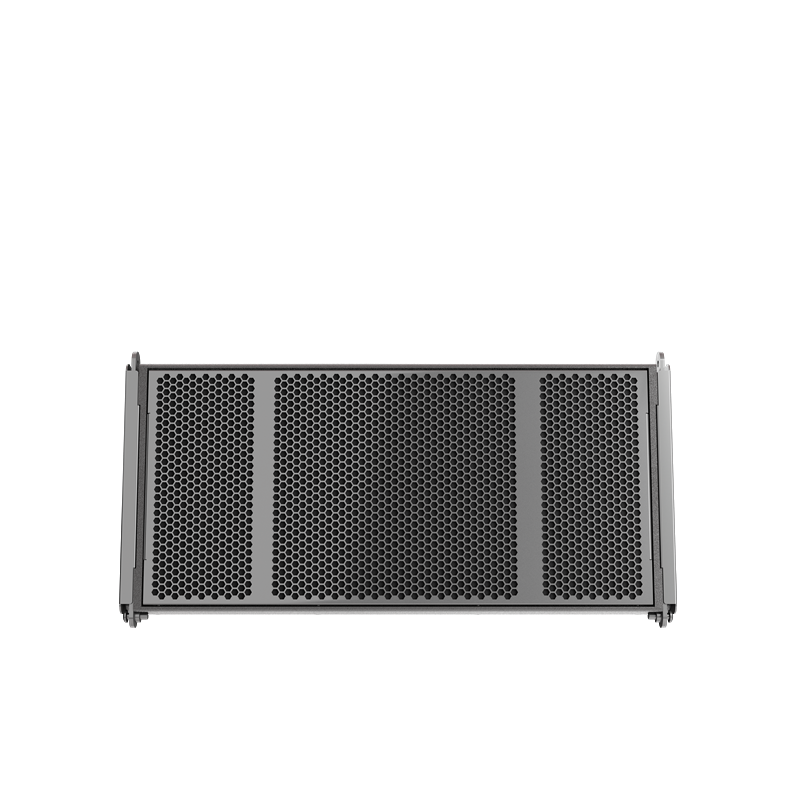

IS210L is the first IS line array dedicated to installations.
Designed with a symmetrical configuration with 2 10'' woofers and a 2.4'' driver on a waveguide, it is the first complete passive system bringing the capabilities of a high-quality line array to large environments such as arenas, performing arts center, houses of worship, multifunctional venues, clubs.

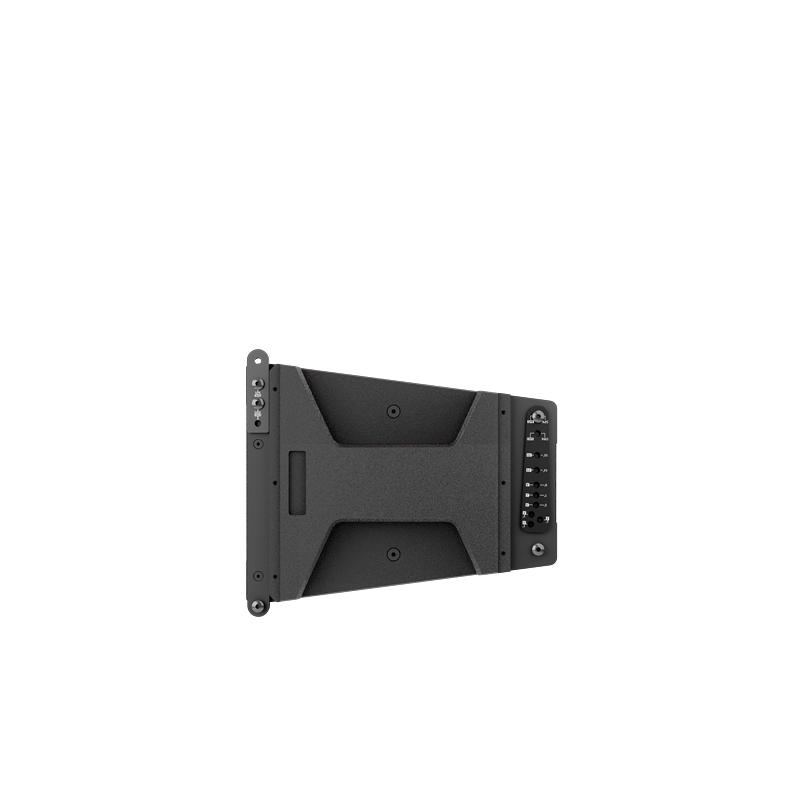

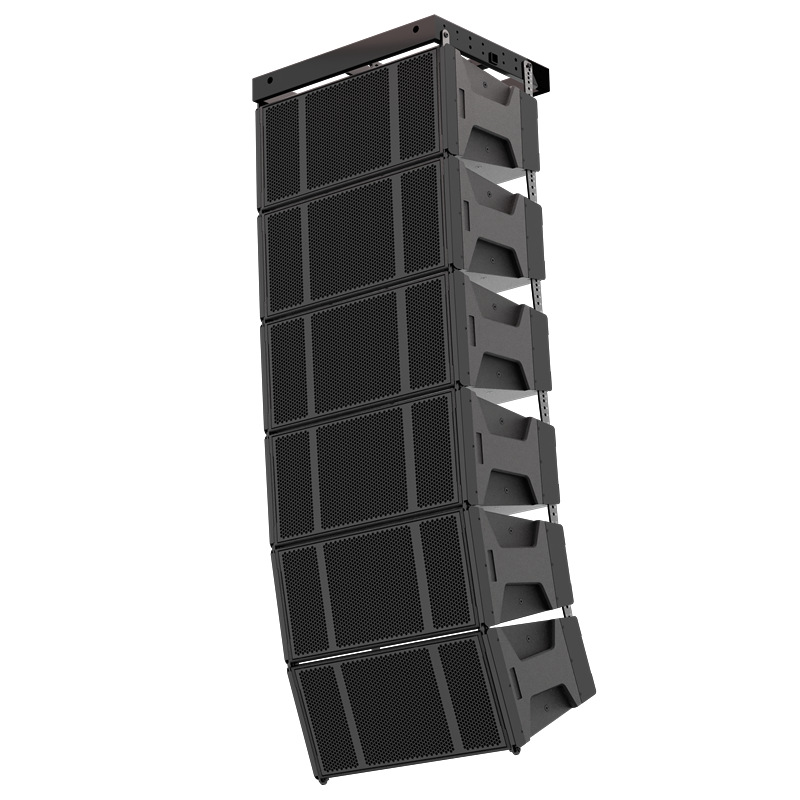

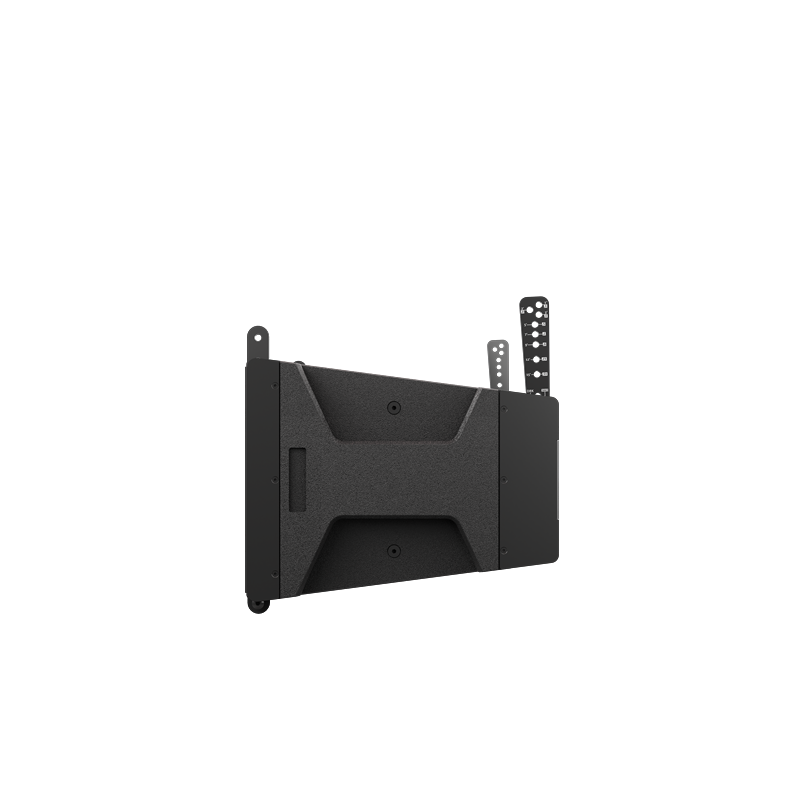

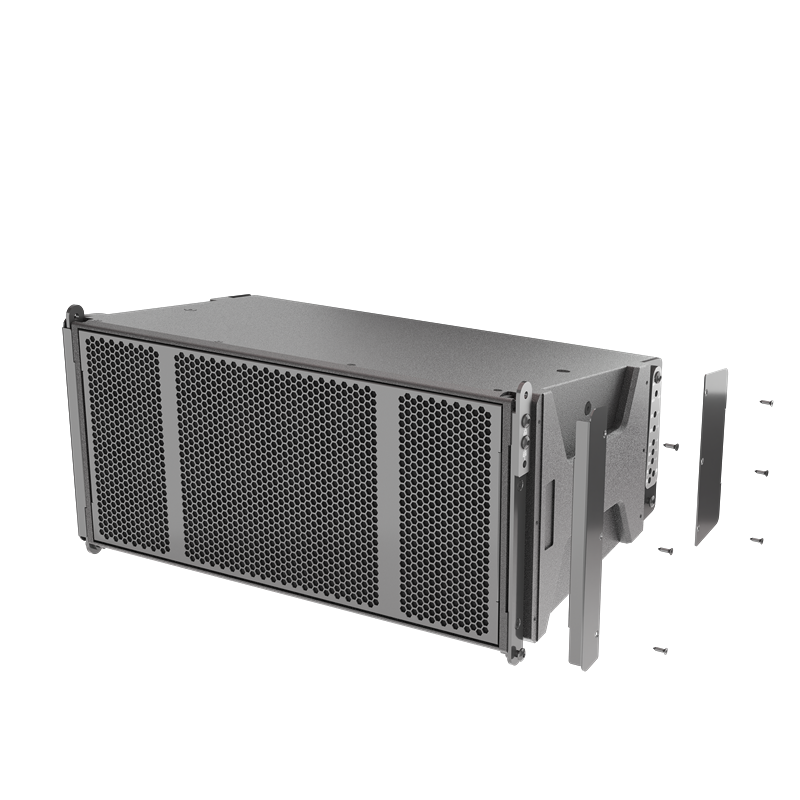

With a hanging system equipped with hidden and immediate mechanics, the system is easy to configure and has a minimal, elegant, and clean line array design.
Protected by a IP55 certification, IS210L is perfect for indoor and outdoor contexts. The variety of its connections allows all installers to benefit from maximum versatility and adaptability.
Read More
TECHNOLOGIES
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.
IP55 RatingThe product is resistant to dust and low-pressure water jets. Specifically, IP55 Rating offers limited protection against dust ingress and can withstand water jets from any direction without compromising functionality. This rating is commonly used for devices intended for both indoor and outdoor use.
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
Product code: 1030401180
Technical Data
Speaker Type
2-way Passive Line Array Module
Acoustical data
RMS Power
400W (LF: 300W | HF: 100W)
Peak Power
1600W (LF: 1200W | HF: 400W)
Usable bandwidth [-10 dB]
57 Hz - 18,700 Hz
Frequency Response [-6 dB]
65 Hz - 17,500 Hz
Impedance
8 Ohm
Max SPL
133 dB
HF
1x 1.4" (exit), 2.4" v.c.
LF
2x 10", 2.5" v.c.
Dispersion
90x15° [H x V]
X-Over Frequency
900 Hz (internal X-Over)
Input

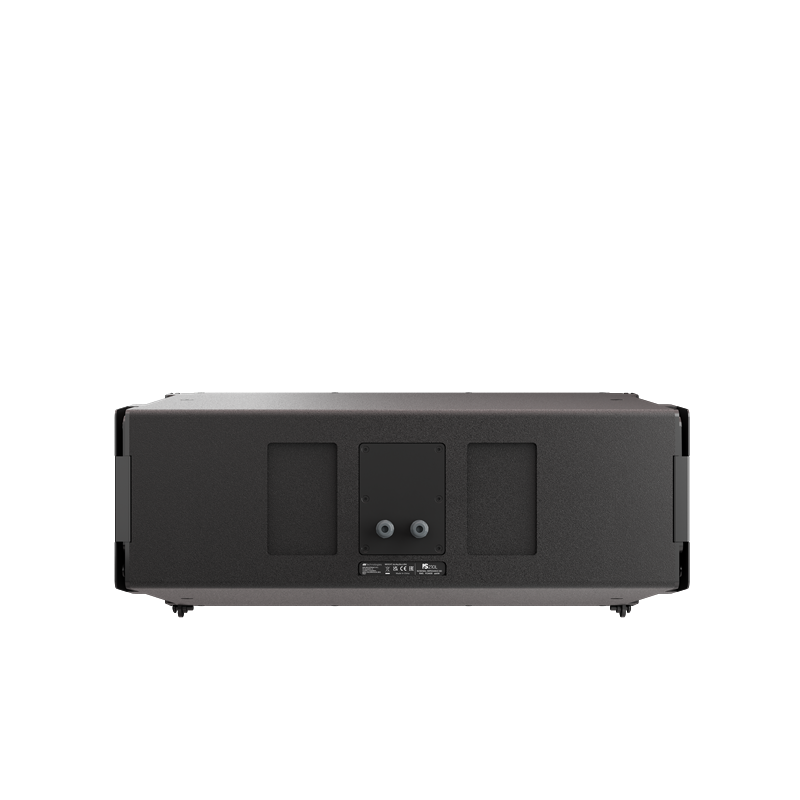

Connections
Screw terminal block (LF+ | LF- | HF+ | HF-)
Mechanics
Housing
Plywood, water-painted coating
Rigging points
flyable with bracket
IP rating
IP 55
Width
675 mm (26.57 in)
Height
310 mm (12.2 in)
Depth
400 mm (15.75 in)
Weight
29.2 Kg (64 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
