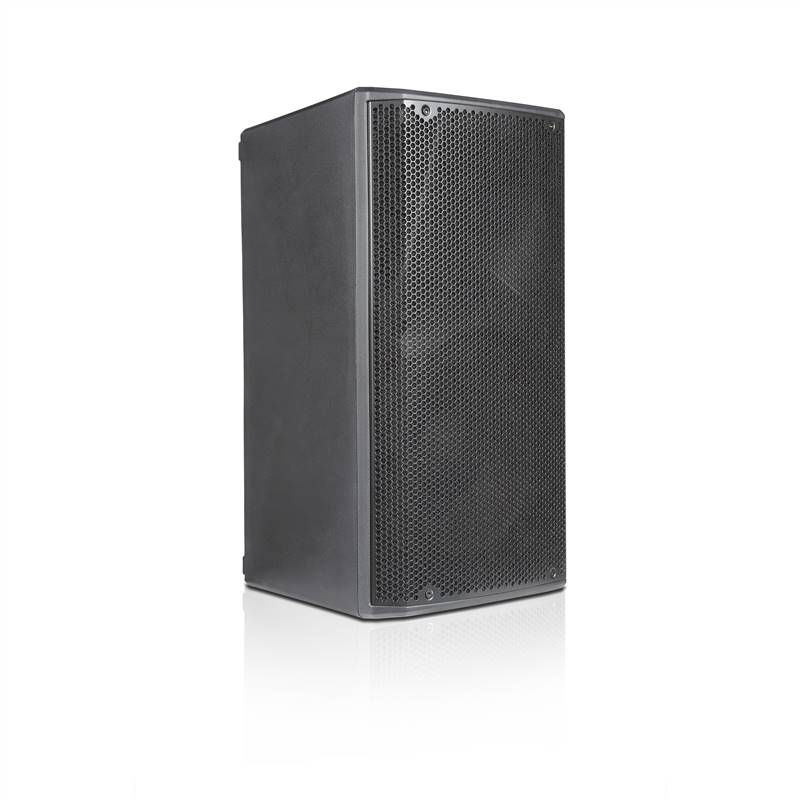

Opera12 threefourths right x dbtechnologies 23052016

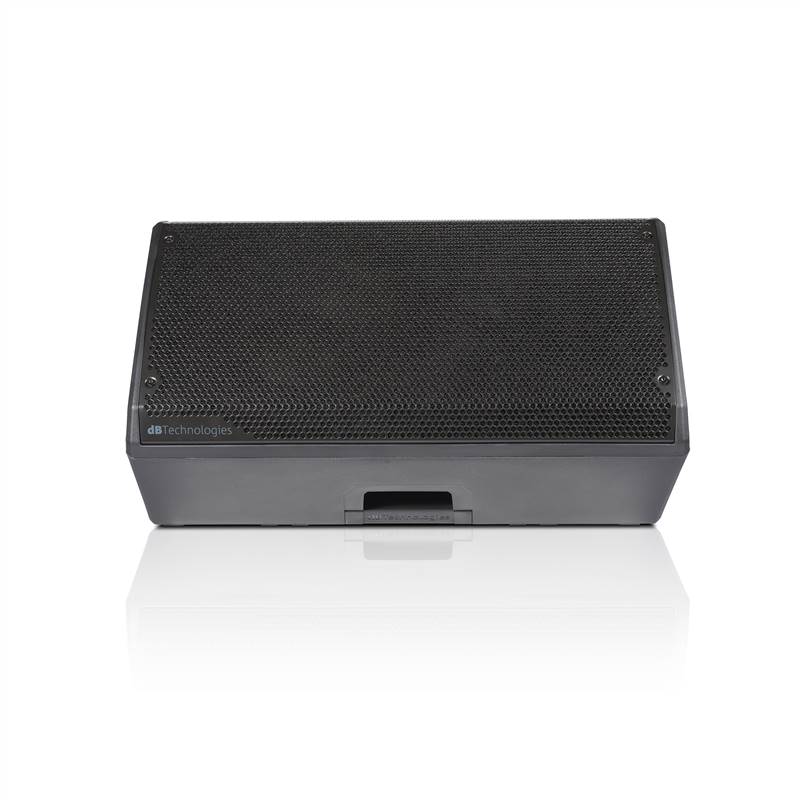

Opera12 front horizontal x dbtechnologies 23052016

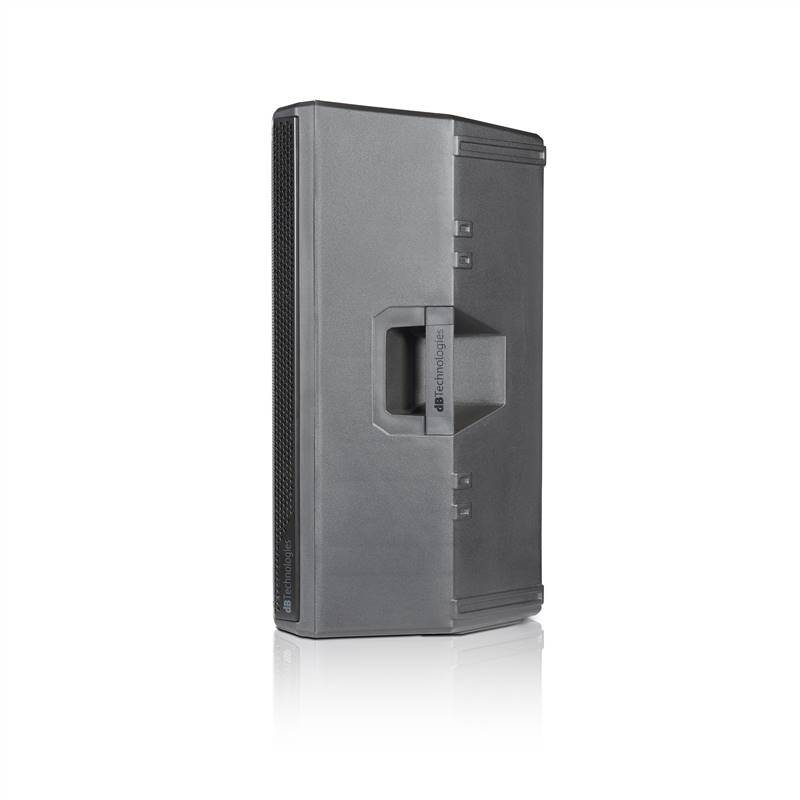

Opera12 side left x dbtechnologies 23052016

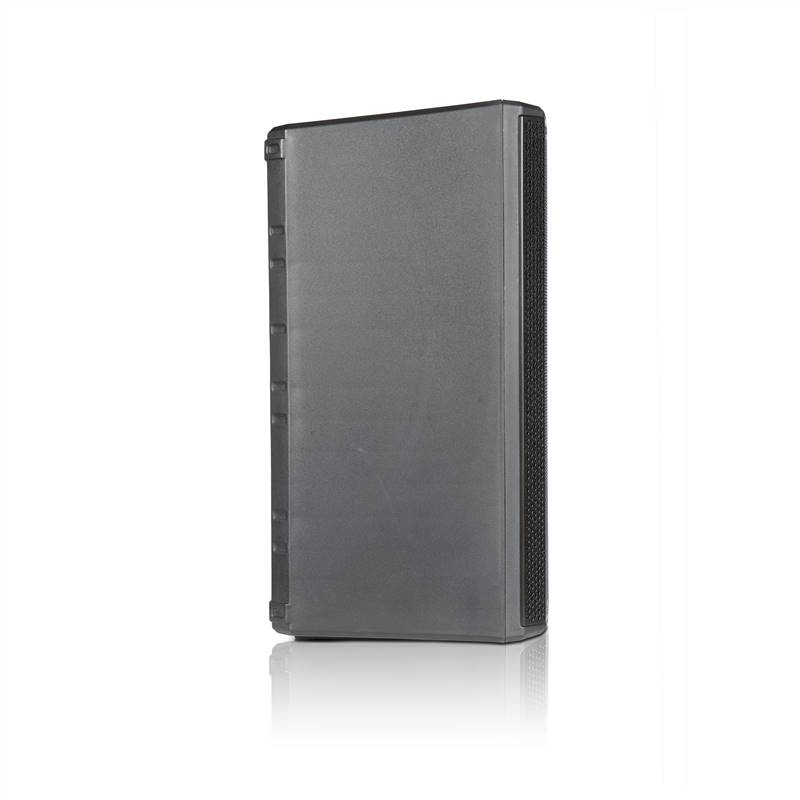

Opera12 side right x dbtechnologies 23052016

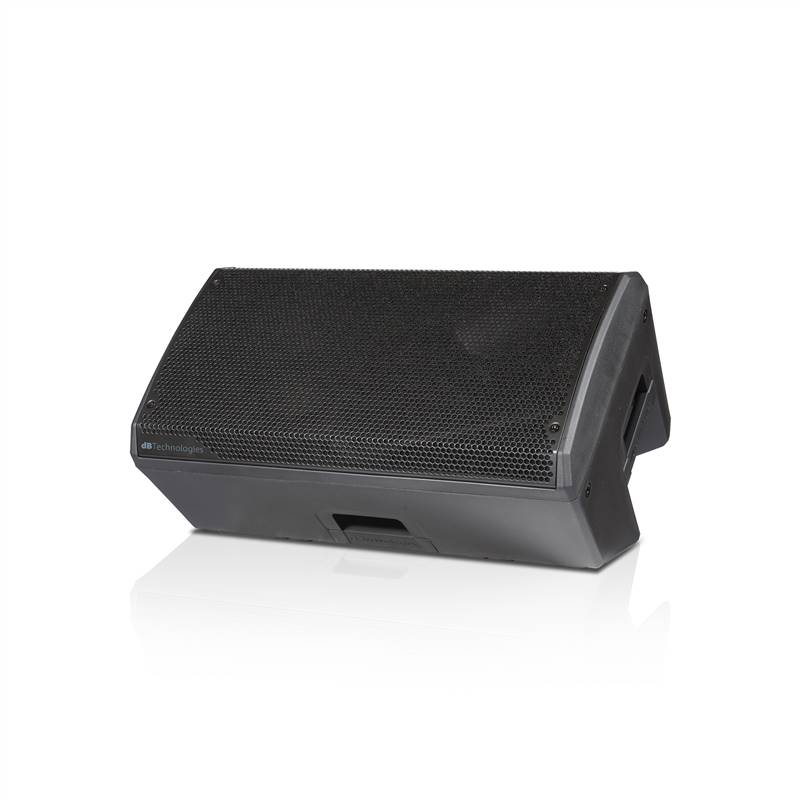

Opera12 threefourths horizontal x dbtechnologies 23052016

Gallery

Watch Video

Download images

Portable Systems

2-WAY ACTIVE SPEAKER

600W RMS CLASS-D AMPLIFIER

MAX SPL 129 dB

FREQUENCY RESPONSE [-3dB]: 67 - 19.600 Hz

HF: 1x 1" Exit, 1.4 v.c.

LF: 1x 12", 2" v.c.

WEIGHT: 14.3 kg (31.53 lbs)

Sales & Rental Network

OPERA 12

With the OPERA series, dBTechnologies packs leading edge DSP processing, advanced design features and user friendliness in an unrivaled cabinet in its price range.

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

TECHNOLOGIES

Asymmetrical HornThe dBTechnologies asymmetrical horn design delivers similar effective coverage for smaller applications. The high-frequency horn is narrower on top to bundle sound and throw it over greater distances. It flares out at the bottom to achieve a wider pattern of throw. This compensates for high frequency loss as sound travels further from the source) and distributes the signal more uniformly across all audience areas.

Linear Phase FIR FiltersA low-latency sound processing featuring Linear Phase FIR filters allows cabinets to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. This is also achieved by making the phase response as linear as possible, avoiding any distortion.

Lightweight

Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.

Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.

Product code: 10301024801

Technical Data

Speaker Type

2-Way Active Speaker

Acoustical data

Frequency Response [-10dB]

52 - 20.000 Hz

Frequency Response [- 3dB]

67 - 19.600 Hz

Max SPL

129 dB

1" Exit, 1.4 v.c.

Type HF

Compression driver

Horizontal Directivity

100° (85° up/120° down)

Vertical Directivity

85° (+ 25°/-60°)

Horn

Asymmetrical Horn

12", 2" v.c.

Amplifier

Amp Technology

Amp SMPS Power supply dual range

Amp Class

Class D

RMS Power

600 W

Peak Power

1200 W

Processor

Controller

DSP 56 bit

AD/DA Converter

24 bit/48 KHz

System Presets

Rotary Encoder (8 Presets)

CrossOver Frequency

2000 Hz

Limiter

Peak, RMS, Thermal

Advanced DSP Functions

Linear Phase FIR Filters

Input

Signal Input

1xCombo (XLR/Jack 6.3 mm) MIC/Line

1xCombo (XLR/Jack 6.3 mm) MIC/Inst

Signal Output

1x XLR Male (CH1 Link/Mix OUT)

Selectable

Mechanics

Housing

Polyporpylene PP

Grille

Full grille

Handles

1 on left Side, 1 on Top

Rigging Points

2XM10 on Top + 1x M10 on Back

Pole Mount

D36 mm

Angles up

Monitor use 45°

Width

350 mm (13.78 in)

Height

642 mm (25.28 in)

Depth

349 mm (13.74 in)

Weight

14.3 kg (31.53 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
