IS12S-WP

IS12S-WP

Subwoofers

Scarica immagini

Subwoofers

PASSIVE SUBWOOFER

MAX SPL 127.5 dB

FREQUENCY RESPONSE [-6dB]: 40 Hz - custom LPF

LF: 1x 12", 2.5" v.c.

IP55 CERTIFIED

WEIGHT: 15 kg (33 lbs)

Sales & Rental Network

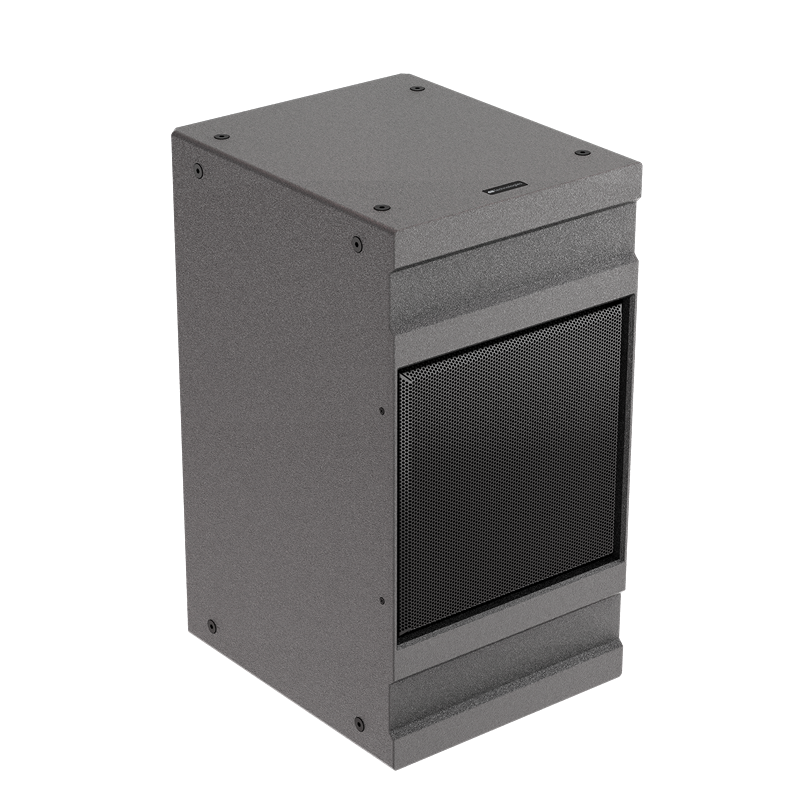

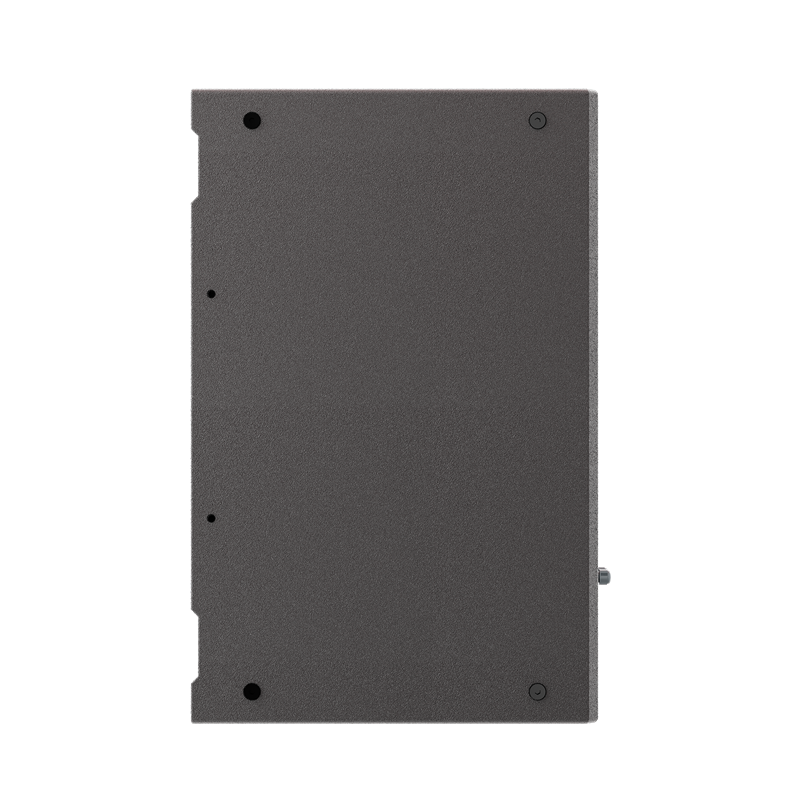

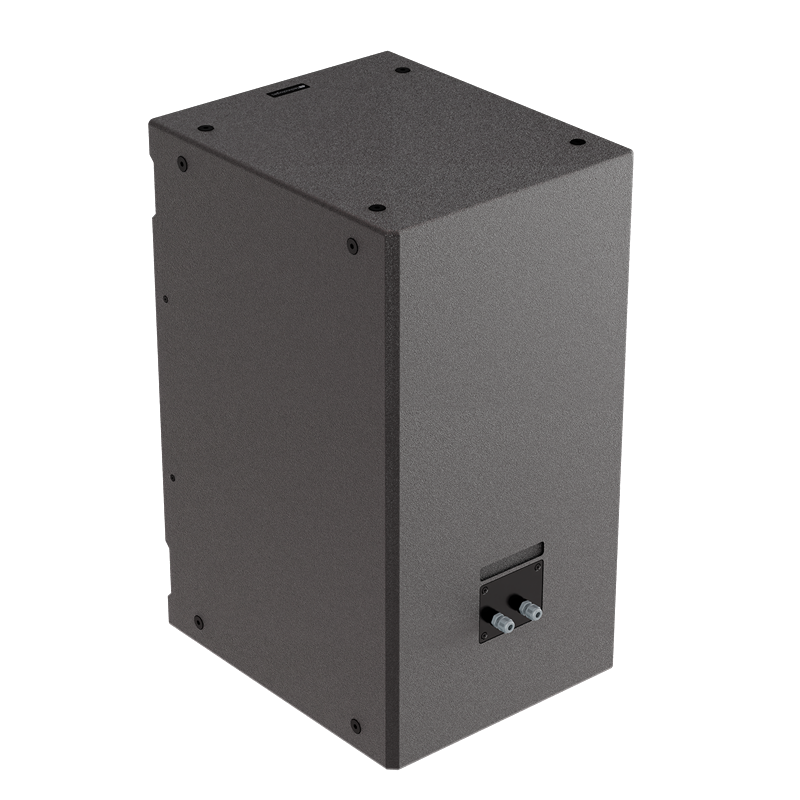

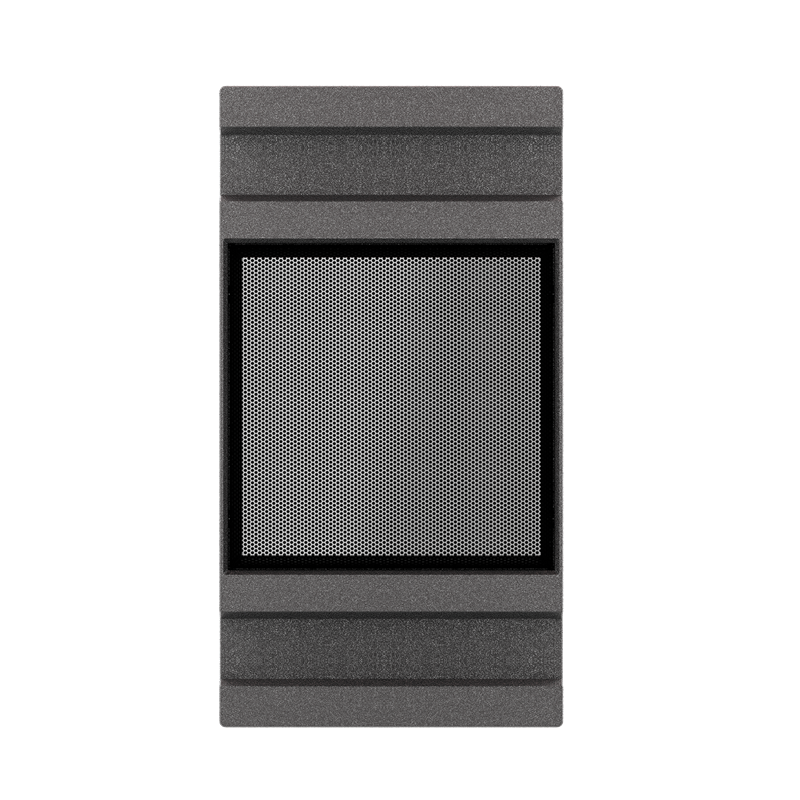

IS12S-WP

Per completare l’estensione delle basse frequenze, la serie IS offre due subwoofer passivi, rispettivamente equipaggiati con un singolo woofer da 8" o da 12".

Le dimensioni compatte e il design di serie, che contraddistinguono i due complementi, garantiscono applicazioni discrete, non intrusive, ad alta durabilità.

IS12S-WP conserva il design uniforme e minimale dell’intera serie, con la possibilità di personalizzare autonomamente la finitura cromatica della versione in bianco sulla base delle esigenze estetiche dell’installazione.

Scopri di più

TECNOLOGIE

EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.

IP55 RatingThe product is resistant to dust and low-pressure water jets. Specifically, IP55 Rating offers limited protection against dust ingress and can withstand water jets from any direction without compromising functionality. This rating is commonly used for devices intended for both indoor and outdoor use.

White version availableThis product is available for purchase in black or white.

Codice prodotto: 1030401280

Dati tecnici

Speaker Type

Passive Subwoofer

Dati acustici

RMS Power

250 W

Peak Power

1000 W

Frequency Response [-6 dB]

40 Hz - custom LPF

Impedance

8 Ohm

Sensitivity 1W@m

97.5 dB

Max SPL

127.5 dB

1x 12", 2.5" v.c.

Input Section

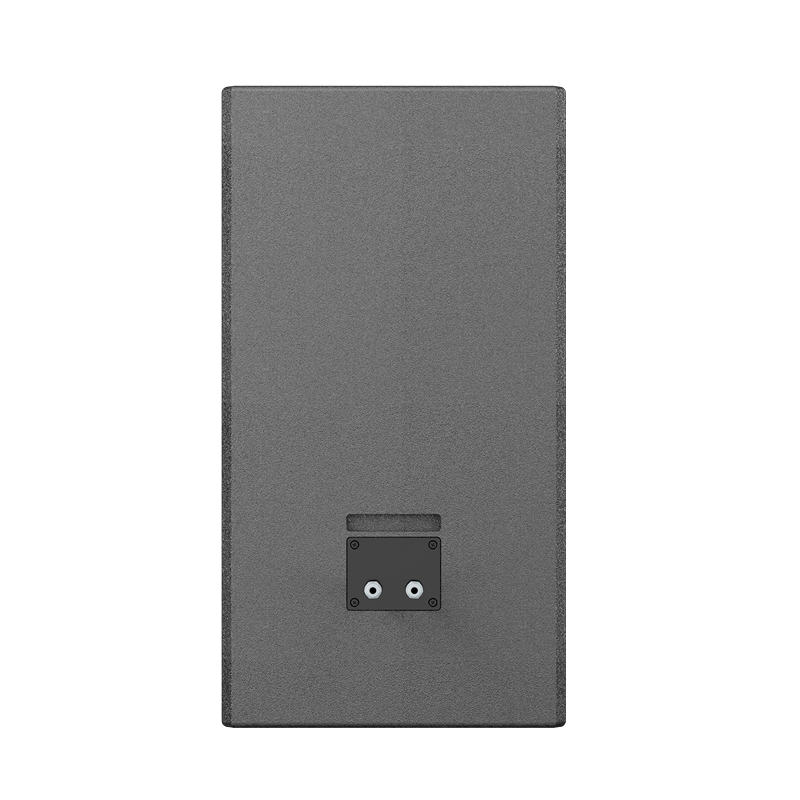

Connections

Screw terminal block (IN+ | IN- | OUT+ | OUT-)

Meccanica

Housing

Plywood, polyurea coating

Rigging points

16x M8 pickup point

IP rating

IP 55

Width

335 mm (13.2 in)

Height

624 mm (24.6 in)

Depth

400 mm (15.7 in)

Weight

15 kg (33 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.

Atomium

Belgio

Vedi tutti Reference

Nome file:	Categoria:	Tipologia:	Peso:	Lingua:	Rilascio:
DWG_IS12S	Drawing	DWG	0.52 MB	English	0001-01-01
Catalogue_Installation-2025	Catalogues	PDF	2.71 MB	English	0001-01-01
Quick-Start_IS8S-WP-IS12S-WP_Rev1.0	Manual	PDF	1.58 MB	English	0001-01-01
GLL_IS12S_v1.1	GLL	ZIP	5.26 MB	English	0001-01-01
Preset-Installer_IS-Series_1.3	Software	ZIP	53.16 MB	English	2025-10-06
PresetsInstaller_1.2_osx	Software	ZIP	19.68 MB	English	0001-01-01
PresetsInstaller_1.2_win	Software	ZIP	19.69 MB	English	2024-01-08
