CONTROL 8

Controller
Controller

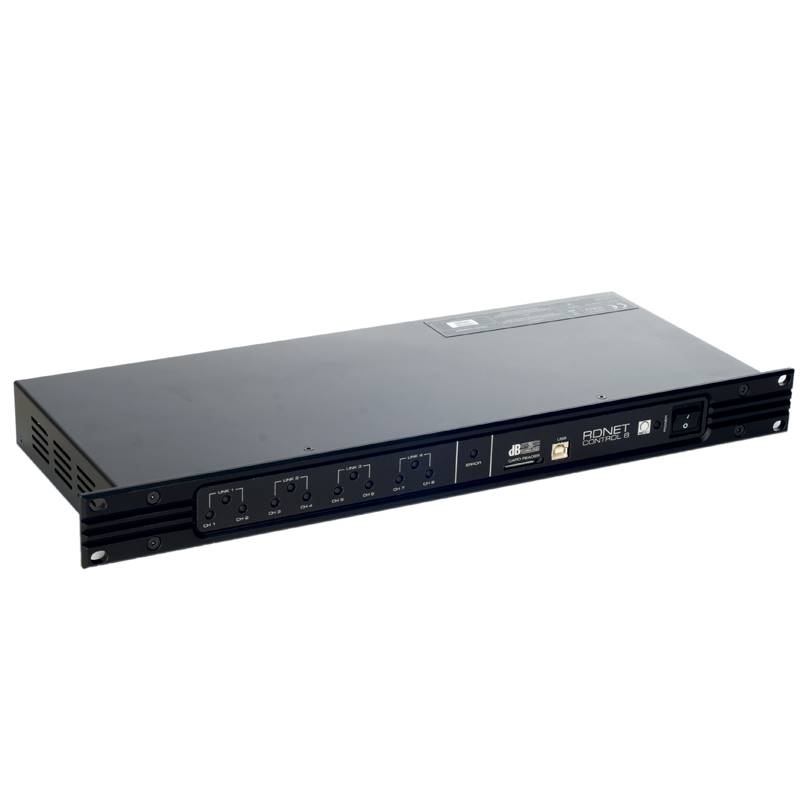

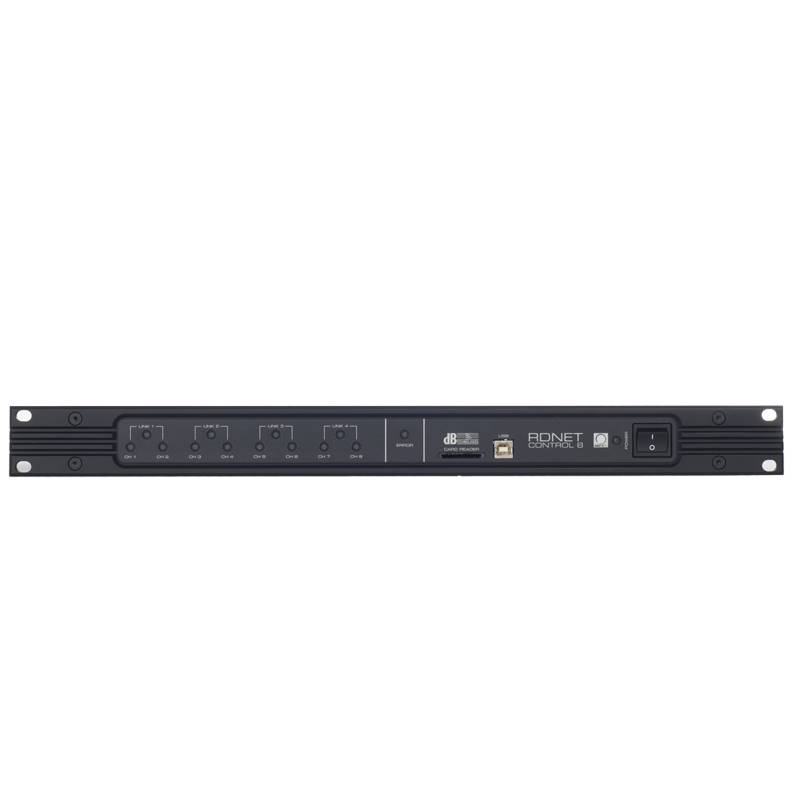

19” RACK-MOUNT RDNET CONTROLLER

8 RDNET SUBNET OUTPUTS

UP TO 32 DEVICES PER SUBNET (256 TOTAL)

USB AND ETHERNET CONNECTION TO PC

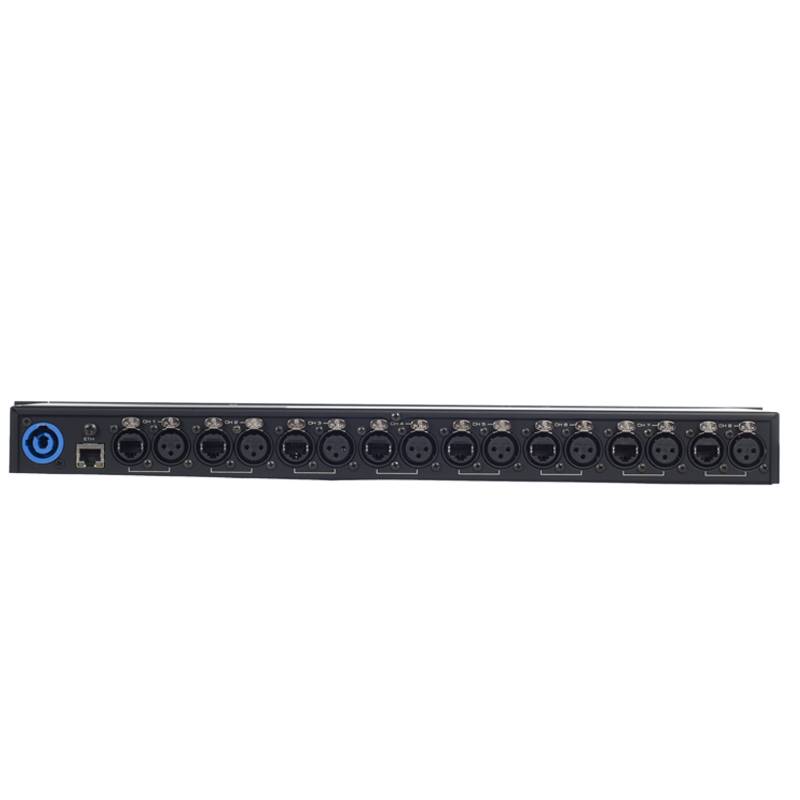

8x RJ45 OR 8x 3-PIN XLR RDNET PORTS

SUITABLE FOR LARGE-SCALE RDNET SYSTEMS

Sales & Rental Network

Control 8 lässt sich ebenfalls über die integrierte Netzwerk-Buchse in ein bestehendes LAN integrieren. Das System RDNET wurde spezifisch für den Aufbau von Datennetzen zur Überwachung und Steuerung mehrerer Systeme entwickelt. Die Steuereinheit RDNET CONTROL 8 kann bis zu 8 Subnetze steuern, an denen jeweils bis zu 32 Geräte angeschlossen werden können (8 Subnetze x 32 = 256 Geräte).

Mehr erfahren

TECHNOLOGIES

RDNet
RDNetDigital net for bi-directional control of connected devices. The acronym RDNet originates from the development, on behalf of RCF and dBTechnologies, of a universal network which allows adjustments in real time and supervision of all the connected systems, using cables based on ethernet cat 5 wires. With the specific software and the interfaces control 2 and control 8, a complete command of the acoustic system will be possible allowing real time supervision on each electrical component of the various speakers. RDNet allows you to monitor levels, limiters, and temperatures, select system presets, configure setups off-line, Mute units, Group modules and assigning group EQ, delay and phase, test individual components, automatically address system components, tap into LAN and USB interfaces, extend the network via wireless LAN access points.
Product code: 105110008
Filename: Category: Filetype: Size: Language: Release:
CE_RDNET-CONTROL-8 Certifications PDF 0,92 MB Italiano 2016-10-25
Control 8 datasheet Rev1.2 Data Sheet PDF 0,44 MB English 2018-07-28
Manual_RDNET-CONTROL8_Rev4.2 Manual PDF 0,60 MB English 2023-05-22
fw_Control8_1.4.5_RDU Firmware ZIP 0,14 MB English 2019-08-29
