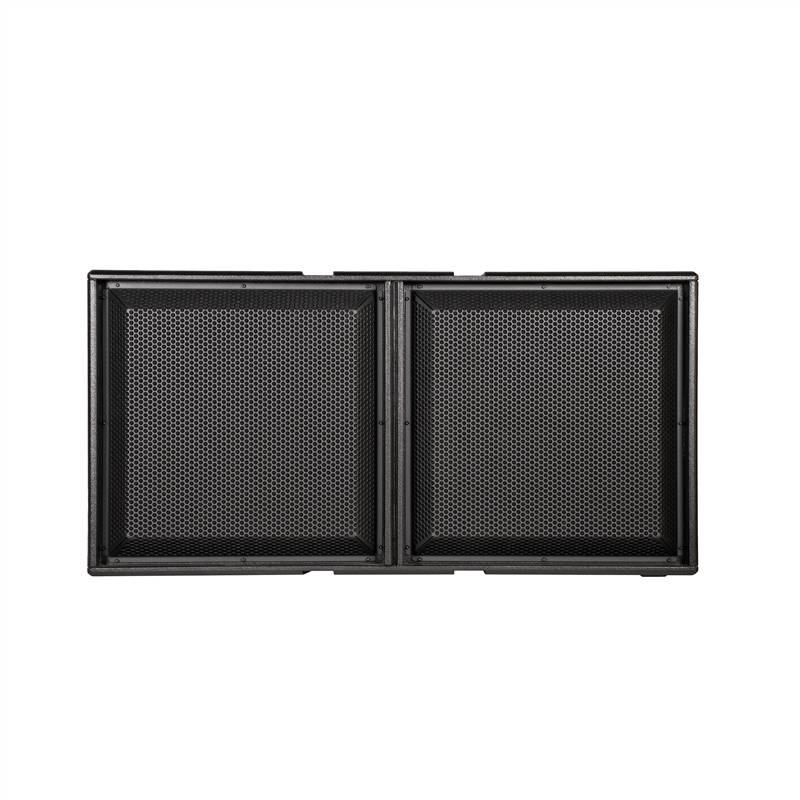

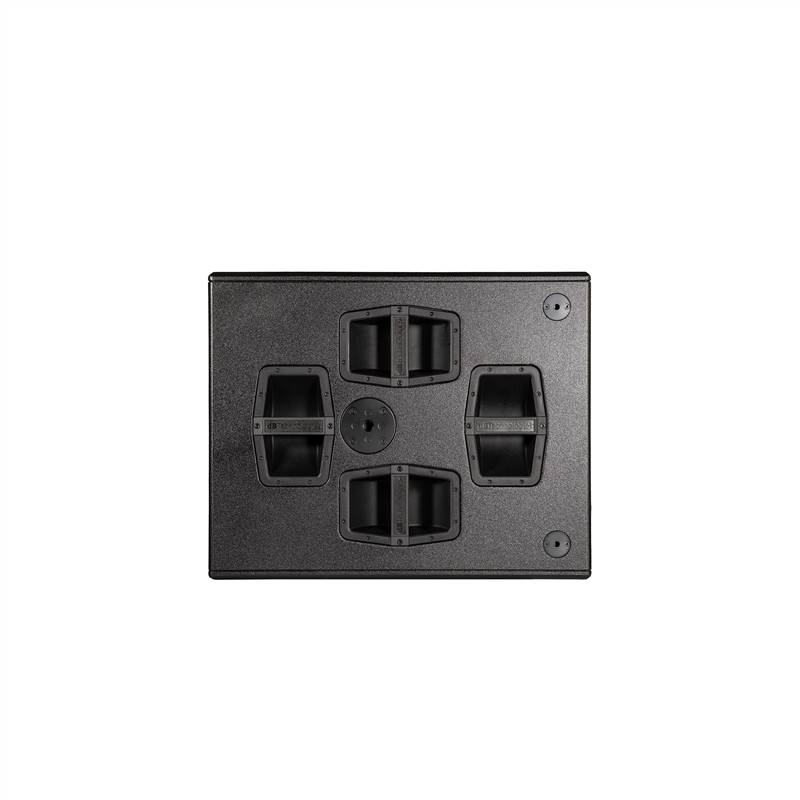

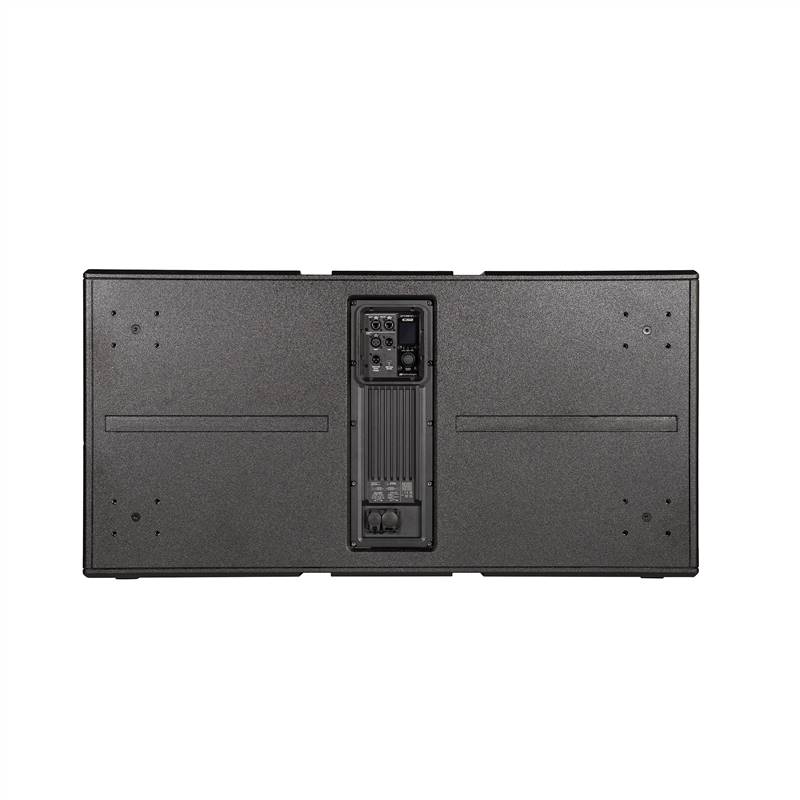

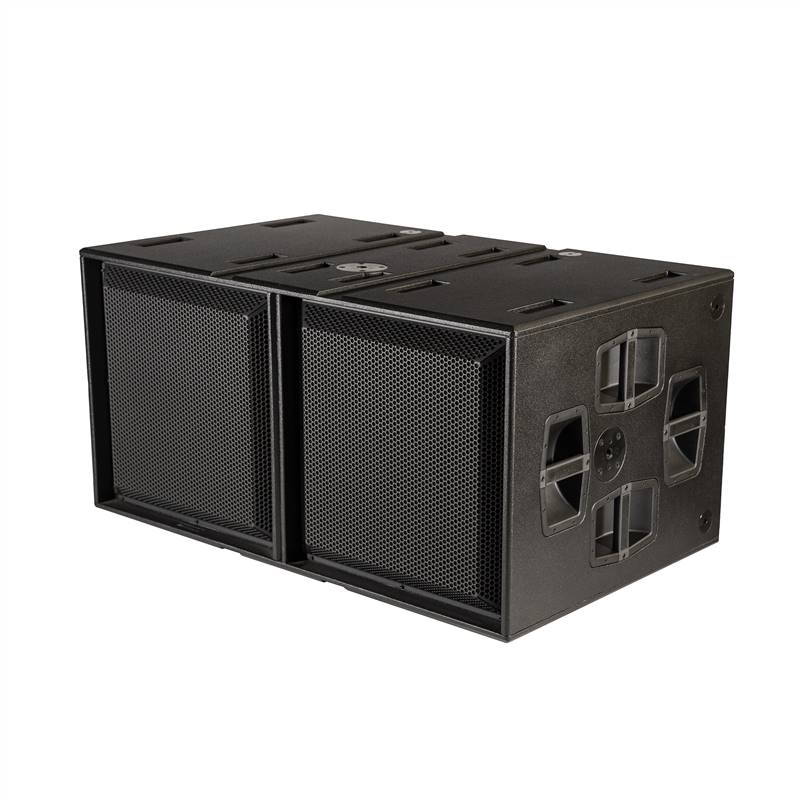

ACTIVE BASS-REFLEX SUBWOOFER
3200W RMS AMPLIFIER
142 dB MAX SPL
USABLE BANDWIDTH [- 6 dB]: 39Hz to Xover
LF: 2 x 18”, 4” v.c. - NEODYMIUM
WEIGHT: 80.8 Kg (178 lbs)
Sales & Rental NetworkTECHNOLOGIES
| Filename: | Category: | Filetype: | Size: | Language: | Release: | ||
|---|---|---|---|---|---|---|---|
| Manual_IGS1-IGS2_Rev1.0 | Manual | 20,25 MB | English | 2024-11-28 | |||
| FW_Installer_2.7_Osx.app | Firmware | ZIP | 46,22 MB | English | 2025-07-21 | ||
| FW_Installer_2.7_Win.exe | Firmware | ZIP | 45,28 MB | English | 2025-07-21 |
User-Friendly Interface
The INGENIA series is incredibly simple to set up and is made for all those people who don’t have much time to mess about things hard to manage. Just connect the speaker to mains through the new Neutrik® NAC3PX on rear panel, connect the audio using the balanced XLR connectors, select MIC or LINE input, adjust the volume and you're done. Leave everything else to the powerful DSP.
Configuration Wizard
The advanced interface guides the user since he turns on the speaker, asking for information on the use and the type of configuration he is going to use. The system automatically sets up, in order to quickly meet the demand. Of course he can change all the choices made at any time by either restarting the wizard, or manually changing the specific parameter.
The system even allows you to choose from a variety of configurations with one or more INGENIA speakers and combinations with one or more subwoofers, choosing among several dBTechnologies subwoofer presets.
A powerful processing
Behind the simple interface there is a cutting-edge processing, which manages mixer, power amplifiers, coverage steering and customize many other functions such as EQs, levels as well as all input devices. The OLED display, visible even in the sunlight, is mounted behind an elegant smoked screen and provides all the necessary information to the total system control. All editing operations are carried out through a single rotary encoder with switch, making them extremely easy and error-free.
As mentioned above, the INGENIA is equipped with the new Neutrik® NAC3PX mains connector that, in addition to providing a safe connection with secure locking system, allows to use the same cable for both connecting to mains or to relaunch.
The integrated USB mini port allows the user upgrade the firmware of the INGEGNA, ensuring that the speaker is always updated to the latest version (download from www.dbtechnologies.com).
Self-rotating display
Since the INGEGNA speakers are made to work in “reversed stacked configuration”, the OLED display is equipped with a self-rotation device that feels when the speaker is upside down, ensuring maximum intelligibility in every position.
Unique speaker lock system
The locking system of the INGEGNA is extremely rugged and reliable. Moreover, to ensure the speakers to be perfectly aligned before locking the clamps, there are some feet and recessions on the top and the bottom of the enclosure. This solution avoids incorrect operations in any way and ensures perfect alignment, maximum safety and a longer life of the mechanical parts.

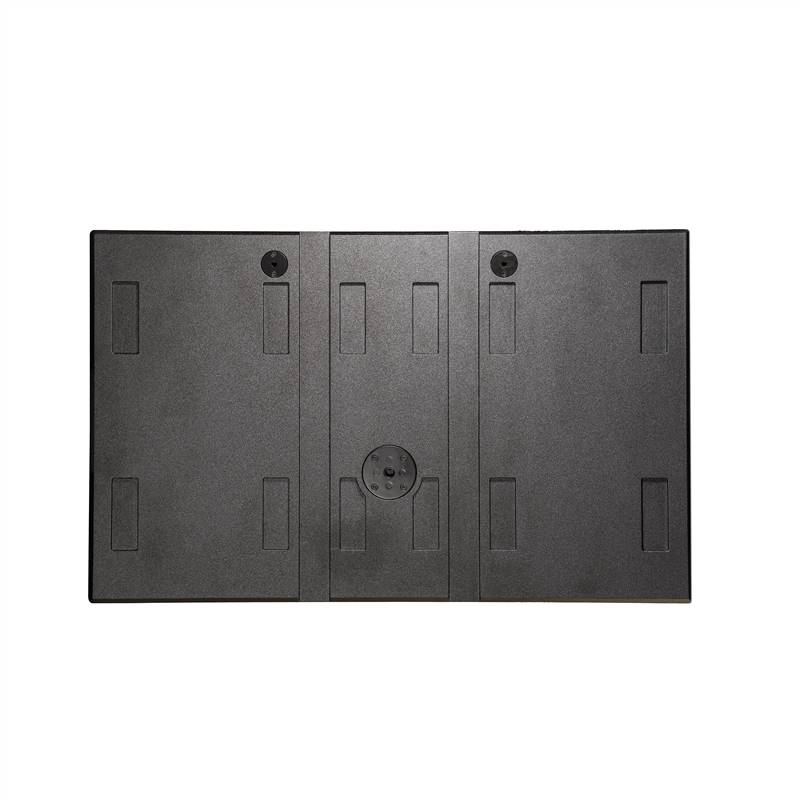

Smart feet and recessions
Top and bottom feet and recessions are designed to allow just top-to-top speakers matching, avoiding wrong setup configurations.
Flying configuration
All INGEGNA speakers are equipped with a pole-mounting hole (D36mm). But in addition to the use on pole or speaker stand, there is a new fly-bar adaptable to all speakers of the series. This bar allows the user to hang up two speakers in vertical array. Of course in this case two linking plugs are needed. Then the user will choose the appropriate processing preset and the DSP will set up everything so that you get a real line-array system. Finally there is an additional accessory to mount the fly-bar to truss couplers and thus locking the aiming even in case of wind.
Lightweight and heavy-duty enclosure
The housing is made with a new type of reinforced polypropylene that has a very elegant look and a finishing almost like a painting. The enclosure surface is then immune to knocks and scratches and fully resistant to water and moisture. Internally, there is an aluminium reinforcing structure that, in addition to dampen vibration and improve the acoustic characteristics of the speaker, makes it much more tough. Finally there is a hardware metal reinforcement for the fly-bar.
