VIO X206
VIO X206
After the success of VIO X205, which proved to be the perfect complement for VIO sound reinforcement systems, both in touring or fixed applications, dBTechnologies made the concept evolve designing VIO X206 which can easily serve as a powerful and sleek stand alone system.
After the success of VIO X205, which proved to be the perfect complement for VIO sound reinforcement systems, both in touring or fixed applications, dBTechnologies made the concept evolve designing VIO X206 which can easily serve as a powerful and sleek stand alone system.

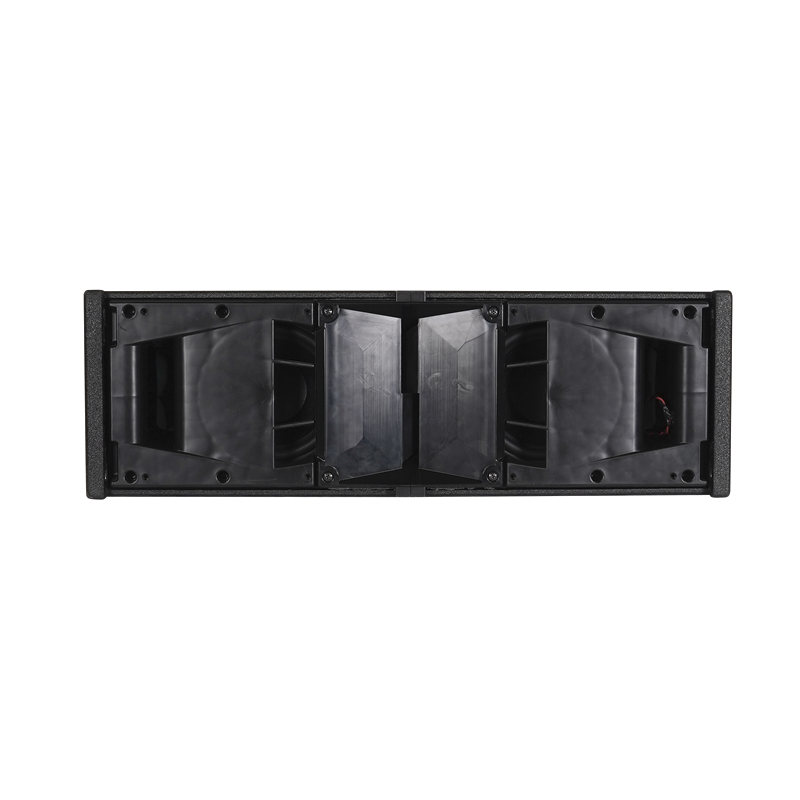

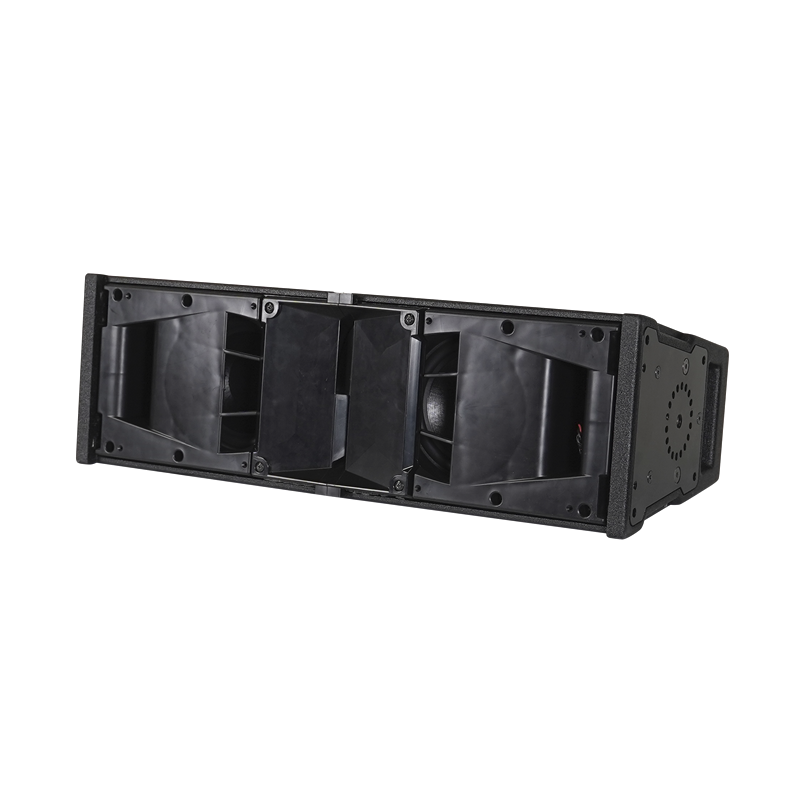

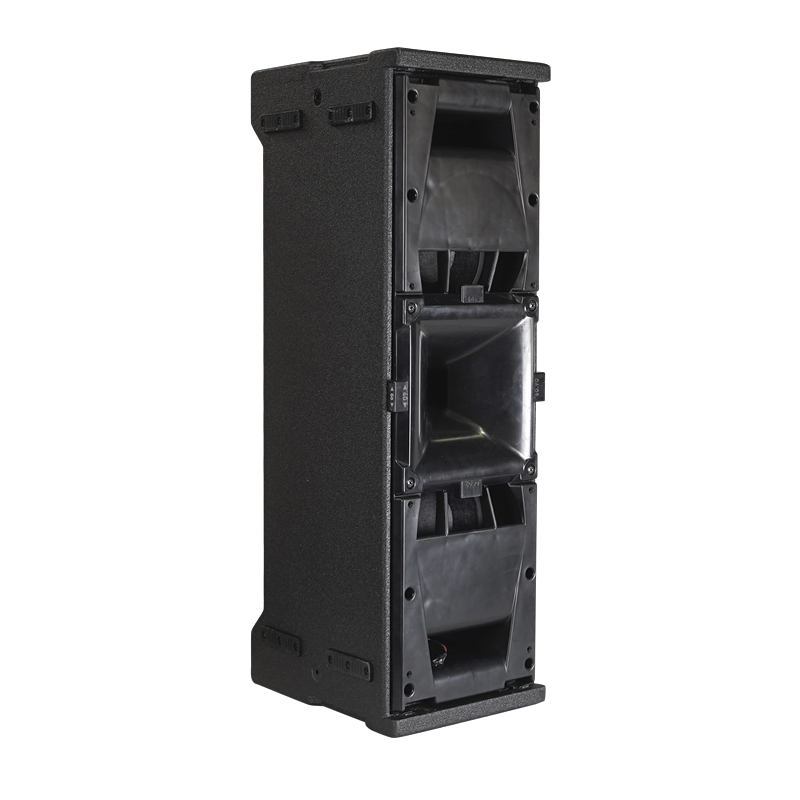

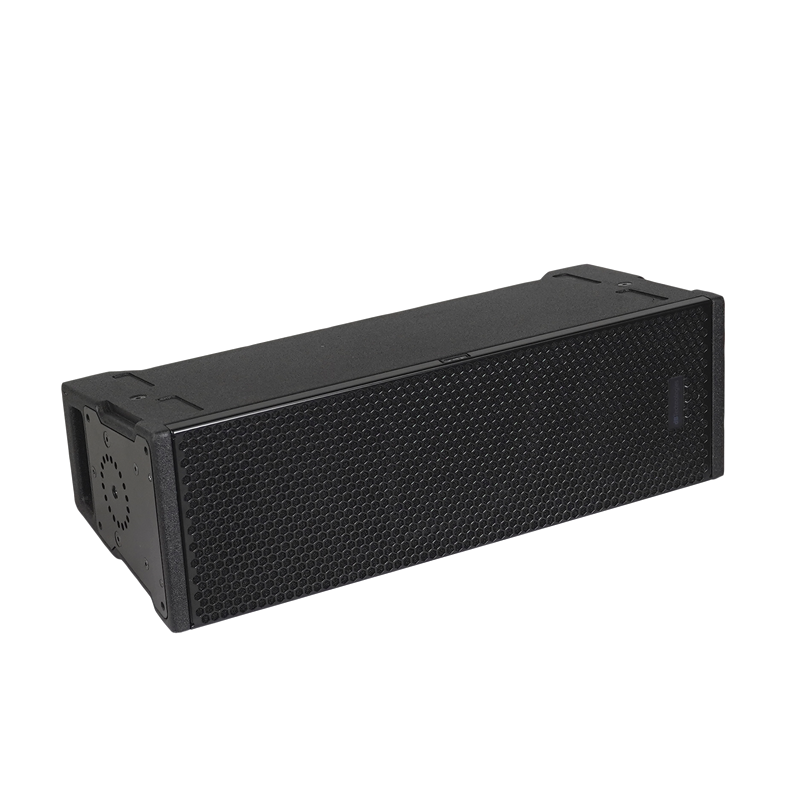

VIO X206 is an ultra-compact professional speaker that delivers sound pressure and linear response to the highest level, just like VIO X205, but in addition to this, you can turn it into a true compact line array system. The speaker has been designed in two different versions, one model mounts a 90° by 60° rotatable horn. The other one is equipped with a two-path waveguide conveying a 100° by 15° dispersion, so perfect for line array applications. The real gem here is that users can remove and exchange horns at any time, based on their requirements.

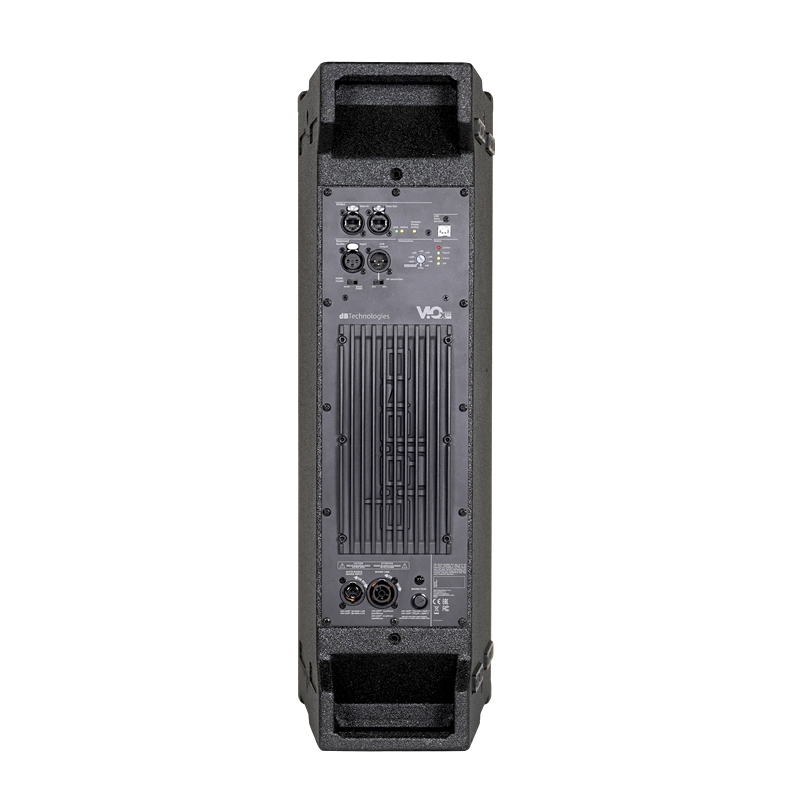

The firmware to adapt the behaviour of the 2 horns can be changed accordingly with the quick switch on the back of the box.

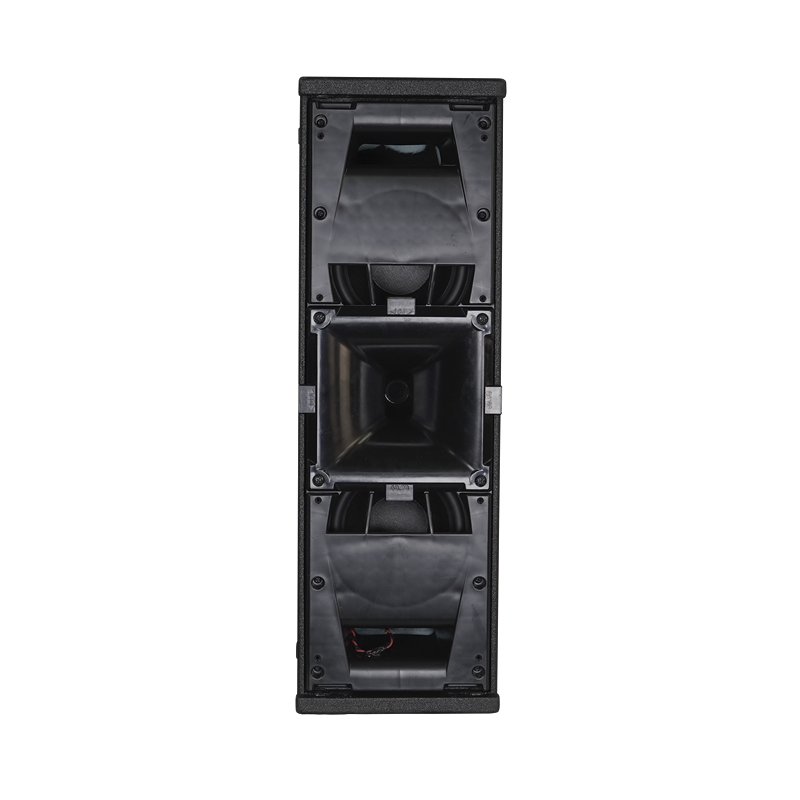

VIO X206 is equipped with two 6.5" neodymium transducers and a 1" driver, powered by a 900W RMS Digipro G3 amp. Nevertheless, just like all companion cabinets in VIO X series, the cabinet allows for complete networkability thanks to RDNet and real time monitoring and control via Aurora Net.
Thanks to the two variants it cover a wide range of applications, meeting the requirements of both production and integration. This sleek, slim cabinet can easily fits onto a live stage, a corporate event facility, as well as a meeting room or a bar. A series of accessories helps you to create the best configuration for the venue. Several brackets adapt X206 on a speaker stand (VB-2X6, SA-2X6), one of them also allows it to be flown with a C clamp (VB-2X6). A simple link plate (LP-2) is available to pair or array them. It is also possible to use 2 of the 90x60° version both flown or ground stacked with a 60° spread bracket (LP-3). An extra 60° spread bracket allows for flying or polemounting of up to 6 90x60° boxes side by side, with a steady angle. A U shaped bracket (HB-2X6) allows for various configurations such as wall mounting or truss mounting. The same accessory also serves as horizontal pole mount for a 90x60° X206 or multiple line array versions of X206. If you need to stash a frontfill, or if you plan to ground stack several line arrays directly on a sub, this will be a safe and reliable solution to secure the load with the M20 threaded mount. Finally two flybars are available, a standard one for a single array (DRK-1) and a multiple one (DRK-2) that allows to fly 2 arrays of tops or subs, or even X206 and VIO S115 subs together.
Technische Daten
Speaker Type
2 Way Active Loudspeaker
Akustische Daten
Usable bandwidth [-10dB]
66 - 19.500 Hz / 66 - 18.000 Hz [VIO X206-100]
Frequency Response [-6dB]
70 - 18.000 Hz / 70 - 17.500 Hz [VIO X206-100]
Max SPL
131 dB
HF
1x 1”, 1.75 v.c.
LF
2x 6.5”, 1.75" v.c
VIO X206 Directivity
60° x 90° [rotatable]
VIO X206-100 Directivity
100° x 15° [H x V]
Verstärker
Amplifier
900 W RMS Class-D Digipro® G3
Cooling
Convection
Power Supply
Auto-range SMPS
Prozessor
Controller
DSP 32 bit
AD/DA Converter
24 bit/96 kHz
Limiter
Peak, RMS, Thermal
Processing
FIR Linear Phase Filters
Eingang
Signal Input
1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output
1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls
1x input Sensitivity Rotary Encoder (10x presets)
1x Horn Model Selection Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED
3x RDNet Status LED
Mechanik
Housing
Wooden Cabinet, Polyurea painting
Handles
2 Integrated
Rigging points

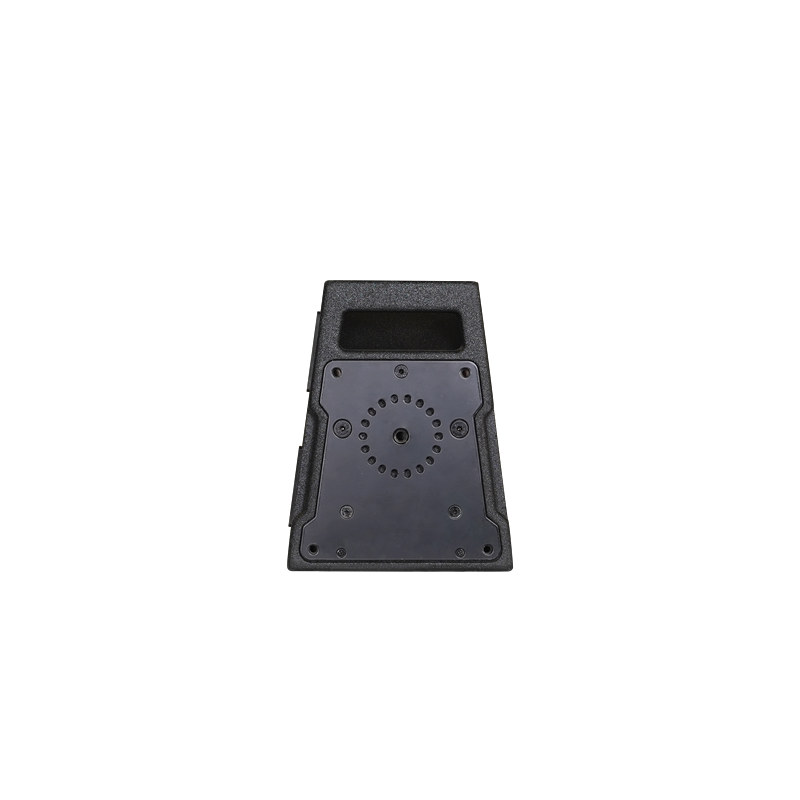

2x M10 Threaded Nuts (top and bottom)
Width
210 mm (8.3 in)
Height
650 mm (25.6 in)
Depth
270 mm (10.6 in)
Weight
17.3 kg (38.14 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Features
  • Active 2-way speaker
  • 900 W RMS
  • LF 2x6.5” Neo - HF 1x1”
  • 90°x60° coverage version
  • Arrayable version with waveguide(100°x15°)
  • Maximum versatility in tour grade applications or fixed installations
/images/299/4949/70x70/nocrop/q-100/align-4/Logo-Aurora-no-scritta.png
Aurora Net
This product is fully-compatible with Aurora Net software
/images/299/1848/70x70/nocrop/q-100/align-4/digipro%20G3.png
Digipro® G3
Die digipro® G3 Technologie repräsentiert die dritteGeneration in der Entwicklung unserer digitalen Hochleistungs-Verstärkern für maximale Leistung bei geringstem Gewicht und kompaktester Größe.

Durch die geringe Wärmeentwicklung kann auf die Verwendung von Lüftern verzichtet werden. Die hohe Endstufenleistung ermöglicht neben einem hohen Schalldruck
vor allem eine bisher unbekannt natürliche Dynamik sowie eine extrem druckvolle Basswiedergabe auch in kompakten Systemen. Alle Modelle verfügen über moderne hocheffiziente Schaltnetzteile mit PFC, die auch bei schwierigen Netzbedingungen, z. B. Unterspannung bei Live-Events, volle Leistung bereitstellen.

Power Densitiy – digipro® – das High-End Powerpack

Die digipro® Class-D Endstufentechnologie bietet sehr hohe Leistungsfähigkeit bei sehr kompakten Maßen und geringem Gewicht. Das perfekte Verhältnis von Leistung zu Gewicht bietet extrem einfaches Handling und ermöglicht die Integration hoher Leistung in kompakten Lautsprechersystemen.

/images/299/3731/70x70/nocrop/q-100/align-4/FIR-filters-icon.png
FIR-Filter
Mit sog. FIR-Filtern lassen sich, unter Zuhilfenahme moderner DSP-Bausteine, im Gegensatz zu konventionellen (IIR-Filtern) anhand einer Impulsantwort nicht nur die Magnitude also der Frequenzgang eines Signals sondern auch die Phasenlage beeinflussen.
So lässt sich der Frequenzschrieb eines komplexen Lautsprechersystems perfekt linearisieren ohne dabei die Phasenlage wie üblich negativ zu beeinflussen. Ein so gefilterter Lautsprecher zeichnet sich durch perfekte Impulstreue und besondere Detailgenauigkeit aus.
/images/299/5507/70x70/nocrop/q-100/align-4/Opto-isolated-icon.png
Opto-isolated Preamp
The floating audio input design grants a digital optical isolation between earth ground from the mains and the audio ground flowing into the Preamplifier board.
This galvanic isolation greatly improves resistance to interferences and any unwanted buzzing and noises.
/images/299/816/70x70/nocrop/q-100/align-4/ICONES_RD_Net.png
RD-Net

Mit dem bereits integrierten RDnet Netzwerkanschluss sind DVA und VIO Systeme bereit für die Integration in komplexe, fernsteuer- und überwachbare Beschallungssysteme über RJ45 Ein- und Ausgänge zum RDnet-Netzwerkhub Control 8 und Control 2. Mit Hilfe der Software können alle notwendigen Einstellungen, wie z. B. Preset und Level, vom FOH Platz aus bequem vorgenommen werden.

  • Überwachung von Pegel, Limitier, Temperatur
  • Umschalten von Systempresets
  • Offline Konfiguration
  • Mute
  • Filter
  • Gruppierung von Modulen
  • Test einzelner Komponenten
  • Automatische Adressierung im System
  • Schnittstelle für LAN und USB
/images/299/5509/70x70/nocrop/q-100/align-4/USB-icon.png
USB Data Port
Thanks to this universal data port, the user will be able to perform firmware upgrades
