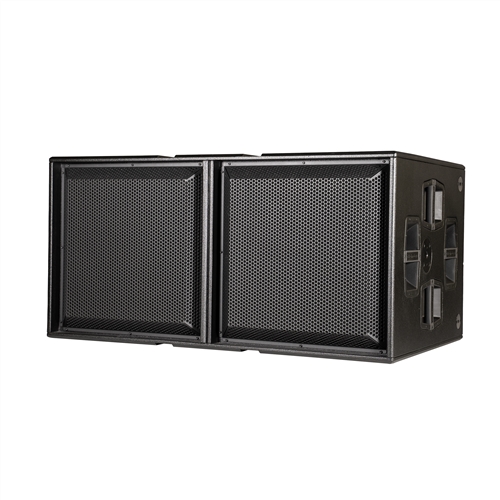

El IGS2 cuenta con dos woofers de neodimio de 18" en un sólido gabinete bass-reflex. La potente sección de doble amplificador, controlada por DSP de Clase D, puede gestionar hasta 3200 W (potencia RMS), lo que garantiza la máxima fiabilidad y una presión sonora potente.
El sistema se habilita a través de RDNet para monitorización y control en tiempo real mediante el software Aurora Net (disponible para Windows y Mac), que permite configuraciones avanzadas entre el IGS1 y una compatibilidad perfecta con los sistemas de rango completo de dBTechnologies.
El diseño mecánico permite una escalabilidad perfecta entre los modelos de subwoofer de esta línea, mientras que dos roscas M20 para postes estándar facilitan la compatibilidad con la parte superior; cuatro puntos de anclaje permiten el uso de barras de suspensión específicas para otros sistemas superiores de dBTechnologies para instalaciones en directo.
Este robusto gabinete también cuenta con cuatro asas integradas y un panel trasero para facilitar su transporte con ruedas. Un acabado de poliurea complementa las características estándar, garantizando durabilidad y resistencia.
Leer Mas
TECNOLOGÍAS
Aurora NetThis product is fully-compatible with Aurora Net software
PFC (Power Factor Corrector)The Power Factor Corrector greatly improves the efficiency of the system. Performances of the amplifier are very stable and consistent, regardless of the quality of the mains. This also grants a worldwide compatibility of the power supply - from 90V to 265V 50/60Hz - and limits power consumption.
RDNetDigital net for bi-directional control of connected devices. The acronym RDNet originates from the development, on behalf of RCF and dBTechnologies, of a universal network which allows adjustments in real time and supervision of all the connected systems, using cables based on ethernet cat 5 wires. With the specific software and the interfaces control 2 and control 8, a complete command of the acoustic system will be possible allowing real time supervision on each electrical component of the various speakers. RDNet allows you to monitor levels, limiters, and temperatures, select system presets, configure setups off-line, Mute units, Group modules and assigning group EQ, delay and phase, test individual components, automatically address system components, tap into LAN and USB interfaces, extend the network via wireless LAN access points.
código del producto: 1030104090
Datos Técnicos
Speaker Type
Active Subwoofer
Datos Acústicos
Frequency Response [-10dB]
36Hz to Xover
Max SPL (1 m)
142 dB
LF
2x 18"
LF Voice Coil
4"
Amplificador
Amp Class
Class D with PFC
RMS Power
3200 W
Procesador
Controller
32bit processing
AD/DA Converter
24bit 96kHz
Limiter
Peak, Thermal, RMS
Crossover Frequency
60-65-70-75-80-90-100-110-120-400 Hz
Controls
FunctionControl (rotary)
Sección de Entrada
Signal Input/Output
1x XLR In/Out
1x PowerCon True In/Out
2x Ethercon In/Out
Mecánica
Housing
Plywood cabinet with Polyurea finish
Handles
4x side
Pole Mount
2x M20 (1 on top and 1 on side)
Rigging Points
4x Pick Points on top to fix DRK 10/20 rigging frames
Width
1160 mm (45.67 in)
Height
580 mm (22.83 in)
Depth
720 mm (28.35 in)
Weight
80.8 Kg (178 lbs)
Notes: Estos datos no son vinculantes; dBTechnologies se reserva el derecho de modificar los mismos en cualquier momento y sin previo aviso.
Filename:
Category:
Filetype:
Size:
Language:
Release:
Manual_IGS1-IGS2_Rev1.0
Manual
PDF
20,25 MB
English
2024-11-28
FirmwareInstaller_2.5_Osx.app
Firmware
ZIP
43,75 MB
English
2025-05-27
FirmwareInstaller_2.5_Win.exe
Firmware
ZIP
42,84 MB
English
2025-05-27
