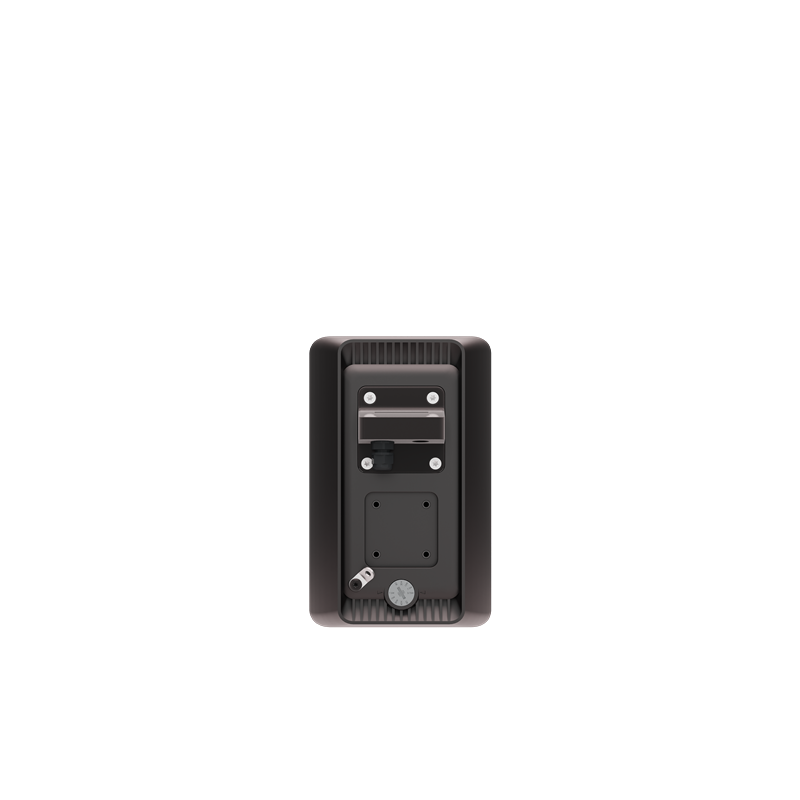

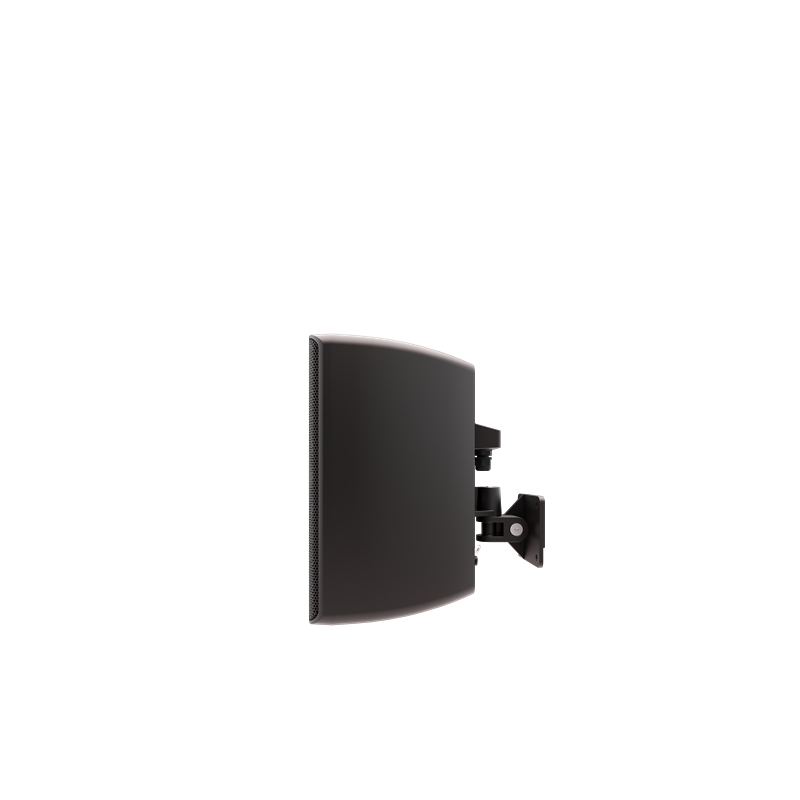

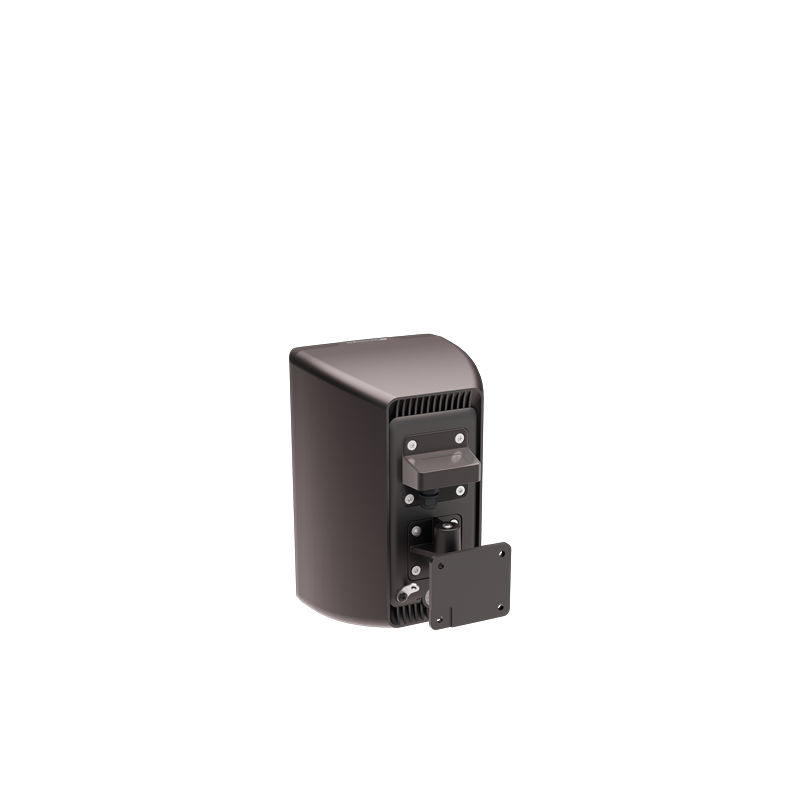

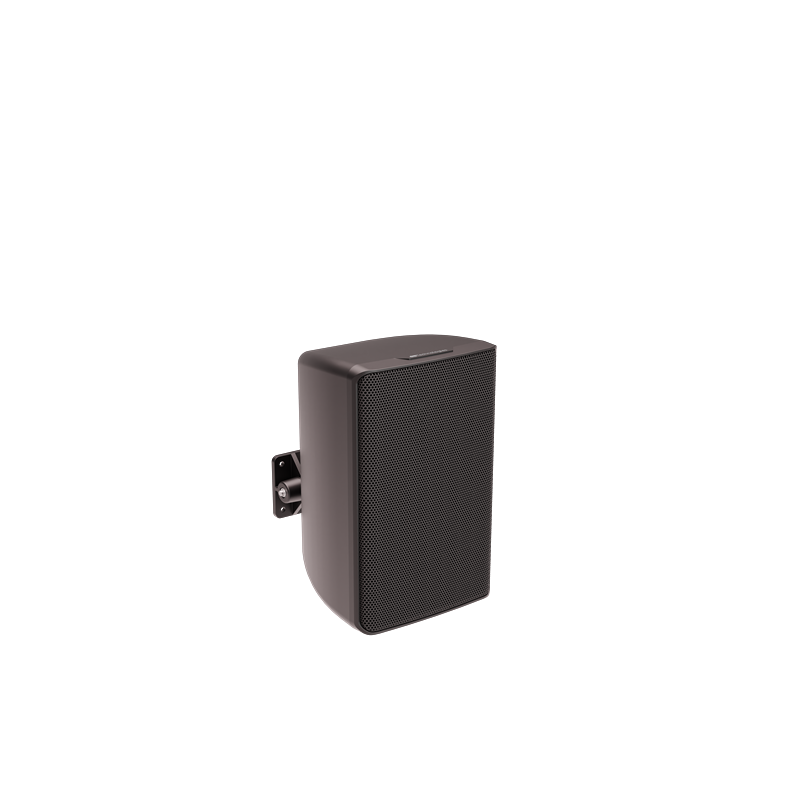

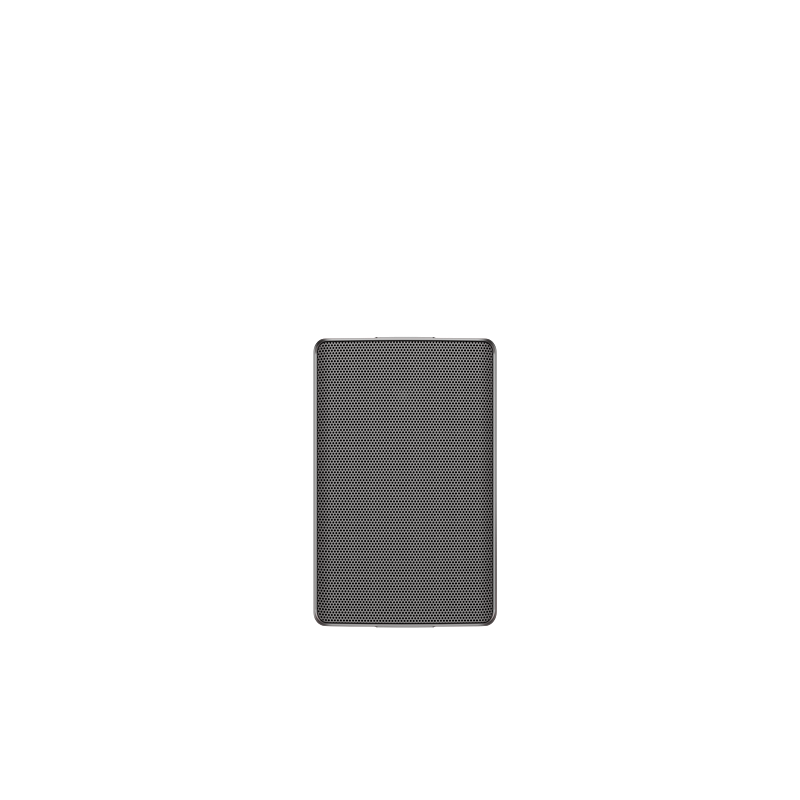

IS5T-TRF is a rugged and compact passive speaker for high-quality background music reproduction.
Thanks to the ABS enclosure and IP55 protection, IS5T-TRF is specifically designed for indoor and outdoor use; an easy-to-install speaker with an included bracket and an optimal solution for small to medium-sized environments.
IS5T-TRF is configured as a 2-way speaker with a 5.25'' woofer, suitable for both traditional impedance and constant voltage systems, thanks to the transformer (70/100 V).
Available in black or white version, with the possibility of customizing the color finish of the white version by yourself.
Leer Mas
TECNOLOGÍAS
White version availableThis product is available for purchase in black or white.
IP55 RatingThe product is resistant to dust and low-pressure water jets. Specifically, IP55 Rating offers limited protection against dust ingress and can withstand water jets from any direction without compromising functionality. This rating is commonly used for devices intended for both indoor and outdoor use.
código del producto: 1030401380
Datos Técnicos
Speaker Type
Passive Speaker
Datos Acústicos
RMS Power
50 W
Peak Power
200 W
Frequency Response [-6 dB]
100 Hz - 19,000 Hz
Max SPL
113.5 dB
HF
1" exit, 0.75" v.c.
LF
1x 5.25", 1" v.c.
Dispersion
85° H x 80° V
Mecánica
Width
155 mm (6.1 inch.)
Height
255 mm (10 inch.)
Depth
150 mm (5.9 inch.)
Weight
2.8 kg (5.1 lbs.)
Housing
ABS
Accessories
bracket included
Notes: Estos datos no son vinculantes; dBTechnologies se reserva el derecho de modificar los mismos en cualquier momento y sin previo aviso.
Filename:
Category:
Filetype:
Size:
Language:
Release:
Manual_IS-TRF-series_Rev1.0
Manual
PDF
6,25 MB
English
2024-12-17
UKCA-IS5T-TRF
Certifications
PDF
1,59 MB
English
2025-04-17
