IS5T-WP

Point Sources
Point Sources
173 mm 231 mm 160 mm

PASSIVE FULLRANGE SPEAKER

MAX SPL 116 dB

FREQUENCY RESPONSE [-6dB]: 95 Hz - 18,000 Hz

LF: 1x 5", 1 " v.c.

IP55 CERTIFIED

BRACKET INCLUDED

WEIGHT: 2.8 Kg (6.17 lbs)

Sales & Rental Network

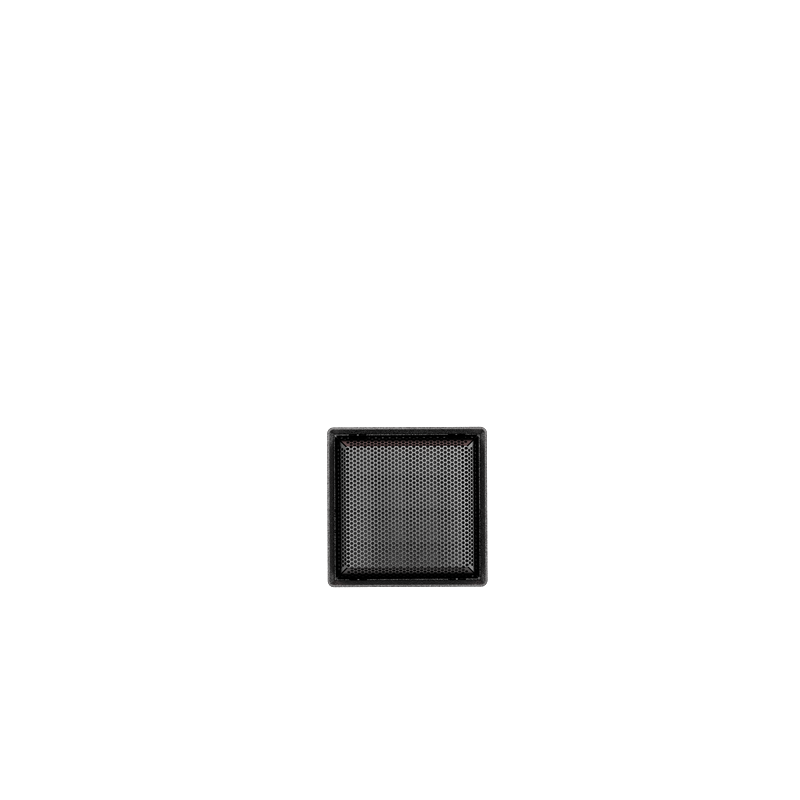

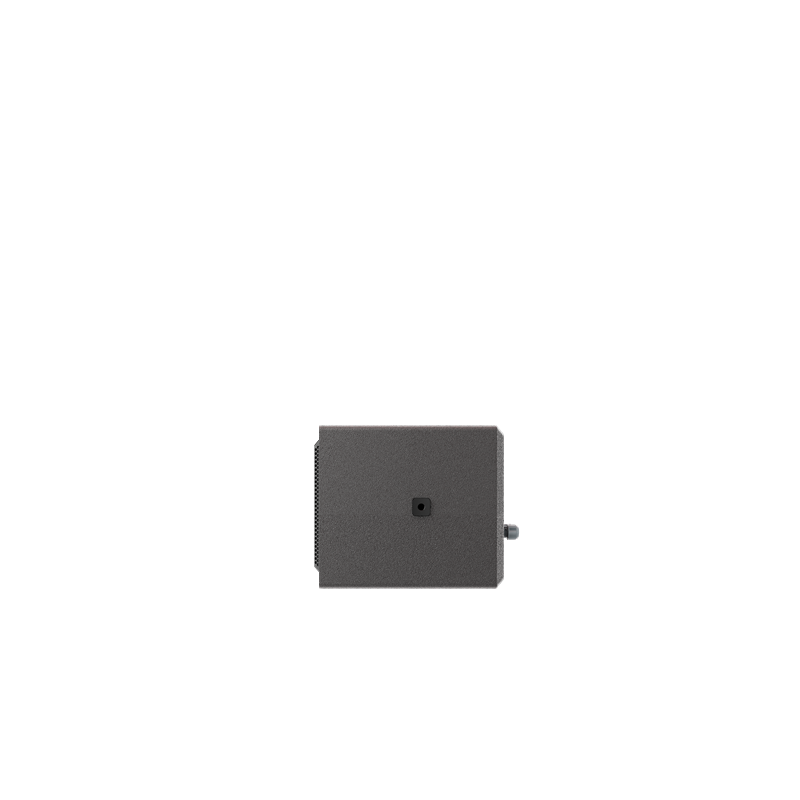

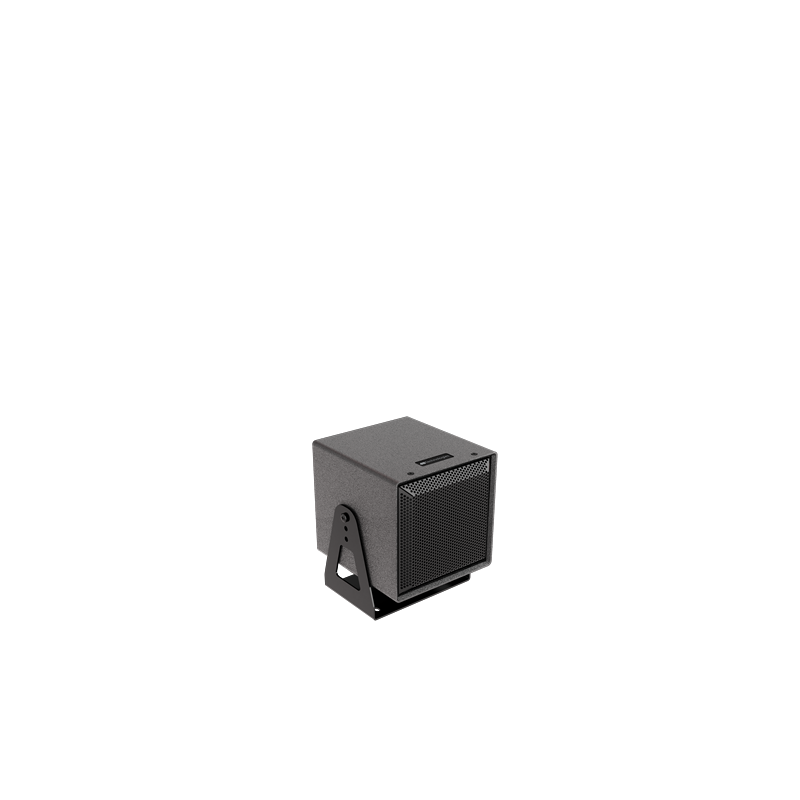

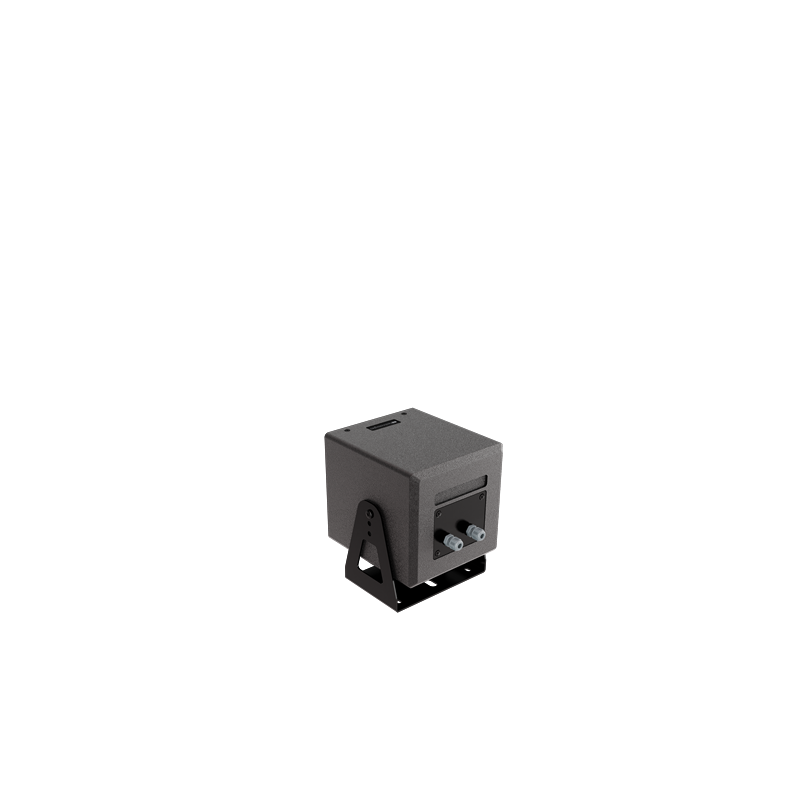

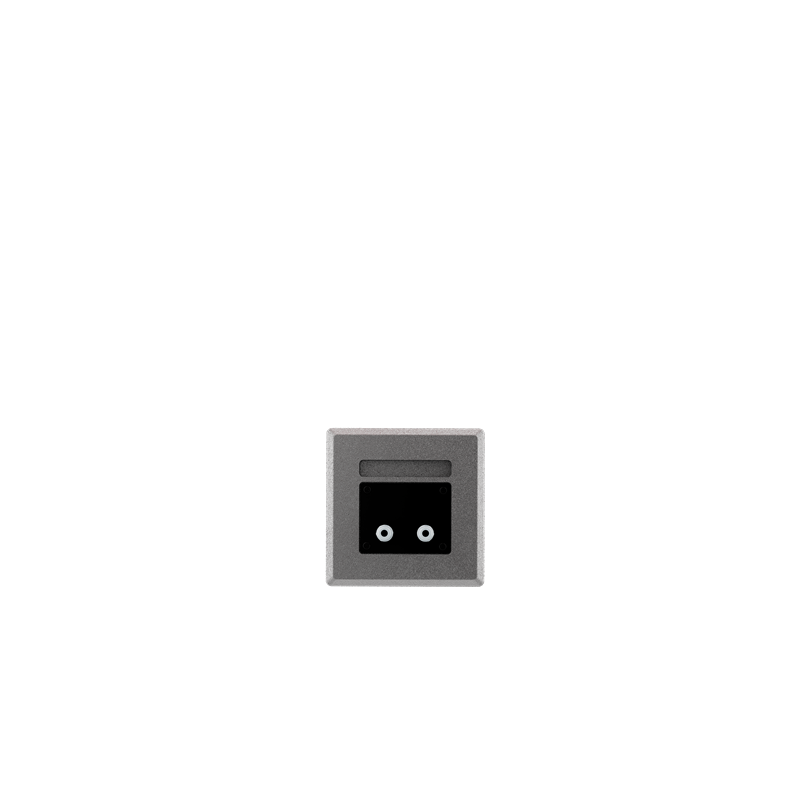

IS5T-WP is the compact and rugged speaker for indoor and outdoor installations.
Equipped with a 5'' component, it is a compact, highly versatile cabinet primarily designed for background music.
Simple and robust, it is an optimal solution for indoor and outdoor sound reinforcement through a quick installation guaranteed by the included bracket, invisible mounting points, and a IP55 protection. Additional connection versatility is supported by various dedicated accessories.
IS5T-WP retains the minimal design of the series, with the possibility of customizing the color finish of the white version by yourself.
Leer Mas

TECNOLOGÍAS

EASE Focus
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.
White version available
White version availableThis product is available for purchase in black or white.
IP55 Rating
IP55 RatingThe product is resistant to dust and low-pressure water jets. Specifically, IP55 Rating offers limited protection against dust ingress and can withstand water jets from any direction without compromising functionality. This rating is commonly used for devices intended for both indoor and outdoor use.
código del producto: 1030401220
Datos Técnicos
Speaker Type
Passive Fullrange Speaker

Datos Acústicos
RMS Power
60 W

Peak Power
240 W

Frequency Response [-6 dB]
95 Hz - 18,000 Hz

Impedance
8 Ohm

Sensitivity 1W@m
92 dB

Max SPL
116 dB

LF
1x 5", 1 " v.c. Fullrange woofer

Dispersion
110x110°

Sección de Entrada
Connections
Screw terminal block (IN+ | IN- | OUT+ | OUT-)

Mecánica
Housing
Plywood, Polyurea finish

Rigging points
2x M6 threaded nut

Accessories
bracket included

IP rating
IP 55

Width
160 mm (6.3 in)

Height
160 mm (6.3 in)

Depth
180 mm (7 in)

Weight
2.8 kg (6.17 lbs)

Notes: Estos datos no son vinculantes; dBTechnologies se reserva el derecho de modificar los mismos en cualquier momento y sin previo aviso.
Filename: Category: Filetype: Size: Language: Release:
DWG_IS5T Drawing DWG 0,69 MB English 2021-05-19
Quick-Start_IS4T-WP-IS5T-WP-IS6T-WP_Rev1.0 Manual PDF 0,64 MB English 2024-11-13
GLL_IS5T_v1.0 GLL ZIP 2,13 MB English 2021-10-27
PresetsInstaller_1.2_osx Software ZIP 19,68 MB English 2024-07-31
PresetsInstaller_1.2_win Software ZIP 19,69 MB English 2024-08-01
