Para completar la gama de bajas frecuencias, la serie IS ofrece dos subwoofers pasivos, cada uno equipado con un woofer de 8'' o 12''.
Las dimensiones compactas y el diseño estándar que caracterizan a ambos complementos garantizan aplicaciones discretas y discretas con una alta durabilidad.

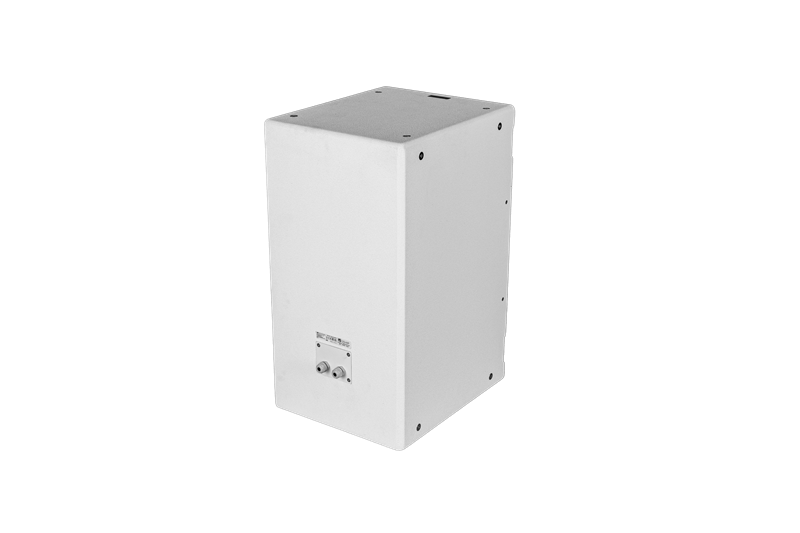

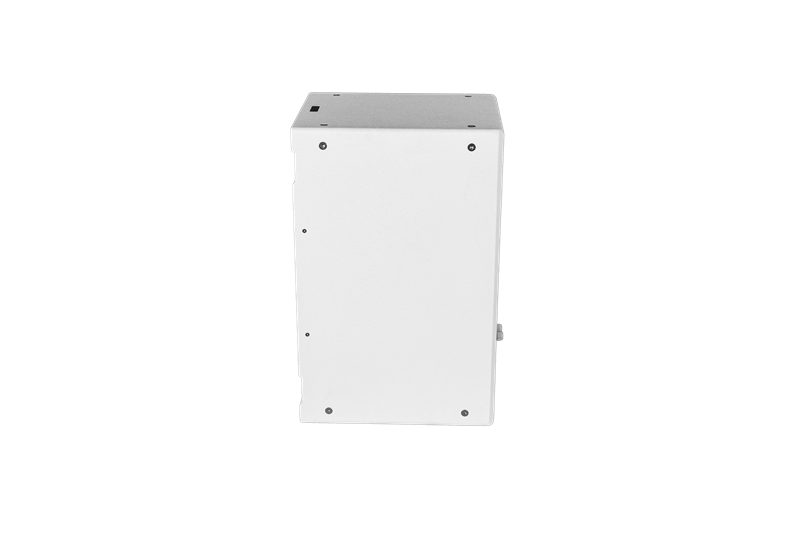

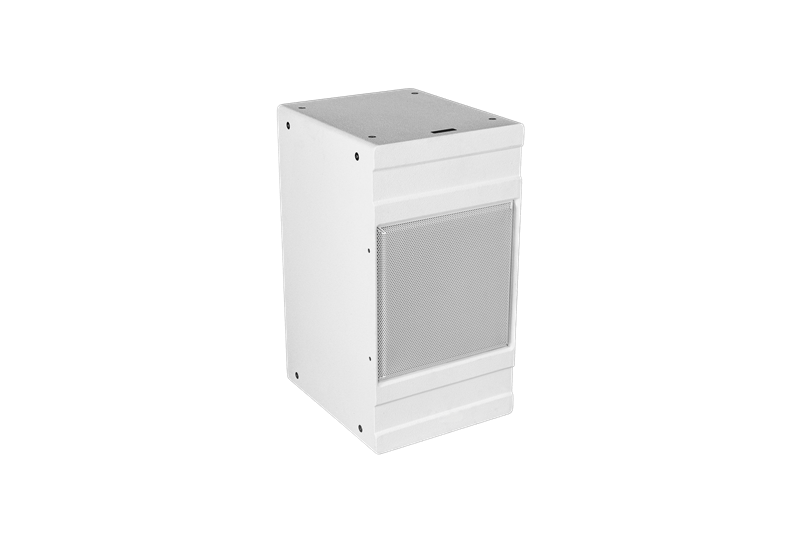

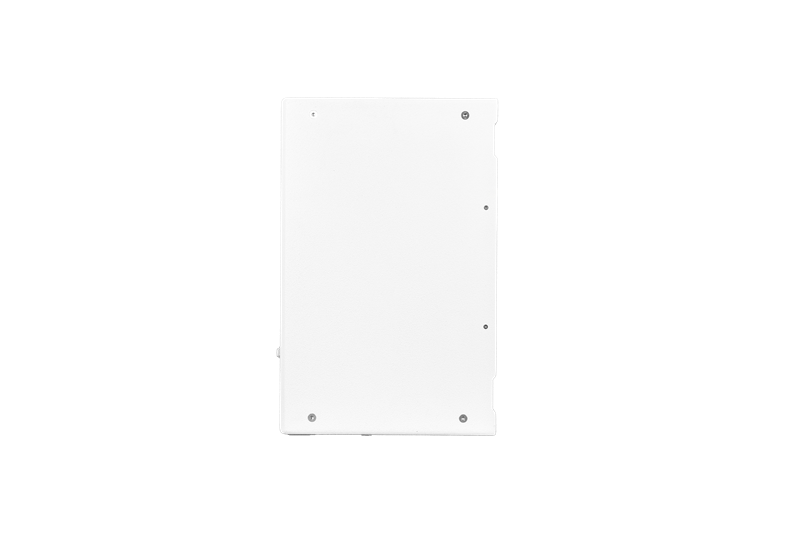

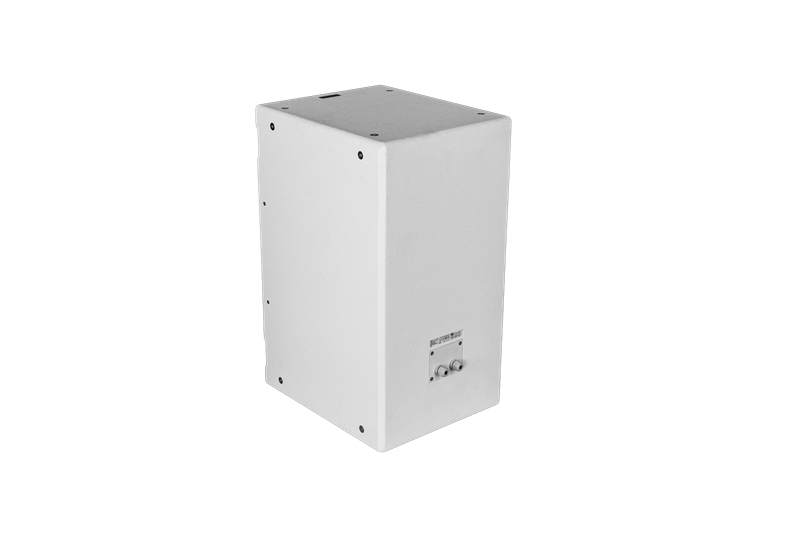

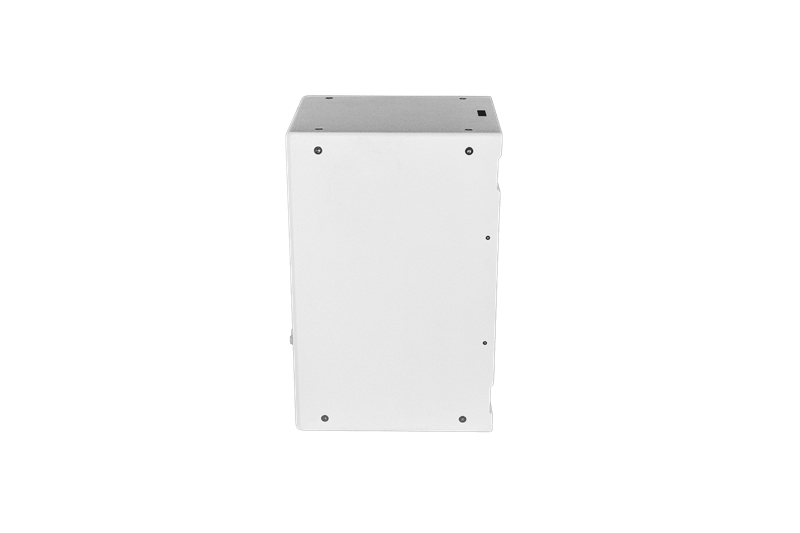

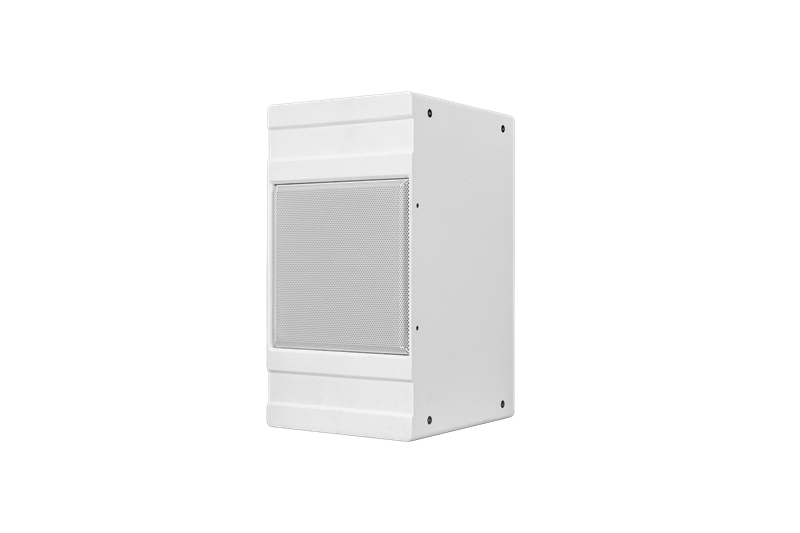

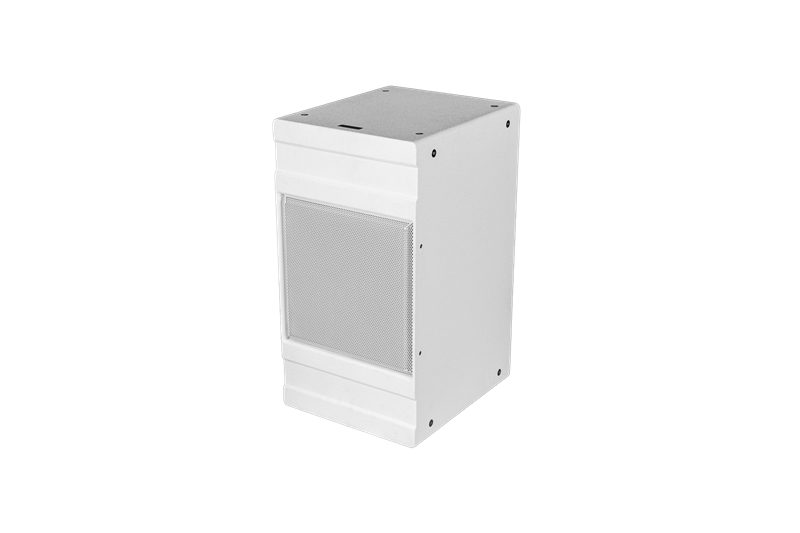

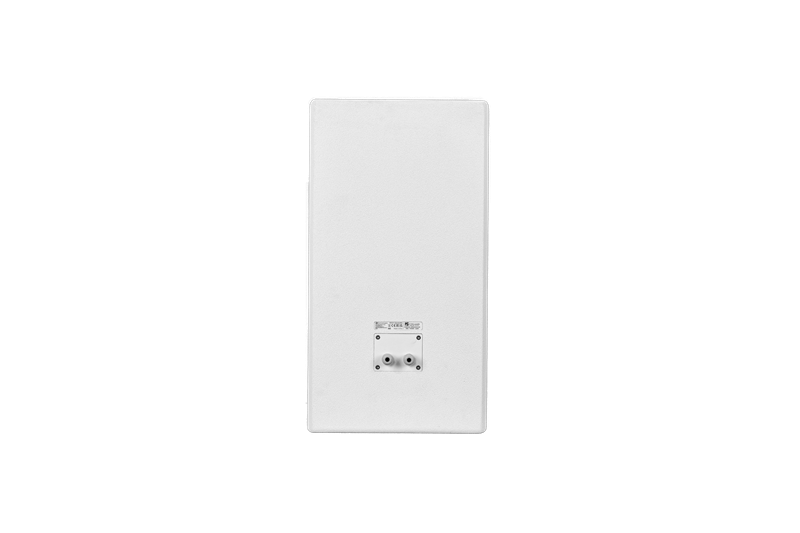

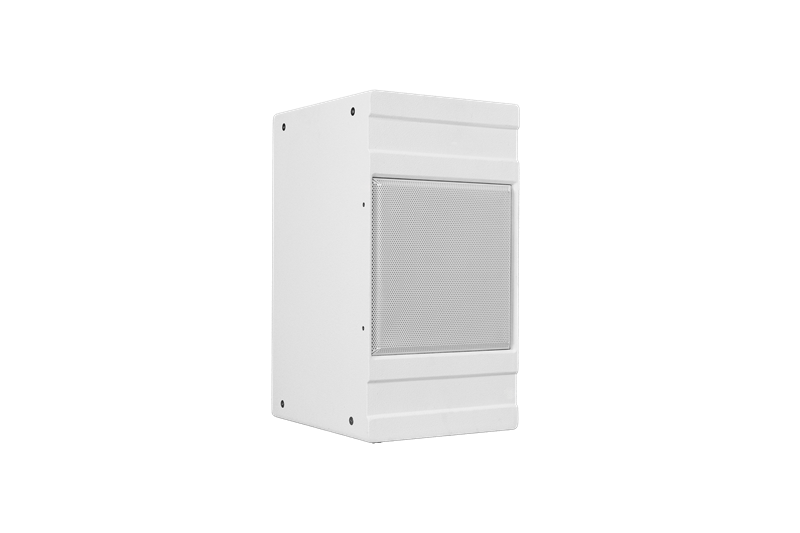

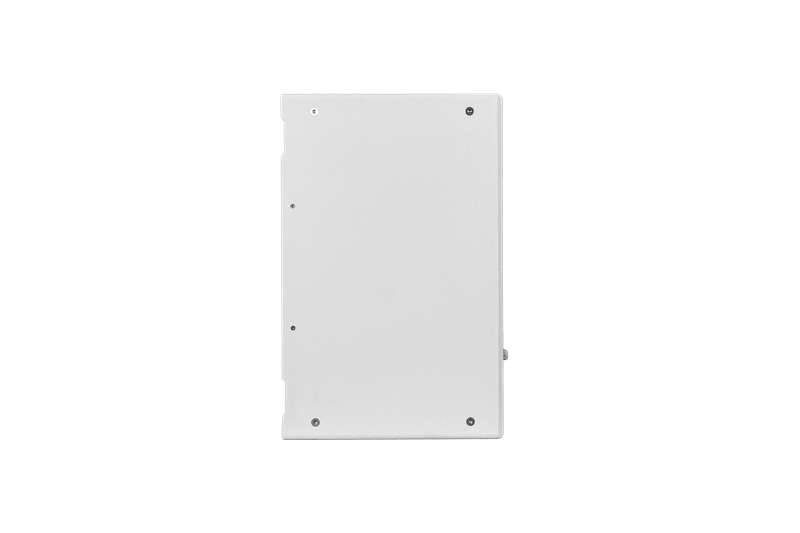

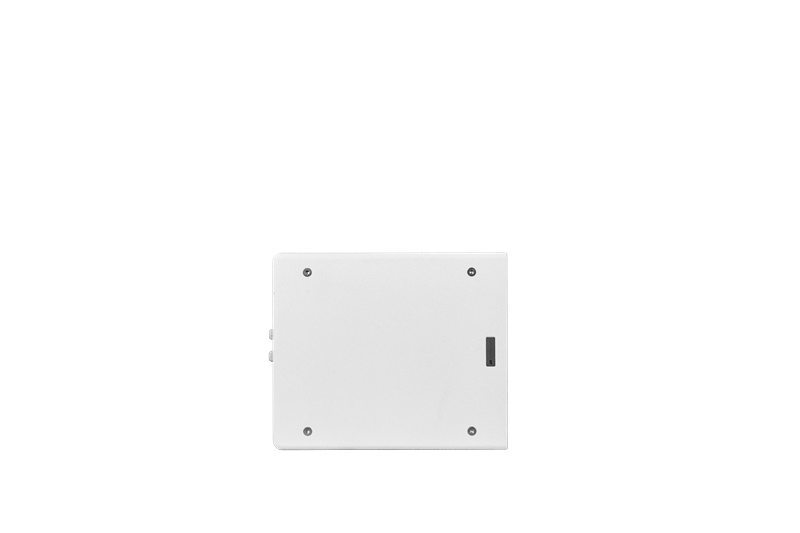

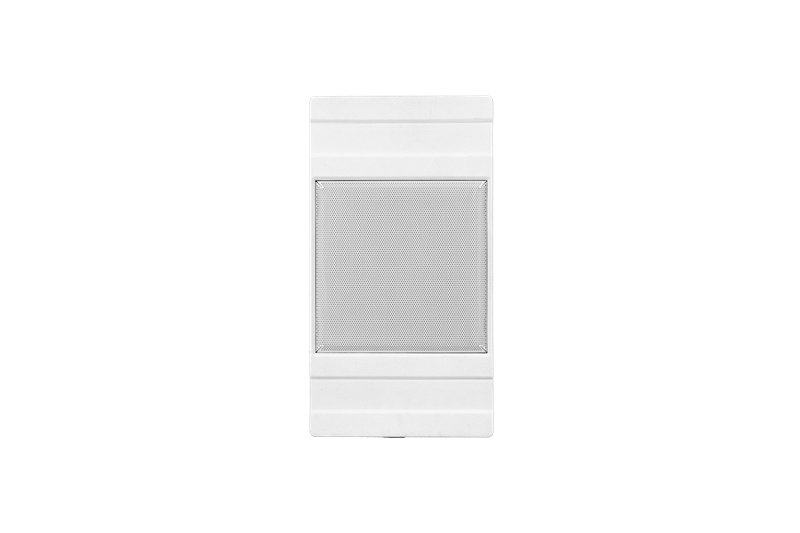

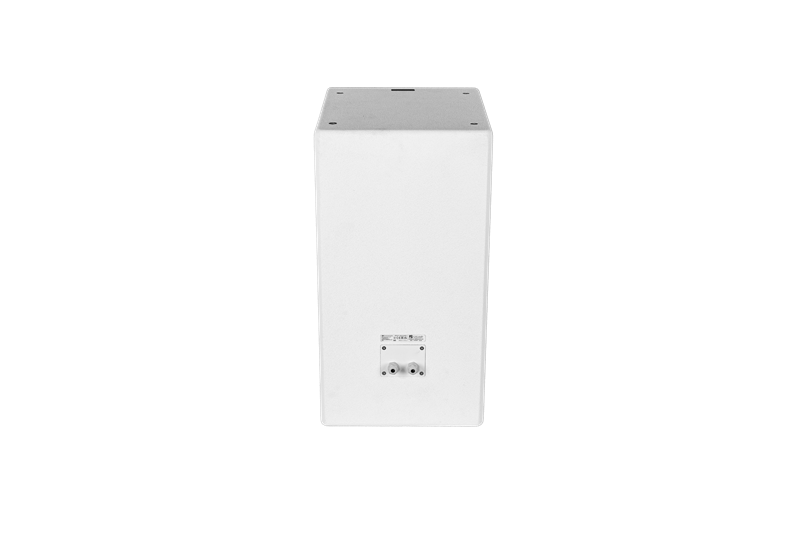

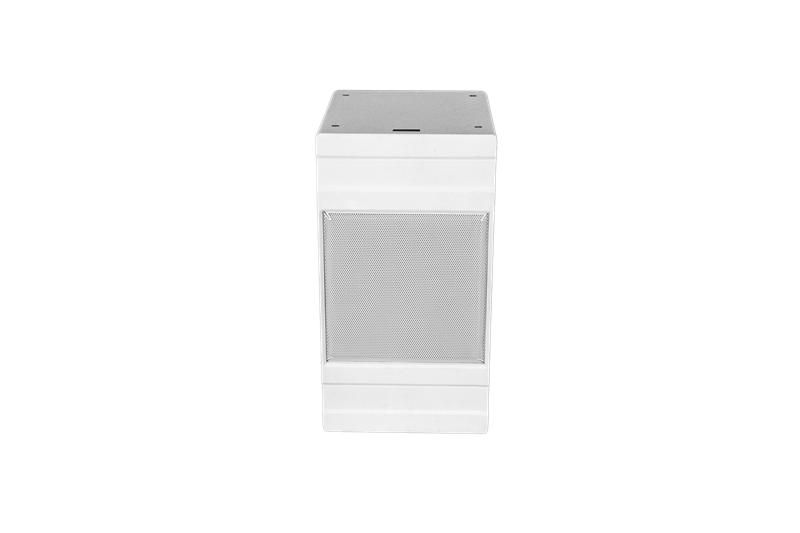

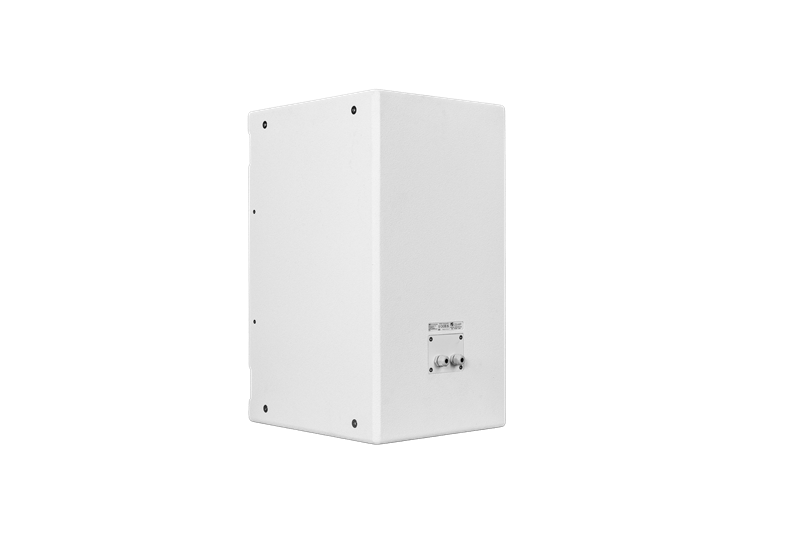

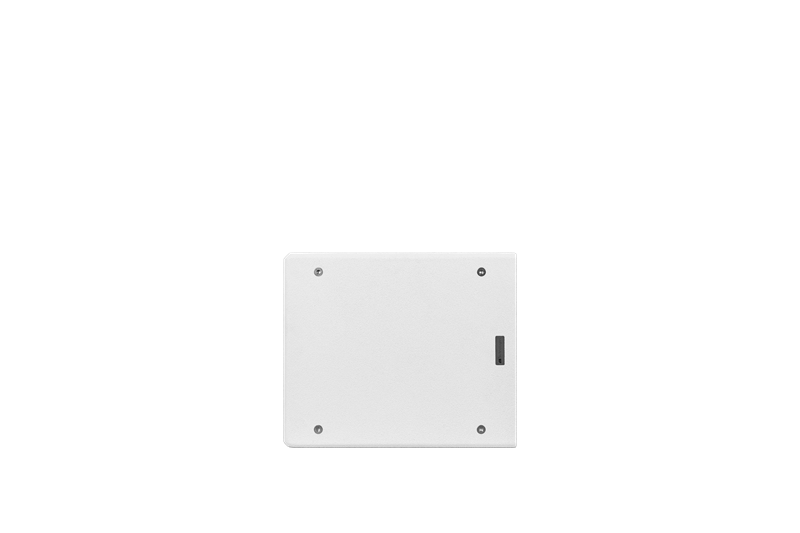

El IS12S-WP conserva el diseño minimalista de toda la serie, con la posibilidad de personalizar el acabado de color de la versión blanca.
Leer Mas
TECNOLOGÍAS
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.
IP55 RatingThe product is resistant to dust and low-pressure water jets. Specifically, IP55 Rating offers limited protection against dust ingress and can withstand water jets from any direction without compromising functionality. This rating is commonly used for devices intended for both indoor and outdoor use.
White version availableThis product is available for purchase in black or white.
código del producto: 1030401280
Datos Técnicos
Speaker Type
Passive Subwoofer
Datos Acústicos
RMS Power
250 W
Peak Power
1000 W
Frequency Response [-6 dB]
40 Hz - custom LPF
Impedance
8 Ohm
Sensitivity 1W@m
97.5 dB
Max SPL
127.5 dB
LF
1x 12", 2.5" v.c.
Sección de Entrada

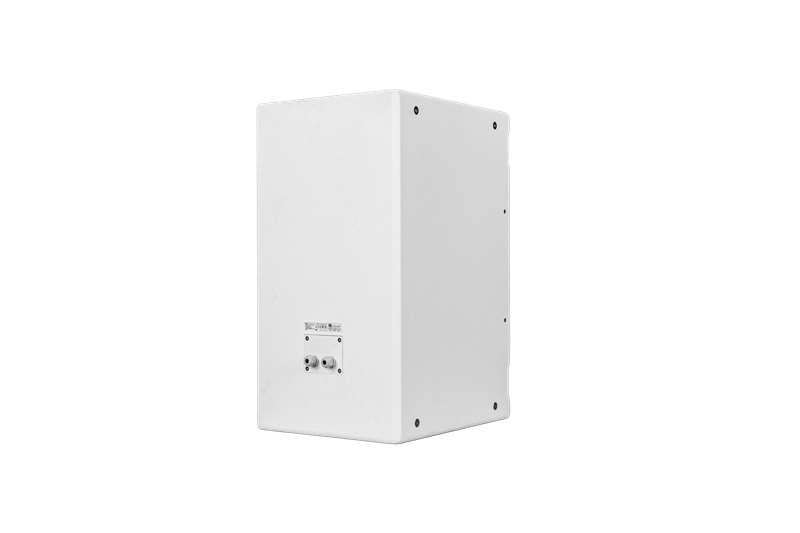

Connections
Screw terminal block (IN+ | IN- | OUT+ | OUT-)
Mecánica
Housing
Plywood, polyurea coating
Rigging points
16x M8 pickup point
IP rating
IP 55
Width
335 mm (13.2 in)
Height
624 mm (24.6 in)
Depth
400 mm (15.7 in)
Weight
15 kg (33 lbs)
Notes: Estos datos no son vinculantes; dBTechnologies se reserva el derecho de modificar los mismos en cualquier momento y sin previo aviso.
AES75: @1 meter, free field, with Music-Noise
