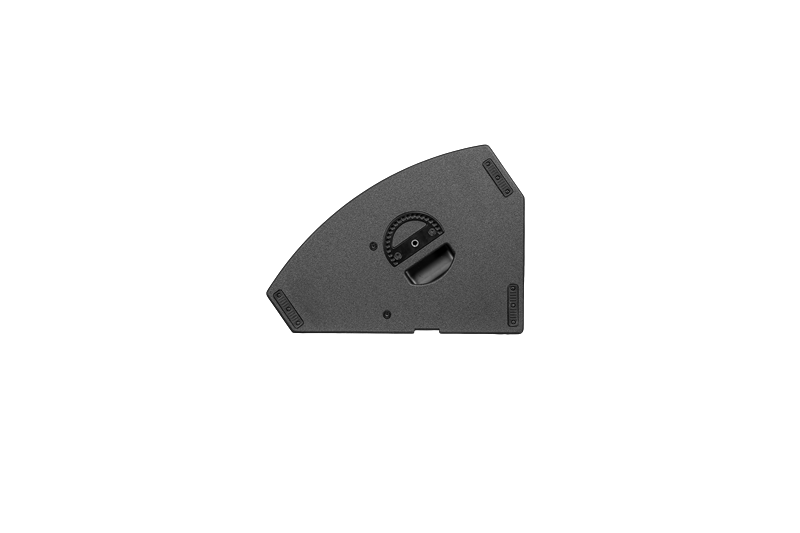

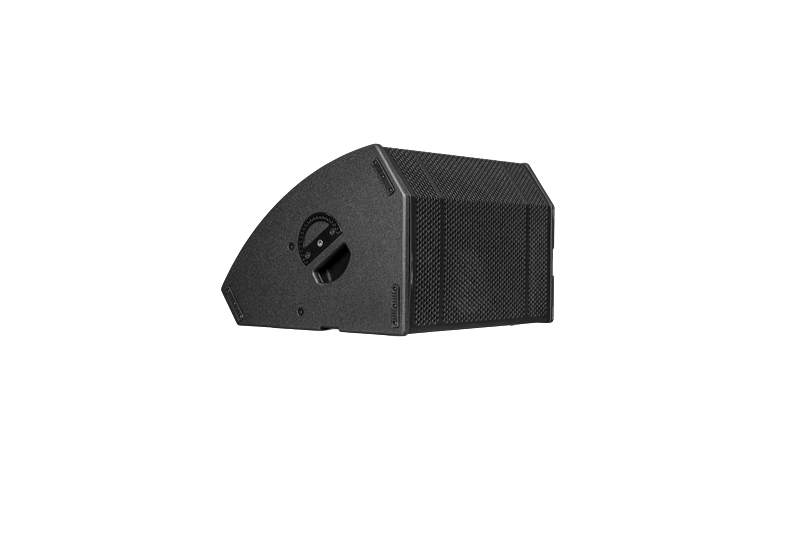

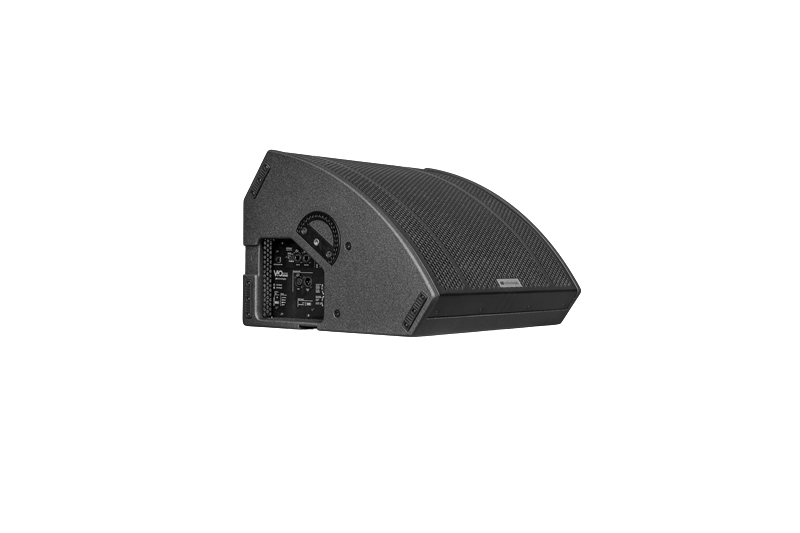

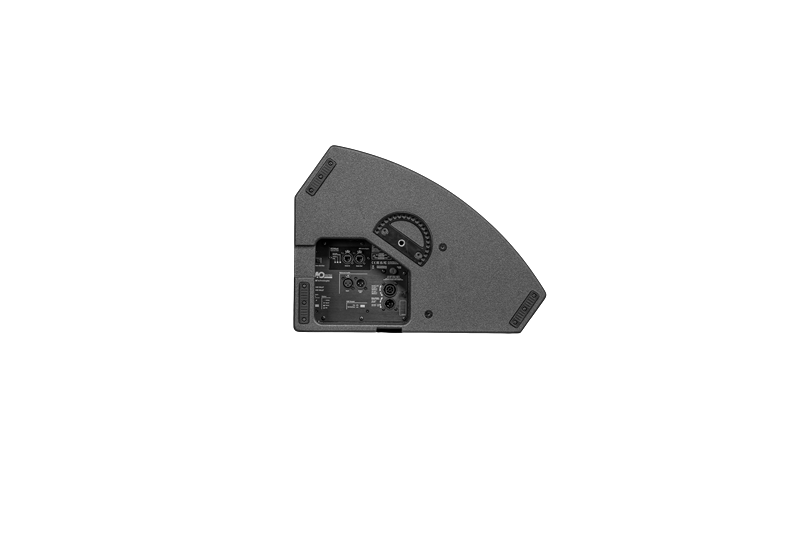

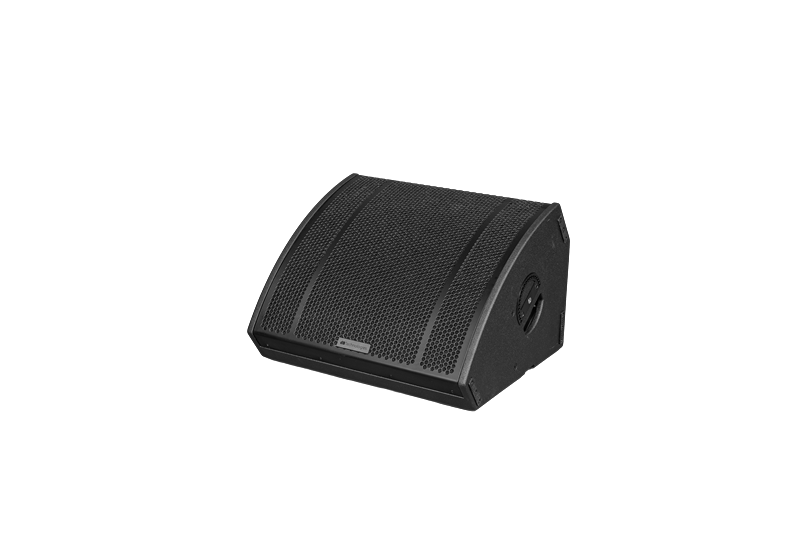

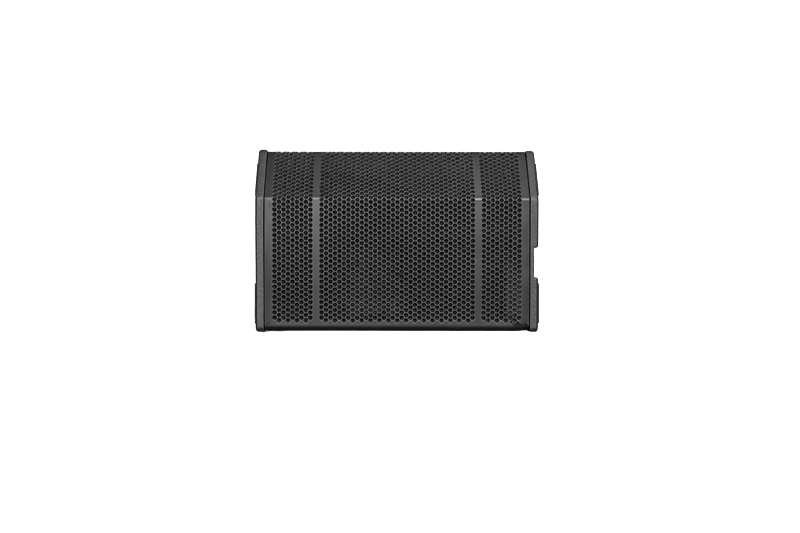

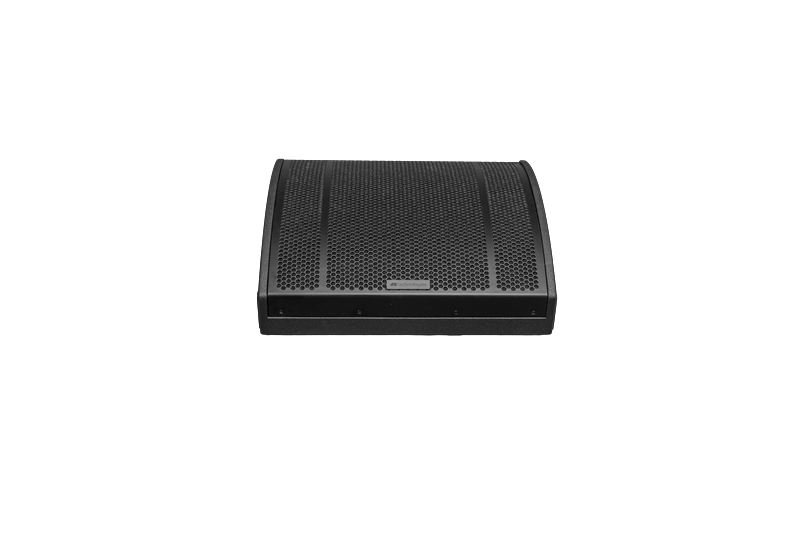

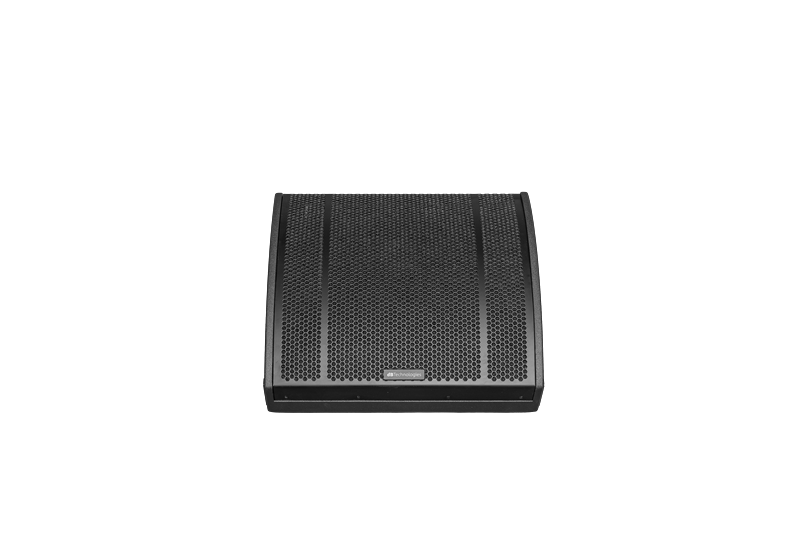

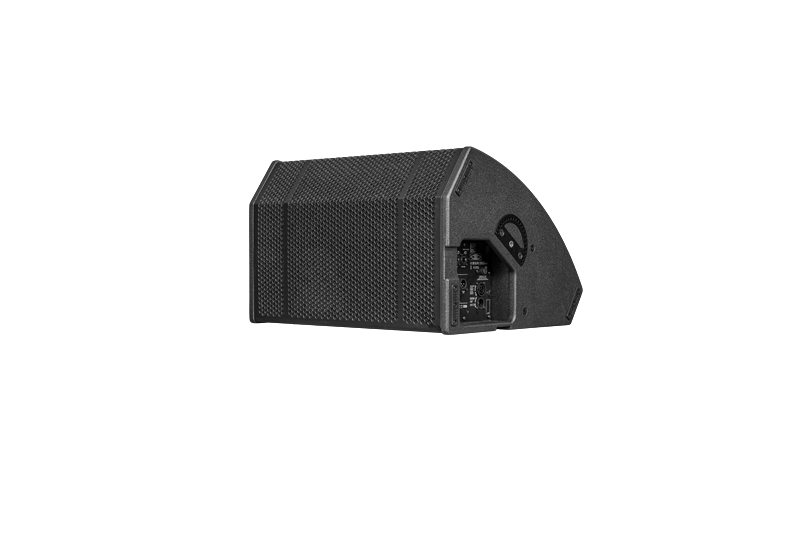

VIO W12T

Stage Monitors
Volver a la galería
Stage Monitors
490 mm 550 mm 360 mm

MONITOR DE ESCENARIO COAXIAL ACTIVO DE 2 VÍAS

1600 W RMS CLASE D DIGIPRO® G4

SPL MÁXIMO: 137.5 dB

RESPUESTA EN FRECUENCIA [-6dB]: 60 - 16,000 Hz

PREPARADO PARA DANTE Y A2NET

HF: 1x 1.3" - 3" v.c. NEODIMIO

LF: 1x 12" - 3" v.c. NEODIMIO

Sales & Rental Network
VIO W12T es un monitor coaxial activo compacto con altavoz de 12” de alto rendimiento, diseñado para satisfacer las necesidades de los escenarios más exigentes. Con un poderoso desarrollo de 138 dB SPL, el sistema combina una dispersión precisa gracias a su difusor giratorio con cobertura de 60° × 40°, excelente coherencia de fase y un diseño mecánico flexible. Ya sea utilizado como monitor de piso, montado en poste, volado o instalado, el W12T se adapta perfectamente a una amplia gama de aplicaciones profesionales, desde monitor de escenario de alto SPL hasta trabajar como un sistema de refuerzo sonoro y sistemas distribuidos. Impulsado por un amplificador Clase D de 1600W RMS y con un amplificador Digipro G4 de dBTechnologies, el W12T integra un DSP de 96 kHz, además de utilizar filtros FIR, monitoreo de impedancia en tiempo real y control remoto vía RDNet. Las tarjetas opcionales A2Net o Dante® permiten su integración en redes digitales mas complejas. Diseñado para un uso profesional intenso, el gabinete acústico fabricado en madera recubierto con poliurea de bajo perfil admite múltiples opciones de montaje. Con el soporte en forma de “U” (opcional), puede montarse en soportes de pared. Puede volarse utilizando los puntos de rigging M10 para instalaciones pequeñas. El accesorio para montaje en poste SA-WT para monitores de la serie VIO W también es compatible con el nuevo W12T. Con un SPL excepcional, una respuesta tonal coherente y un control avanzado, el VIO W12T es la herramienta multiusos que toda empresa de renta necesita en su sistema de sonido.
Leer Mas

TECNOLOGÍAS

380V resistant SMPS
380V resistant SMPSThe final amplifiers will be switched off in case of an undesired strike of 380V current, saving them from any damage. The auxiliary power supply - 380V tolerant - determines a safe range of operability for the man power supply.
Aurora Net
Aurora NetThis product is fully-compatible with Aurora Net software
Coaxial Speaker
Coaxial SpeakerThese coaxial speakers deliver an extraordinary sound quality that defies the compact design of their housings. Engineered for precise directivity and uniform throw patterns, they provide the same satisfying audio experience from every listening position, with far greater resistance to Feedback.
Digipro® G4
Digipro® G4The latest System of digital amplification engineered by dBTechnologies.
Expansion Card Slot
Expansion Card SlotThe preamplifier comes with a RDNet card installed. The user will be able to upgrade the system by replacing the RDNet card with an Audinate™ Dante™ card for audio over Ethernet and remote control on a single cable solution - sold separately.
Linear Phase FIR Filters
Linear Phase FIR FiltersA low-latency sound processing featuring Linear Phase FIR filters allows cabinets to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. This is also achieved by making the phase response as linear as possible, avoiding any distortion.
Neodymium Transducers
Neodymium TransducersNeodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerful magnetic field once charged. This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favoring its weight and space capacity.
Opto-isolated Preamp
Opto-isolated PreampThe floating audio input design grants a digital optical isolation between earth ground from the mains and the audio ground flowing into the Preamplifier board.This galvanic isolation greatly improves resistance to interferences and any unwanted buzzing and noises.
PFC (Power Factor Corrector)
PFC (Power Factor Corrector)The Power Factor Corrector greatly improves the efficiency of the system. Performances of the amplifier are very stable and consistent, regardless of the quality of the mains. This also grants a worldwide compatibility of the power supply - from 90V to 265V 50/60Hz - and limits power consumption.
RDNet
RDNetDigital net for bi-directional control of connected devices. The acronym RDNet originates from the development, on behalf of RCF and dBTechnologies, of a universal network which allows adjustments in real time and supervision of all the connected systems, using cables based on ethernet cat 5 wires. With the specific software and the interfaces control 2 and control 8, a complete command of the acoustic system will be possible allowing real time supervision on each electrical component of the various speakers. RDNet allows you to monitor levels, limiters, and temperatures, select system presets, configure setups off-line, Mute units, Group modules and assigning group EQ, delay and phase, test individual components, automatically address system components, tap into LAN and USB interfaces, extend the network via wireless LAN access points.
Rotatable Horn
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
System Test
System TestA built-in measurement system can read the transducers impedance in real time and provide an instant feedback on the health of your system.This controls is performed constantly or it can be forced by the user at any time, remotely or from the amplifier panel.
USB Data Port
USB Data PortThanks to this universal data port, the user will be able to perform firmware upgrades
Datos Técnicos
Speaker Type
2-Way Active Coaxial Stage Monitor

Datos Acústicos
Usable Bandwith [- 10 dB]
56 - 20,000 Hz

Frequency Response [- 6 dB]
60 - 16,700 Hz

Max SPL
138 dB AES75*

137 dB**

HF
1x 1.3" - 3" v.c. Neodymium

LF
1x 12" - 3" v.c. Neodymium

Directivity (HxV)
60° x 40° [rotatable]

Amplificador
Amplifier
1600 W RMS Class D Digipro® G4

Cooling
Convection + internal fan

Power Supply
Full-range SMPS with PFC (100V~-240V~, 50-60Hz)

Procesador
Controller
DSP 32 bit

Converter AD/DA
24 bit/96 kHz

Limiter
Dual Active Peak, RMS, Thermal

Processing (filters)
Linear Phase FIR Filters

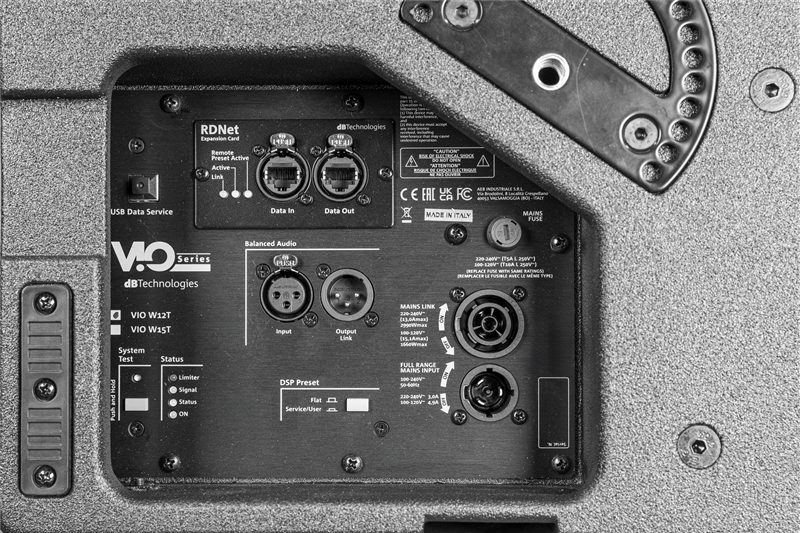

Sección de Entrada
Signal Input
1x XLR female, 1 x USB (Data Service)

Signal Output
1xXLR male

Expansion Card
RDNet Card (1x RJ45 IN 1x RJ45 Link)

Dante Card [Optional]

Power Socket
1x PowerCON TRUE1 In

1xPowerCON TRUE1 Out

Controls
1x switch Flat - service/user

1x switch System test

1x led ON

1x led STATUS

1x led SIGNAL

1x led LIMITER

1x LED TEST

1x frontal ID led

Special Features
Frontal LED Identification System

380V Resistant SMPS

Opto-isolated floating pre-amp

System Test (transducers diagnostics)

Mecánica
Housing
Wooden cabinet, Polyurea painting

Handles
1 + 2 recessions per side

Width
550 mm (21.65 in)

Height
360 mm (14.17 in)

Depth
490 mm (19.29 in)

Weight
22.5 kg (49 lbs)

Notes: Estos datos no son vinculantes; dBTechnologies se reserva el derecho de modificar los mismos en cualquier momento y sin previo aviso.
Filename: Category: Filetype: Size: Language: Release:
CE-VIO-W12T Certifications PDF 2,43 MB English 2025-09-25
Manual_VIO-W15T-W12T_Rev2.0 Manual PDF 11,91 MB English 2025-09-18
UKCA-VIO-W12T Certifications PDF 2,14 MB English 2025-09-25
FW_VIO_W12T_A2NET_v02.00.01.dbu2 Firmware ZIP 0,16 MB English 2025-10-02
FW_VIO_W12T_DANTE_v02.00.01.dbu2 Firmware ZIP 0,17 MB English 2025-10-02
FW_VIO_W12T_v02.00.01.dbu2 Firmware ZIP 0,16 MB English 2025-09-02
