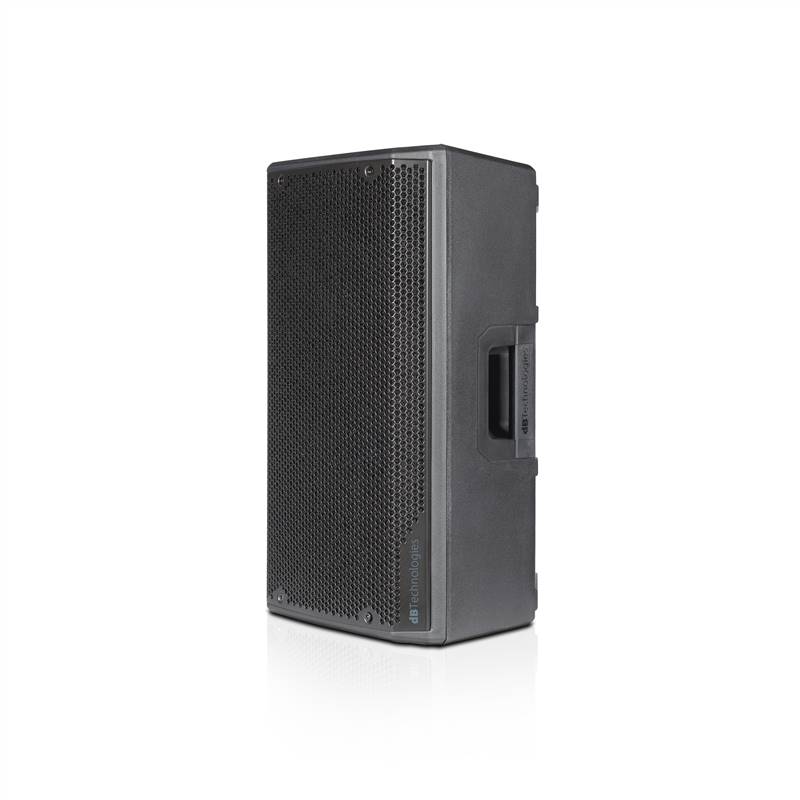

Opera10 threefourths left x dbtechnologies 23052016

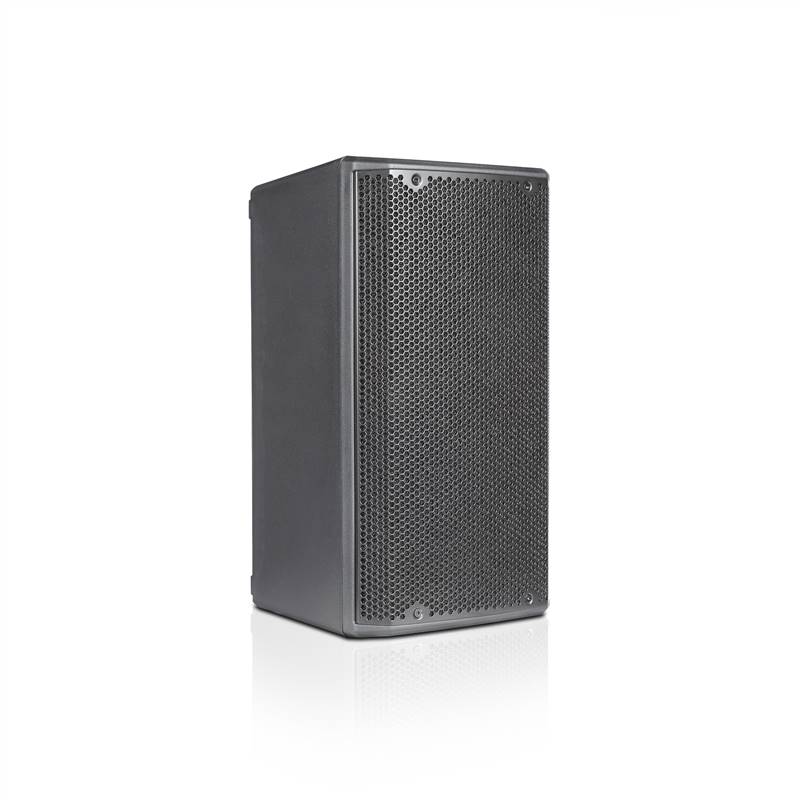

Opera10 threefourths right x dbtechnologies 23052016

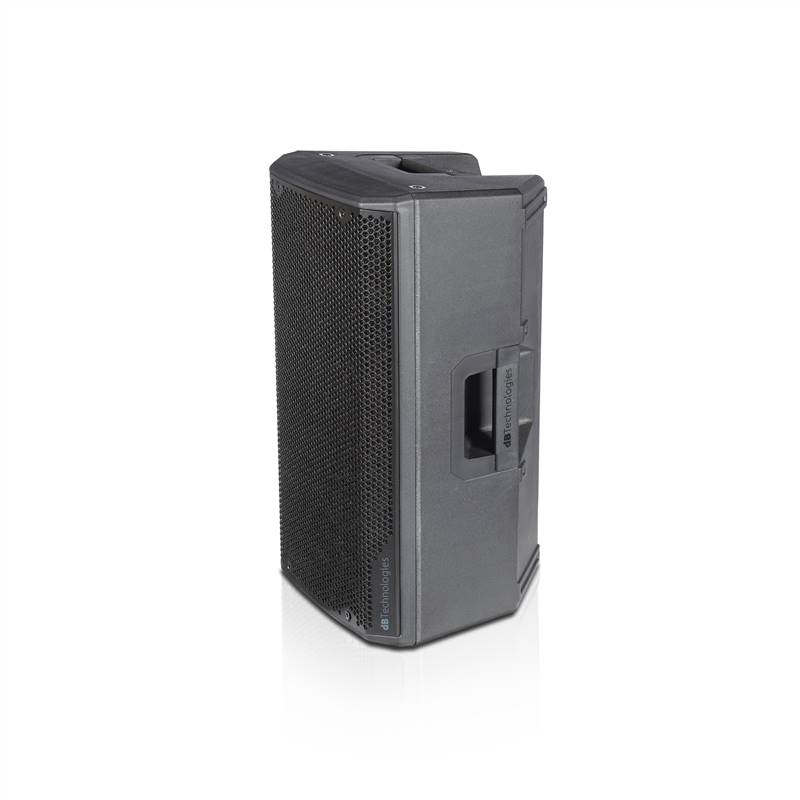

Opera10 threefourths top left x dbtechnologies 23052016

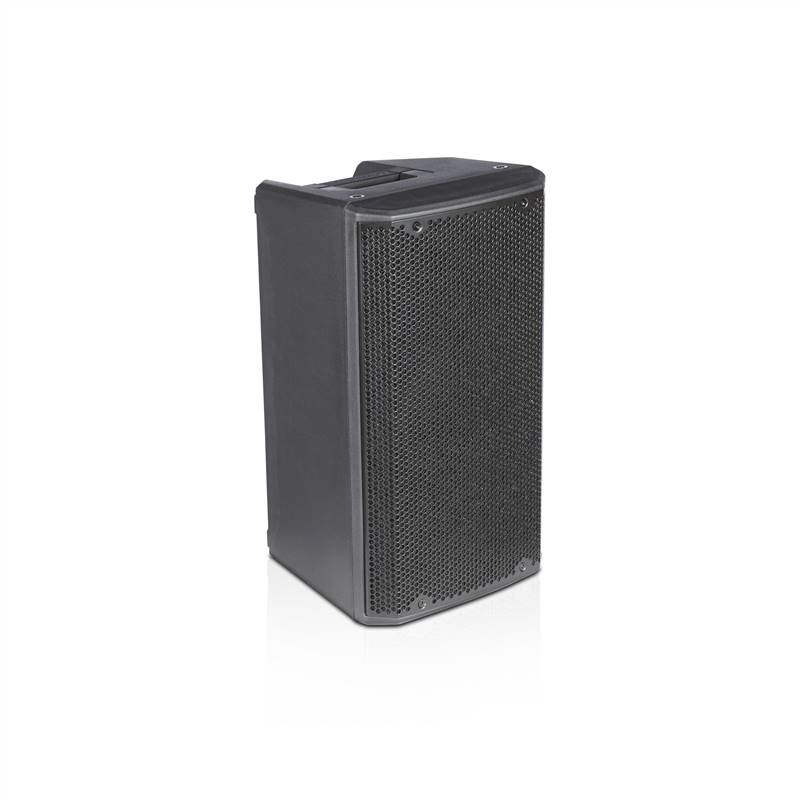

Opera10 threefourths top right x dbtechnologies 23052016

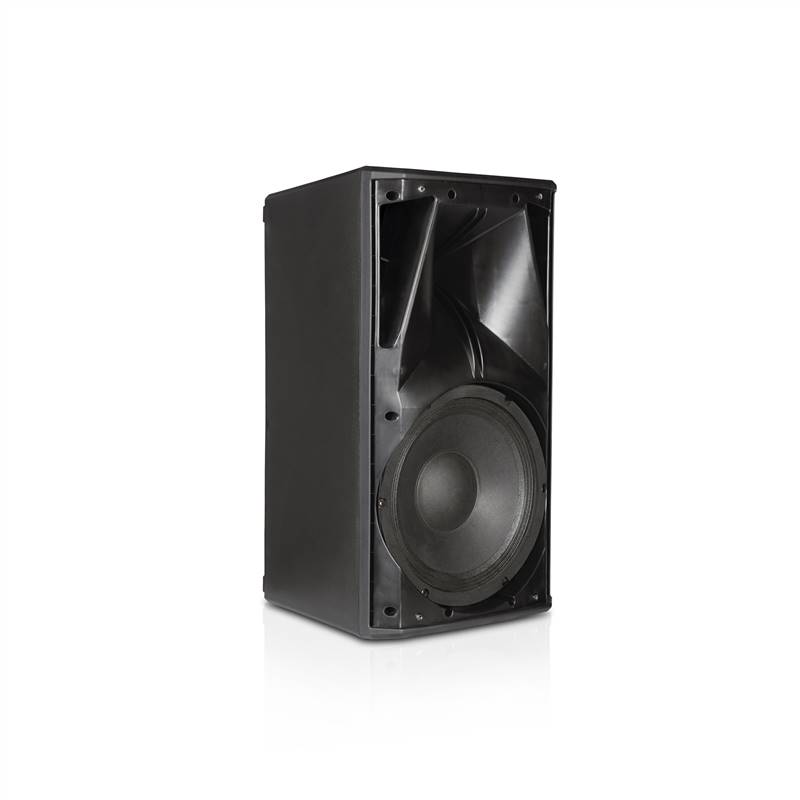

Opera10 threefourths withoutgrill right x dbtechnologies 23052016

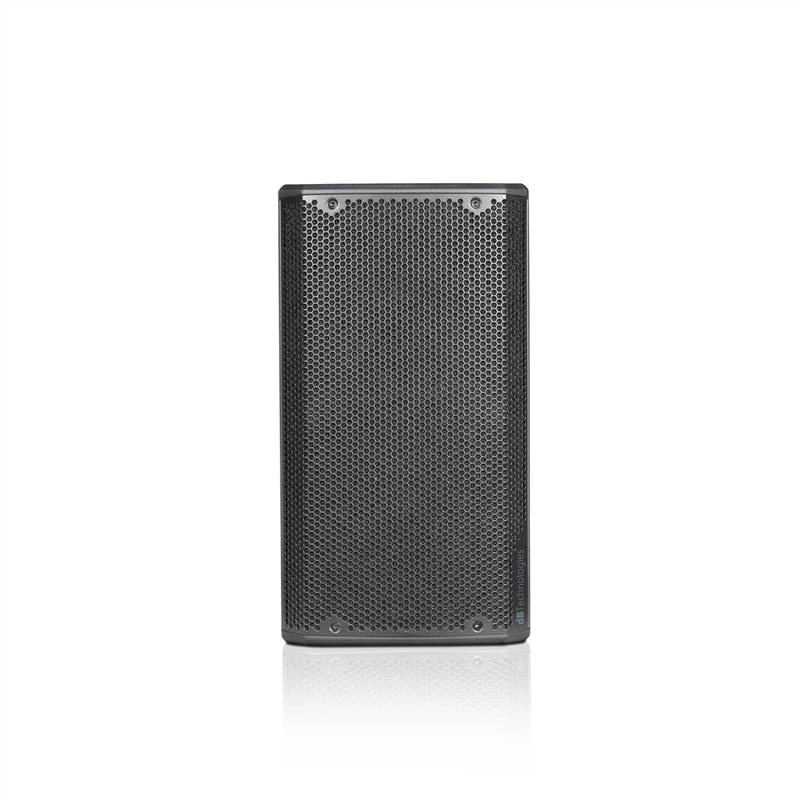

Opera10 front x 2 dbtechnologies 23052016

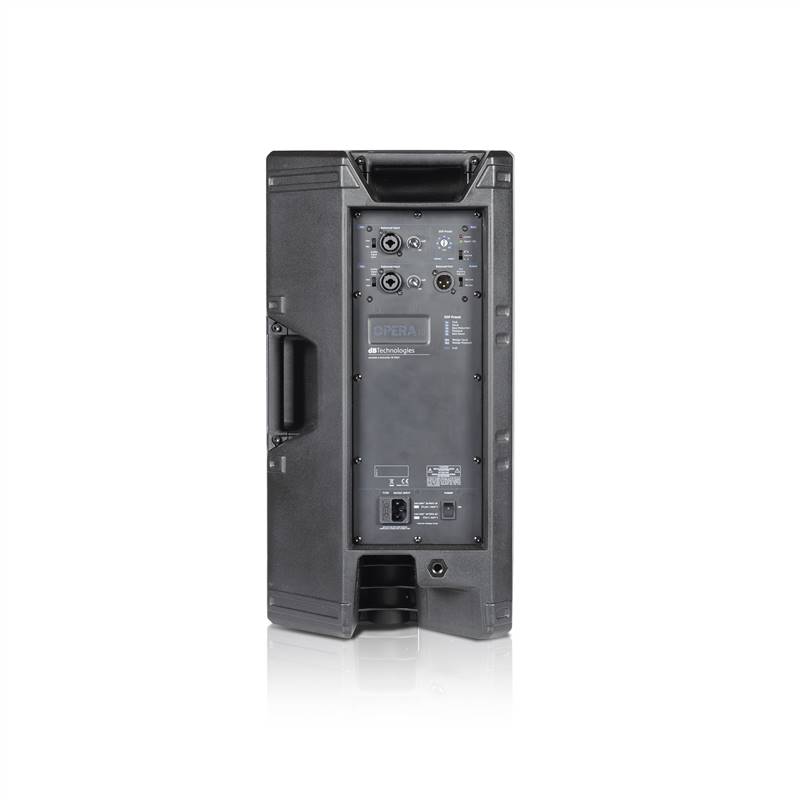

Opera10 retro x 2 dbtechnologies 23052016

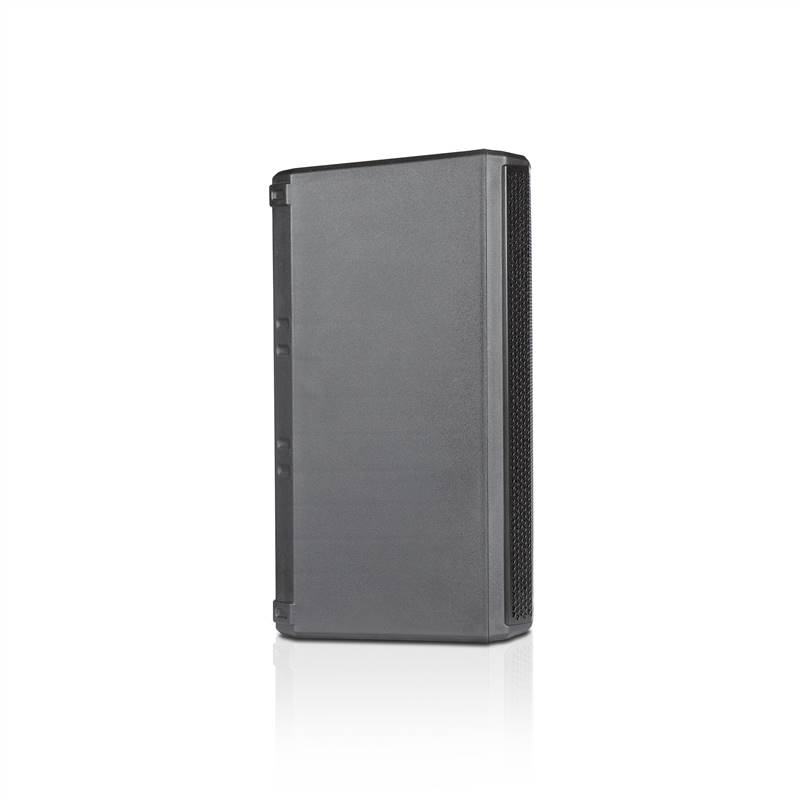

Opera10 side right x dbtechnologies 23052016

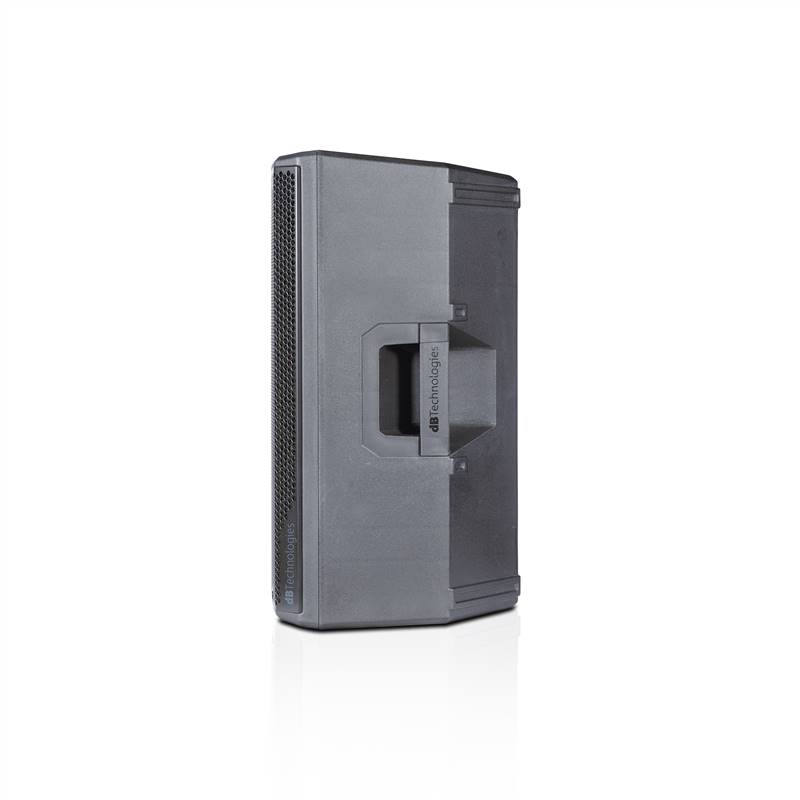

Opera10 side left x 2 dbtechnologies 23052016

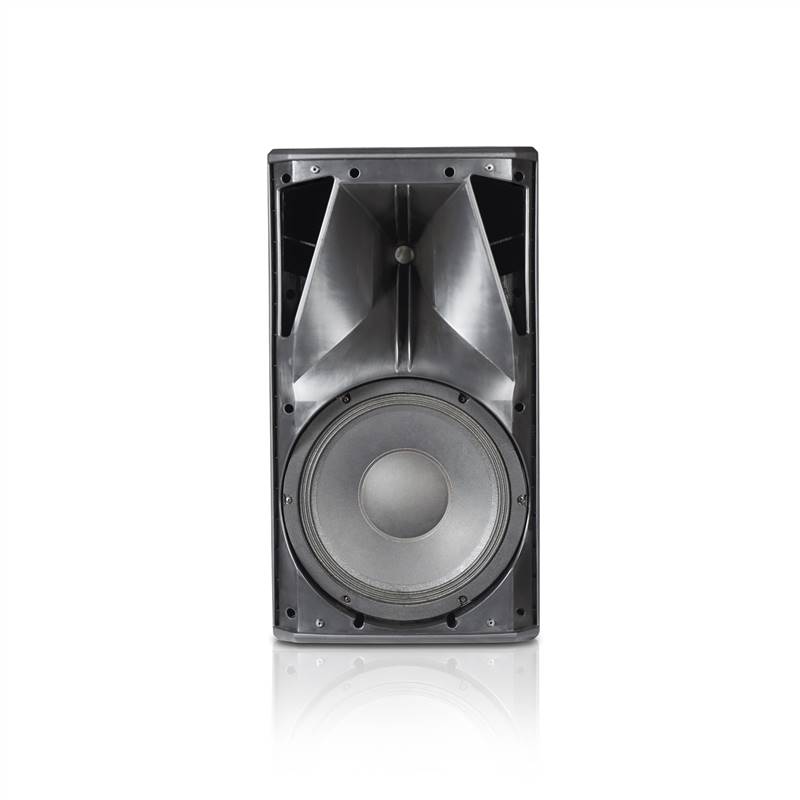

Opera10 front withoutgrill x dbtechnologies 23052016

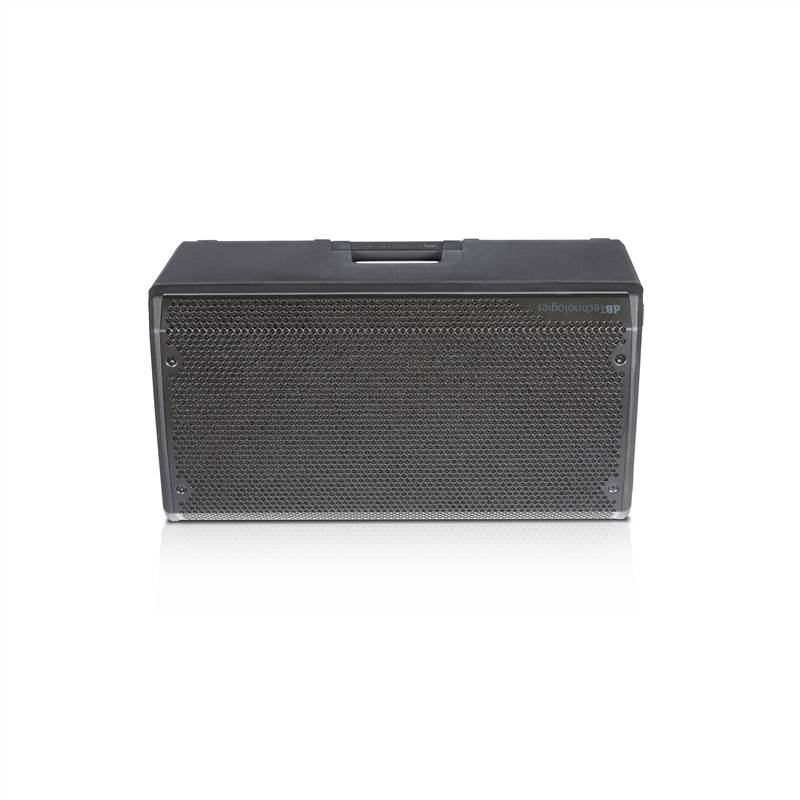

Opera10 front horizontal x dbtechnologies 23052016

Galería

Ver video

descarga imágenes

Portable Systems

2-WAY ACTIVE SPEAKER

600W RMS CLASS-D AMPLIFIER

MAX SPL 128 dB

FREQUENCY RESPONSE [-3dB]: 70 - 19.600 Hz

HF: 1x 1" Exit, 1.4 v.c.

LF: 1x 10", 2" v.c.

WEIGHT: 12.3 kg (27.12 lbs)

Sales & Rental Network

OPERA 10

Con la nueva serie OPERA, dBTechnologies ha logrado una vez más integrar un procesamiento DSP de última generación, un diseño vanguardista y una facilidad de uso avanzada en un gabinete inigualable dentro de su gama de precios.

Estos altavoces presentan 1200 W de potencia máxima y un diseño acústico único para ofrecer un sonido vigoroso aunque original, perfectamente adaptable tanto para aplicaciones de reproducción de audio como para música en vivo.

La trompeta asimétrica de Opera ha sido rediseñada por completo con el fin de obtener tanto una dispersión asimétrica vertical como una dispersión horizontal doble, lo que garantiza un patrón de dispersion optimizado.

El cabinete está equipado con un potente amplificador de Clase D de 600 W, con procesamiento DSP avanzado donde los filtros FIR permiten a los sistemas ofrecer una respuesta de frecuencia coherente, uniforme y nítida desde cualquier posición de escucha.

Leer Mas

TECNOLOGÍAS

Asymmetrical HornThe dBTechnologies asymmetrical horn design delivers similar effective coverage for smaller applications. The high-frequency horn is narrower on top to bundle sound and throw it over greater distances. It flares out at the bottom to achieve a wider pattern of throw. This compensates for high frequency loss as sound travels further from the source) and distributes the signal more uniformly across all audience areas.

Linear Phase FIR FiltersA low-latency sound processing featuring Linear Phase FIR filters allows cabinets to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. This is also achieved by making the phase response as linear as possible, avoiding any distortion.

Lightweight

Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.

Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.

código del producto: 10301024701

Datos Técnicos

Speaker Type

2-Way Active Speaker

Datos Acústicos

Frequency Response [-10dB]

58 - 20.000 Hz

Frequency Response [- 3dB]

70 - 19.600 Hz

Max SPL

128 dB

1" Exit, 1.4 v.c.

Type HF

Compression driver

Horizontal Directivity

100° (85° up/120° down)

Vertical Directivity

85° (+ 25°/-60°)

Horn

Asymmetrical Horn

10", 2" v.c.

Amplificador

Amp Technology

Amp SMPS Power supply dual range

Amp Class

Class D

RMS Power

600 W

Peak Power

1200 W

Procesador

Controller

DSP 56 bit

AD/DA Converter

24 bit/48 KHz

System Presets

Rotary Encoder (8 Presets)

CrossOver Frequency

2000 Hz

Limiter

Peak, RMS, Thermal

Advanced DSP Functions

Linear Phase FIR Filters

Sección de Entrada

Signal Input

1xCombo (XLR/Jack 6.3 mm) MIC/Line

1xCombo (XLR/Jack 6.3 mm) MIC/Inst

Signal Output

1x XLR Male (CH1 Link/Mix OUT)

Selectable

Mecánica

Housing

Polyproylene

Grille

Full grille

Handles

1 on left Side, 1 on Top

Rigging Points

2XM10 on Top + 1x M10 on Back

Pole Mount

D36 mm

Angles up

Monitor use 45°

Width

300 mm (11.81 in)

Height

552 mm (21.73 in)

Depth

301 mm (11.85 in)

Weight

12.3 kg (27.12 lbs)

Notes: Estos datos no son vinculantes; dBTechnologies se reserva el derecho de modificar los mismos en cualquier momento y sin previo aviso.
