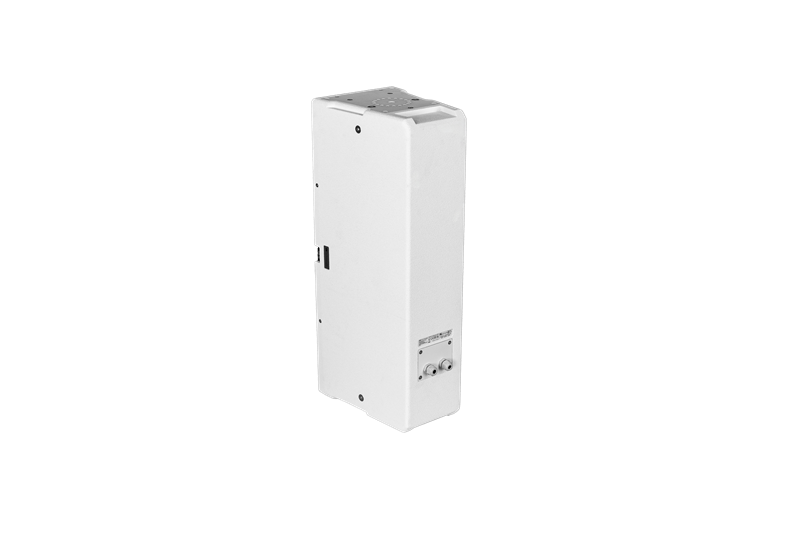

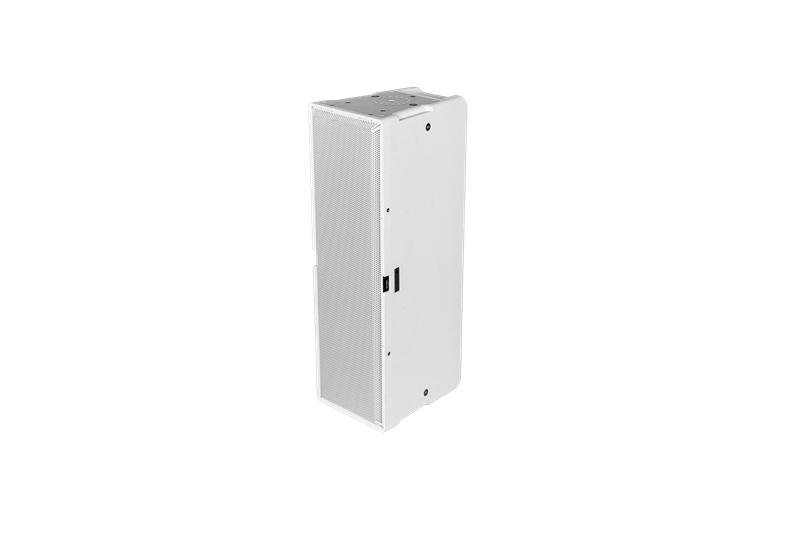

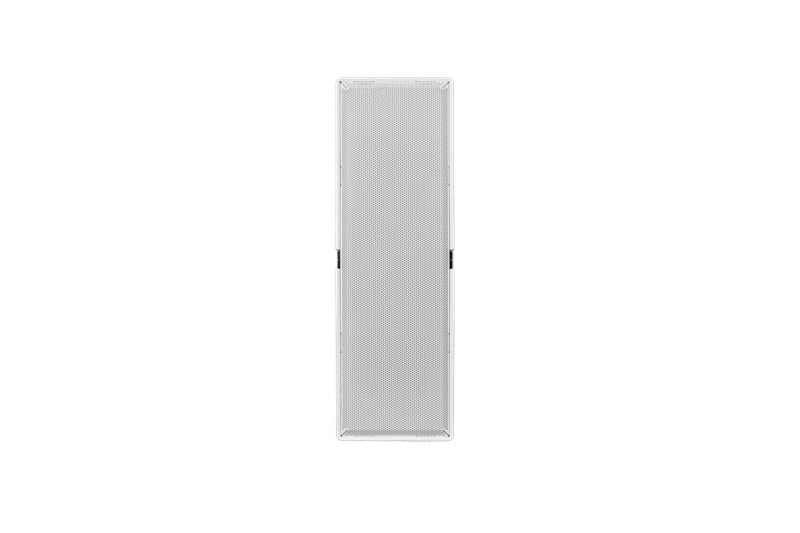

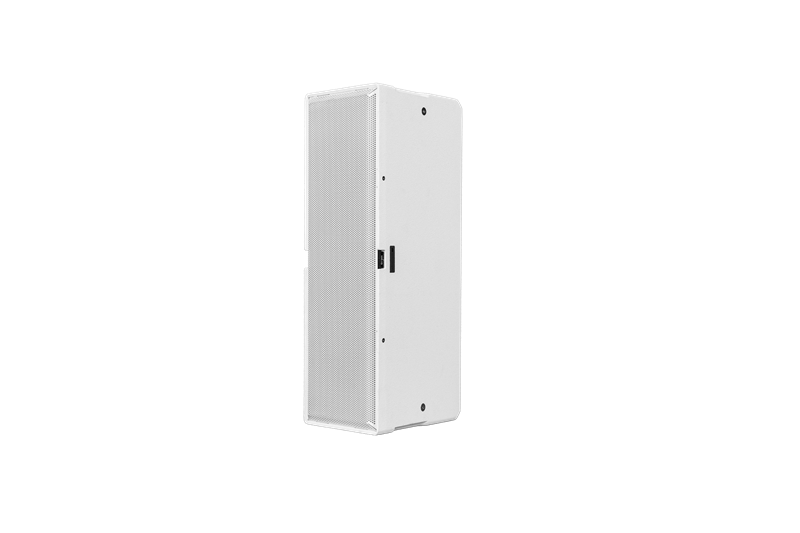

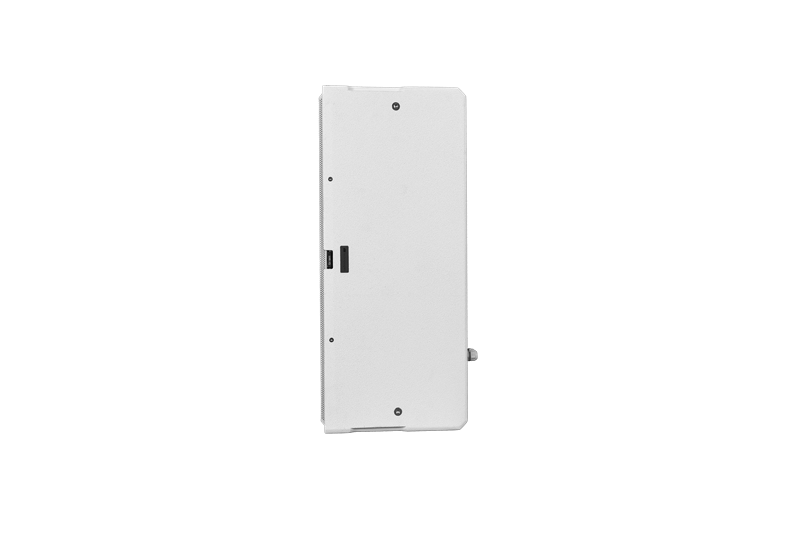

IS26T-WP is a full-range 2-way passive speaker with two 6.5'' woofers and a 1'' compression driver for the high range.
Compact, with a high linear response, IS26T-WP offers maximum sound pressure and condenses the best of the dBTechnologies acoustic experience in the most versatile solution of the entire IST-WP range.
The model is characterized by two different coverage options: a standard constant dispersion of 60x90° or a 100°x15° pattern, which, thanks to the waveguide, easily transforms IS26T-WP from a point source to a line array system.
Benefiting from all the main features of the series, such as invisible mounting points and IP55 protection, this professional passive solution uses the concept of maximum versatility, allowing dozens of different configurations achievable with the accessories of the VIO X206 system.

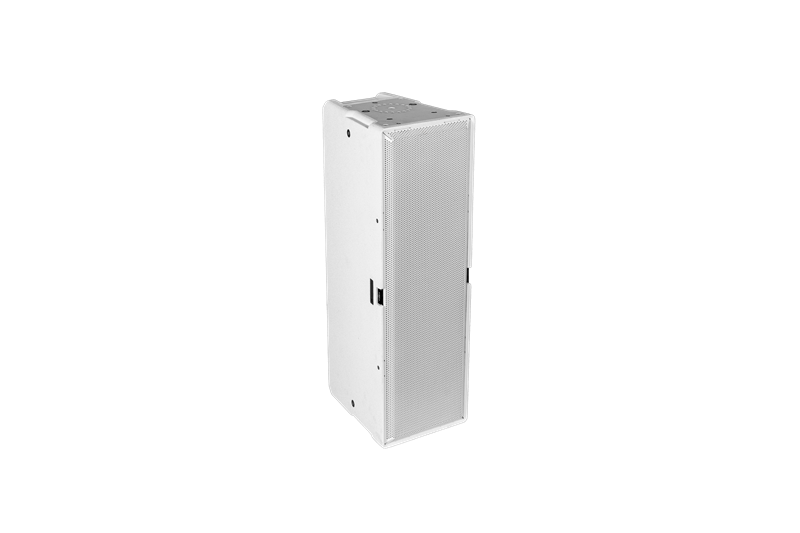

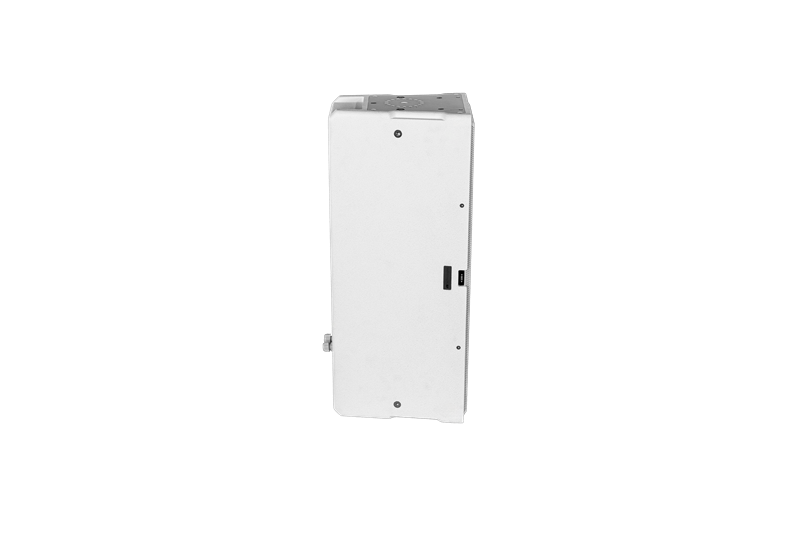

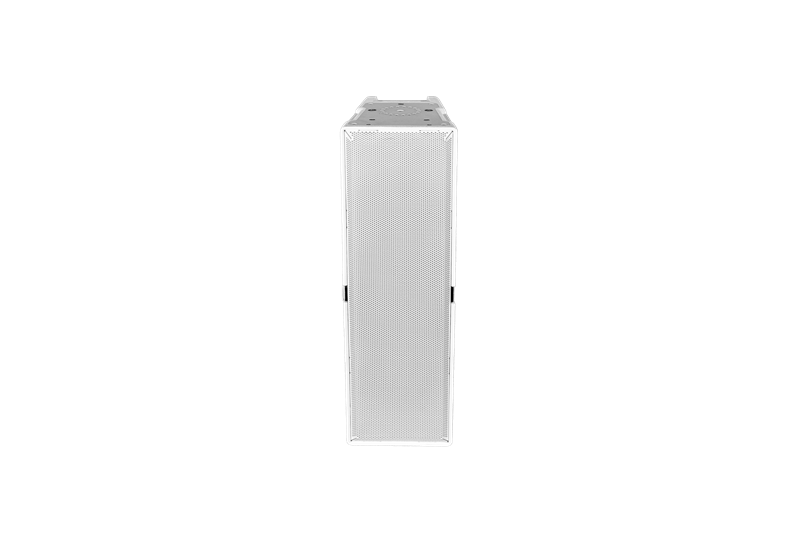

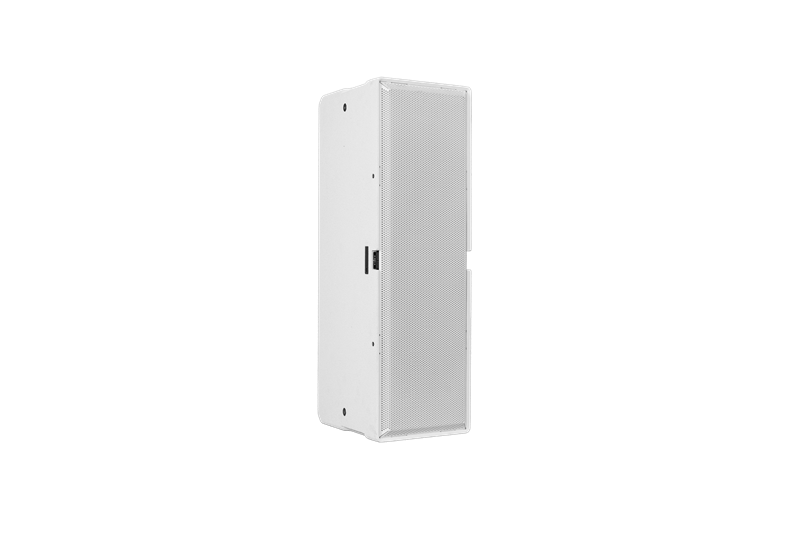

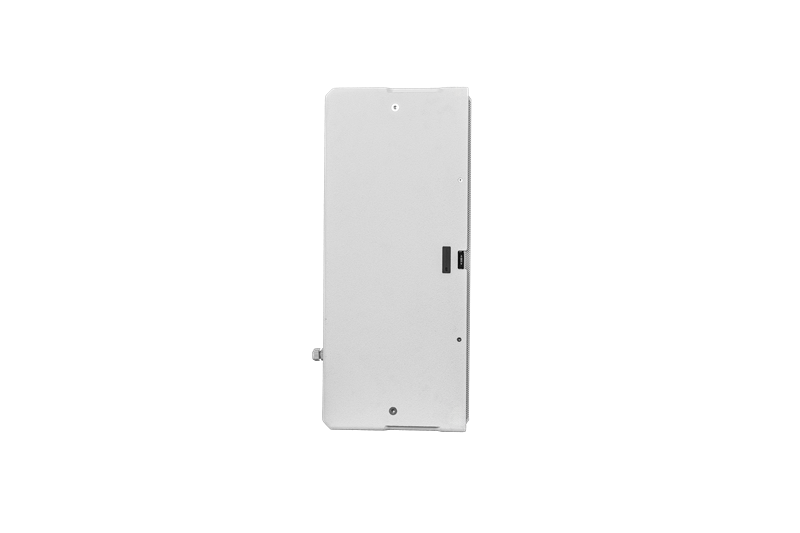

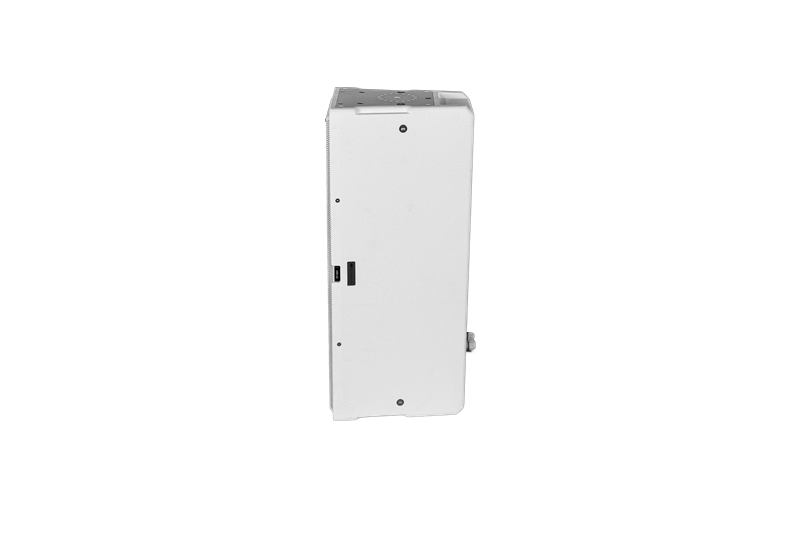

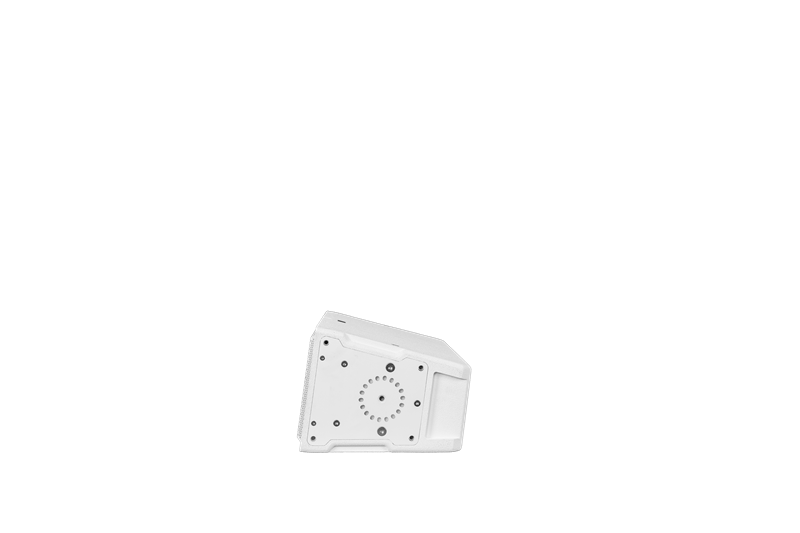

IS26T-WP retains the minimal design of the entire series, with the possibility of customizing the color finish of the white version by yourself.
En savoir plus
TECHNOLOGIES
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
White version availableThis product is available for purchase in black or white.
Product code: 1030401250
Caractéristiques techniques
Speaker Type
Passive 2-way Speaker
Caractéristiques acoustiques
RMS Power
250 W
Peak Power
1000 W
Frequency Response [-6 dB]
80 Hz - 20,000 Hz
Impedance
8 Ohm
Sensitivity 1W@m
94 dB
Max SPL
124 dB
HF
1x 1", 1.7" v.c.
LF
2x 6.5", 1.7" v.c.
IS26T Dispersion
60x90° [rotatable horn]
IS26T100 Dispersion
100x15° [H x V]
X-Over Frequency
1200 Hz (internal X-Over)
Input Section
Connections

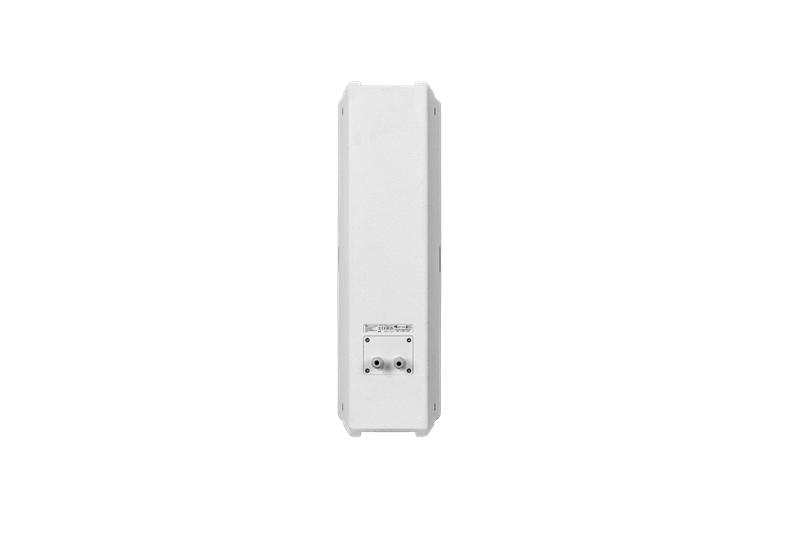

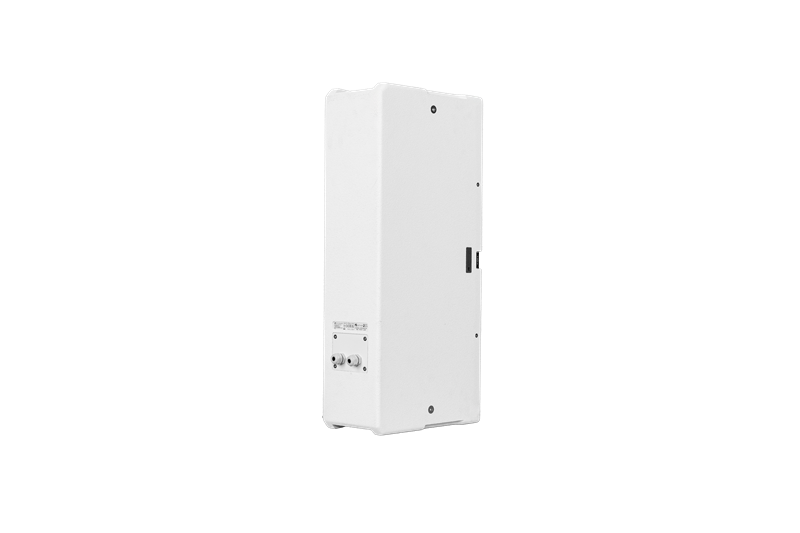

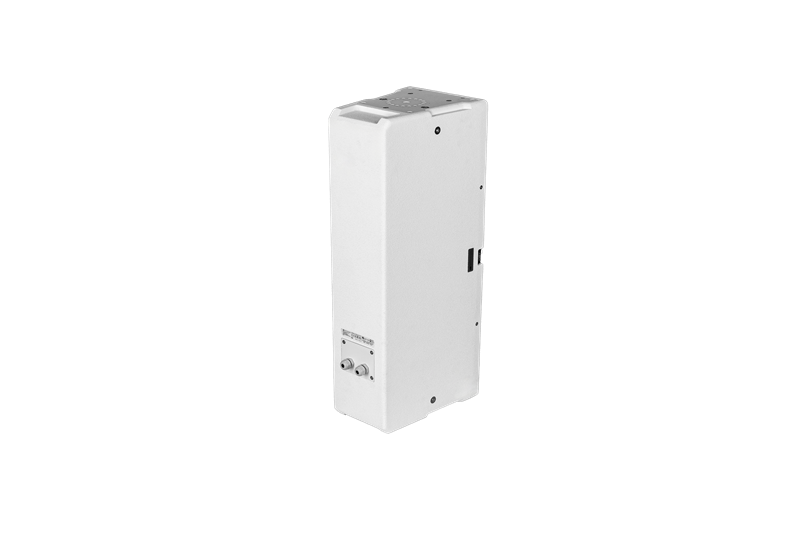

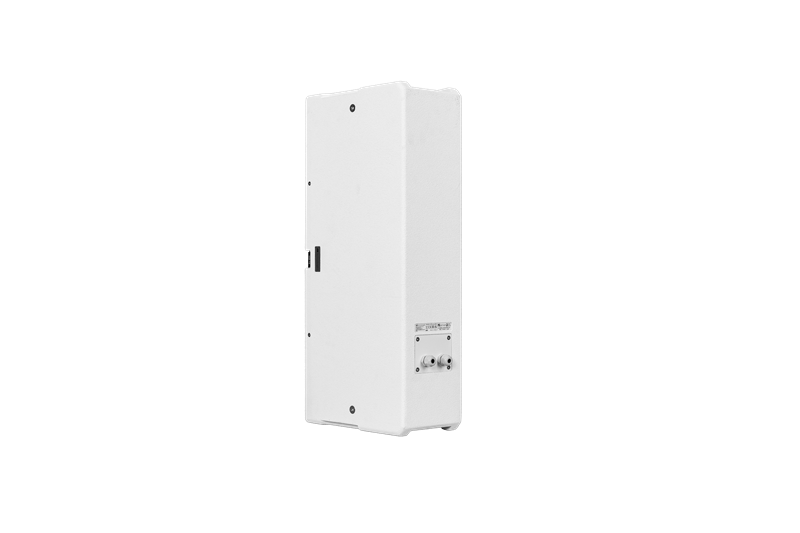

Screw terminal block (IN+ | IN- | OUT+ | OUT-)
Mécanique
Housing
Plywood, polyurea finish
Rigging points

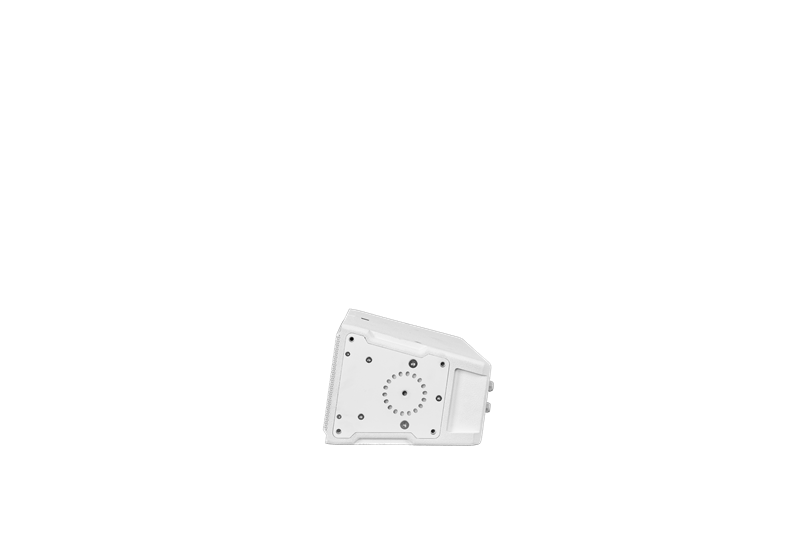

2x M10 threaded nut (top and bottom)
IP rating
IP 55
Width
210 mm (8.3 in)
Height
650 mm (25.6 in)
Depth
270 mm (10.6 in)
Weight
15.5 kg (34.17 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
