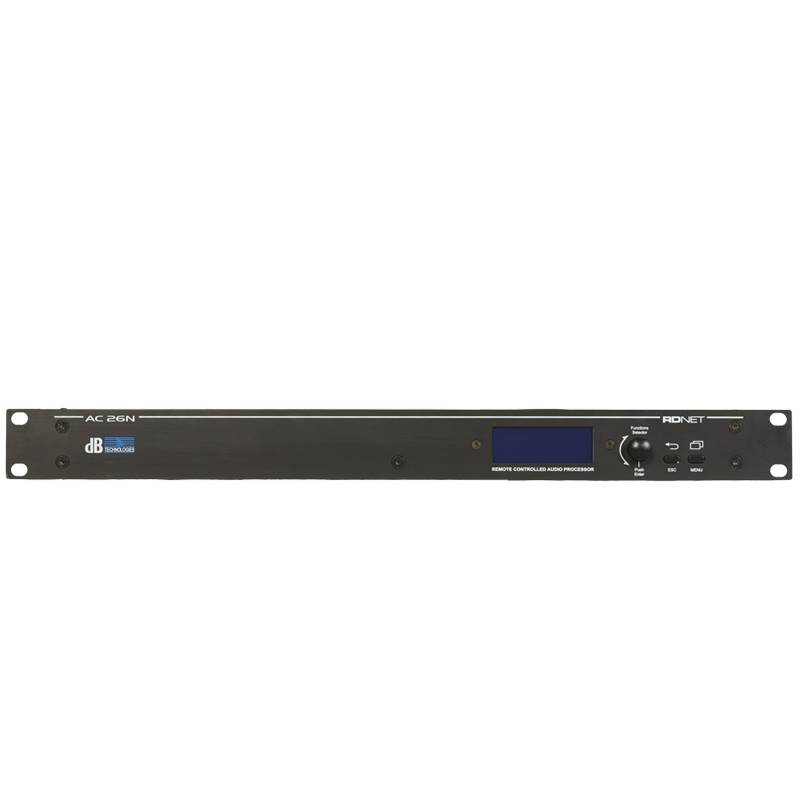

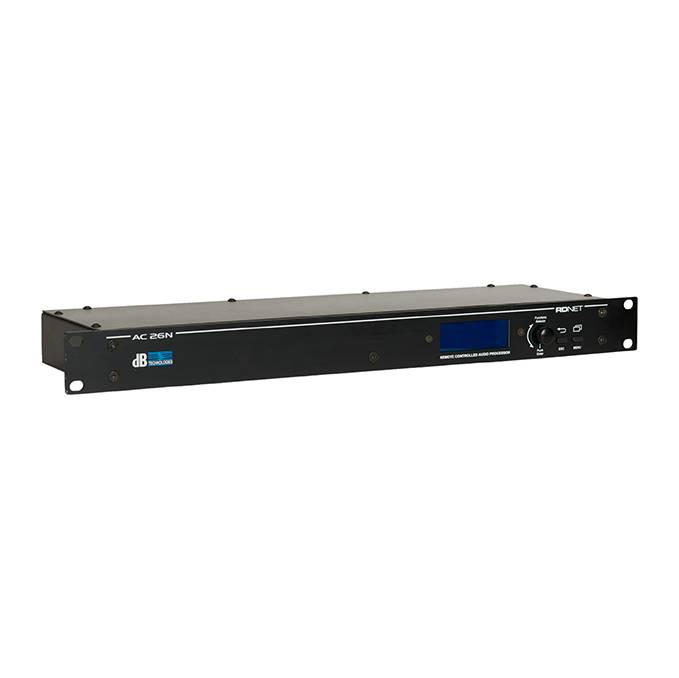

Il nuovo processore audio digitale AC26N permette di controllare ogni tipo di sistema audio professionale sia attivo che passivo.

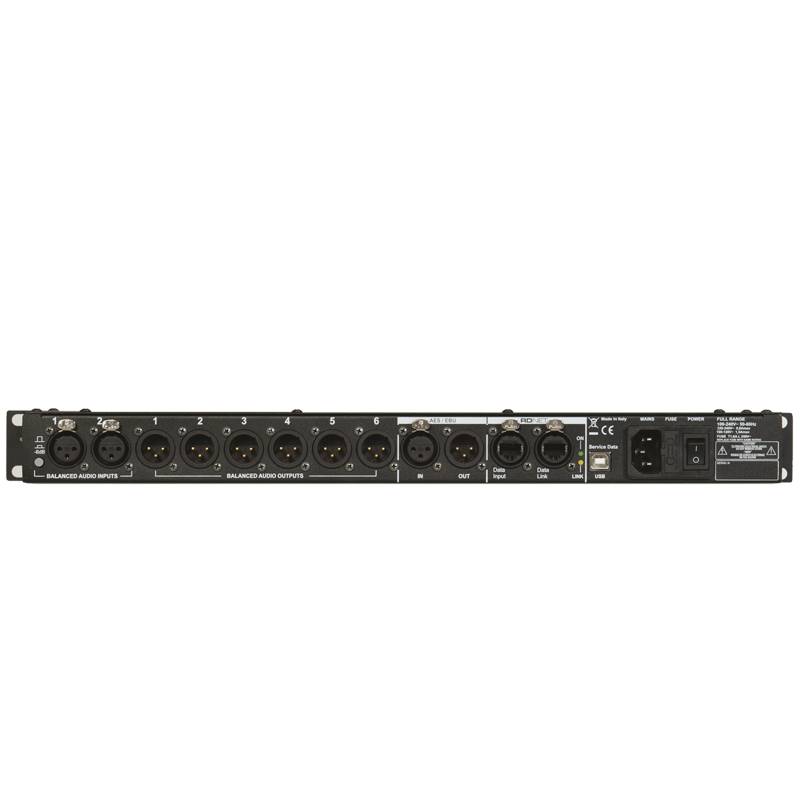

Fornito di due ingressi e sei uscite bilanciate analogiche, due in/out digitali AES/EBU e controllo RDNet questo processore permette un perfetto controllo in modo semplice e completo.
Ogni uscita possiede limiter, equalizzatore parametrico, delay, controllo di fase e livello d’uscita tutto gestito da un potente DSP a 56 Bit unico nel suo genere.
Il controllo del processore può avvenire direttamente dal pannello anteriore o tramite computer collegato a rete RDNet.
Scopri di più
TECNOLOGIE
Aurora NetThis product is fully-compatible with Aurora Net software
RDNetDigital net for bi-directional control of connected devices. The acronym RDNet originates from the development, on behalf of RCF and dBTechnologies, of a universal network which allows adjustments in real time and supervision of all the connected systems, using cables based on ethernet cat 5 wires. With the specific software and the interfaces control 2 and control 8, a complete command of the acoustic system will be possible allowing real time supervision on each electrical component of the various speakers. RDNet allows you to monitor levels, limiters, and temperatures, select system presets, configure setups off-line, Mute units, Group modules and assigning group EQ, delay and phase, test individual components, automatically address system components, tap into LAN and USB interfaces, extend the network via wireless LAN access points.
Codice prodotto: 1051100111
Nome file:
Categoria:
Tipologia:
Peso:
Lingua:
Rilascio:
AC 26N datasheet Rev1.2
Data Sheet
PDF
0,44 MB
English
2018-07-28
CE_AC26N
Certifications
PDF
0,93 MB
Italiano
2016-10-25
Manual_AC26N_Rev2.0
Manual
PDF
5,89 MB
English
2018-07-28
FW_AC26N_v01.04.11.dbu
Firmware
ZIP
0,22 MB
English
2024-02-22
FW_AC26N_v01.04.13.dbu2
Firmware
ZIP
0,23 MB
English
2024-02-22
PresetsInstaller_1.2_osx
Software
ZIP
19,68 MB
English
2024-07-31
PresetsInstaller_1.2_win
Software
ZIP
19,69 MB
English
2024-08-01
RJ45-RJ45-75
Cavi
