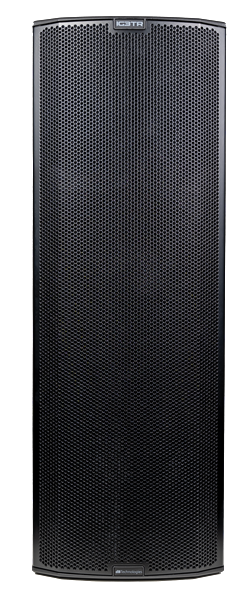

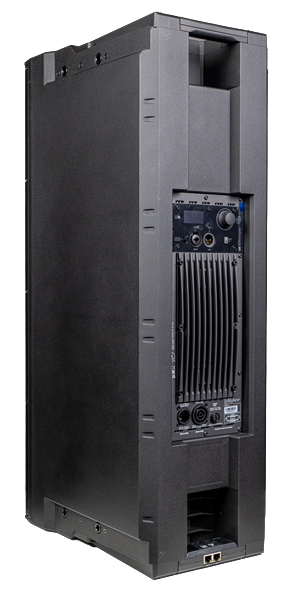

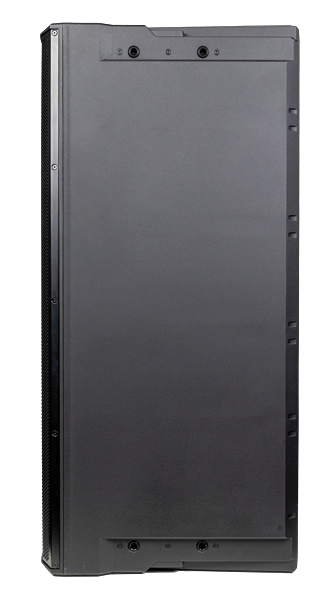

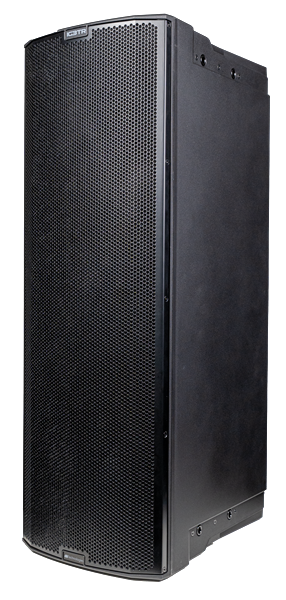

INGENIA IG3TR

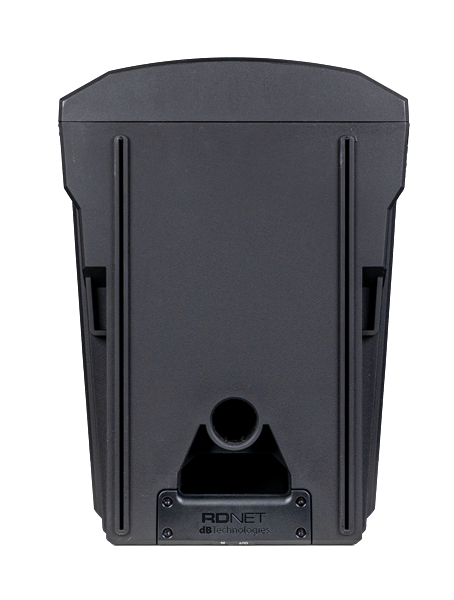

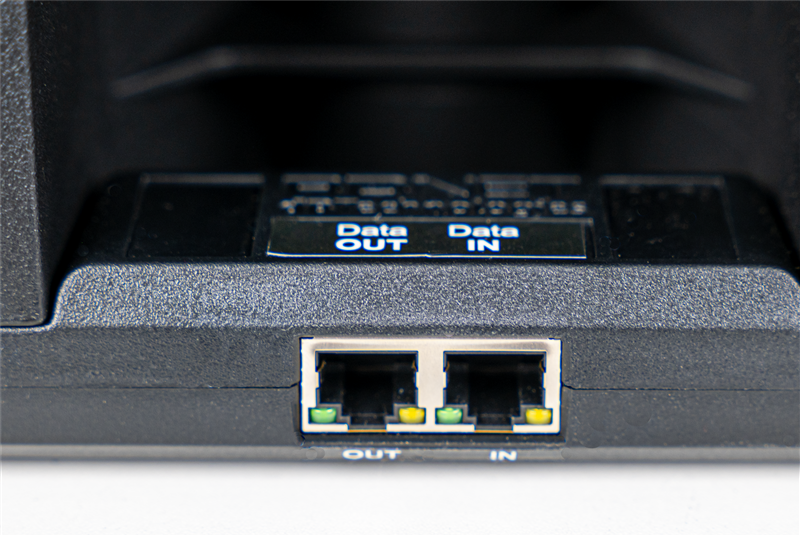

INGENIA IG3TR integra 2 woofer al neodimio da 10" e 1 compression driver da 1.4". In questa nuova versione, la maniglia RDNet-EH è di serie ed è quindi possibile il controllo da remoto tramite RDNet e Aurora Net.

Tutti i modelli della serie sono progettati per lavorare sia singolarmente che in coppia, capovolti l'uno sull'altro.

Grazie alla tecnologia a infrarossi, ogni INGENIA può individuare la presenza di una compagna, e settare automaticamente il sistema per assicurare una corretta copertura e coerenza acustica.

Il design della tromba è orizzontalmente simmetrico e verticalmente asimmetrico: in questo modo, la dispersione orizzontale è ampia e costante, mentre quella verticale è stretta nella parte alta e più amplia nella parte bassa. Grazie a questa caratteristica, quando 2 INGENIA sono accoppiate l'emissione delle alte frequenze si somma senza interferenze. Inoltre, una sofisticata funzione di digital steering processa il segnale in modo da ottimizzare la dispersione senza cambiare l'orientamento del cabinet. In ogni caso, l'intera audience può godere di una perfetta intelligibilità.

Grazie a un rotary encoder e un intuitivo display OLED (che ruota automaticamente quando la cassa viene ruotata per essere accoppiata alla gemella) è possibile gestire controlli quali digital steering, mix, equalizzazioni.

Tutti i modelli della serie possono essere accoppiati in maniera veloce e sicura tramite l'accessorio LP-IG. Anche il flybar DRK-IG si adatta a tutti i modelli e permettere l'appensione di sistemi accoppiati.

Scopri di più

TECNOLOGIE

Asymmetrical HornThe dBTechnologies asymmetrical horn design delivers similar effective coverage for smaller applications. The high-frequency horn is narrower on top to bundle sound and throw it over greater distances. It flares out at the bottom to achieve a wider pattern of throw. This compensates for high frequency loss as sound travels further from the source) and distributes the signal more uniformly across all audience areas.

Aurora NetThis product is fully-compatible with Aurora Net software

Digipro® G3System of digital amplification engineered by dBTechnologies. Based on the previous Digipro projects, completely re-designed, lighter in weight and more efficient, new Heatsink, newest components which maximize the power with a lower consumption.

Linear Phase FIR FiltersA low-latency sound processing featuring Linear Phase FIR filters allows cabinets to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. This is also achieved by making the phase response as linear as possible, avoiding any distortion.

Neodymium TransducersNeodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerful magnetic field once charged. This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favoring its weight and space capacity.

Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.

RDNetDigital net for bi-directional control of connected devices. The acronym RDNet originates from the development, on behalf of RCF and dBTechnologies, of a universal network which allows adjustments in real time and supervision of all the connected systems, using cables based on ethernet cat 5 wires. With the specific software and the interfaces control 2 and control 8, a complete command of the acoustic system will be possible allowing real time supervision on each electrical component of the various speakers. RDNet allows you to monitor levels, limiters, and temperatures, select system presets, configure setups off-line, Mute units, Group modules and assigning group EQ, delay and phase, test individual components, automatically address system components, tap into LAN and USB interfaces, extend the network via wireless LAN access points.

Codice prodotto: 1030103910

Dati tecnici

Speaker Type

2-Way Active Speaker

Dati acustici

Frequency Response [-10dB]

51 - 20.000 Hz

Frequency Response [-6dB]

55- 18.900 Hz

Max SPL

132 dB

HF

1.4"

HF Voice Coil

3''

Directivity (HxV)

110° x 90° (+20°/- 70°)

HF Type

Neodymium compression driver

Horn

Vertical asymmetric

Crossover Frequency

960 Hz

LF

2x10”

LF Voice Coil

2.5"

LF Type

Neodymium

Amplificatore

Amp Technology

Digipro® G3

Amp Class

Class-D

Peak Power

1800 W

RMS Power

900 W

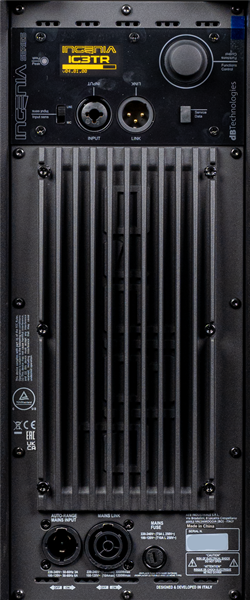

User Interface

OLED display + rotative knob w/switch

Self-rotating display

Yes

Positioning

EPD (Element Position Detection)

Display Mirroring

Yes

Processore

Controller

DSP 56 bit

AD/DA Converter

24bit/48kHz

System Presets

Factory presets + User defined

Limiter

Dual Active Peak, RMS, Thermal

DSP Processing

FIR Linear Phase

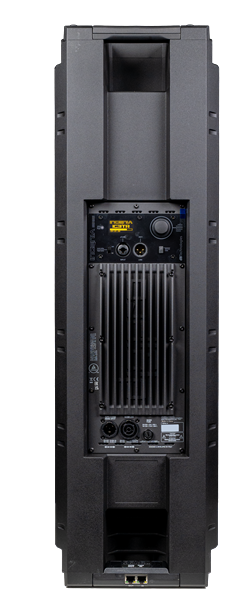

Input Section

Signal Input

1 x XLR/jack combo, 1 x RJ45 Link (RDNet),

1x USB (Data Service)

Signal Out

1x XLR balanced, 1 x RJ45 Link (RDNet)

USB connector

Yes - mini USB

Meccanica

Housing

Polypropylene PP reinforced

Grille

FULL /Invisible screws

Flyable

Yes

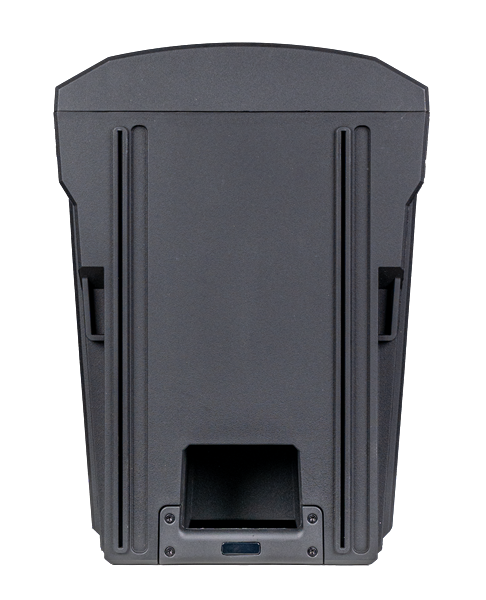

Handles

1x on top / 1x on bottom

Pole Mount

Yes

Width

280 mm (11.02 in)

Height

806 mm (31.73 in)

Depth

393 mm (15.47 in)

Weight

20.8 Kg (45.86 lbs.)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.

Nome file:	Categoria:	Tipologia:	Peso:	Lingua:	Rilascio:
CE_IG3TR	Certifications	PDF	2,60 MB	English	2024-06-13
Manual_IGxTR_Rev1.0	Manual	PDF	9,12 MB	English	2024-10-10
Quick-Start_IG3TR_Rev1.1	Manual	PDF	1,95 MB	English	2024-08-28
UKCA_IG3TR	Certifications	PDF	2,14 MB	English	2024-06-13
FW_IG3TR_v04.03.01.dbu2	Firmware	ZIP	0,53 MB	English	2024-12-20
