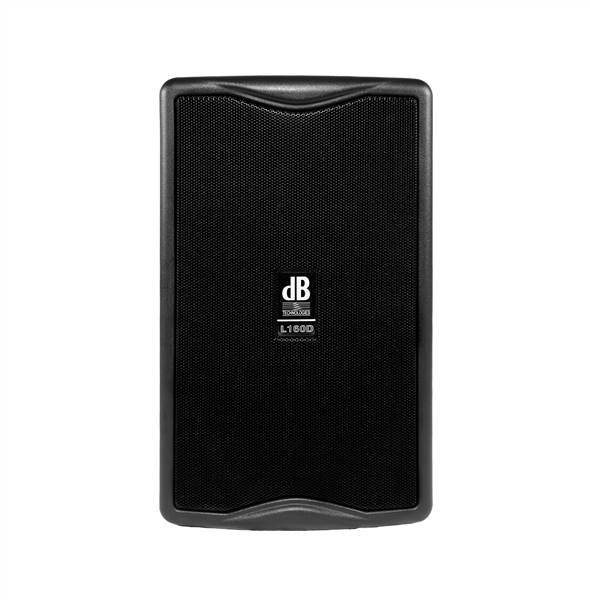

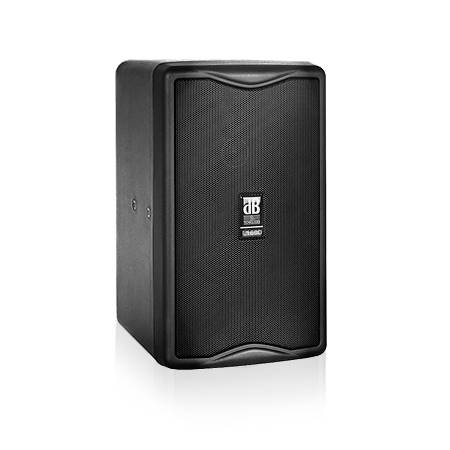

Minibox L 160D è stato progettato per impieghi mobili o fissi.
Monta due altoparlanti a banda larga da 5" con correzione meccanica della fase.
La sua risposta in frequenza lo rende ideale per la riproduzione di programmi musicali e voce.
Provvisto di limiter Soft-Clip per una totale protezione dal sovraccarico, questo diffusore compatto accetta segnali microfonici e a livello linea tramite un connettore combo Jack 1/4"/XLR.
Scopri di più
TECNOLOGIE
Coaxial SpeakerThese coaxial speakers deliver an extraordinary sound quality that defies the compact design of their housings. Engineered for precise directivity and uniform throw patterns, they provide the same satisfying audio experience from every listening position, with far greater resistance to Feedback.
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Codice prodotto: 103020070
Dati tecnici
Speaker Type
2-Way Active Speaker
Dati acustici
Frequency Response [-10dB]
70 - 20.000 Hz
Max SPL
116 dB
HF
1 "
Type HF
Dome Tweeter, coaxial
Directivity
85 x 75 °
LF
2x 5 “
Amplificatore
Amp Technology
digipro®
Amp Class
Class D
Power PRG
160 W
Cooling
Convection
Processore
Controller
DSP 24bit/48kHz
System Presets
8
Limiter
Dual Active Peak, RMS, Thermal

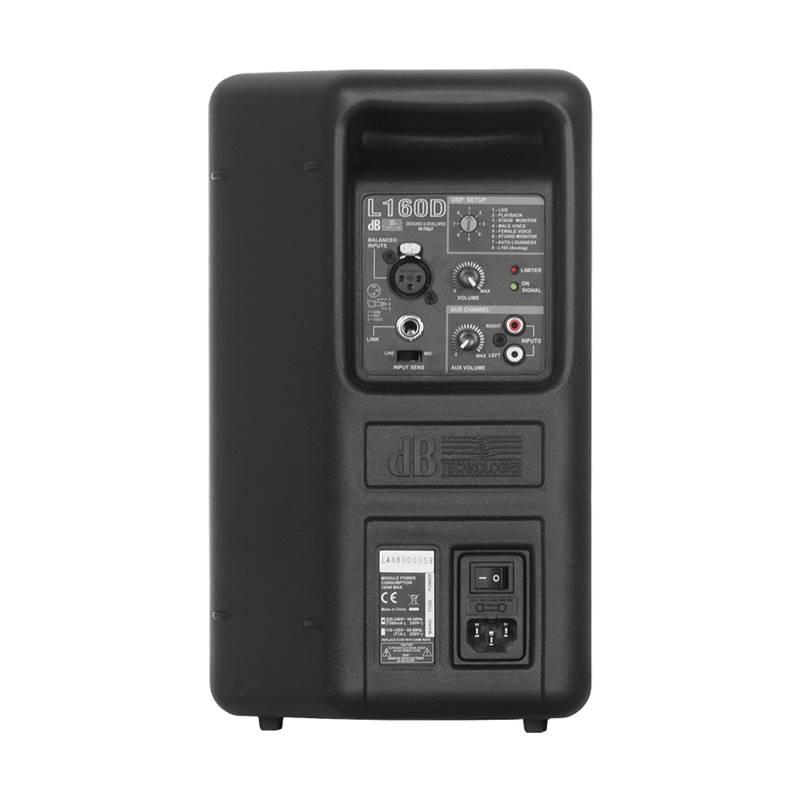

Input Section
Signal Input
1x XLR Line In/Mic
1x 6.3mm phone jack
1x RCA cinch AUX with volume ctrl
Microphone Input
YES
Signal Output
1x 6.3mm phone jack
Power Socket
VDE
Voltage Range
110-120 - 220-240 V
Meccanica
Housing
Polyporpylen PP
Angles Up
Monitor use 60°
Rigging Points
2x M5 on side
2x M5 on bottom for accessories
Accessory
WB03, SN120
Width
200 mm (7.87 in)
Height
335 mm (13.19 in)
Depth
220 mm (8.66 in)
Weight
5.2 kg (11.46 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
