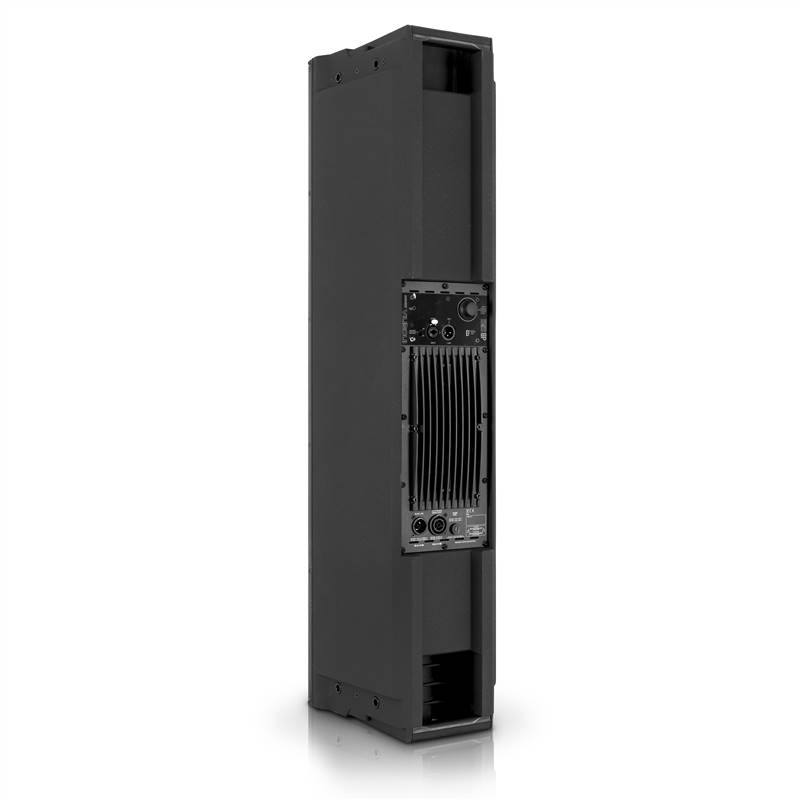

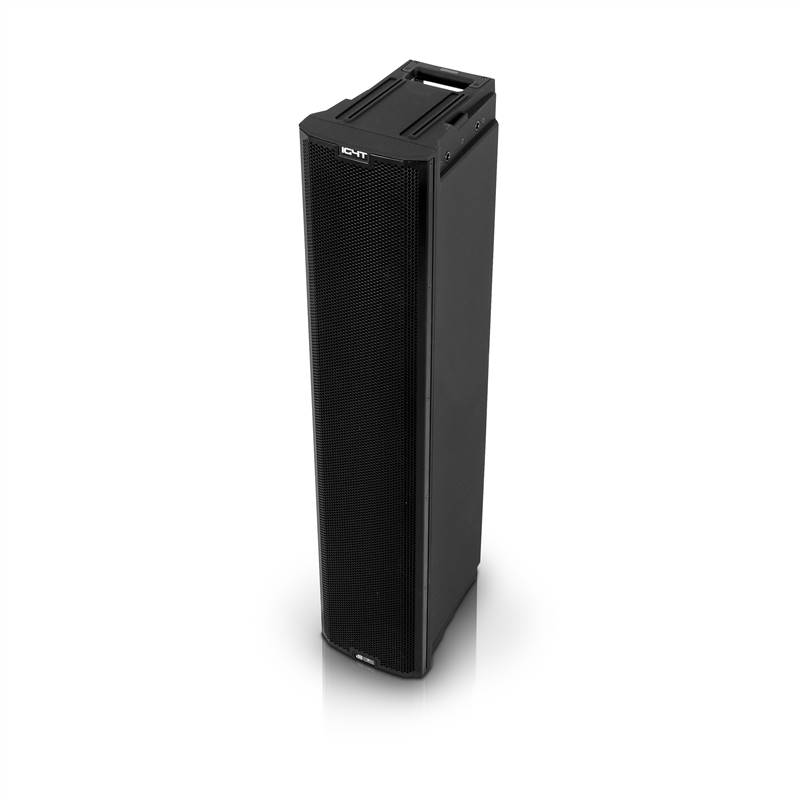

INGENIA IG4T

Column Speakers
Torna alla galleria
Column Speakers
195 mm 956 mm 271 mm

2-WAY ACTIVE COLUMN SPEAKER

900 W RMS CLASS-D DIGIPRO® G3

MAX SPL 132 dB

FREQUENCY RESPONSE [-6dB]: 88 - 19.200 Hz

HF: 1x 1.4”, 3" v.c. NEODYMIUM

LF: 4x 6.5”, 1.5" v.c. NEODYMIUM

Sales & Rental Network

INGENIA IG4 T integra 4 woofer al neodimio da 6.5" e 1 compression driver da 1.4".

Tutti i modelli della serie sono progettati per lavorare sia singolarmente che in coppia, capovolti l'uno sull'altro.

Grazie alla tecnologia a infrarossi, ogni INGENIA può individuare la presenza di una compagna, e settare automaticamente il sistema per assicurare una corretta copertura e coerenza acustica.

Il design della tromba è orizzontalmente simmentrico e verticalmentwe asimmetrico: in questo modo, la dispersione orizzontale è ampia e costante, mentre quella verticale è stretta nella parte alta e più amplia nella parte bassa. Grazie a questa caratteristica, quando 2 INGENIA sono accoppiate l'emissione delle alte frequenze si somma senza interferenze. Inoltre, una sofosticata funzione di digital steering processa il segnale in modo da ottimizzare la dispersione senza cambiare l'orientamento del cabinet. In ogni caso, l'intera audience può godere di una perfetta intelligibilità.

Grazie a un rotary encoder e un intuitivo display OLED (che ruota automaticamente quando la cassa viene ruotata per essere accoppiata alla gemella) è possibile gestire controlli quali digital steering, mix, equalizazioni.

Tutti i modelli della serie possono essere accoppiati in maniera veloce e sicura tramite l'accessorio LP-IG.  Anche il flybar DRK-IG si adatta a tutti i modelli e permettere l'appensione di sistemi accoppiati.

Scopri di più

TECNOLOGIE

Asymmetrical Horn
Asymmetrical HornThe dBTechnologies asymmetrical horn design delivers similar effective coverage for smaller applications. The high-frequency horn is narrower on top to bundle sound and throw it over greater distances. It flares out at the bottom to achieve a wider pattern of throw. This compensates for high frequency loss as sound travels further from the source) and distributes the signal more uniformly across all audience areas.
Digipro® G3
Digipro® G3System of digital amplification engineered by dBTechnologies. Based on the previous Digipro projects, completely re-designed, lighter in weight and more efficient, new Heatsink, newest components which maximize the power with a lower consumption.
Linear Phase FIR Filters
Linear Phase FIR FiltersA low-latency sound processing featuring Linear Phase FIR filters allows cabinets to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. This is also achieved by making the phase response as linear as possible, avoiding any distortion.
Neodymium Transducers
Neodymium TransducersNeodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerful magnetic field once charged. This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favoring its weight and space capacity.
Preset System
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.

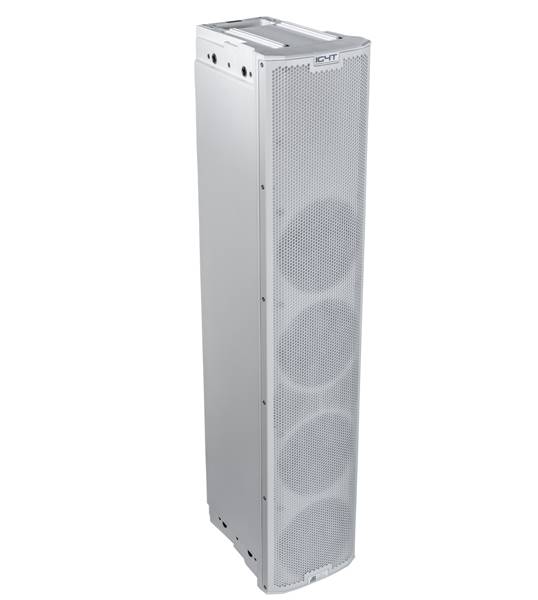

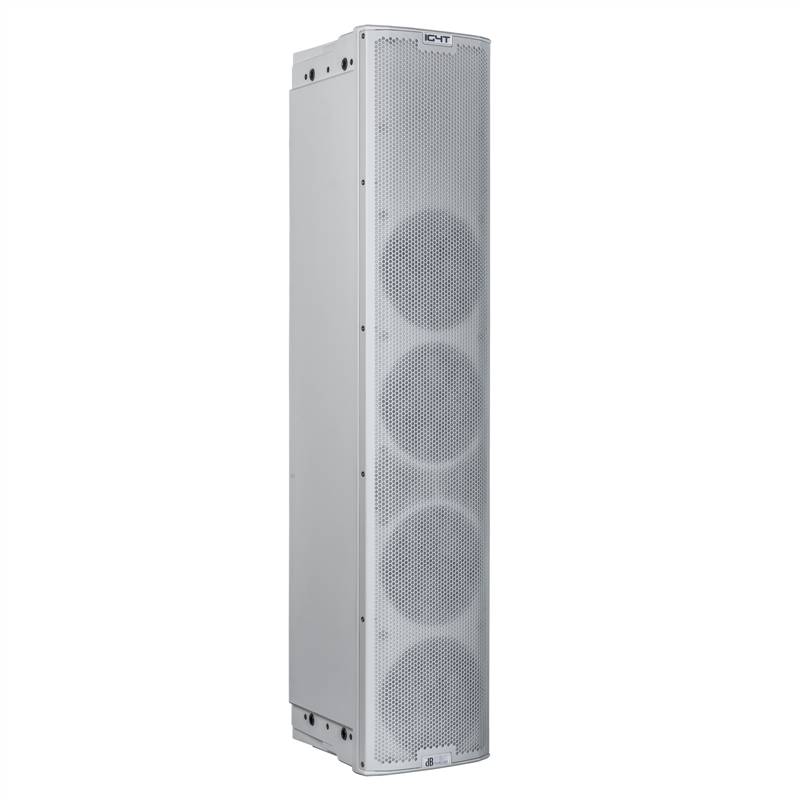

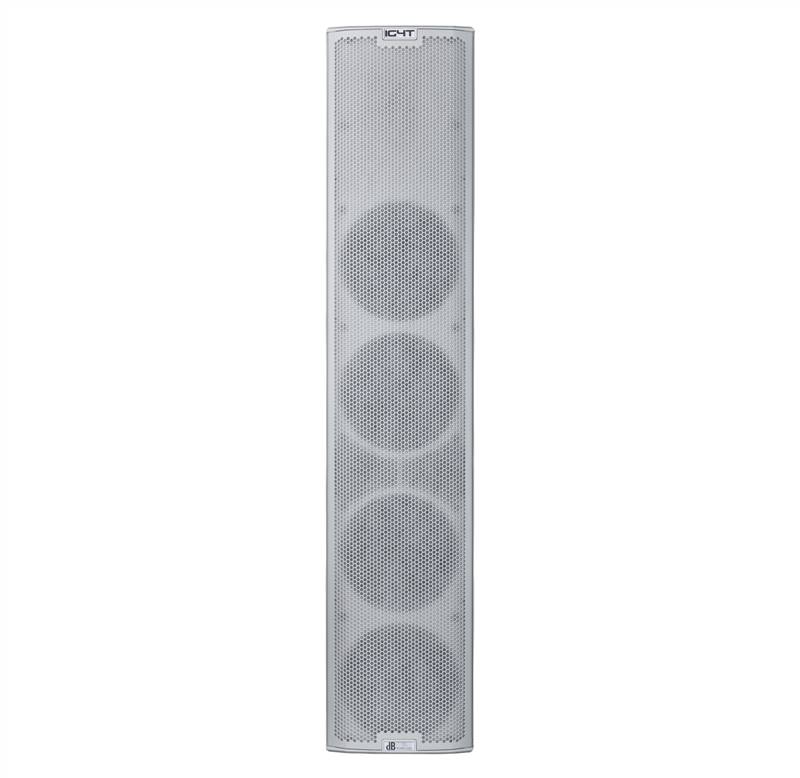

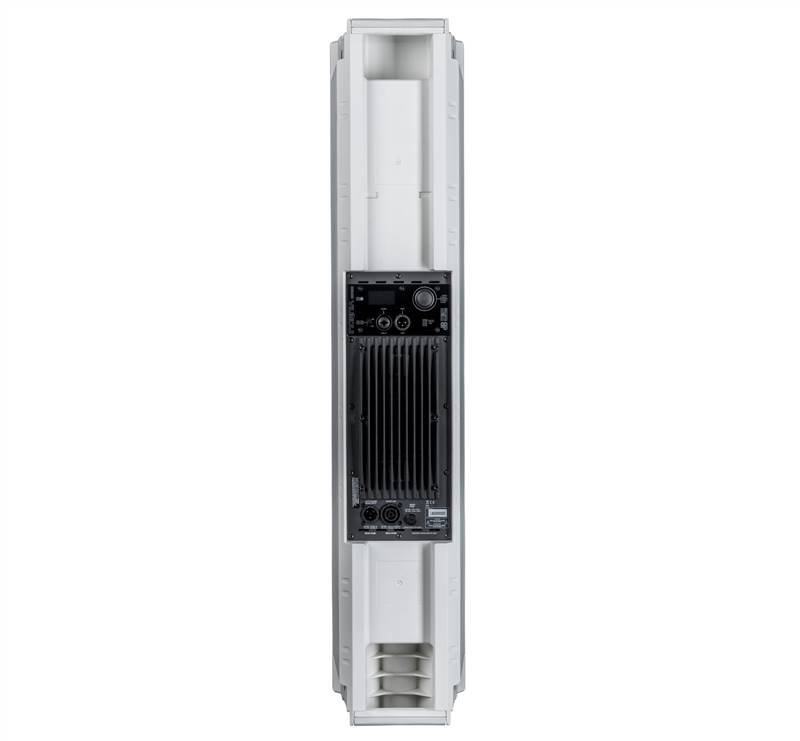

White version available
White version availableThis product is available for purchase in black or white.
Codice prodotto: 1030102170C
Dati tecnici
Speaker Type
2-Way Active Speaker

Dati acustici
Frequency Response [-10dB]
74- 20.000 Hz

Frequency Response [-6dB]
88 - 19.200 Hz

Max SPL
132 dB

HF
1.4"

HF Voice Coil
3"

Directivity (HxV)
110 x 90° (+20°/- 70°)

HF Type
Neodymium compression driver

Horn
Vertical asymmetric

Crossover Frequency
1100 Hz

LF
4x6.5”

LF Voice Coil
1.5"

LF Type
Neodymium

Amplificatore
Amp Technology
Digipro® G3

Amp Class
Class-D

Peak Power
1800 W

RMS Power
900 W

User Interface
OLED display + rotative knob w/switch

Self-rotating display
Yes

Positioning
EPD (Element Position Detection)

Display Mirroring
Yes

Processore
Controller
DSP 56 bit

AD/DA Converter
24bit/48kHz

System Presets
Factory presets + User defined

Limiter
Dual Active Peak, RMS, Thermal

DSP Processing
FIR Linear Phase

Input Section
Signal Input
1 x Combo IN (XLR + Jack 6.3mm)

Signal Out
1 x XLR link OUT

USB connector
Yes - mini USB

Meccanica
Housing
Polypropylene PP reinforced

Grille
FULL /Invisible screws

Flyable
Yes

Handles
1x on top / 1x on bottom

Pole Mount
Yes

Width
195 mm (7.68 in)

Height
956 mm (37.64 in)

Depth
271 mm (10.67 in)

Weight
18.2 Kg (40 lbs.)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Nome file: Categoria: Tipologia: Peso: Lingua: Rilascio:
DWG_IG4T Drawing DWG 2,02 MB English 2016-03-16
Brochure_INGENIA-[older-models] Catalogues PDF 3,64 MB English 2016-09-30
CE_IG4T Certifications PDF 0,78 MB Italiano 2016-05-23
Datasheet_IG4T Data Sheet PDF 0,81 MB English 2016-08-08
Manual_IG4T_Rev.1.2 Manual PDF 4,39 MB English 2016-08-05
UKCA_IG4T Certifications PDF 0,51 MB Italiano 2022-04-11
FW_IG4TR_v04.01.00.dbu2 Firmware ZIP 0,52 MB English 2024-05-16
FW_IG4TR_v04.03.00.dbu2 Firmware ZIP 0,52 MB English 2024-12-10
GLL_IG4T_EF3_V1.1 GLL ZIP 10,35 MB English 2016-09-20
