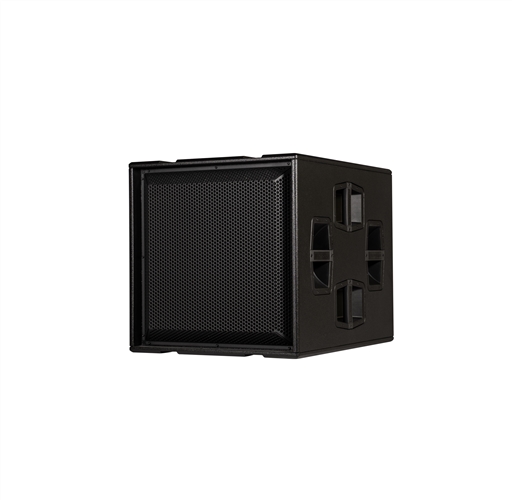

IGS1 è dotato di singolo woofer da 18” collocato in un solido cabinet bass-reflex. L’amplificatore 1600 W RMS Classe D Digipro G4 assicura massima affidabilità e pressione sonora elevata e corposa.
Il sistema è abilitato alla comunicazione via RDNet per un monitoraggio e controllo completo in tempo reale tramite il software Aurora Net (disponibile per Windows e Mac), il quale permette di realizzare configurazioni avanzate fra sistemi IGS1 e IGS2 ed un perfetto matching con i sistemi full range dBTechnologies.
Il design meccanico è realizzato per consentire una perfetta scalabilità fra i modelli subwoofer di serie, mentre l’alloggio M20 per palo standard consente l’abbinamento con il sistema top facile e immediato; 2 pick points consentono l’uso dei fly-bar dedicati ai sistemi di amplificazione dBTechnologies.
Questo robusto cabinet è inoltre dotato di 4 maniglie integrate e di un pannello posteriore progettato per il trasporto facilitato su ruote.
La finitura in poliurea completa le caratteristiche di serie, assicurando durabilità e resistenza.
Scopri di più
TECNOLOGIE
Aurora NetThis product is fully-compatible with Aurora Net software
PFC (Power Factor Corrector)The Power Factor Corrector greatly improves the efficiency of the system. Performances of the amplifier are very stable and consistent, regardless of the quality of the mains. This also grants a worldwide compatibility of the power supply - from 90V to 265V 50/60Hz - and limits power consumption.
RDNetDigital net for bi-directional control of connected devices. The acronym RDNet originates from the development, on behalf of RCF and dBTechnologies, of a universal network which allows adjustments in real time and supervision of all the connected systems, using cables based on ethernet cat 5 wires. With the specific software and the interfaces control 2 and control 8, a complete command of the acoustic system will be possible allowing real time supervision on each electrical component of the various speakers. RDNet allows you to monitor levels, limiters, and temperatures, select system presets, configure setups off-line, Mute units, Group modules and assigning group EQ, delay and phase, test individual components, automatically address system components, tap into LAN and USB interfaces, extend the network via wireless LAN access points.
Codice prodotto: 1030104080
Dati tecnici
Speaker Type
Active Subwoofer
Dati acustici
Frequency Response [-10dB]
36Hz to Xover
Max SPL (1 m)
136 dB
LF
18"
LF Voice Coil
4"
Amplificatore
Amp Class
Class D with PFC
RMS Power
1600 W
Processore
Controller
32bit processing
AD/DA Converter
24bit 96kHz
Limiter
Peak, Thermal, RMS
Crossover Frequency
60-65-70-75-80-90-100-110-120-400 [Hz]
Controls
FunctionControl (rotary)
Input Section
Signal Input/Output
1x XLR In/Out
1x PowerCon True In/Out
2x Ethercon In/Out
Meccanica
Housing
Plywood cabinet with Polyurea finish
Handles
4x side
Pole Mount
1x M20 on top
Rigging Points
2xPick Points on top to fix DRK 10/20 rigging frames
Width
578 mm (22.76 in)
Height
580 mm (22.83 in)
Depth
720 mm (28.35 in)
Weight
45.6 Kg (100 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Nome file:
Categoria:
Tipologia:
Peso:
Lingua:
Rilascio:
Manual_IGS1-IGS2_Rev1.0
Manual
PDF
20,25 MB
English
2024-11-28
FirmwareInstaller_2.5_Osx.app
Firmware
ZIP
43,75 MB
English
2025-05-27
FirmwareInstaller_2.5_Win.exe
Firmware
ZIP
42,84 MB
English
2025-05-27
