LVX 12

Point Sources
Torna alla galleria
Point Sources
617 mm 360 mm 359 mm

2-WAY ACTIVE SPEAKER

800 W PRG CLASS-D DIGIPRO® G2

MAX SPL 127 dB

FREQUENCY RESPONSE [-6dB]: 62 - 19.000 Hz

HF: 1x 1”, 1" v.c.

LF: 1x 10”, 2" v.c.

WEIGHT: 17 kg (37.5 lbs)

Sales & Rental Network

Il voicing di questi diffusori è molto lineare e progettato per qualsiasi contenuto audio come parlato, sottofondi, musica dal vivo e contenuti multimediali, rispettando le rispettive caratteristiche senza problemi e con un elevato livello di prestazione. LVX 8 è dotato di un woofer da 8” e un driver a compressione da 1” su una tromba 90x70° ruotabile. Quest'ultima caratteristica è particolarmente apprezzata anche in caso di utilizzo come stage monitor, grazie all'angolo posteriore di 40°.

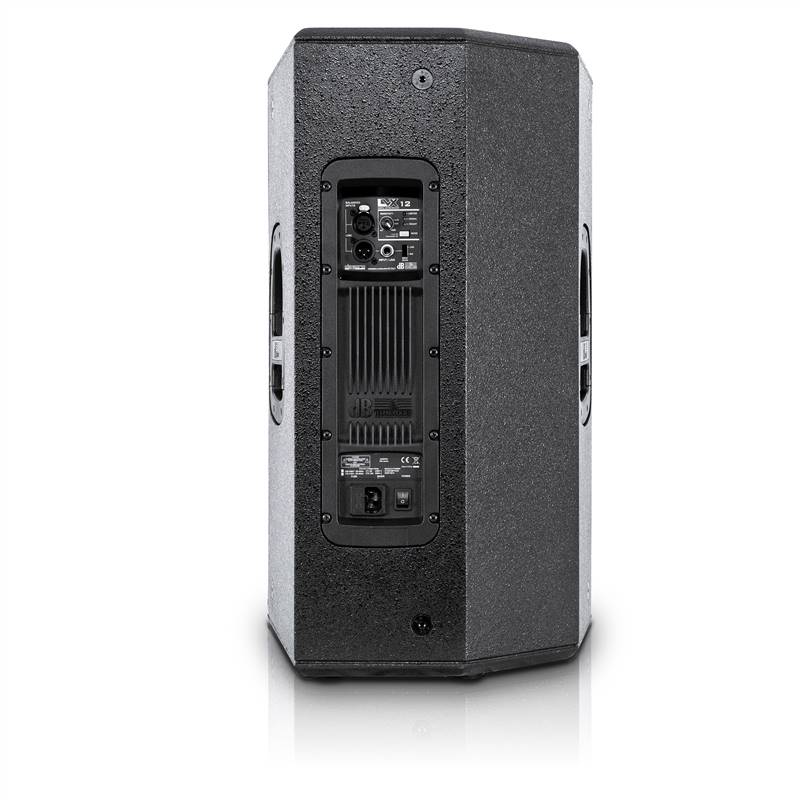

L' amplificatore digitale DIGIPRO® G2 è totalmente silenzioso grazie alla bassa dissipazione termica che non necessita di ventole di raffreddamento. Il DSP controlla il crossover, la risposta in frequenza, il limiter di picco-RMS-termico attivo , l'allineamento tra i trasduttori e 2 diverse equalizzazioni preimpostate.

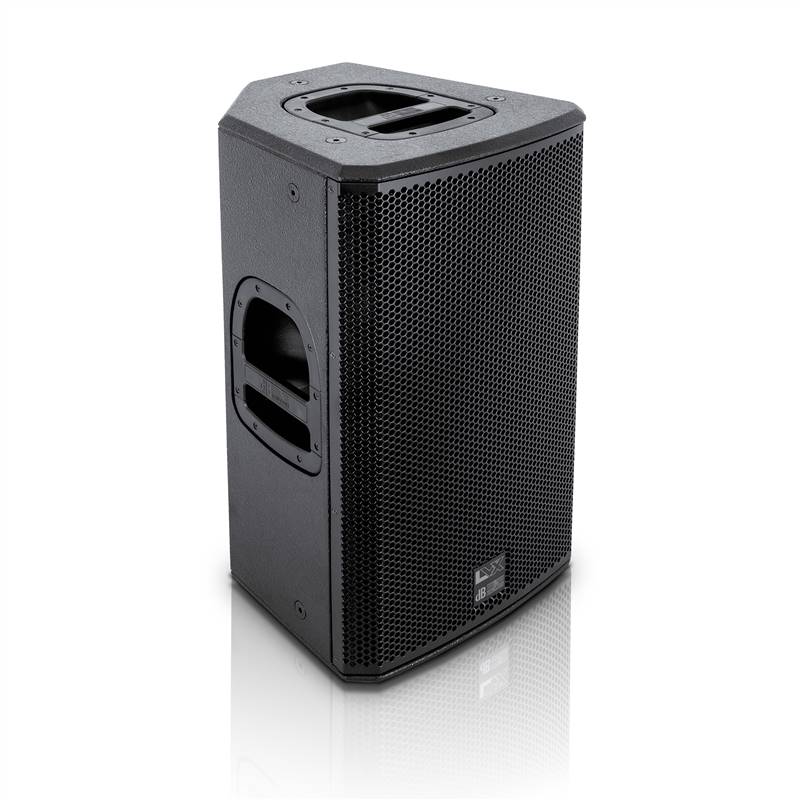

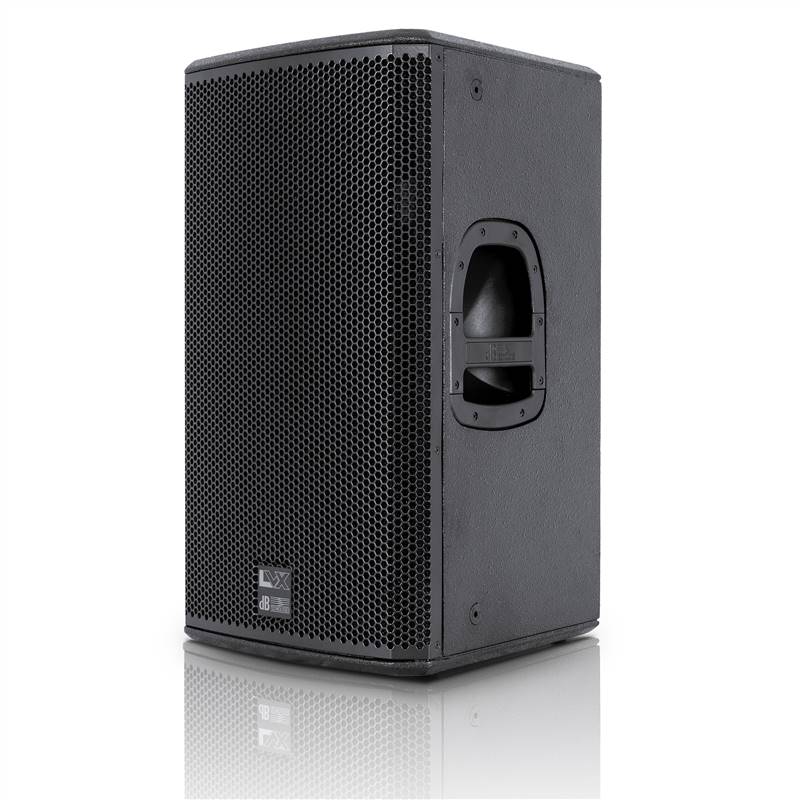

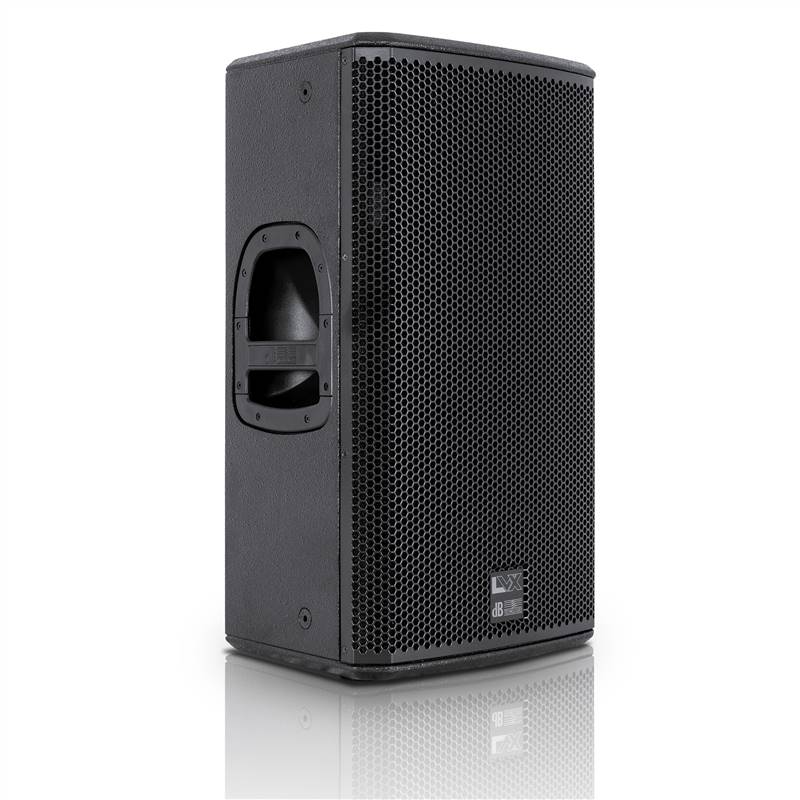

Il modello LVX 12 è fornito di una singola maniglia sul top e 2 maniglie ai lati, 10 punti di fissaggio M8 per l'installazione e un foro da 36mm di diametro per l'utilizzo su palo o treppiede.

Sono disponibili staffe a muro sia per l'installazione in orizzontale che in verticale, il primo con regolazione pan-tilt e sistema di bloccaggio, l'altro con pins a rilascio rapido, ideale in tutte le situazioni in cui è necessario rimuovere frequentemente il diffusore senza perdere l'esatto posizionamento.

Scopri di più

TECNOLOGIE

Multifunctional Housing

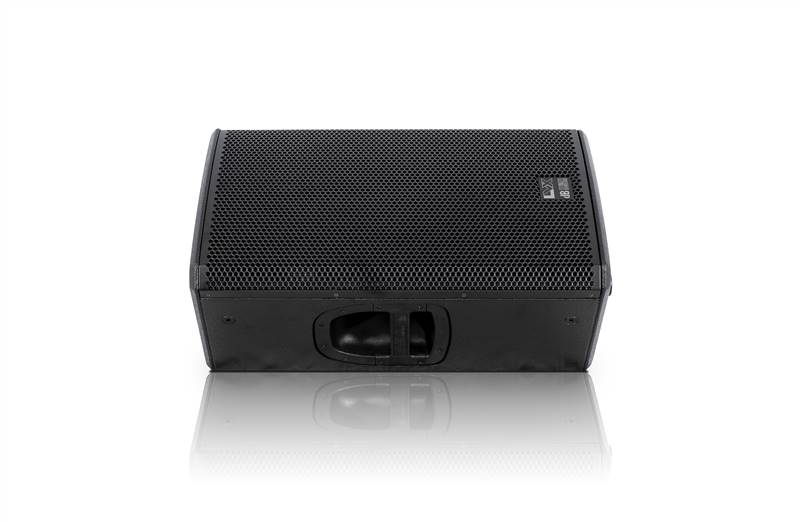

Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset System
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Rotatable Horn
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
SMPS
SMPSAn SMPS is an electronic power supply that uses high-frequency switching and control circuits to convert electrical power efficiently. It transforms input voltage (AC or DC) to a regulated output voltage with minimal energy loss. Commonly used for its high efficiency, small size, and lightweight design.
Codice prodotto: 1030102210C
Dati tecnici
Speaker Type
2-Way Active Speaker

Dati acustici
Frequency Response [-10dB]
55 - 20.000 Hz

Frequency Response [-6dB]
62 - 19.000 Hz

Max SPL
127 dB

HF
1"

Directivity
90 x 40°

Horn
Rotatable CD Horn

LF
12"

Amplificatore
Amp Technology
Digipro® G2

Amp Class
Class-D

Peak Power
1600 W

PRG Power
800 W

Processore
Controller
DSP 24bit/48kHz

System Presets
Flat, Processed

Limiter
Dual Active Peak, RMS, Thermal

Crossover Frequency LF-HF
1800 Hz

Slope LF-HF
24 dB/Octave

Meccanica
Housing
Multiplex

Angles Up
Monitor use 45°

Handles
3 (1x top side, 1x side)

Rigging points
12 x M10

Pole Mount
D36 mm

Width
360 mm (14.17 in)

Height
610 mm (24 in)

Depth
360 mm (14.17 in)

Weight
17 kg (37.5 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Nome file: Categoria: Tipologia: Peso: Lingua: Rilascio:
DWG_LVX-12 Drawing DWG 5.88 MB English 0001-01-01
CE_LVX-12 Certifications PDF 0.87 MB Italiano 0001-01-01
Datasheet_LVX-12 Data Sheet PDF 0.81 MB English 0001-01-01
Manual_LVX_Rev2.1 Manual PDF 14.85 MB English 2015-02-10
GLL_LVX-12_v2.gll GLL ZIP 18.24 MB English 2016-10-10
