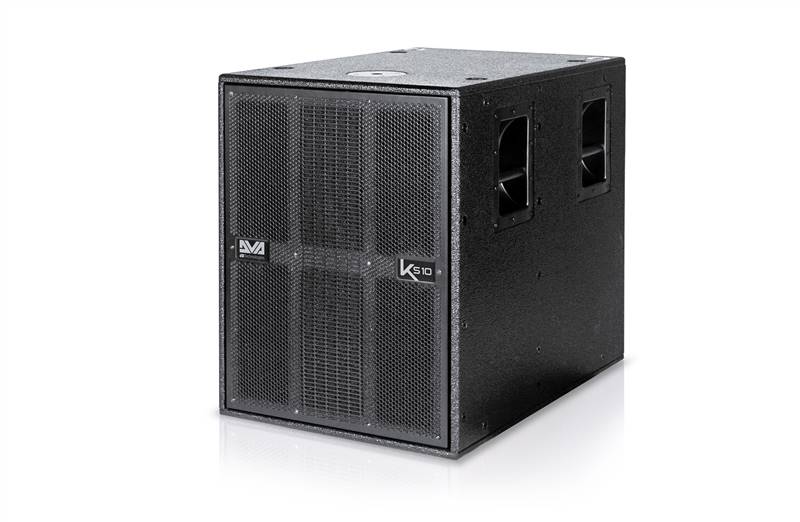

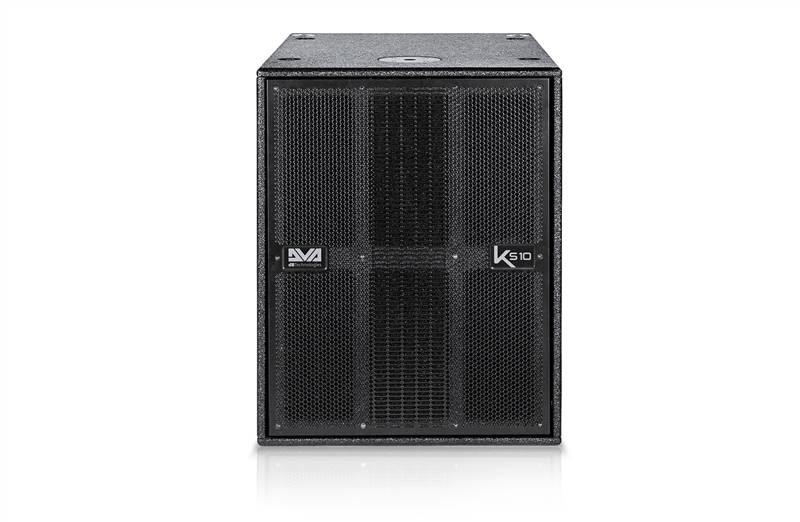

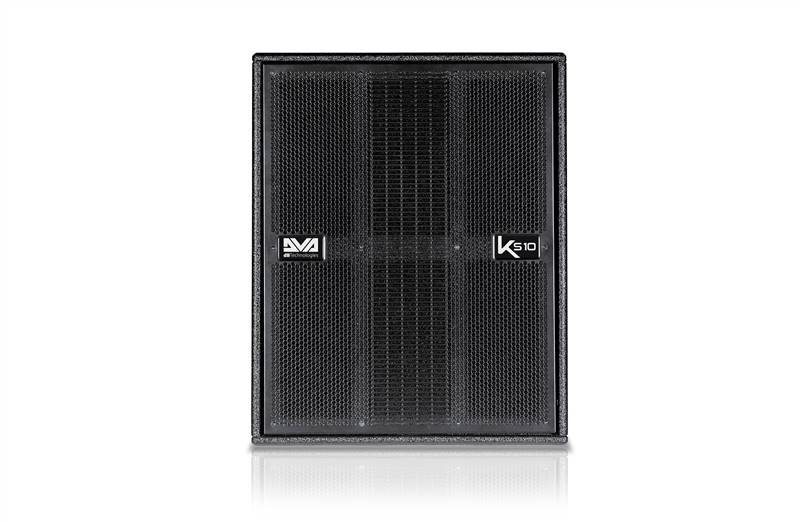

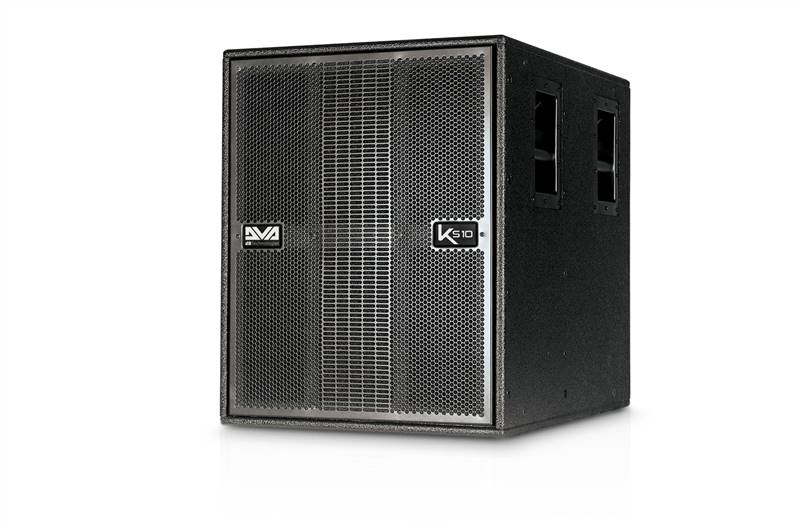

DVA KS10 è un subwoofer attivo semi caricato a tromba, equipaggiato con woofer da 18" e amplificato da modulo amplificatore Digipro G3 in grado di raggiungere 2000W e restituendo una pressione sonora fino a 134 dB.
KS10 può essere utilizzato come sistema compatto in situazioni live, in combinazione con il line array DVA K5 su palo o in configurazione stacked. Il sistema può essere anche utilizzato in appensione grazie agli accessori opzionali.
Un encoder dedicato permette di controllare il delay con step da 0,5 ms fino ad un massimo di 4,5 ms. Il sistema è inoltre dotato di uno switch per l'inversione di fase e la modifica LPF da 90 a 120Hz.
Scopri di più
TECNOLOGIE
Digipro® G3System of digital amplification engineered by dBTechnologies. Based on the previous Digipro projects, completely re-designed, lighter in weight and more efficient, new Heatsink, newest components which maximize the power with a lower consumption.
Codice prodotto: 1030102400C
Dati tecnici
Speaker Type
Active Semi-horn loaded Flyable Subwoofer
Dati acustici
Frequency Response [- 10 dB]
41 Hz - 120 Hz
Max SPL
134 dB
Directivity
Omnidirectional
LF
18 "
Voice Coil LF
4 "
Amplificatore
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power
900 W
Peak Power
1800 W
Cooling
Convection
Power Supply
900 W SMPS with auto range PSU
Processore
Controller
DSP 56 Bit
AD/DA COnverter
24 Bit / 48 KHz
Limiter
Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency LF-HF
90, 120 Hz (selectable)
Slope LF-HF
24 dB/Octave

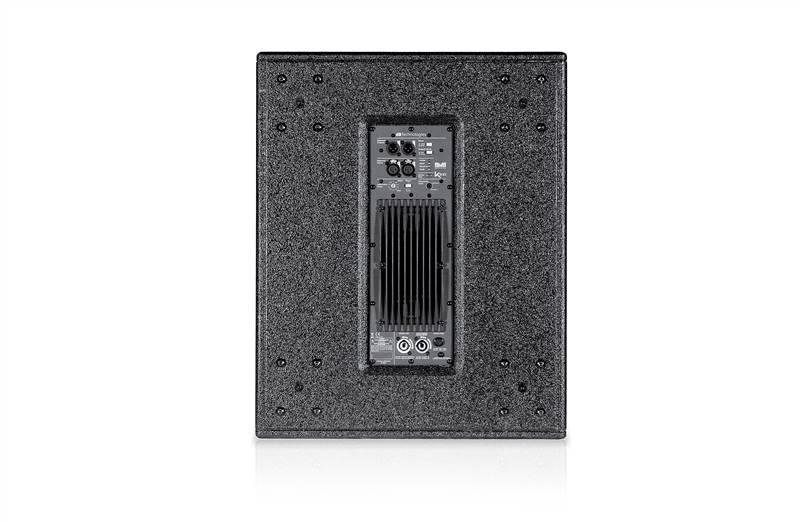

Input Section
Input Section
2X XLR Balanced
Output Section
2x XLR Balanced
Power Sockets
1 x Powercon In +
1 x Powercon Out
Controls
1 x Input Sensitivity Rotary Switch
1 x DSP Rotary (up to 4.5 ms on-board)
1 x Polarity Inversion Switch (0°-180°)
1 x X-Over Frequency Switch (90 Hz, 120Hz)
1 x Output Mode Switch (Link - X-Over)
Meccanica
Housing
Multiplex plywood

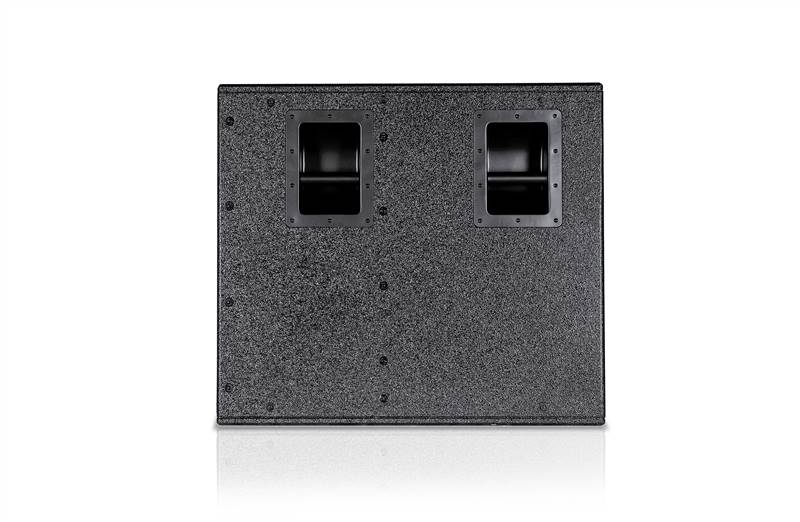

Handles
2x Side
Pole Mount
1x M20 on top
Rigging Points
2xPick Points on top to fix DRK 10/20 rigging frames
Width
515 mm (20.27 in)
Height
640 mm (25.19 in)
Depth
720 mm (28.34 in)
Weight
43.4 kg (95.69 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
