DVA M2P

Line Arrays
Line Arrays

Il DVA M2P è dotato di 2 woofer da 6,5” al neodimio la cui disposizione ed efficienza sono estremamente ottimizzati grazie ad uno speciale rifasatore fase. Questa tecnologia migliora sensibilmente l'efficienza nella parte intermedia dello spettro audio e, soprattutto, rende la copertura orizzontale molto omogenea e costante. I due driver da 1”, accuratamente modificati per l’accoppiamento con le esclusive guide d’onda in array verticale del DVA M2P, riproducono un suono chiaro e cristallino alle alte frequenze ed offrono al pubblico la stessa intelligibilità dei sistemi line array della serie DVA. E’ possibile modificare la risposta in frequenza dell’estremità superiore (+ 3dB) attraverso un selettore posto sul pannello posteriore, al fine compensare l'attenuazione sulle alte frequenze quando si utilizza il sistema per lunghe gittate.

Scopri di più

TECNOLOGIE

Neodymium Transducers
Neodymium TransducersNeodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerful magnetic field once charged. This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favoring its weight and space capacity.
Dati tecnici
Speaker Type
2-Way Passive Line Array Module

Dati acustici
Nominal Power Rating
150W / RMS

Peak Power Rating
300W

Impedance
16 Ohms

Frequency Response [-6dB]
78 - 19.000 Hz

Frequency Response [-10dB]
68 - 20.000 Hz

Max SPL
126 dB per unit

HF
2x1"

Type HF
Neodymium

Voice Coil HF
1"

LF
2x6.5"

Type LF
Neodymium

Voice Coil LF
1.5"

Directivity
90x15° Single Unit

Input Section
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)

Meccanica
Housing
Polypropylen PP

Handles
2x back side

Fittings

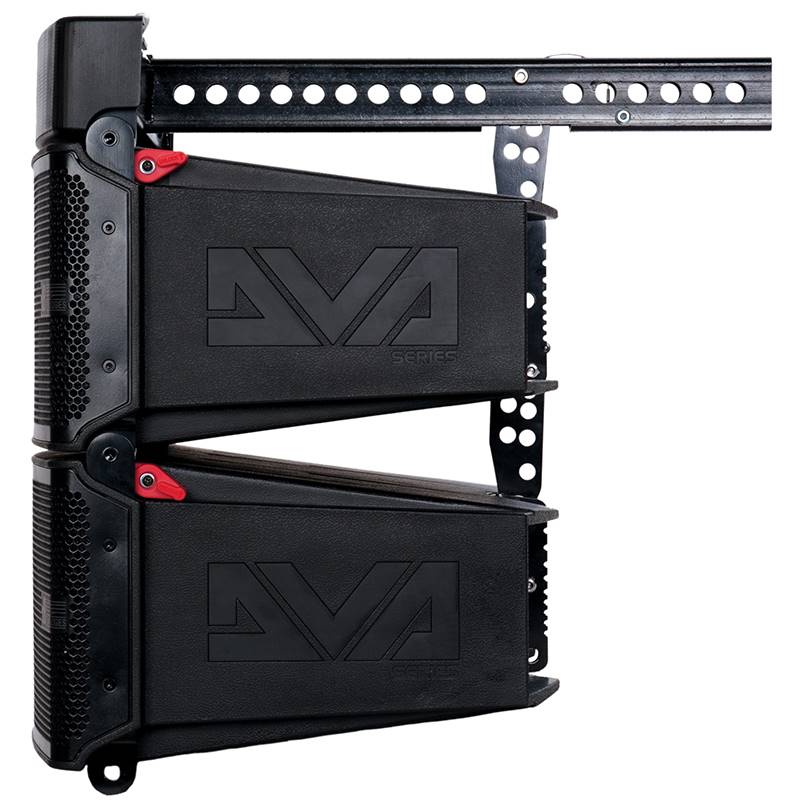

Integrated hardware with fast lock mechanics

Splay Angles
0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°

Width
460 mm (18.1 in)

Height
190 mm (7.5 in)

Depth
345 mm (13.6 in)

Weight
7.1 kg (15.7 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Nome file: Categoria: Tipologia: Peso: Lingua: Rilascio:
CE-M2P Certifications PDF 0,79 MB English 2016-10-25
Manuale DVA M2P Manual PDF 3,08 MB English 2016-03-16
