Ideata specialmete per un utilizzo come speaker fullrange, la Flexsys F15 monta un woofer 15“ ed un compression driver 1“ progettati in dBTechnologies. L‘amplificatore utilizzato è un modulo digipro® da 800Watt.

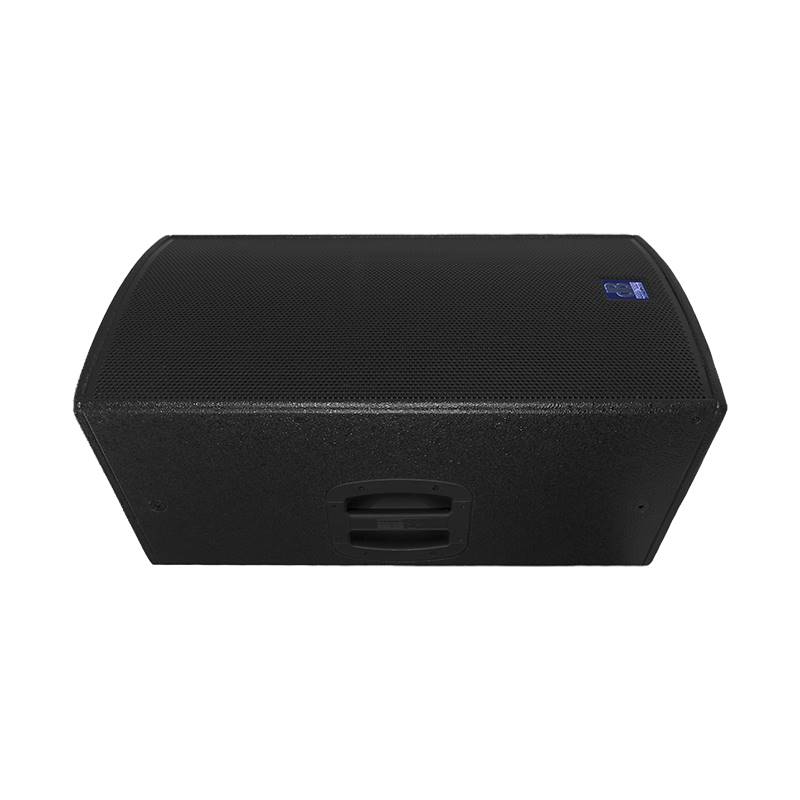

L‘estesa risposta in frequenza ed una corposa gamma bassa rendono la F15 uno speaker completo, che non necessita di subwoofer; inoltre, la tromba ruotabile ed il box multifunzionale ne permettono l‘uso anche come monitor, per il batterista o per il tastierista che pretendono dinamiche e pressioni sonore anche sulla gamma bassa.

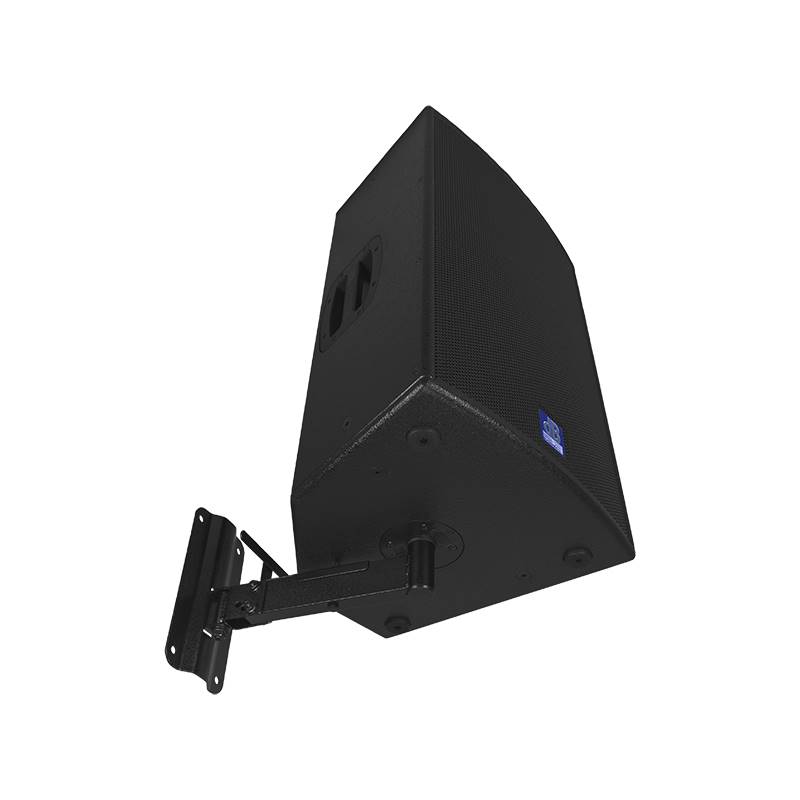

La presenza di diversi punti di fissaggio, rende il diffusore F15 ideale anche per installazioni fisse.
Studiato per ottenere un suono completo in tutte le frequenze gode di una ottima pressione nelle basse.
Indicato per DJ e musica elettronica grazie all’elevata risposta in frequenza ed alla grande performance acustica.
Scopri di più
TECNOLOGIE
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
Dati tecnici
Speaker Type
2-Way Active Speaker
Dati acustici
Frequency Response [-10dB]
55 - 20.000 Hz
Frequency Response [+/- 3dB]
60 - 19.000 Hz
Max SPL
128 dB
HF
1 "
Type HF
Compression driver
Directivity
90 x 40°
Horn
CD Horn
Rotatable Horn
YES
LF
15"
Amplificatore
Amp Technology
Digipro®
Amp Class
Class D
Power PRG
800 W
Peak Power
1600 W
Processore
Controller
DSP 24bit/48kHz
System Presets
Flat, Processed
Limiter
Dual Active
Peak, RMS, Thermal
Crossover Frequency LF-HF
1800 Hz
Slope LF-HF
24 dB/Octave
Meccanica
Housing
Multiplex
Angles Up
Monitor use 45 °
Width
430 mm (16.9 in)
Height
680 mm (26.7 in)
Depth
430 mm (16.9 in)
Weight
20 kg (44.09 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
