Line Arrays

2-WAY ACTIVE LINE ARRAY MODULE (MASTER+SLAVE)

400 W RMS DIGIPRO G3 AMP TECHNOLOGY

126 dB MAX SPL

USABLE BANDWIDTH [- 6 dB]: 78 - 19.000 Hz

HF: 2x 1", 1” v.c. - NEODYMIUM

LF: 2x 6.5", 1.5” v.c. - NEODYMIUM

Sales & Rental Network

DVA M2M+DVA M2S

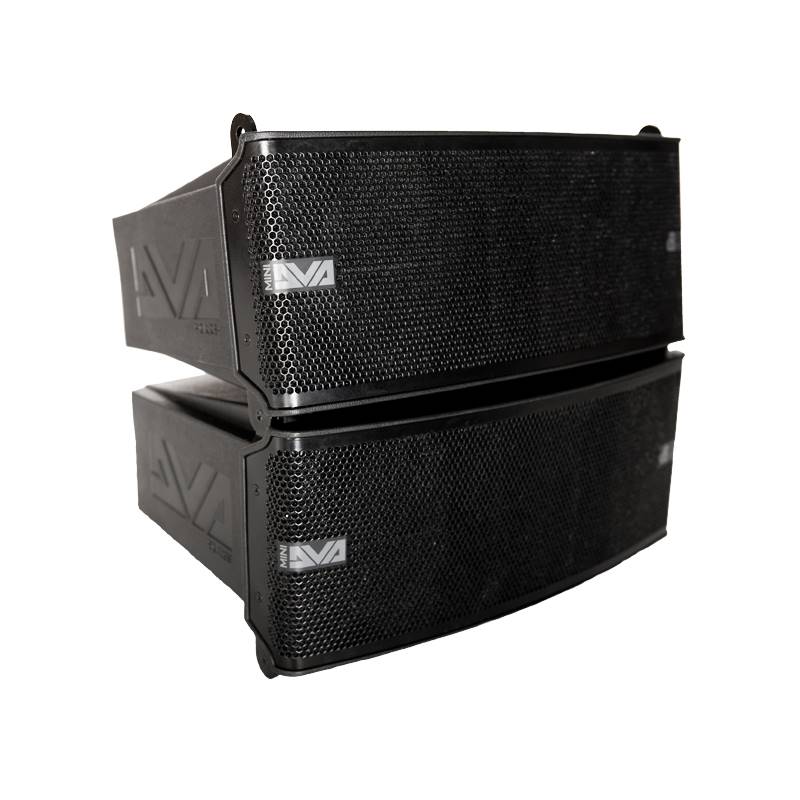

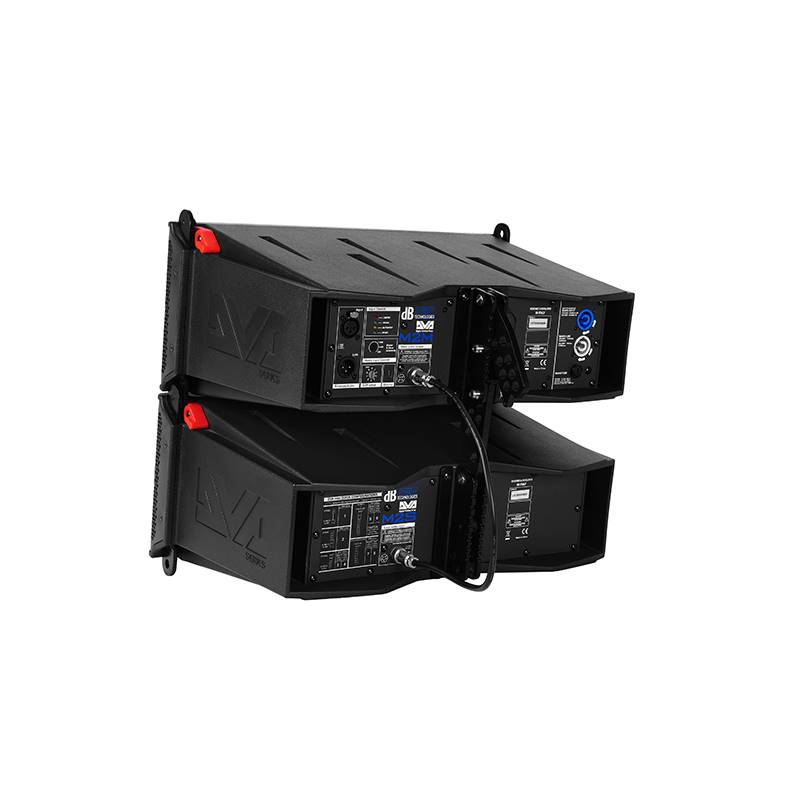

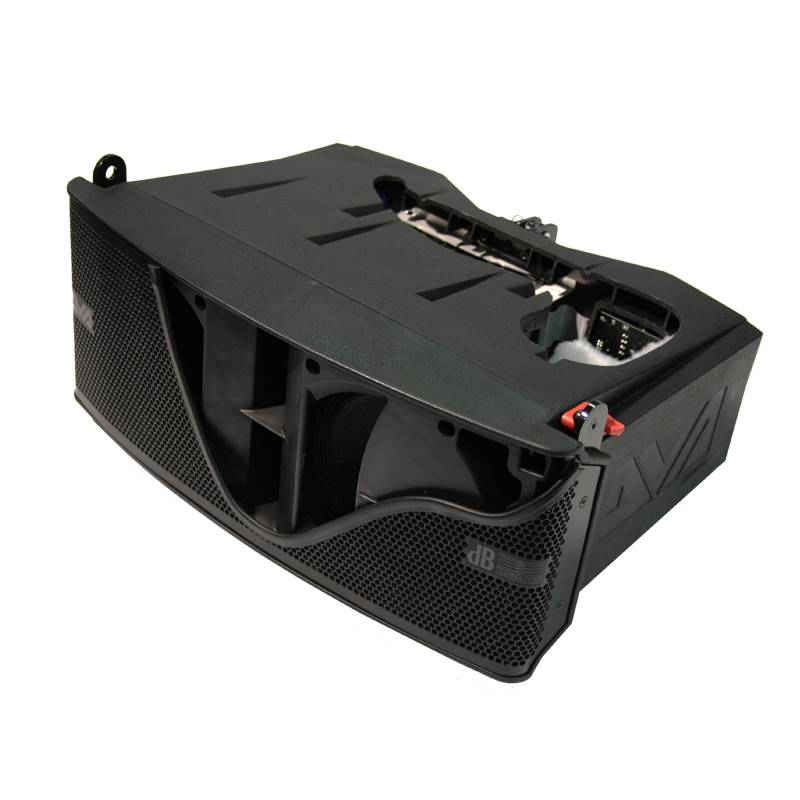

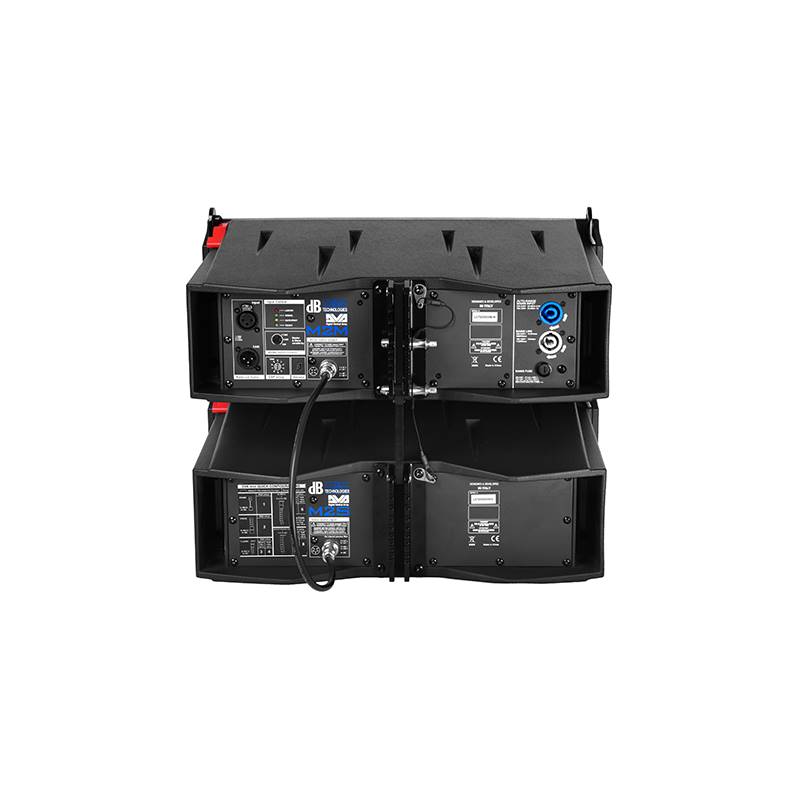

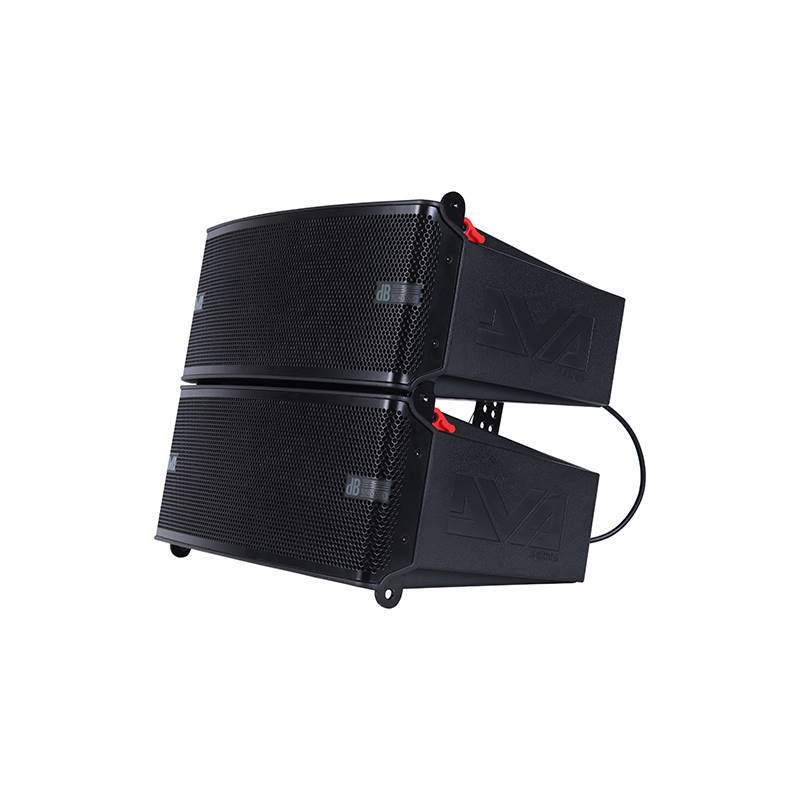

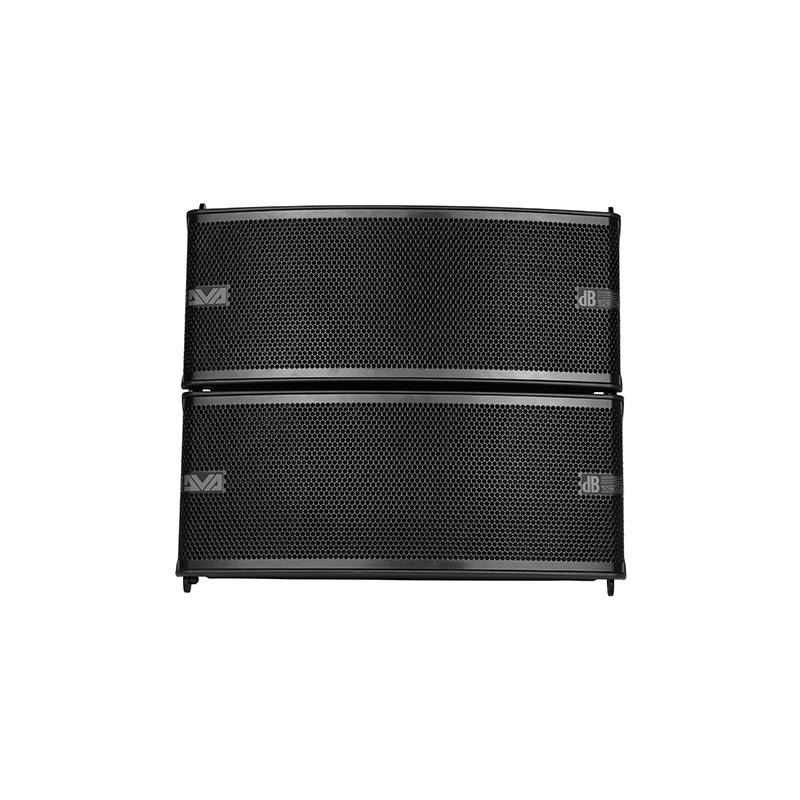

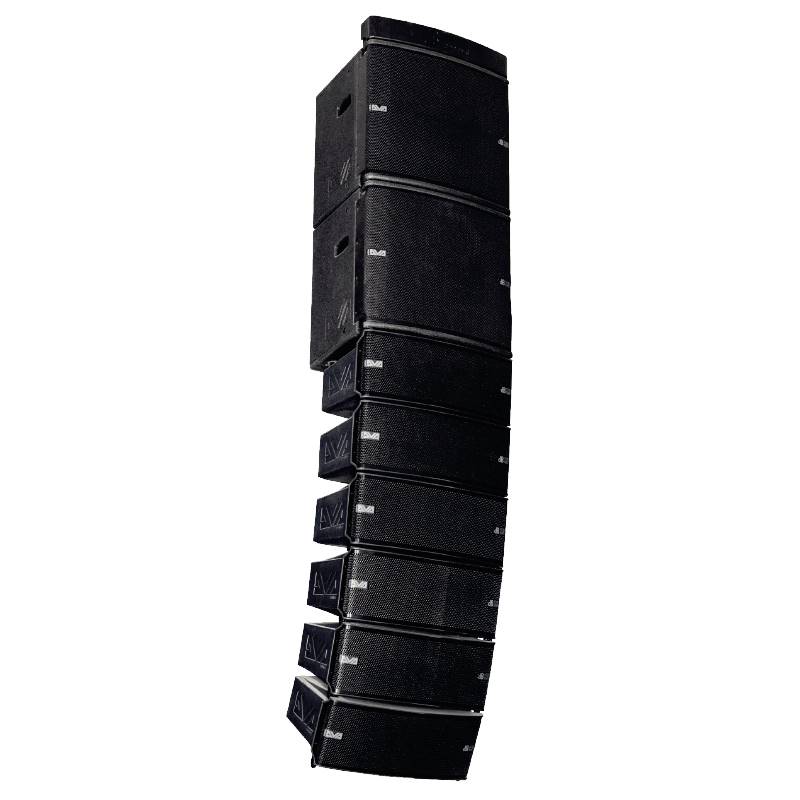

Each unit of DVA MINI system is comprised of two line array modules, each with two 6.5” neodymium woofers and two 1” high-frequency compression drivers. The M2M module is the master module that contains the 400-watt Digipro G3 amplifier that power both the M2M and M2S slave module. The system achieves 126 dB max SPL per unit. Constructed in solid Polipropilene reinforced with an internal anti-vibration structure, DVA MINI features a new fast-lock mechanic design: users simply place one module below the other and slide it towards one side until it locks in place. Moreover, every DVA MINI module has a back mechanic with incremental steps allowing different line array positioning angles.

TECHNOLOGIES

Digipro® G3System of digital amplification engineered by dBTechnologies. Based on the previous Digipro projects, completely re-designed, lighter in weight and more efficient, new Heatsink, newest components which maximize the power with a lower consumption.

Neodymium TransducersNeodymium is a metal belonging to the family of the “rare earth”, a particular material which creates a powerful magnetic field once charged. This material, used in acoustic transducers, possesses a far superior magnetic power compared to the classical ferrite which allows its dimensions to be reduced, favoring its weight and space capacity.

Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.

PSU with auto-rangeIt's a power supply which allows everybody in the world to use the speaker at any power voltage thanks to the auto-adjustment technology: the internal switch automatically detect the voltage and changes from 110/120v to 230/240v.

SMPSAn SMPS is an electronic power supply that uses high-frequency switching and control circuits to convert electrical power efficiently. It transforms input voltage (AC or DC) to a regulated output voltage with minimal energy loss. Commonly used for its high efficiency, small size, and lightweight design.

Product code: 1030700030

Technical Data

Speaker Type M2M

2-Way Active Master Line Array Module

Speaker Type M2S

2-Way Slave Line Array Module

Acoustical data

Frequency Response [-6dB]

78 - 19.000 Hz

Frequency Response [-10dB]

68 - 20.000 Hz

Max SPL

126 dB per unit

2x1"

Type HF

Neodymium

Voice Coil HF

2x6.5"

Type LF

Neodymium

Voice Coil LF

1.5"

Directivity

90x15°

Amplifier

Amp Technology

Digipro® G3

Amp Class

Class D

RMS Power HF Amp

200 W (100 W + 100 W)

RMS Power LF Amp

200 W (100 W + 100 W)

Cooling

Convection

Processor

Controller

DSP 56 bit

AD/DA Converter

24 bit/48 kHz

System Presets

9 presets (8x HF and Low-Mid corrections and 1x for service use)

Limiter

Multiband, RMS/Peak, Thermal

Crossover Frequency LF-HF

1800 Hz

Slope LF-HF

24 dB/Octave

Input

Signal Input

1x XLR fem, Bal.

Signal Output

1x XLR male, Bal.

Power Supply

400W SMPS with PSU Auto-range (110V~ and 220V~)

Power Socket

1x PowerCon In 1x PowerCon Out

Signal Input M2S

1 Custom connector

Mechanics

Housing

Polypropylen PP

Handles

2x back side

Fittings

Integrated hardware with fast lock mechanics

Splay Angles

0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°

Width

460 mm (18.1 in)

Height

190 mm (7.5 in)

Depth

345 mm (13.6 in)

Weight M2M

7.6 kg (16.8 lbs)

Weight M2S

7.1 kg (15.7 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
