VIO S318

Subwoofers
Back to gallery
Subwoofers
1300 mm 520 mm 800 mm

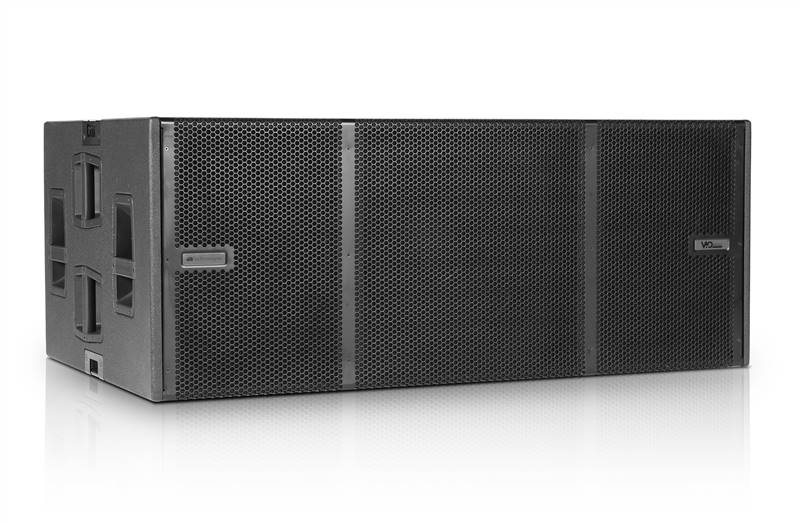

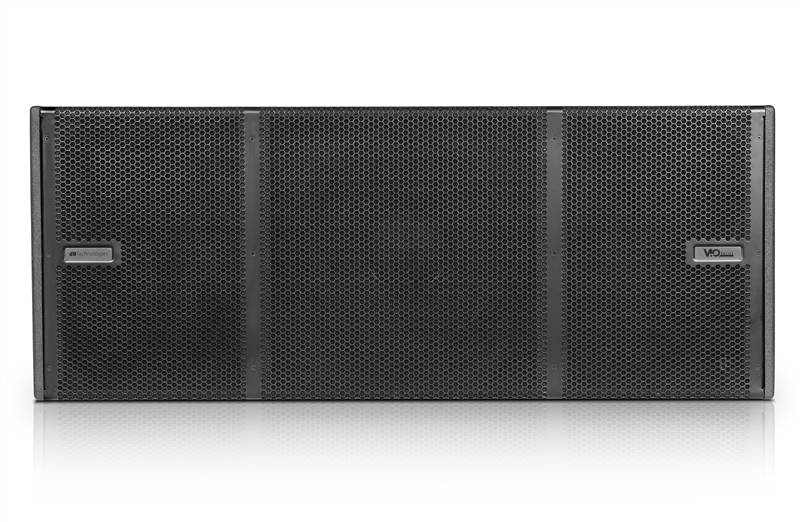

ACTIVE SEMI-HORN-LOADED SUBWOOFER

2700W RMS DIGIPRO® G3 AMPLIFIER

143 dB MAX SPL

USABLE BANDWIDTH [- 6 dB]: 39 Hz to cut frequency

LF: 3 x 18”, 4” v.c. - NEODYMIUM

WEIGHT: 103.9Kg (229.06 lbs)

Sales & Rental Network

THE FIRST VIO COMPLEMENT FOR LOW FREQUENCIES

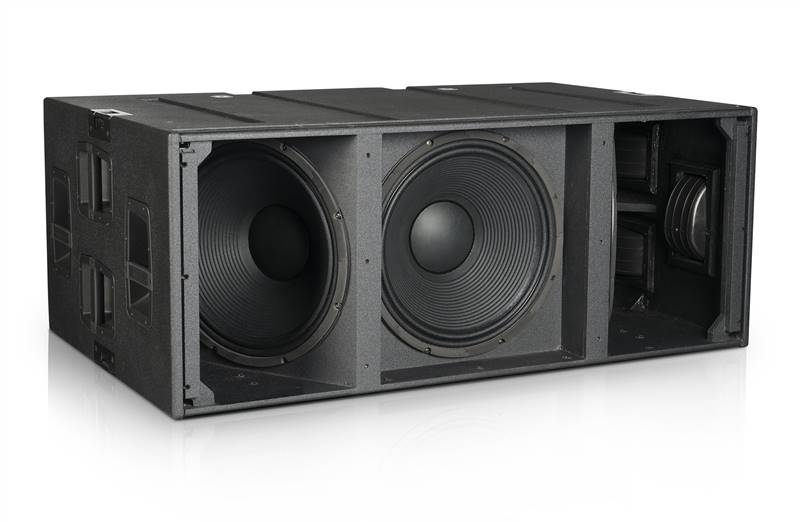

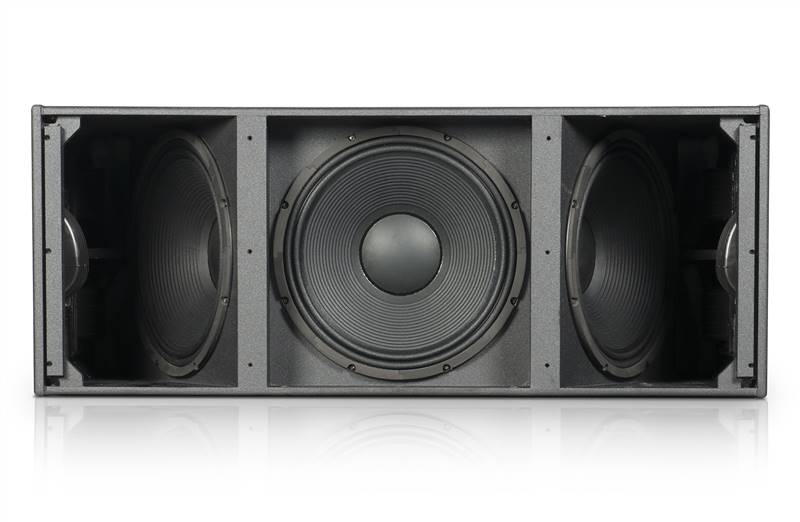

VIO S318 is equipped with three 18” bassreflex half-horn loaded woofers, configured in order to maximize frontal emission. The 3 voice coils are in facts mechanically aligned in order to achieve a perfect phase response. The 3 DIGIPRO G3 amplifiers deliver a total 2700 W RMS power, allowing the system to reach up to 143dB SPL.

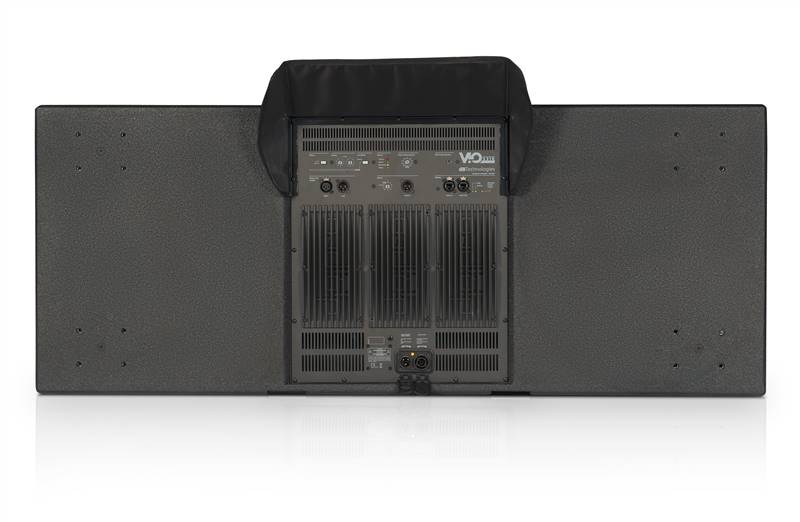

The system features an integrated delay module achieving up to 9.9 ms delay with 0,5 ms steps. The crossover module sets the low pass filter alongside with the highpass filter for the integrated crossover output. The system also features an attenuation control, a polarity switch and a RDNet port for remote control.

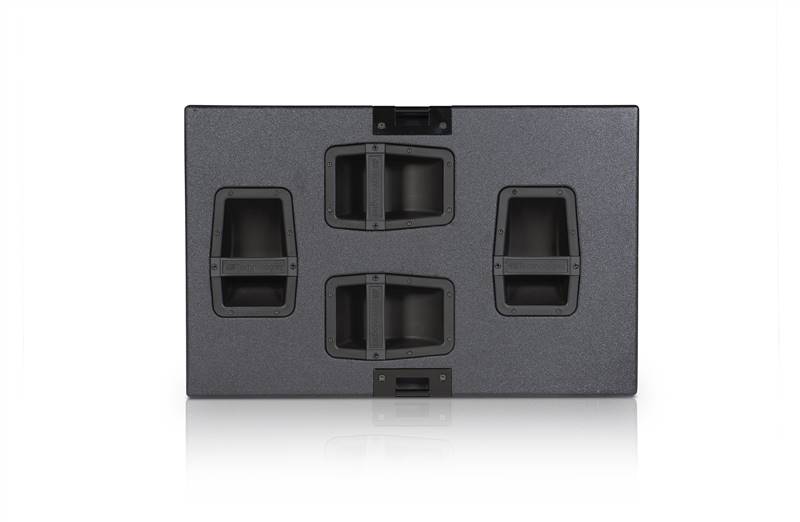

The high quality multiplex housing is reinforced with a robust polyurea finishing and equipped with 5 aluminium handles per side.

The dolly transport DO-VIOS318 allows to transport up to 3 subs simultaneously, both on wheels or on lift track. As an alternative to the dolly, wheels can be mounted on the rear side of the cabinet.

Read More

TECHNOLOGIES

Aurora Net
Aurora NetThis product is fully-compatible with Aurora Net software
Digipro® G3
Digipro® G3System of digital amplification engineered by dBTechnologies. Based on the previous Digipro projects, completely re-designed, lighter in weight and more efficient, new Heatsink, newest components which maximize the power with a lower consumption.
EASE Focus
EASE FocusEASE Focus makes configuring a DVA or VIO system so much easier as this software simulates the system in the virtual realm. It can depict several audience target zones at the same time to map out more intricate venues including different coverage areas such as arenas, bleachers, and balconies. Color 2D graphics provide an easily understandable view of throw patterns and sound pressure levels so you can configure the array for the best possible results. It also offers you easy access to key rigging parameters such as the height of the rigging frame, the choice of pick points, the array’s bend, total weight, and system preset selections.
Opto-isolated Preamp
Opto-isolated PreampThe floating audio input design grants a digital optical isolation between earth ground from the mains and the audio ground flowing into the Preamplifier board.This galvanic isolation greatly improves resistance to interferences and any unwanted buzzing and noises.
RDNet
RDNetDigital net for bi-directional control of connected devices. The acronym RDNet originates from the development, on behalf of RCF and dBTechnologies, of a universal network which allows adjustments in real time and supervision of all the connected systems, using cables based on ethernet cat 5 wires. With the specific software and the interfaces control 2 and control 8, a complete command of the acoustic system will be possible allowing real time supervision on each electrical component of the various speakers. RDNet allows you to monitor levels, limiters, and temperatures, select system presets, configure setups off-line, Mute units, Group modules and assigning group EQ, delay and phase, test individual components, automatically address system components, tap into LAN and USB interfaces, extend the network via wireless LAN access points.
System Test
System TestA built-in measurement system can read the transducers impedance in real time and provide an instant feedback on the health of your system.This controls is performed constantly or it can be forced by the user at any time, remotely or from the amplifier panel.
USB Data Port
USB Data PortThanks to this universal data port, the user will be able to perform firmware upgrades
Product code: 1030102443
Technical Data
Speaker Type
Active Bassreflex Semi-Horn-Loaded Subwoofer
Acoustical data
Frequency Response [- 6 dB]
39 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]
35 Hz (HPF)
Max SPL
143 dB
LF
3x18"
Voice Coil LF
4 "
Directivity
Omnidirectional
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power
2700 W
Peak Power
5400 W
Cooling
Convection
Power Supply
2700 W SMPS with Auto Range PSU
Processor
Controller
DSP 32 bit
AD/DA Converter
24 bit/96 KHz
Limiter
RMS, Peak, Thermal
Delay Option
0-9.9 ms internal
Steps of 0.1 ms
Crossover Frequency LF-HF
70-105Hz + Full range
LF-Xover out slope
24 dB/Octave
Input
Signal Input
1xXLR balanced
1xRJ45 LINK (RDNet)
Signal Output
1x XLR balanced
1xRJ45 LINK (RDNet)
Power Socket
1xPowerCON TRUE1 IN
1xPowerCON TRUE1 OUT
Controls
1x Input Attenuation Rotary Switch
2x Rotary Encoder (Delay 9.9 ms)
1XPolarity Inversion Switch (0° or 180°)

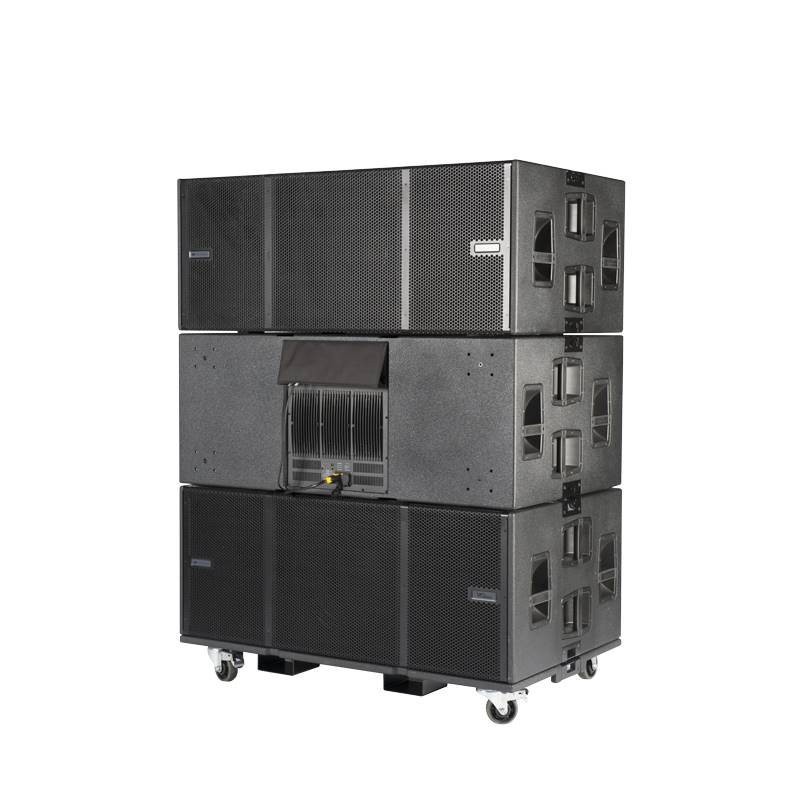

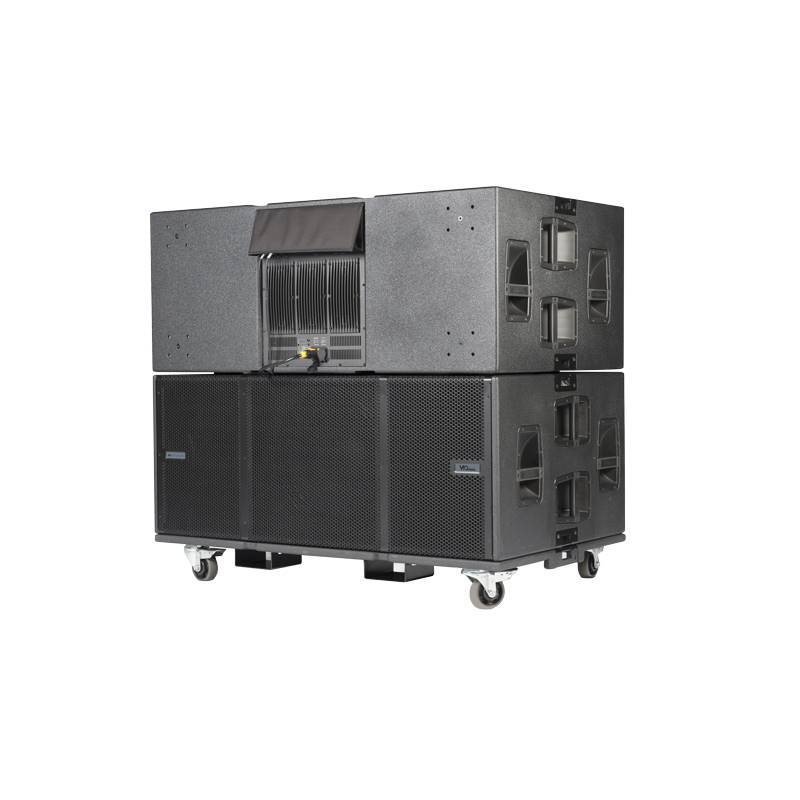

1xCardioid Mode Switch
1x X-Over Freq Switch (70-105 Hz + Full Range (steps of 5 Hz)
Mechanics
Housing
Multiplex plywood
Polyurea painted
Handles
4x Per Side
Aluminium
Raincover
Included
Rigging Points
2xPick Points on top to fix DRK-210 rigging frame
Width
1300 mm (51.18 in)
Height
520 mm (20.47 in)
Depth
800 mm (31.5 in)
Weight
103.9 kg (229.06 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
