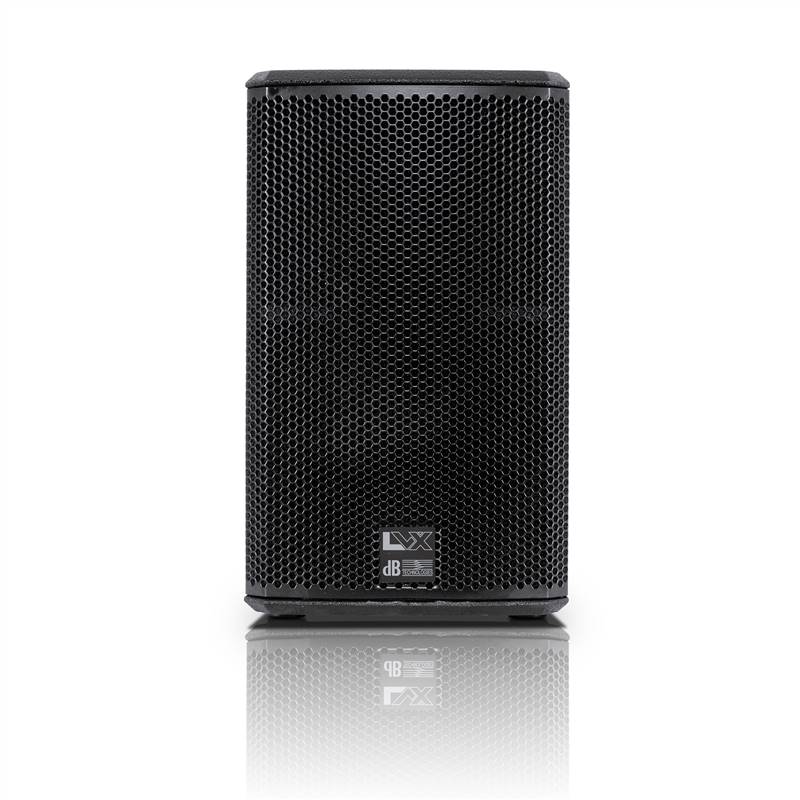

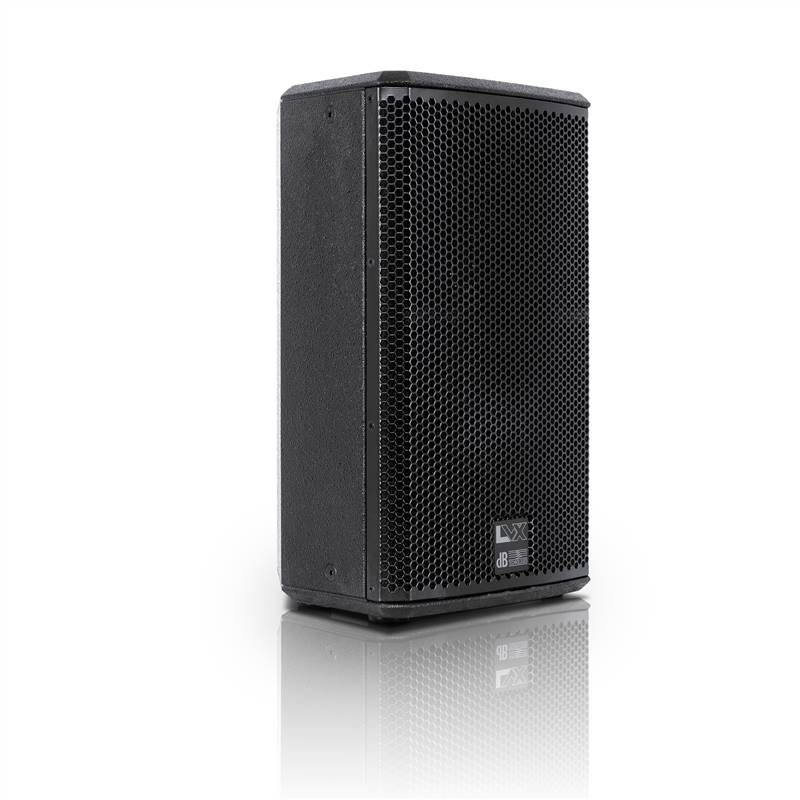

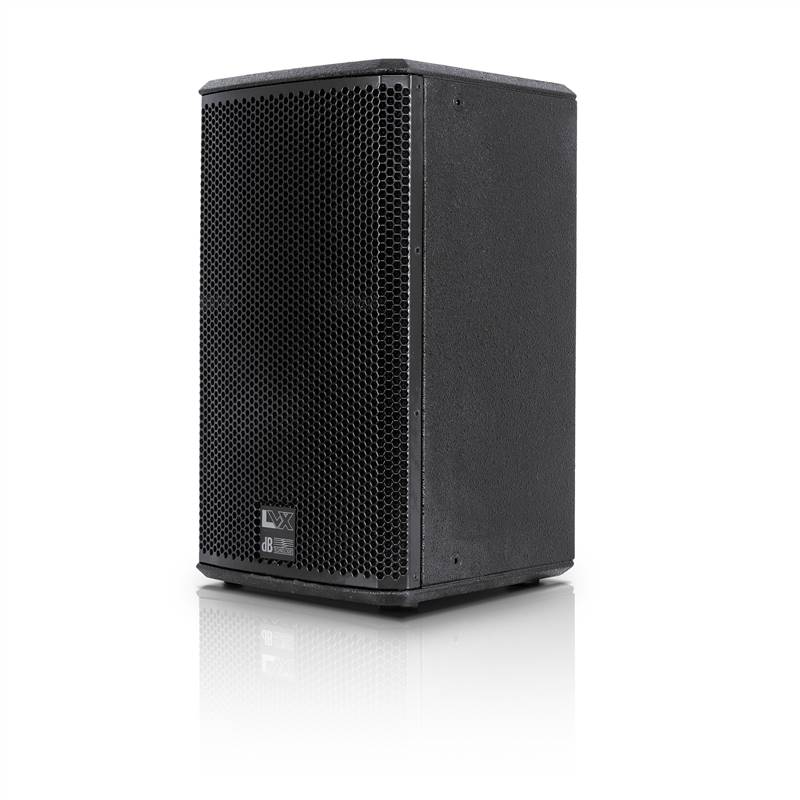

LVX 10

Point Sources
Back to gallery
Point Sources
503 mm 300 mm 300 mm

2-WAY ACTIVE SPEAKER

400 W PRG CLASS-D DIGIPRO® G2

MAX SPL 125 dB

FREQUENCY RESPONSE [-6dB]: 70 - 19.000 Hz

HF: 1x 1”, 1" v.c.

LF: 1x 10”, 2" v.c.

WEIGHT: 13.5 kg (29.76 lbs)

Sales & Rental Network

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance.  The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.

The enclosure is made of robust 12mm plywood with a look very elegant and refined.

LVX 10 is provided with a single top handle to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods

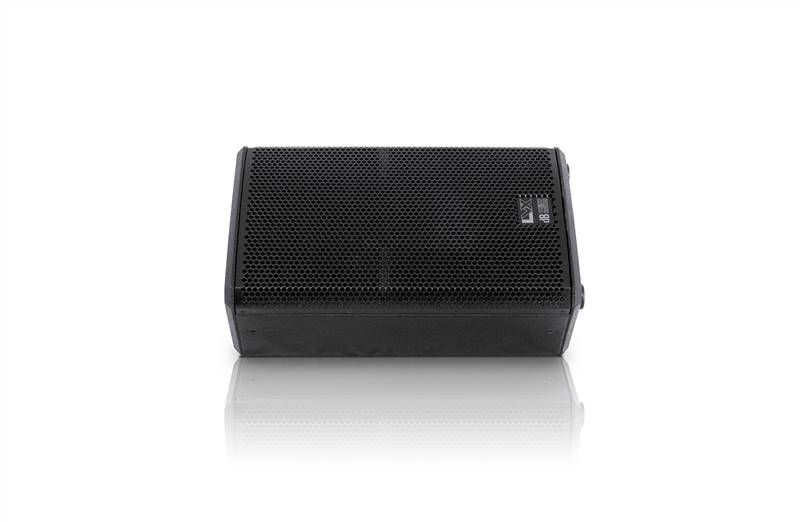

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

Read More

TECHNOLOGIES

Multifunctional Housing
Multifunctional HousingA multifunctional housing offers many placement options, for instance as a floor monitor, satellite speaker in combination with subwoofers or as a fullrange system on pole mounts.
Preset System
Preset SystemThe opportunity of modifying the character and equalization of a speaker is a very important prerogative in adapting a speaker to multiple functions. The introduction of the Preset System enables to choose directly from the box the most adeguate equalization for the desired use, optimizing performances without the need of external processors. The management of phase, limiter and x-over will be modified automatically depending on the chosen set-up, preserving the internal acoustic equipment.
Rotatable Horn
Rotatable HornSpecially designed, rotatable high-frequency horns provide very clean and constant directivity. By rotating the horn, the directivity of high frequencies can be adjusted, depending on the cabinet being assembled horizontally or vertically. A great and professional feature for fixed installation purposes or when a multifunctional speaker is used as stage monitor.
SMPS
SMPSAn SMPS is an electronic power supply that uses high-frequency switching and control circuits to convert electrical power efficiently. It transforms input voltage (AC or DC) to a regulated output voltage with minimal energy loss. Commonly used for its high efficiency, small size, and lightweight design.
Product code: 1030102200C
Technical Data
Speaker Type
2-Way Active Speaker

Acoustical data
Frequency Response [-10dB]
60 - 20.000 Hz

Frequency Response [-6dB]
70 - 19.000 Hz

Max SPL
125 dB

HF
1"

Directivity
90 x 70°

Horn
Rotatable CD Horn

LF
10"

Amplifier
Amp Technology
Digipro® G2

Amp Class
Class-D

Peak Power
800 W

PRG Power
400 W

Processor
Controller
DSP 24bit/48kHz

System Presets
Flat, Processed

Limiter
Dual Active Peak, RMS, Thermal

Crossover Frequency LF-HF
2050 Hz

Slope LF-HF
24 dB/Octave

Mechanics
Housing
MDF

Angles Up
Monitor use 40°

Handles
1x top side

Rigging points
12 x M8

Pole Mount
D36 mm

Width
300 mm (11.8 in)

Height
480 mm (18.9 in)

Depth
300 mm (11.8 in)

Weight
13.5 kg (29.76 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
Filename: Category: Filetype: Size: Language: Release:
DWG_LVX-10 Drawing DWG 0,86 MB English 2015-05-04
CE_LVX-10 Certifications PDF 0,93 MB Italiano 2016-10-25
Datasheet_LVX-10 Data Sheet PDF 0,65 MB English 2015-10-23
Manual_LVX_Rev2.1 Manual PDF 14,85 MB English 2015-10-02
GLL_LVX-10_v1.gll GLL ZIP 13,13 MB English 2016-10-10
